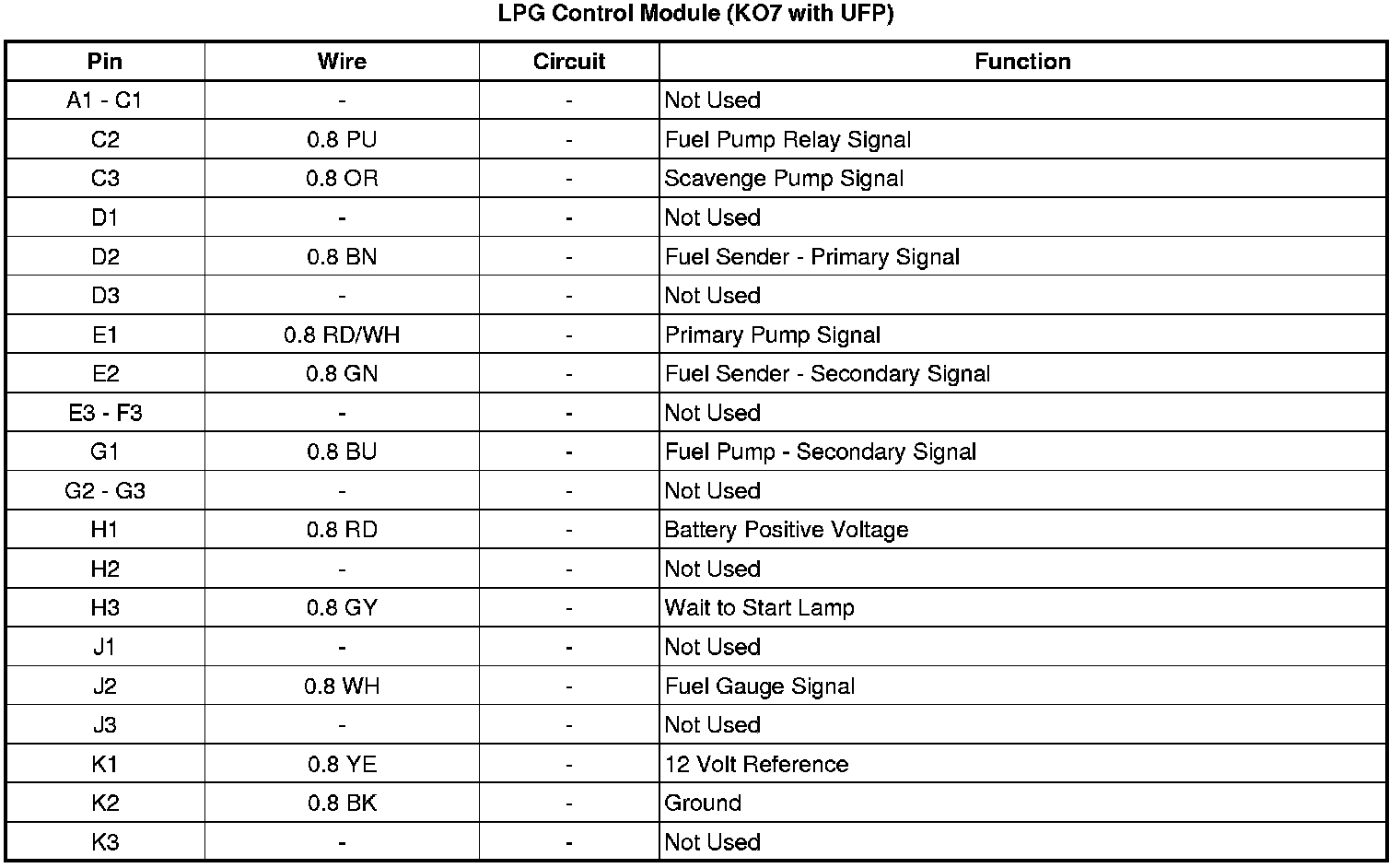

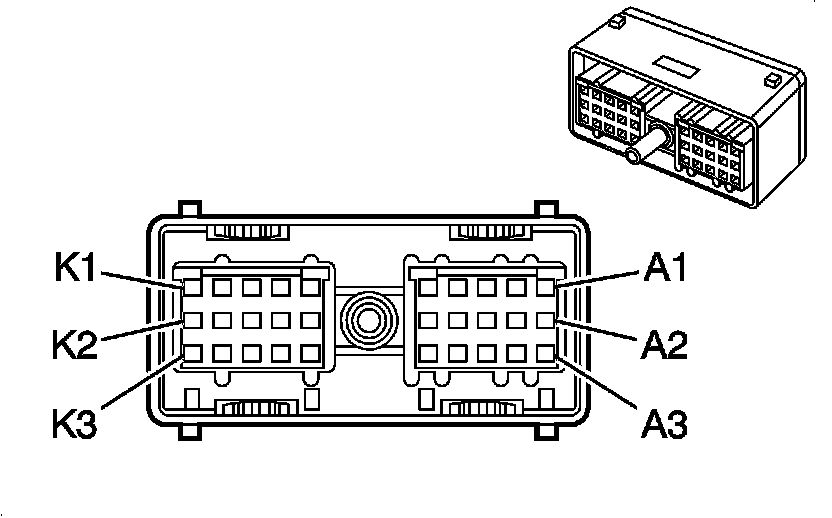

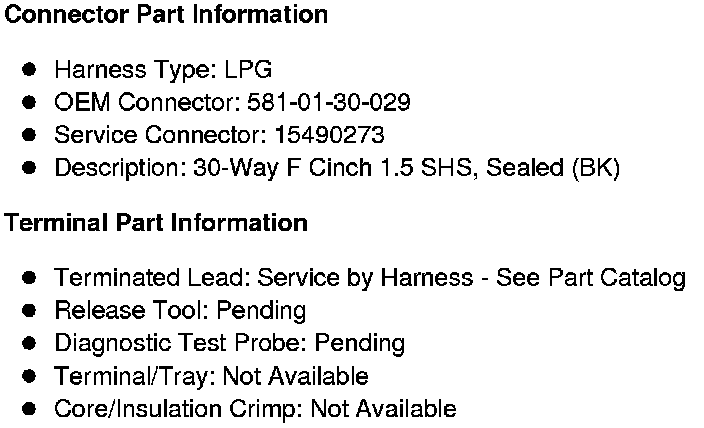

Home >> Chevrolet >> 2012 >> Express 2500 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Alternative Fuel Control Module >> Diagrams >> LPG Control Module (KO7 with UFP)
