Chevrolet
>>
2012
>>
Express 2500 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) (JL4)
Electronic Brake Control Module (EBCM) (JL4)

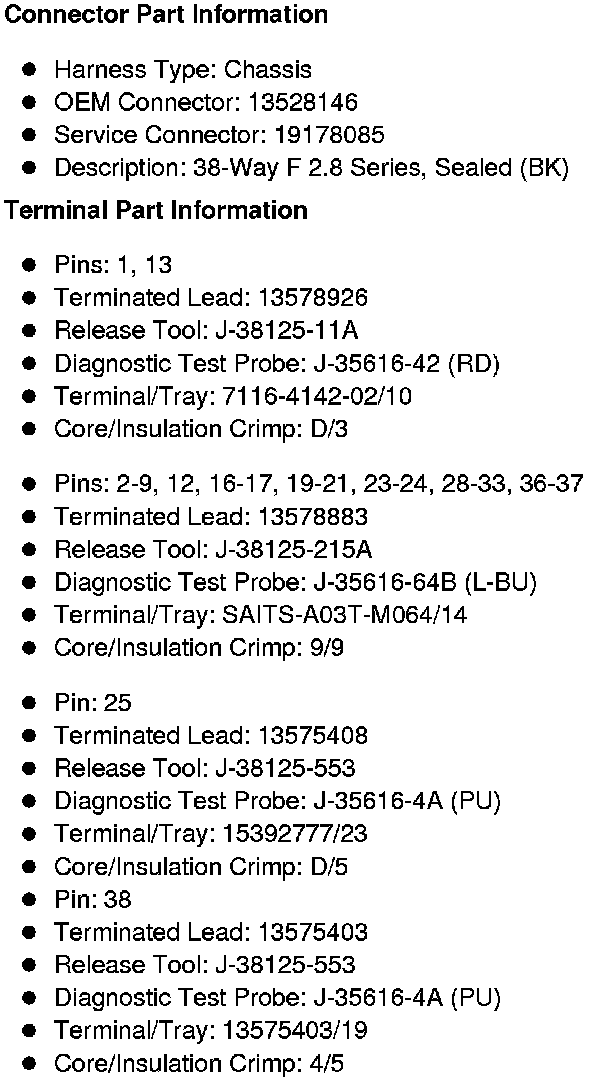

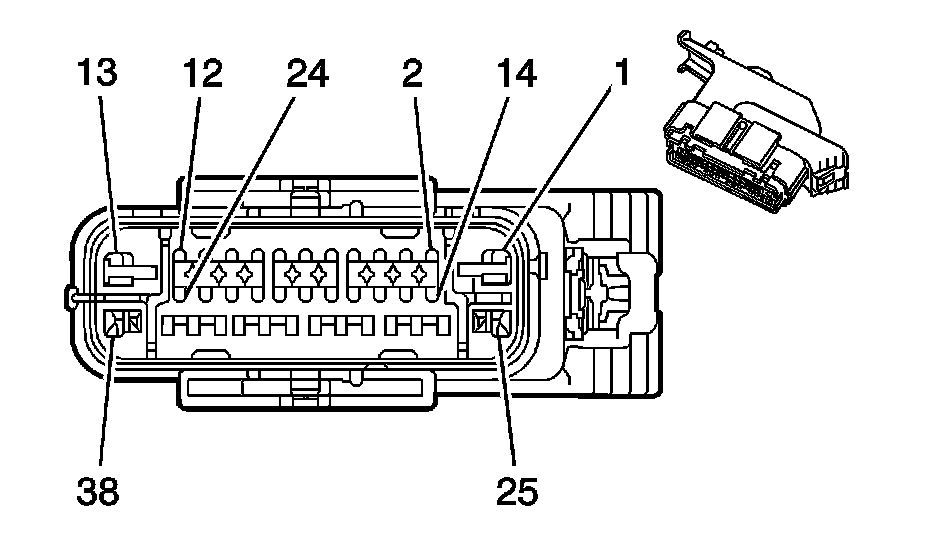

Component Connector End Views
Electronic Brake Control Module
(EBCM) (JL4)
