Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

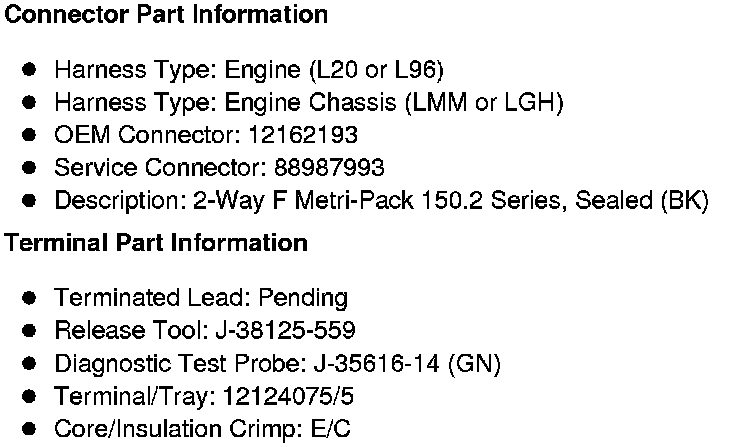

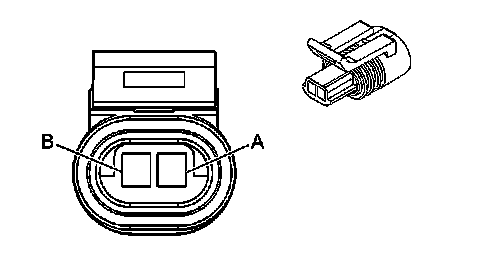

Component Connector End Views

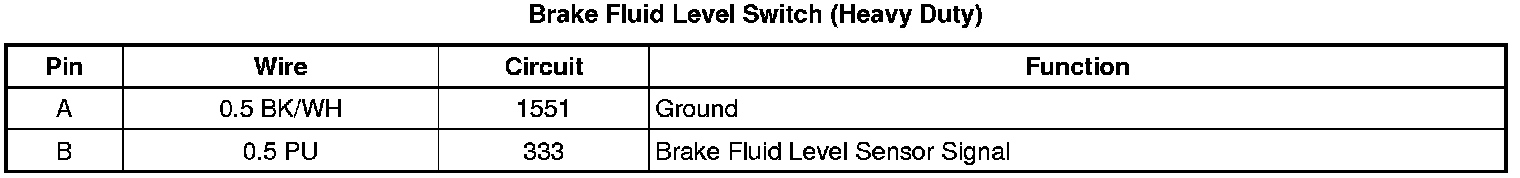

Brake Fluid Level Switch (Heavy Duty)
