Audible Warning Device Control Module
Audible Warning Device Control Module

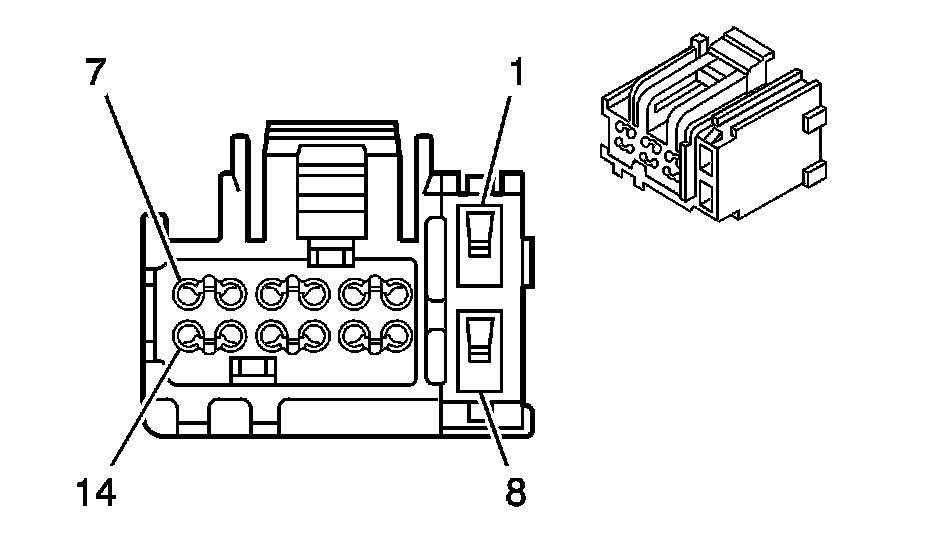

Component Connector End Views

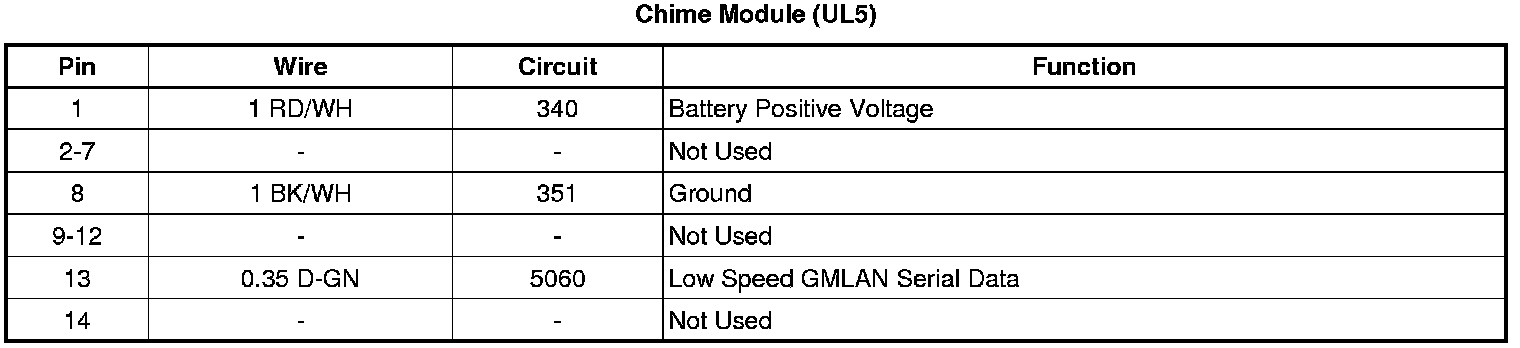

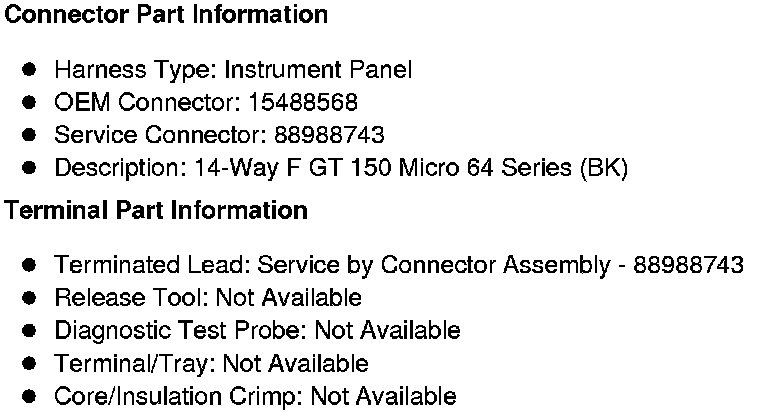

Chime Module (UL5)
