Air Bag Control Module
Air Bag Control Module

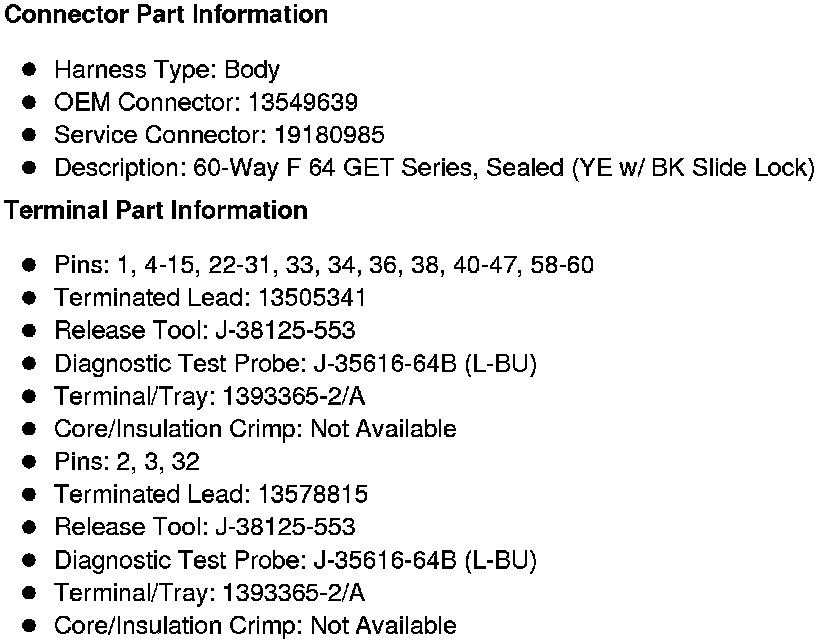

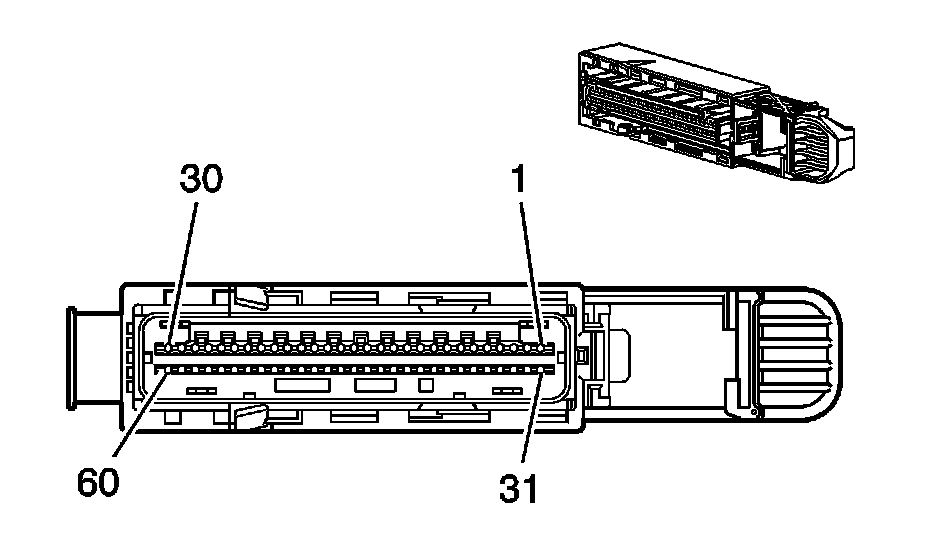

Component Connector End Views

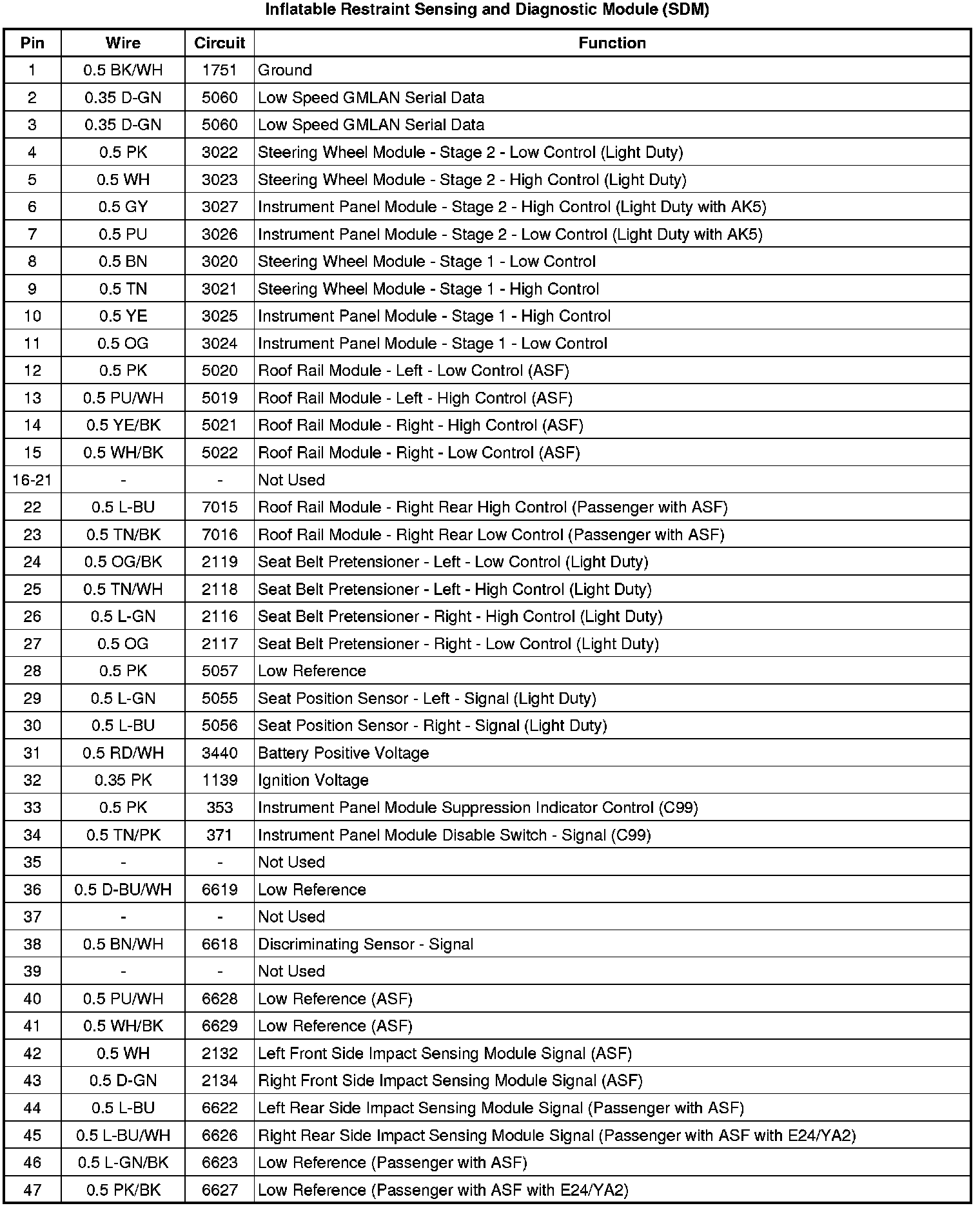

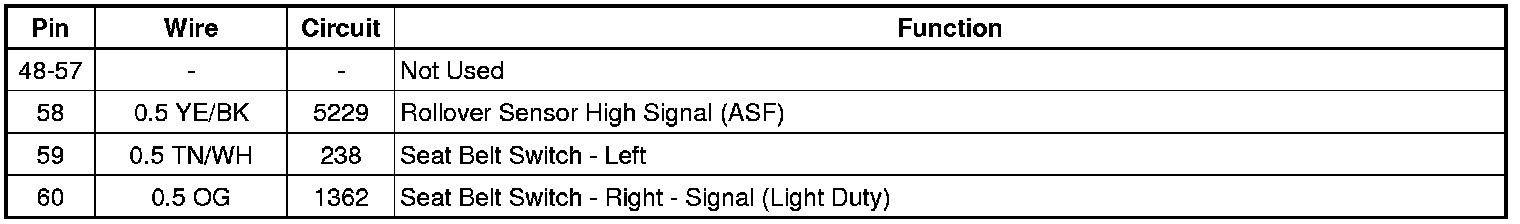

Inflatable Restraint Sensing and Diagnostic Module (SDM)
