Steering Column Position Sensor

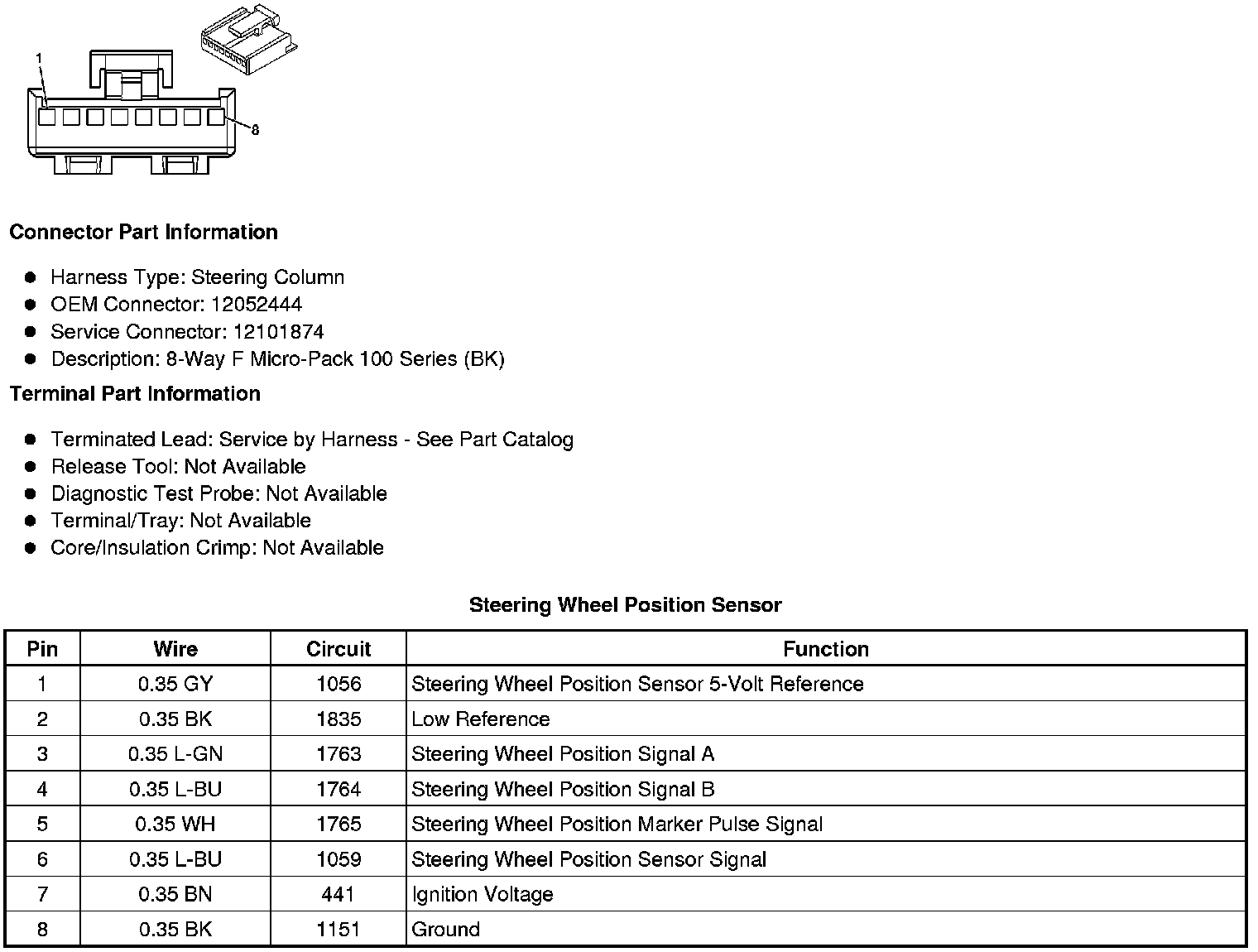

Steering Column Position Sensor
Component Connector End Views
Steering Wheel Position Sensor
