Chevrolet
>>
2012
>>
Colorado 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Heated Seat Control Module - Driver
Heated Seat Control Module - Driver

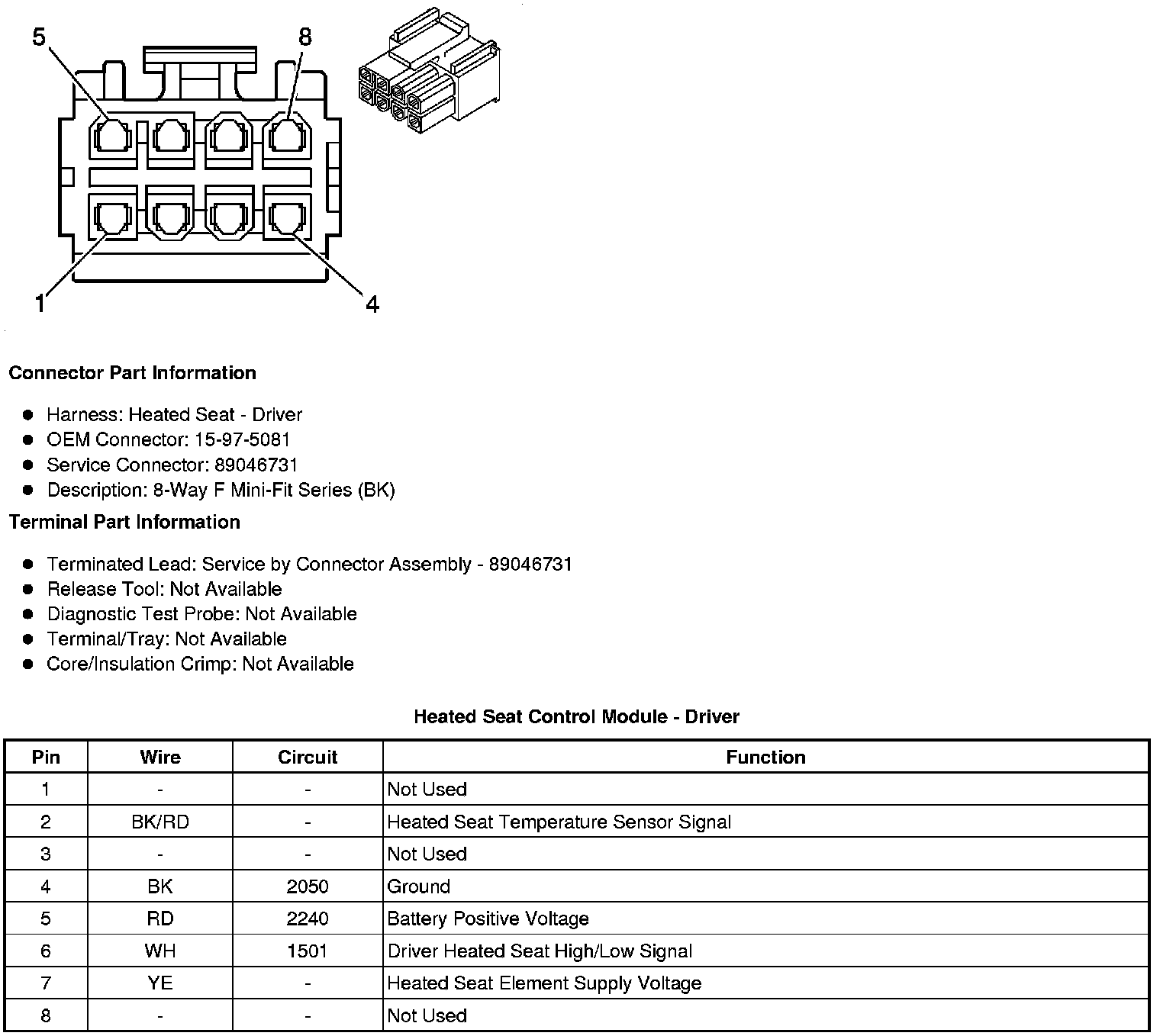

Component Connector End Views
Heated Seat Control Module - Driver
