Entertainment System Control Module
>>
Digital Video Disc (DVD) Control Module X5 (SPO DVD)
Digital Video Disc (DVD) Control Module X5 (SPO DVD)

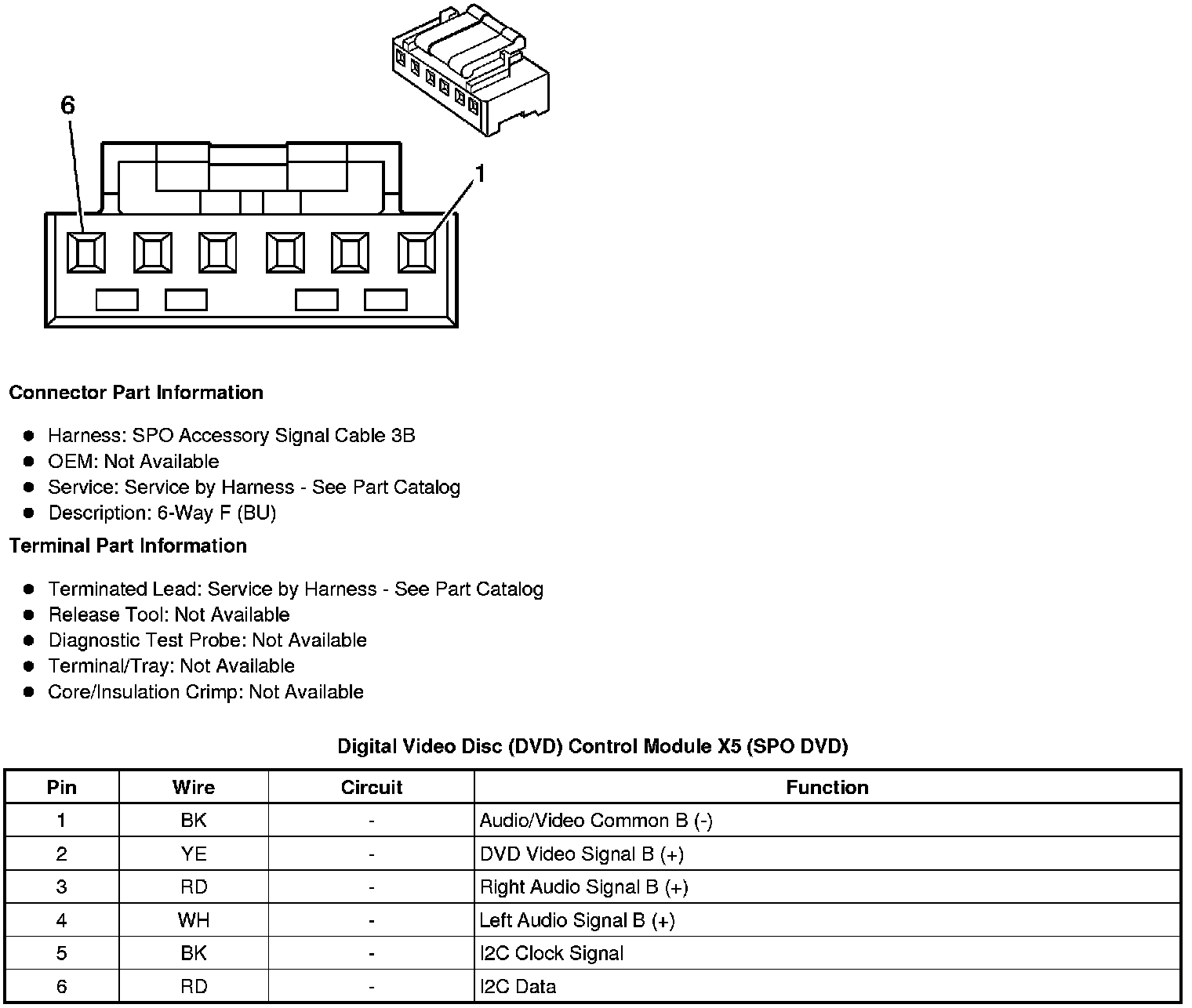

Component Connector End Views
Digital Video Disc (DVD) Control Module X5 (SPO DVD)
