Home
>>
Chevrolet
>>
2012
>>
Colorado 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Component Connector End Views

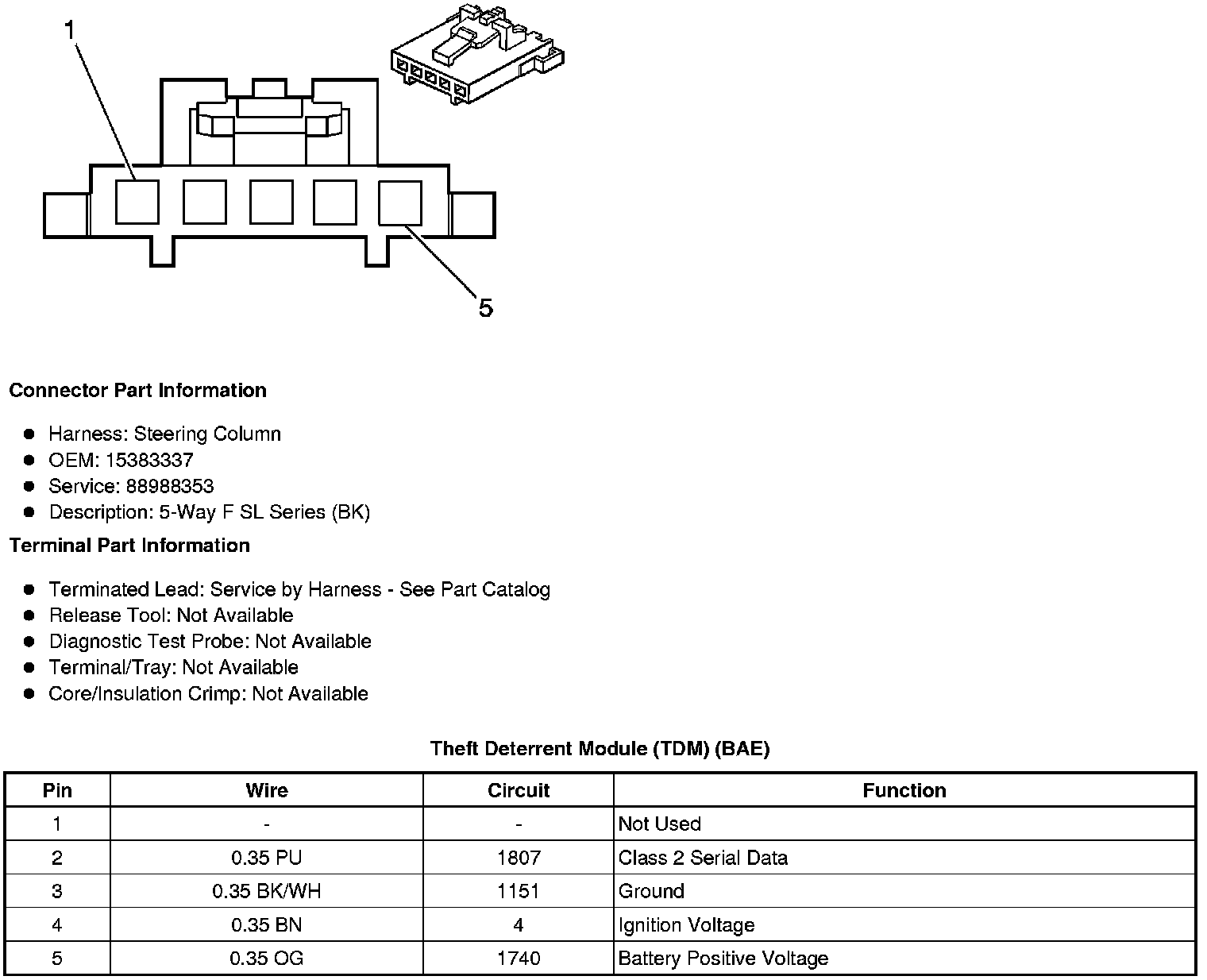

Theft Deterrent Module (TDM) (BAE)
