Front of the Engine Compartment Components




Front of Vehicle/Engine Compartment Component Views

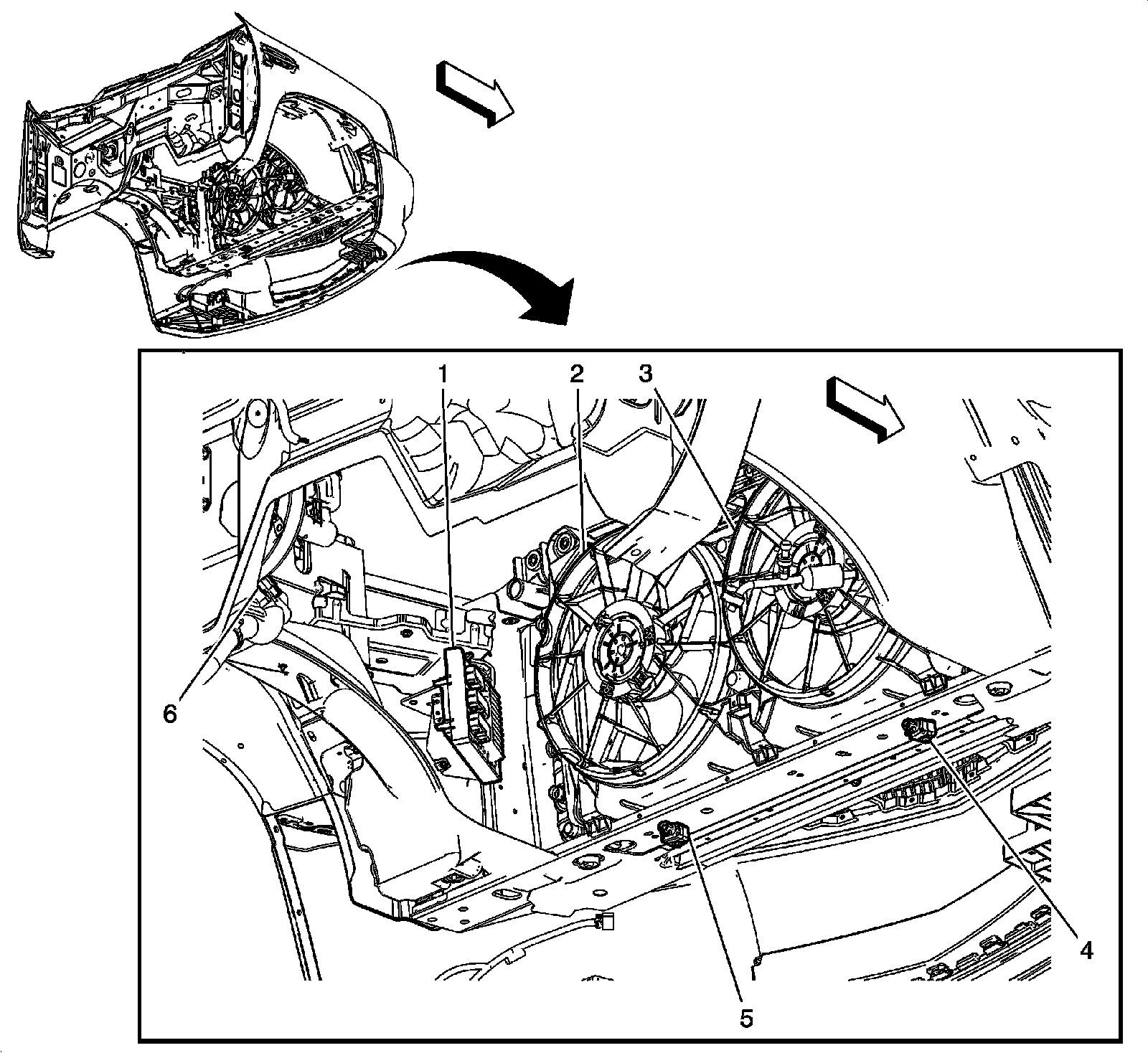

Front of the Engine Compartment Components




1 - Engine Control Module (ECM)
2 - Engine Cooling Fan - Left
3 - Engine Cooling Fan - Right
4 - Inflatable Restraint Front Sensor - Right
5 - Inflatable Restraint Front Sensor - Left
6 - Automatic Level Control (ALC) Relay (Z55)
