Auxiliary Body Control Module (XBCM) X2 (EXP)

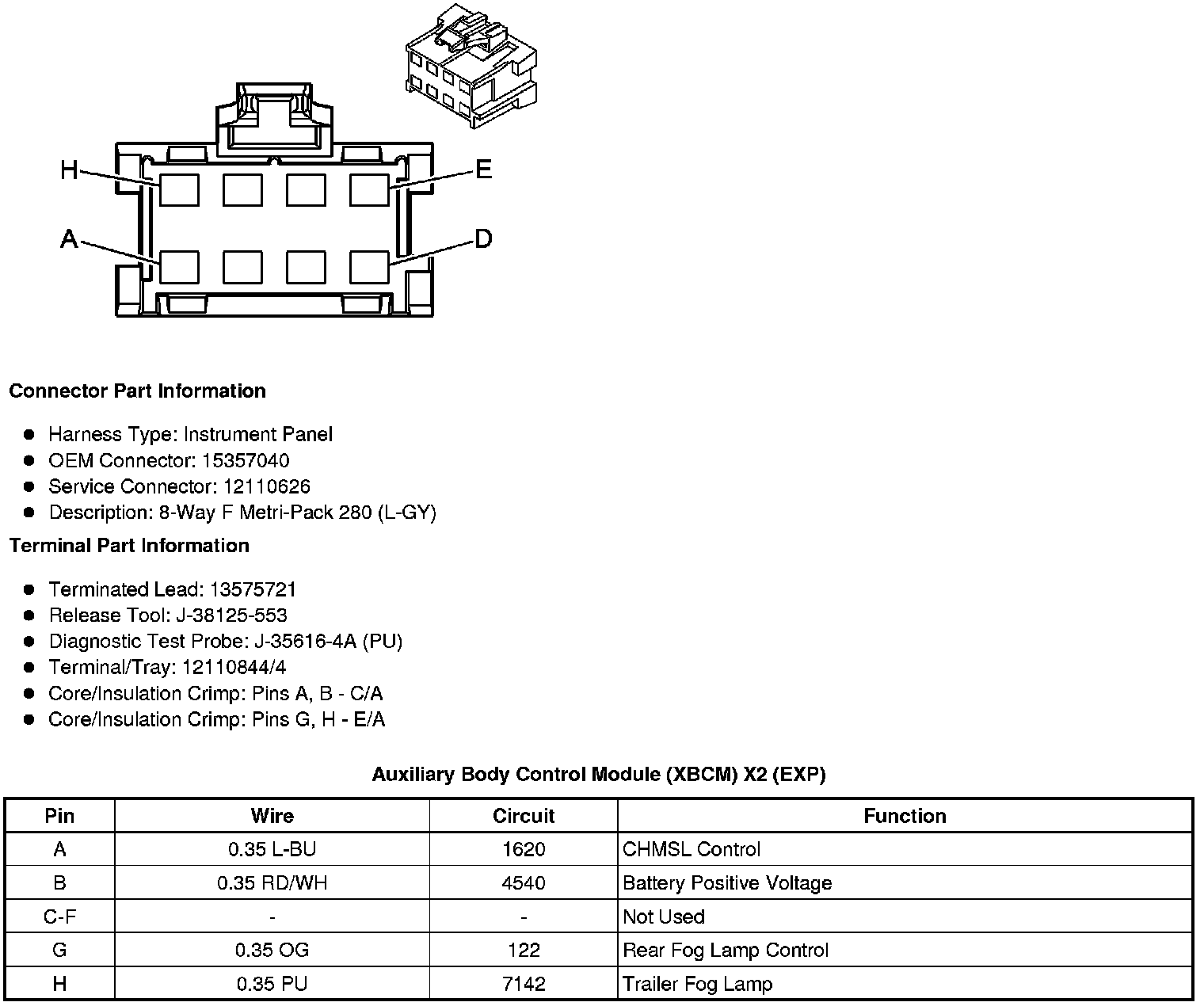

Component Connector End Views

Auxiliary Body Control Module (XBCM) X2 (EXP)
