Fuel Pump Flow Control Module (without JL1)

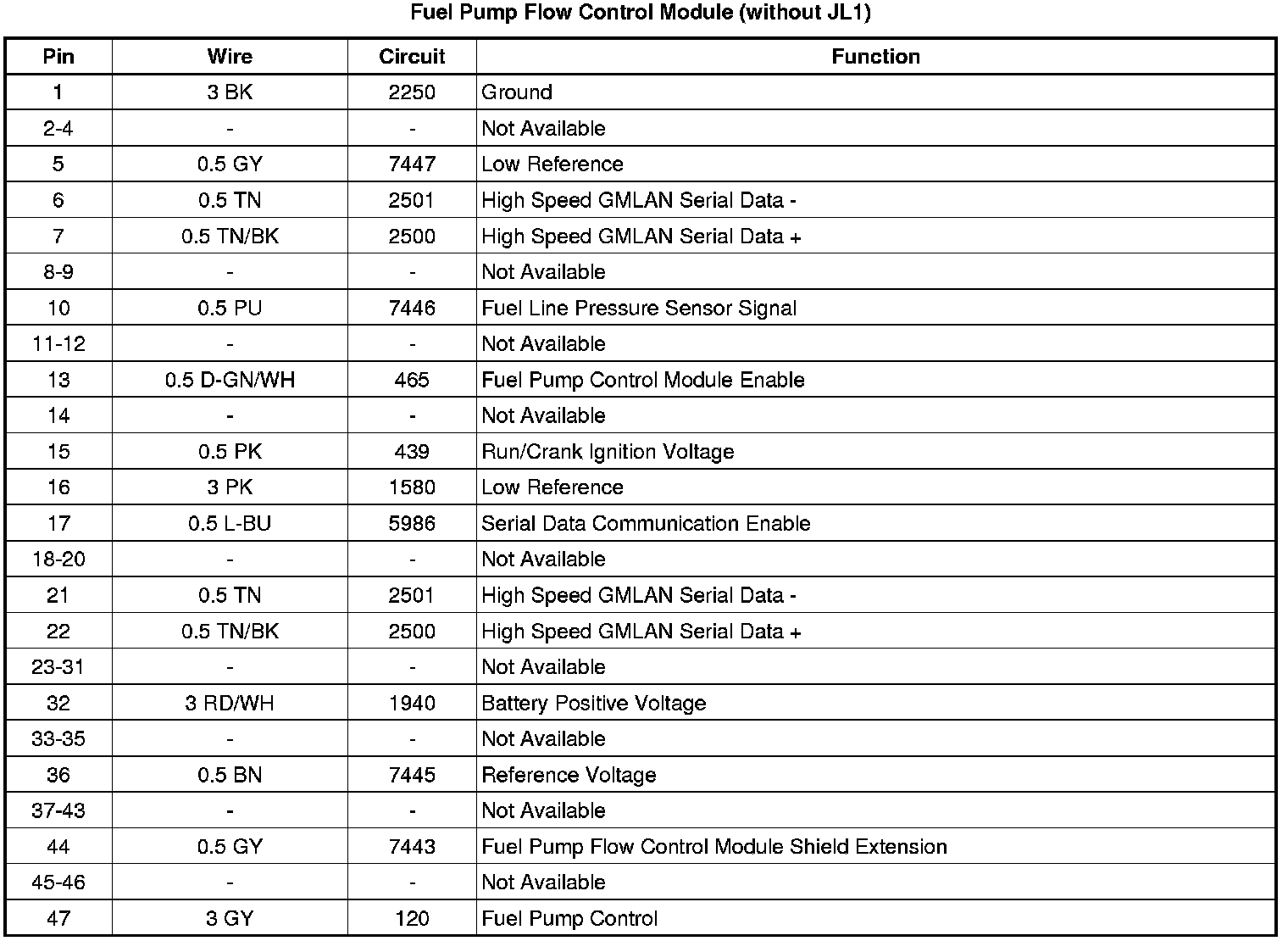

Fuel Pump Flow Control Module (without JL1)

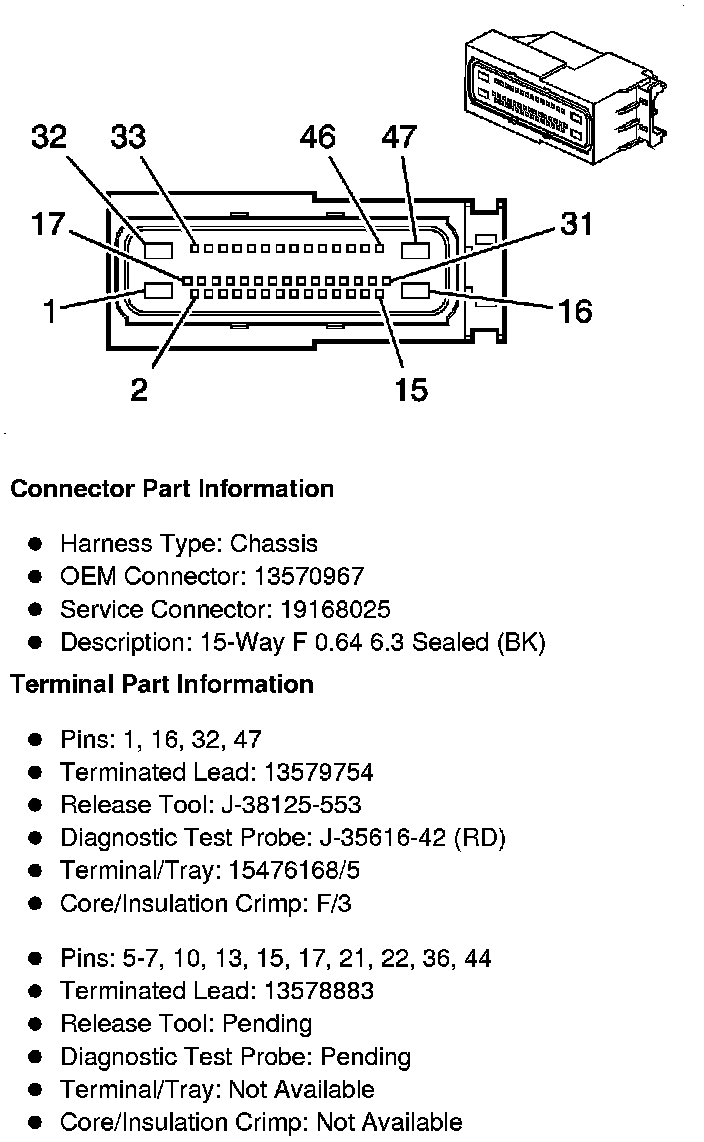

Component Connector End Views
Fuel Pump Flow Control Module (without JL1)
