Engine Control Module (ECM) X1
Engine Control Module (ECM) X1

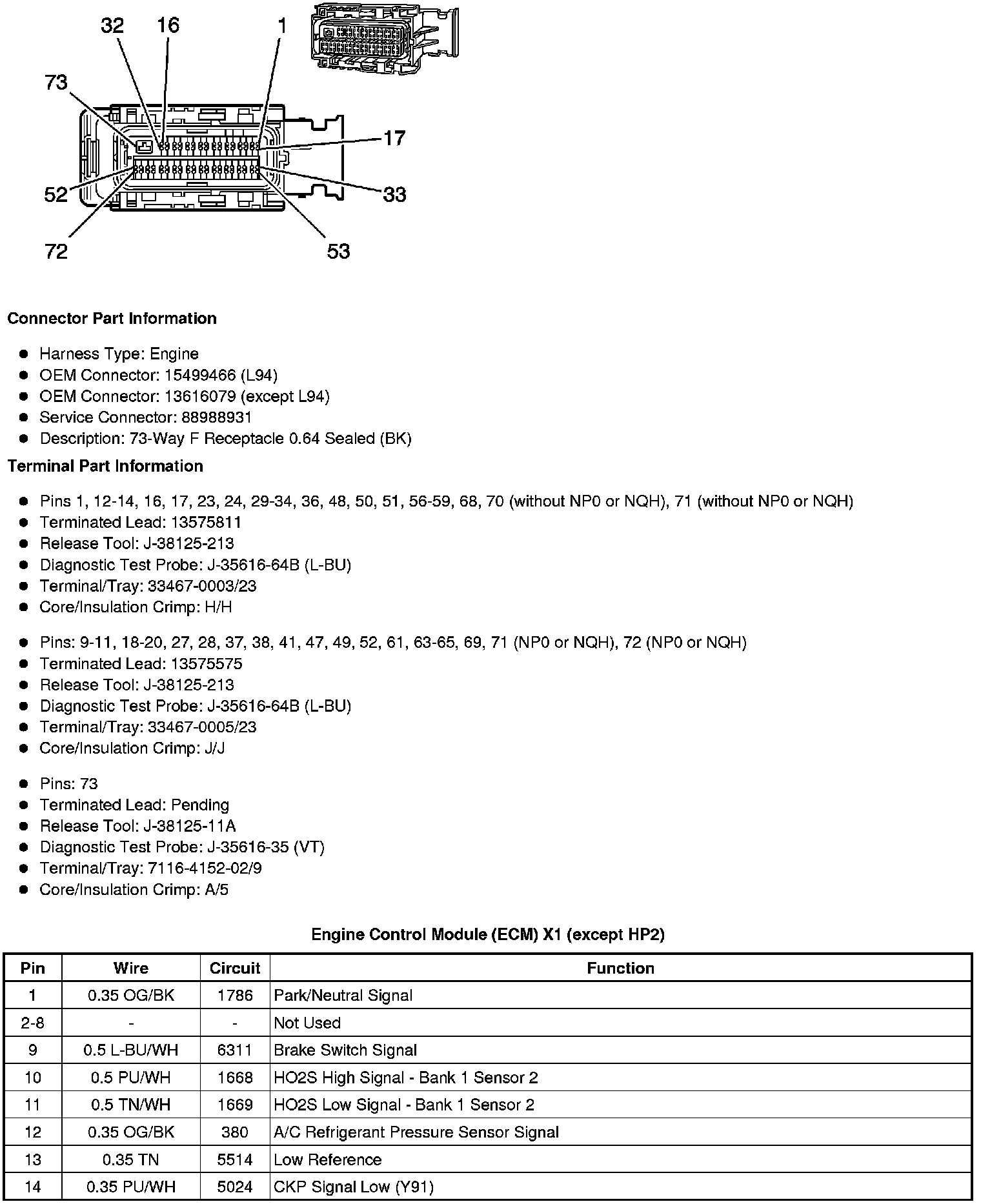

Component Connector End Views

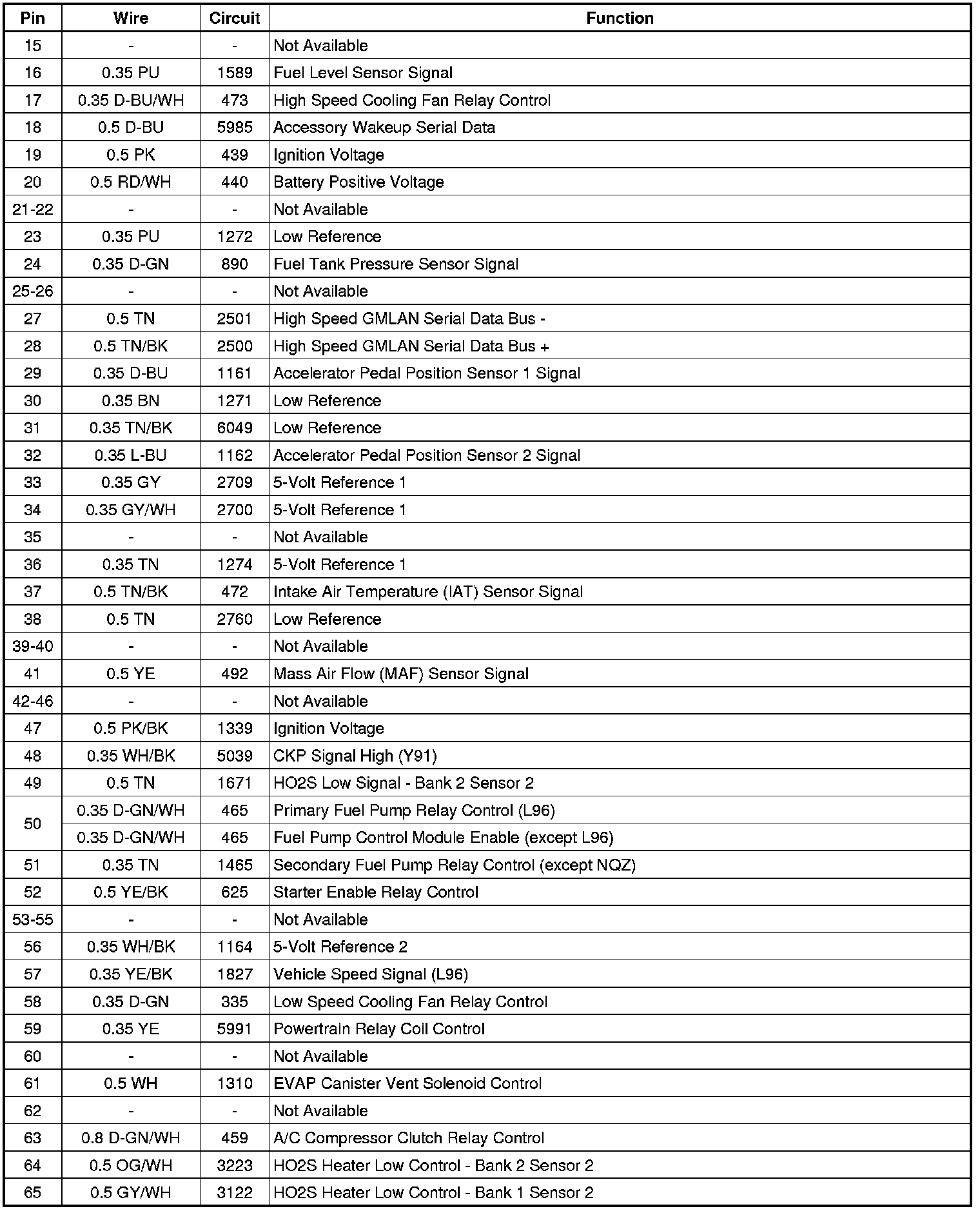

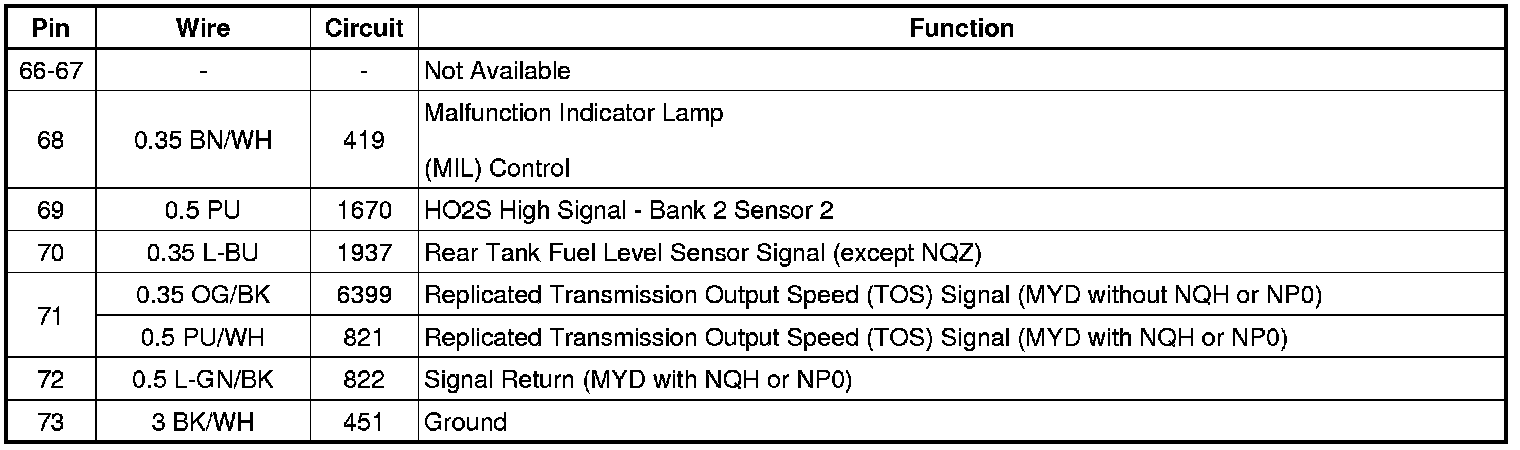

Engine Control Module (ECM) X1 (except HP2)
