Combination Switch
>>

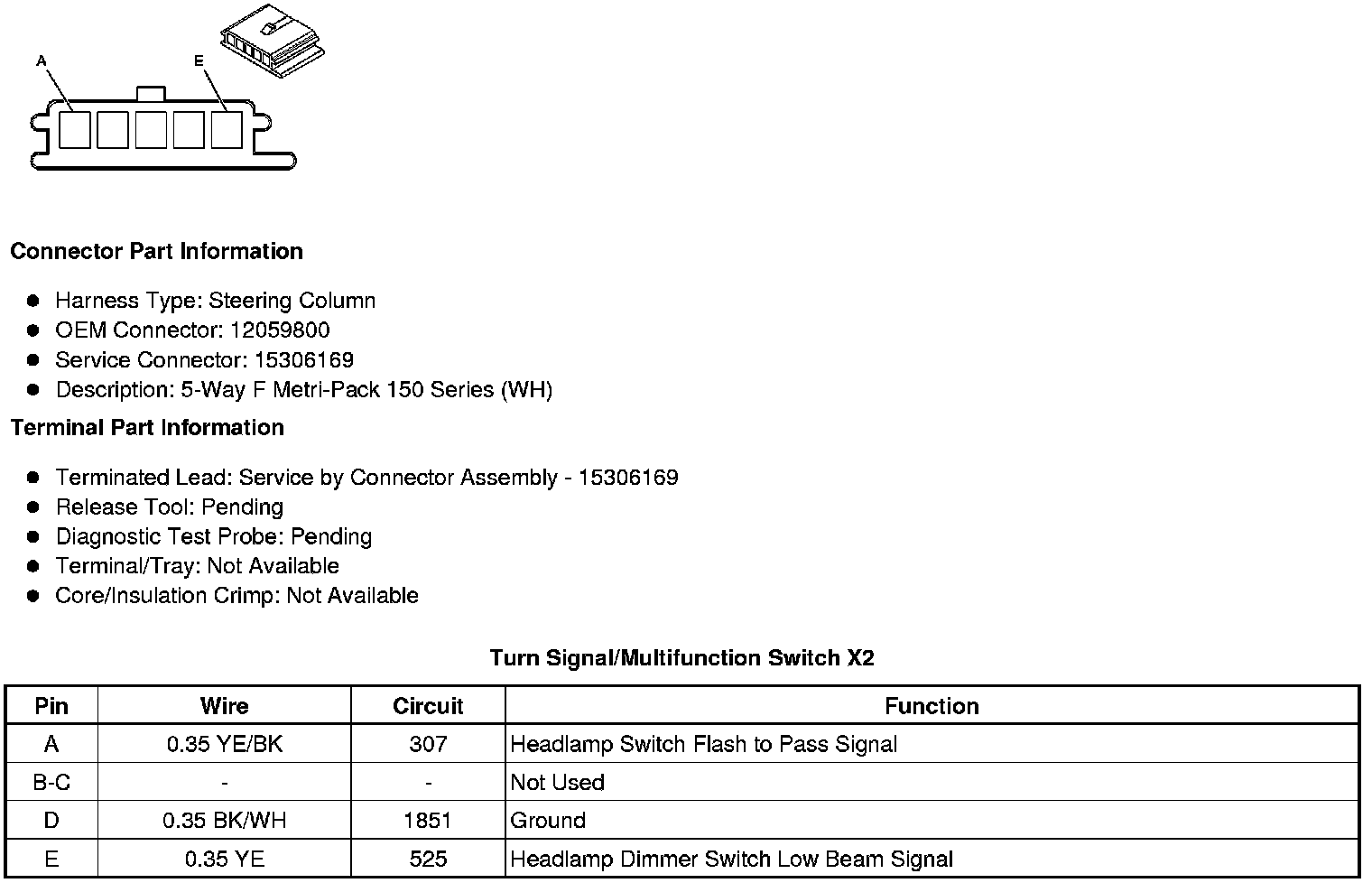

Turn Signal/Multifunction Switch X2
Turn Signal/Multifunction Switch X2
Component Connector End Views
Turn Signal/Multifunction Switch X2
