Engine Compartment Components - Left

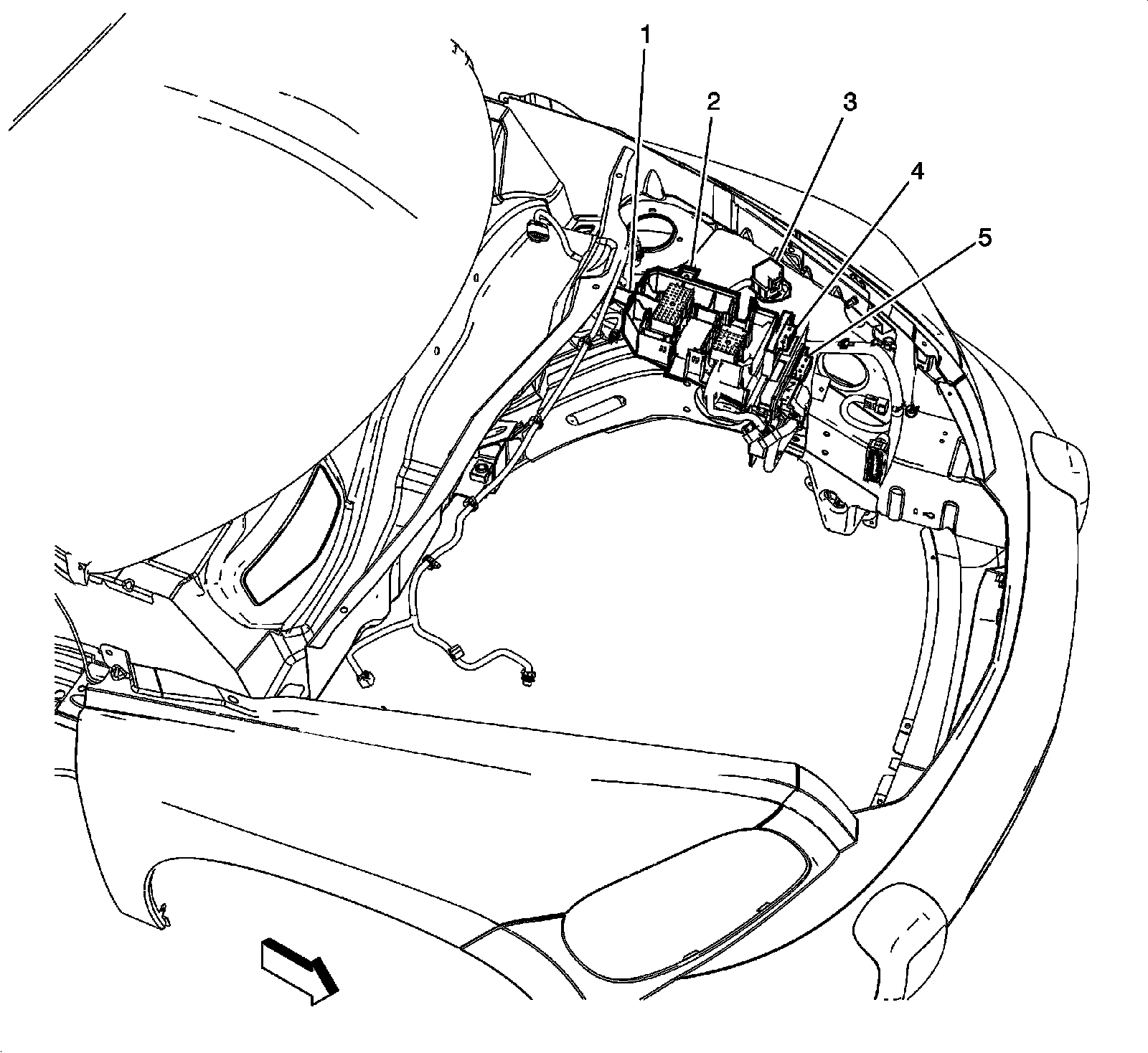

Front of Vehicle/Engine Compartment Component Views

Engine Compartment Components - Left




1 - G109
2 - Fuse Block - Underhood
3 - Relay Block - Underhood
4 - Transmission Control Module (TCM) (MN5)
5 - Engine Control Module (ECM)
