Body Control Module: Diagrams




Component Connector End Views

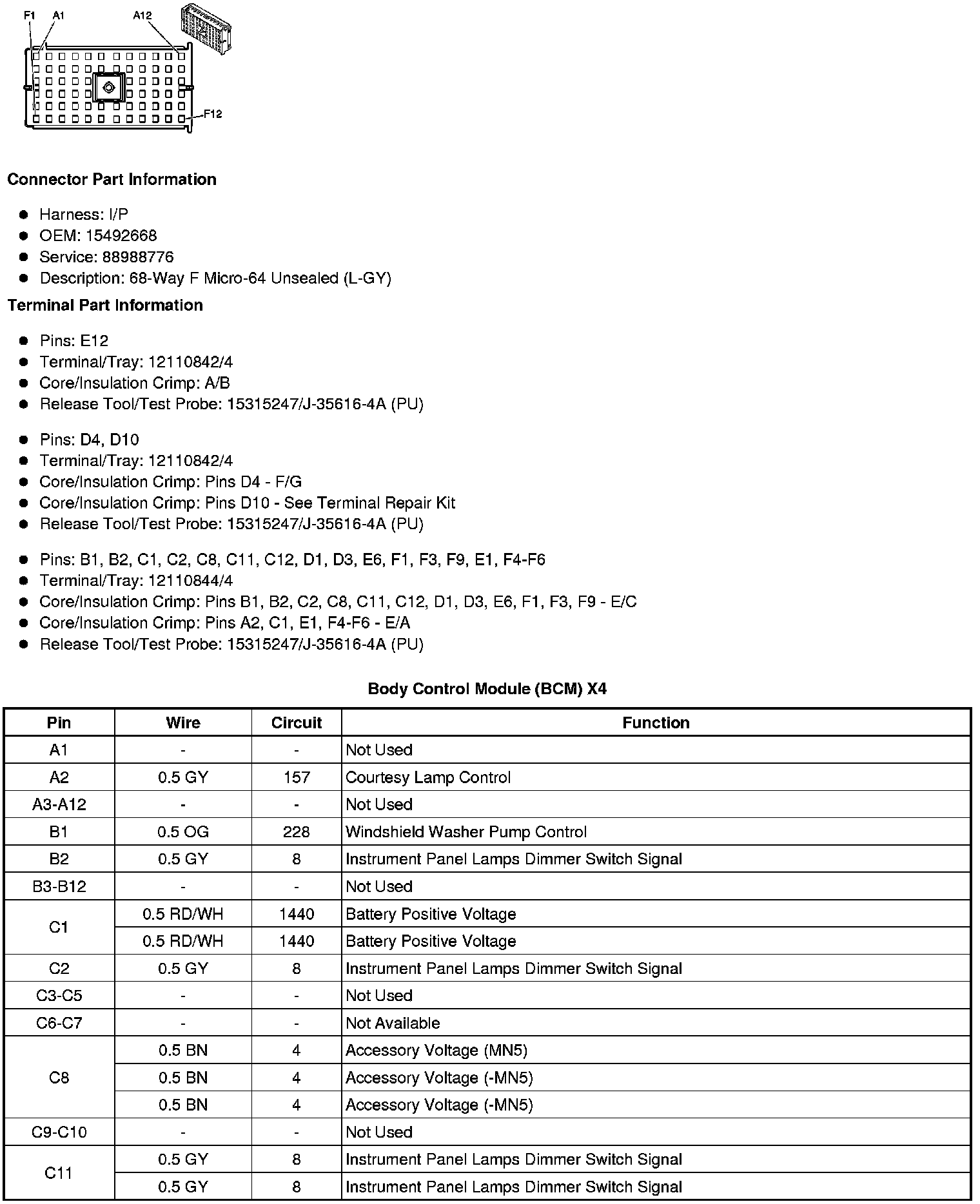

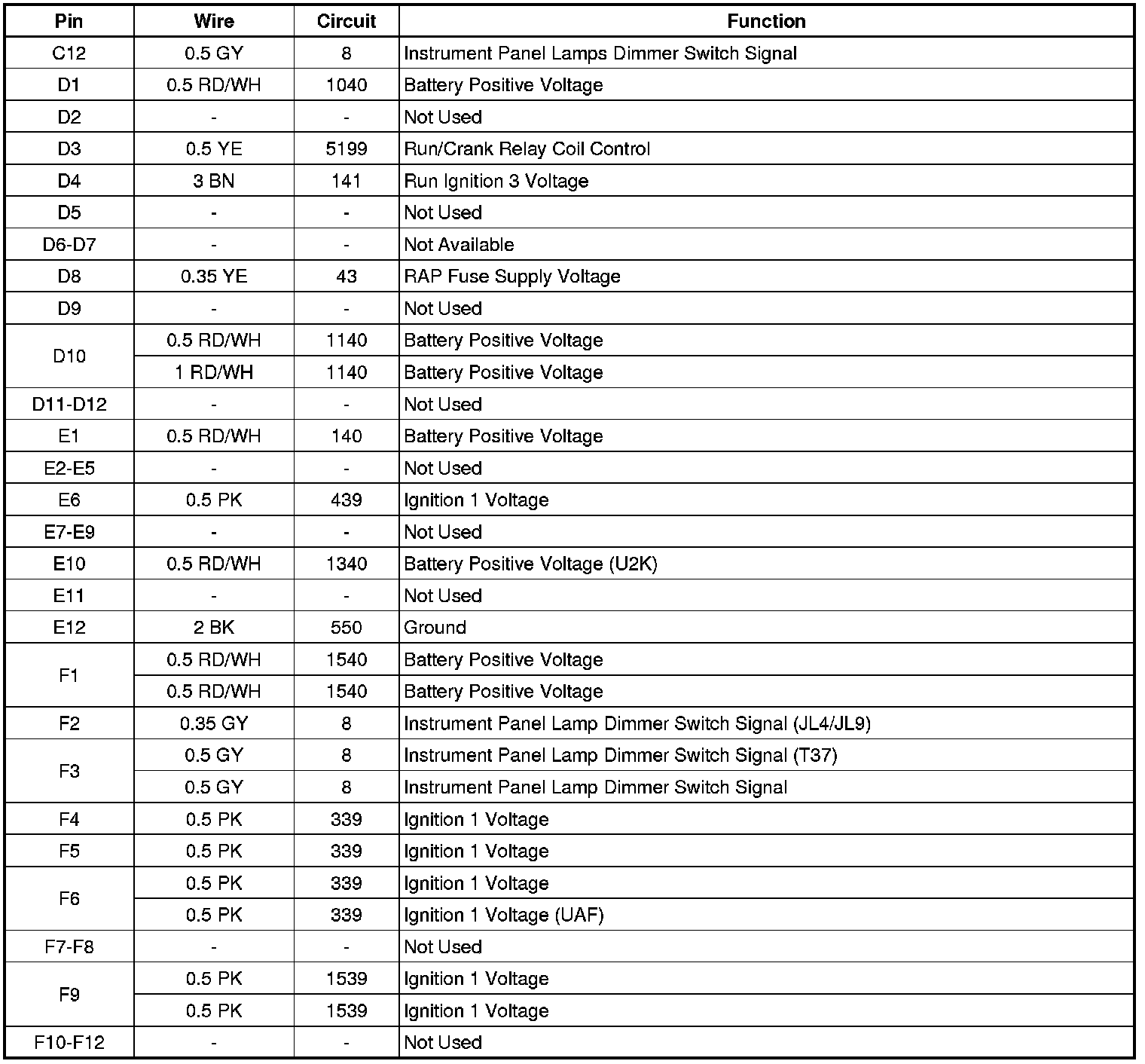

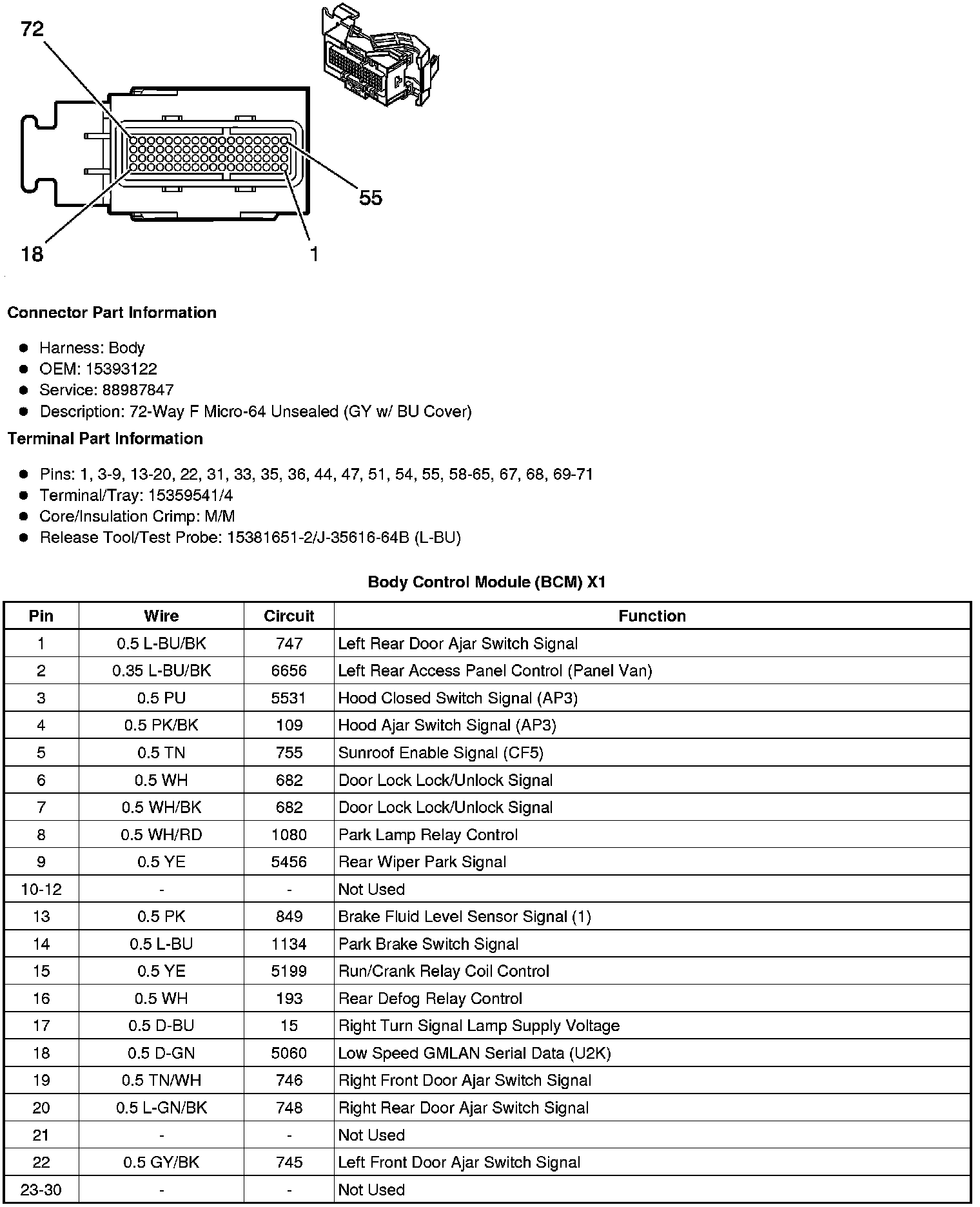

Body Control Module (BCM) X1

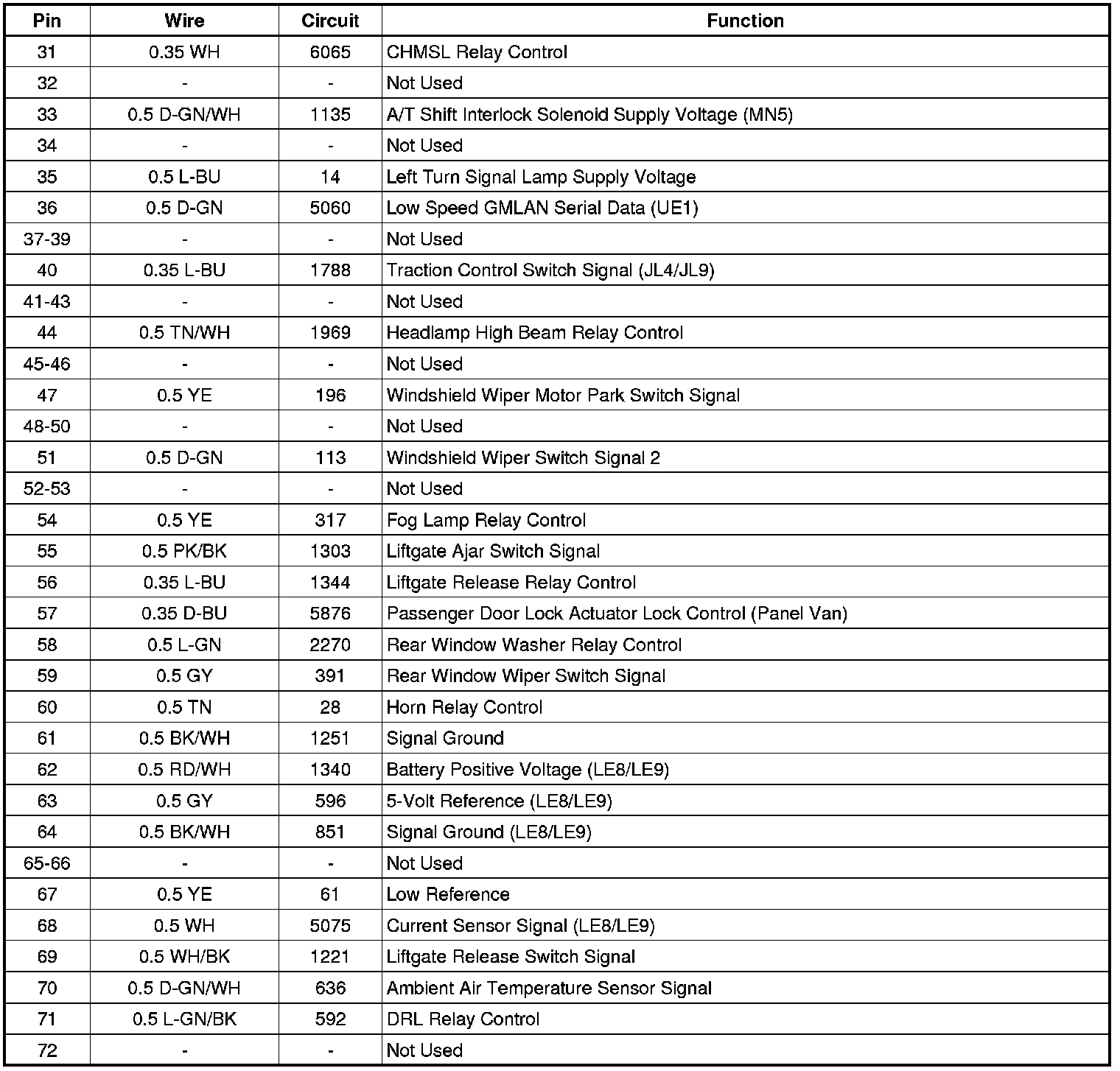

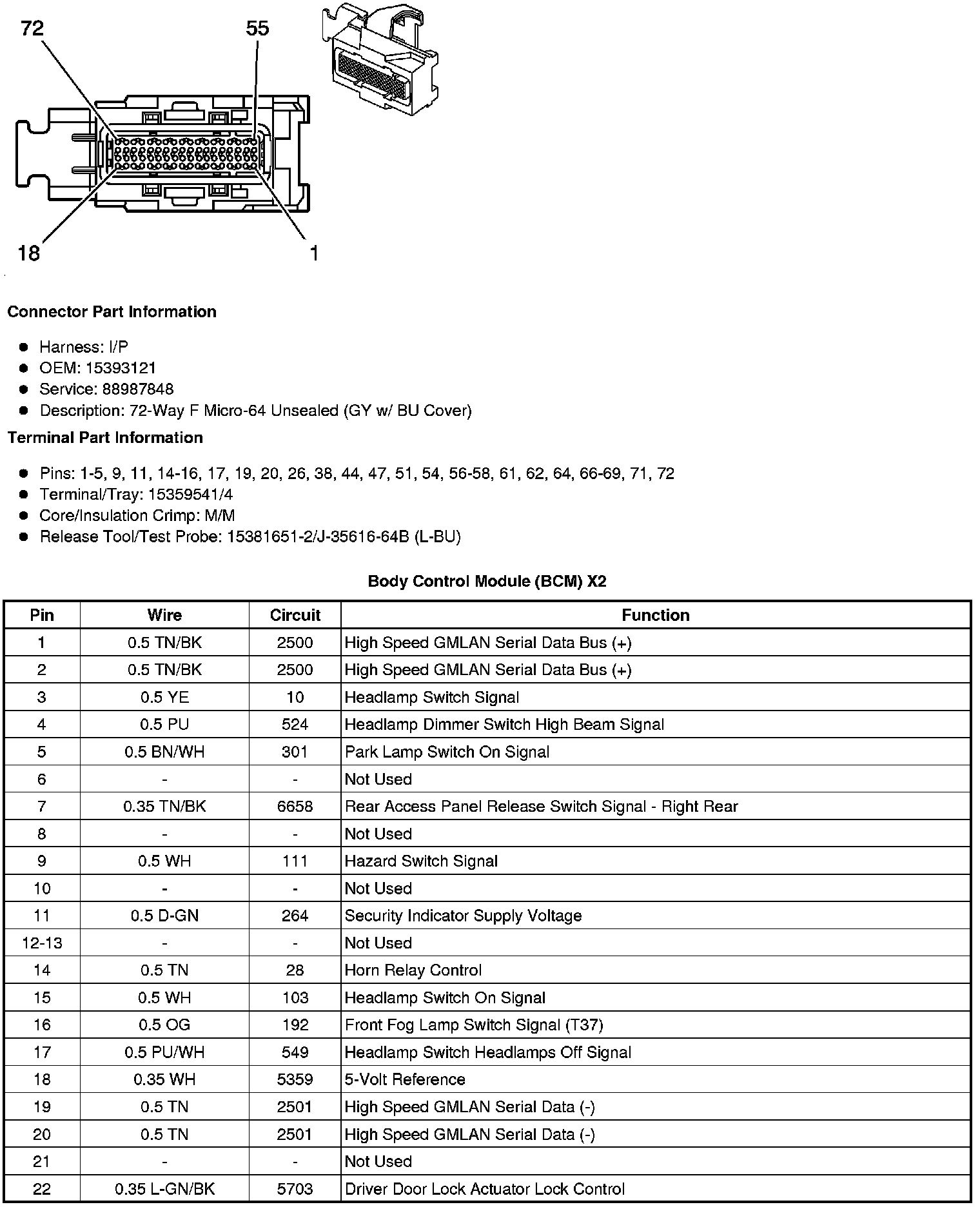

Body Control Module (BCM) X2

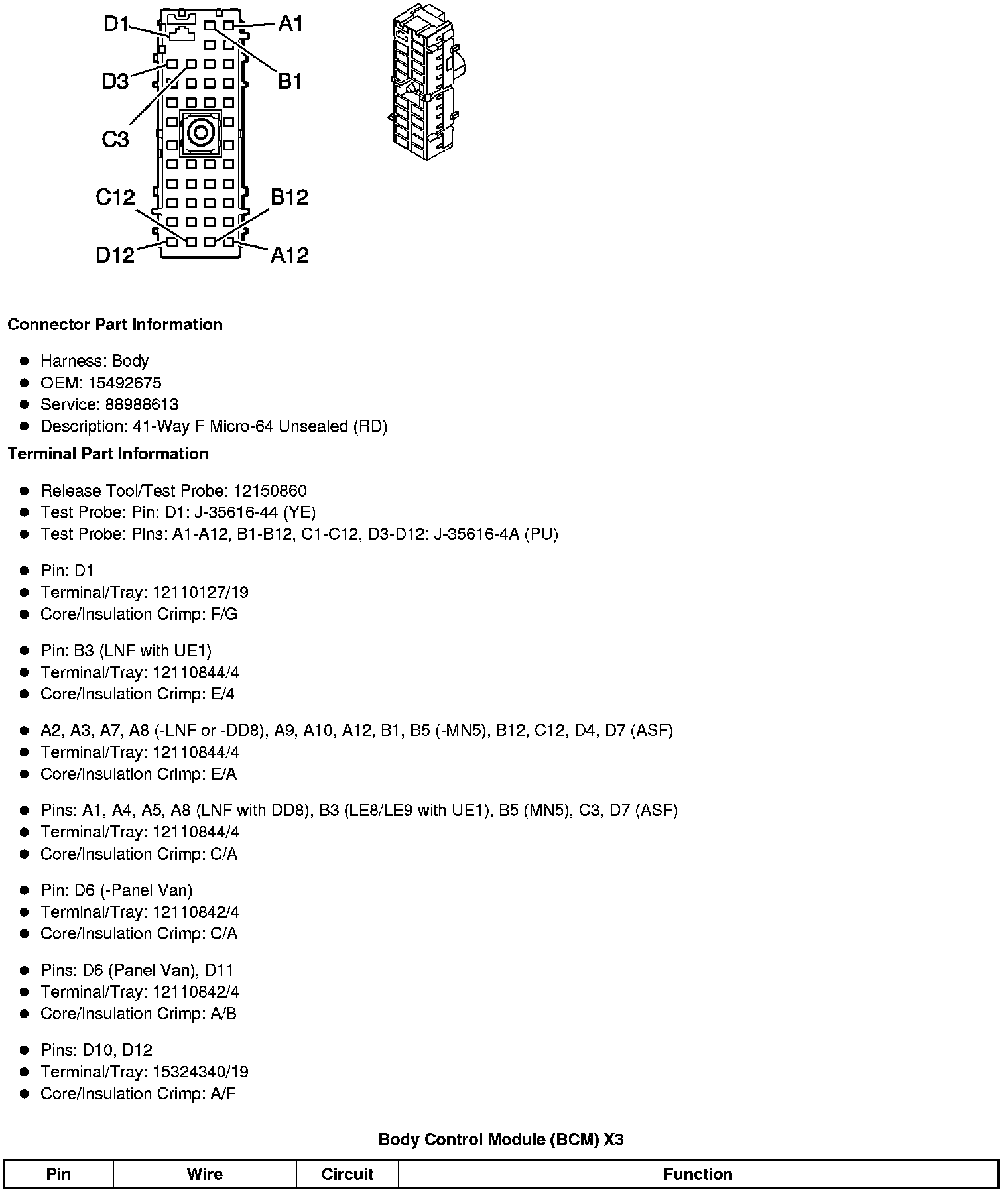

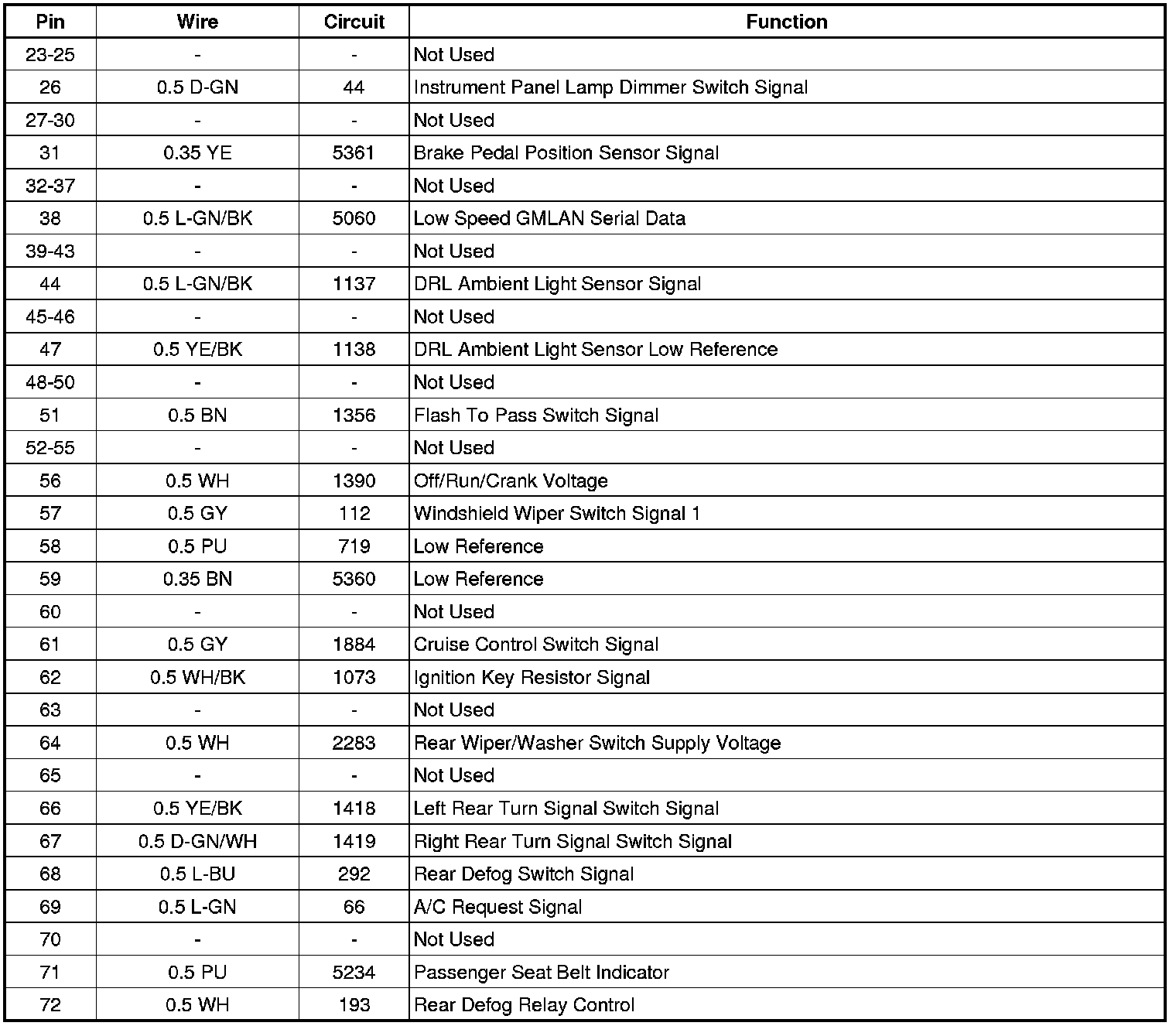

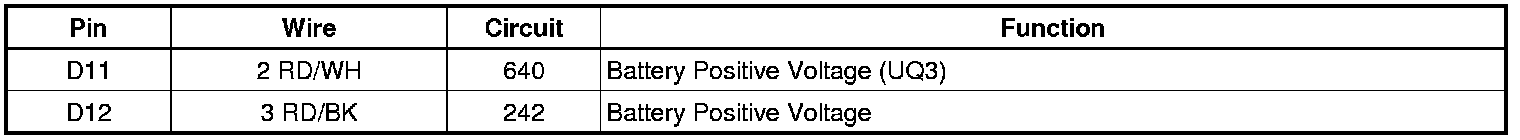

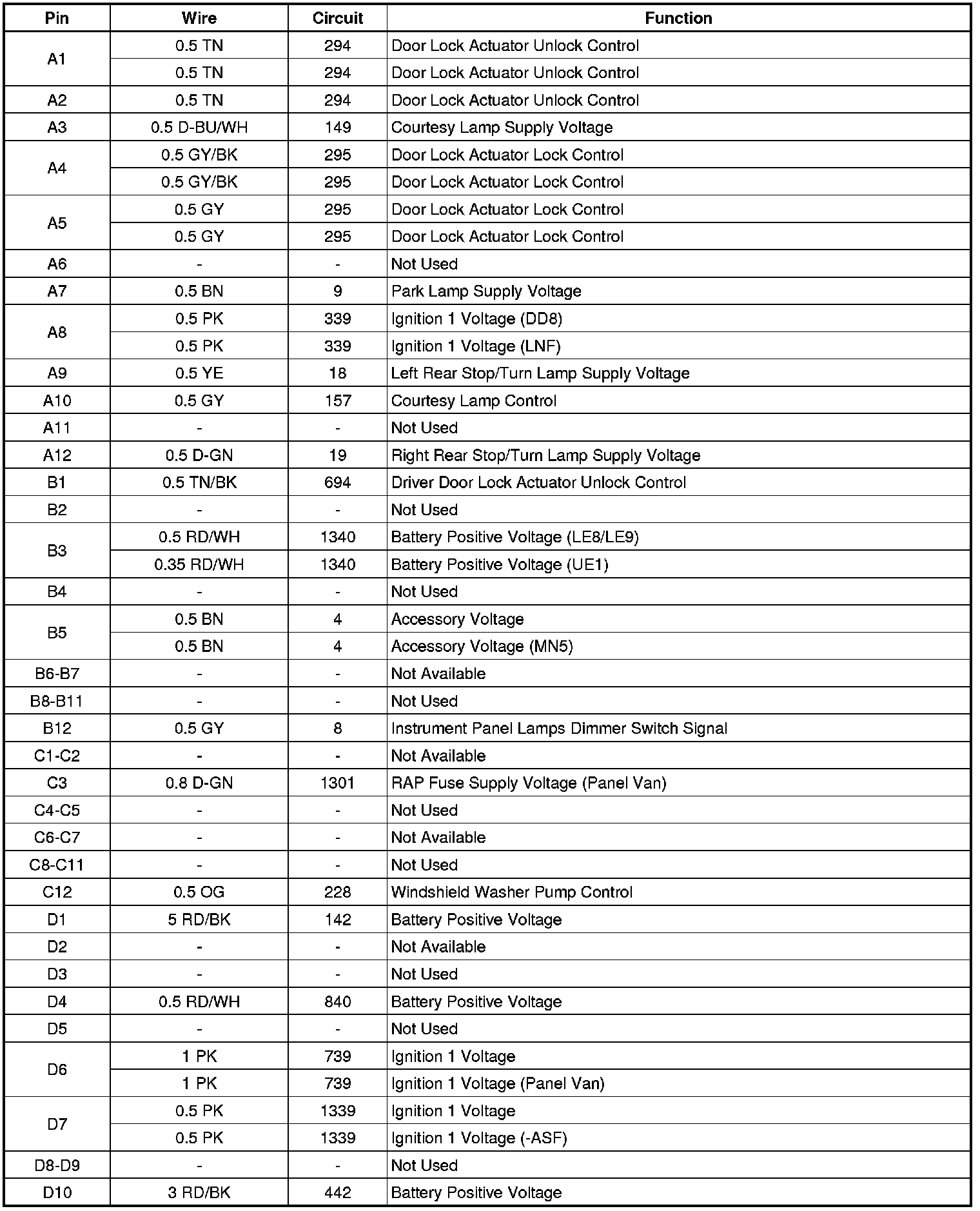

Body Control Module (BCM) X3














Body Control Module (BCM) X4
