Body Control Systems

Body Control System Schematics

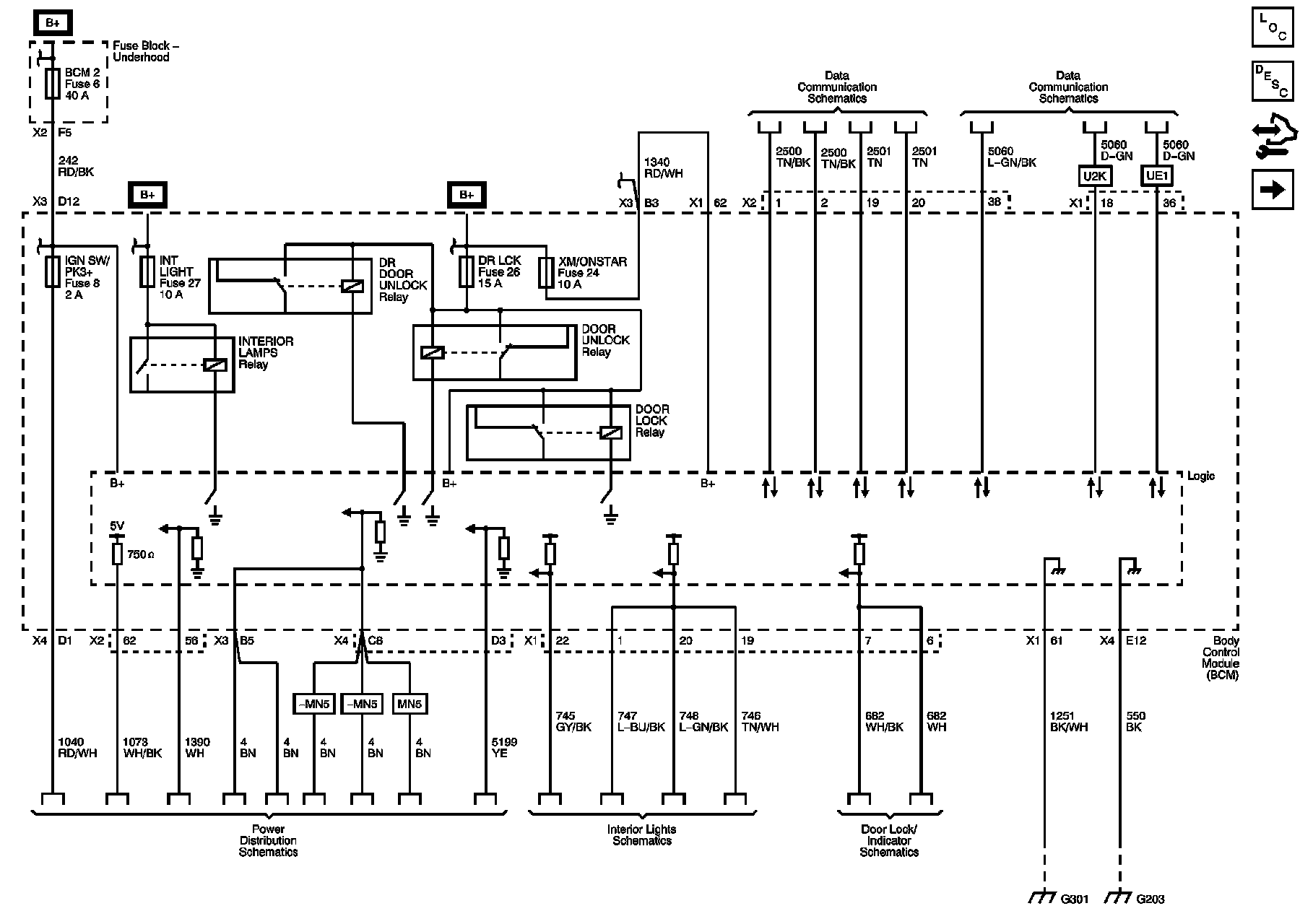

Power, Ground, Serial Data, and Subsystem References (1 of 4)

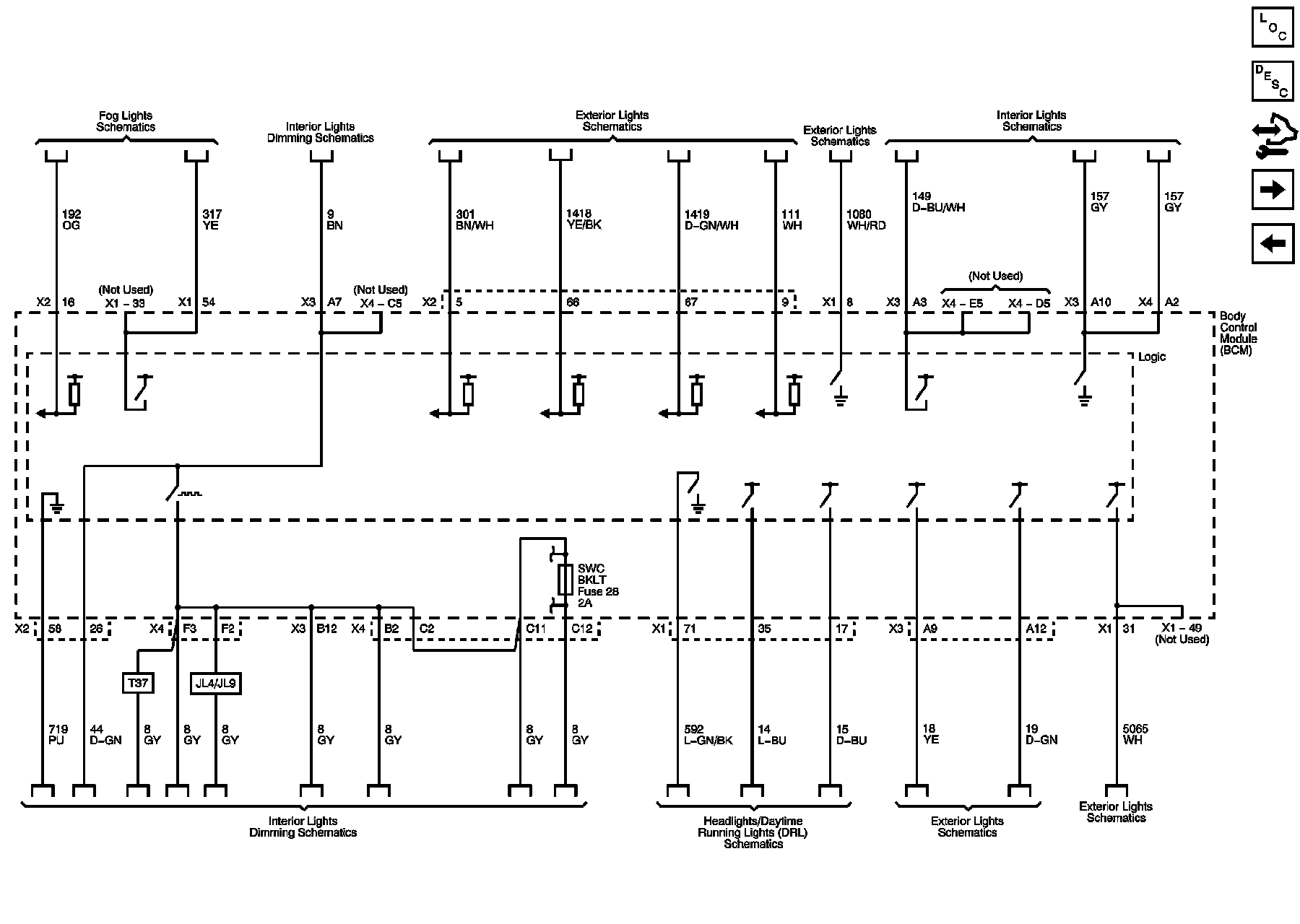

Subsystem References (2 of 4)

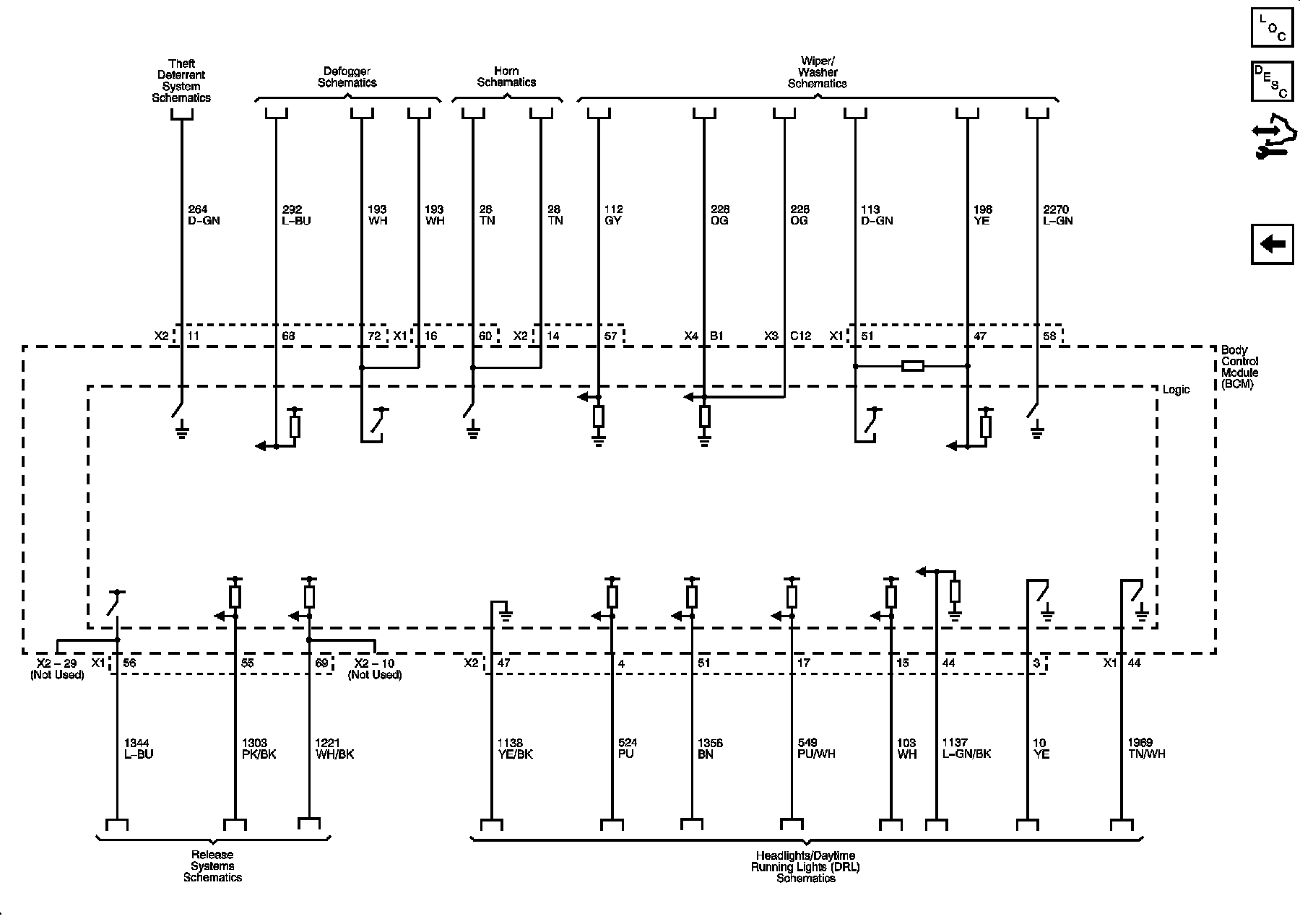

Subsystem References (3 of 4)

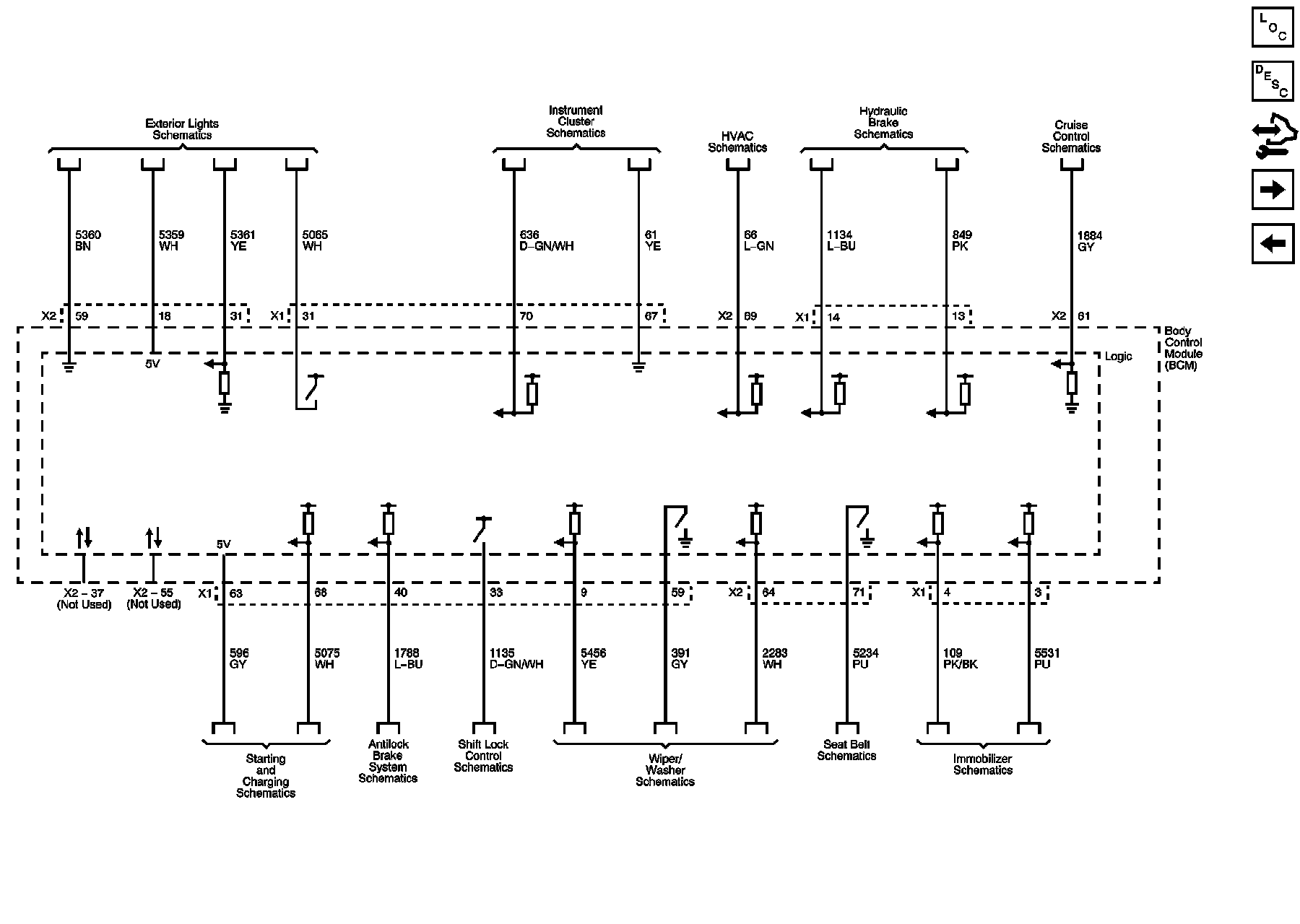

Subsystem References (4 of 4)
