Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Mounted Controls Transmitter
Steering Mounted Controls Transmitter
Component Connector End Views

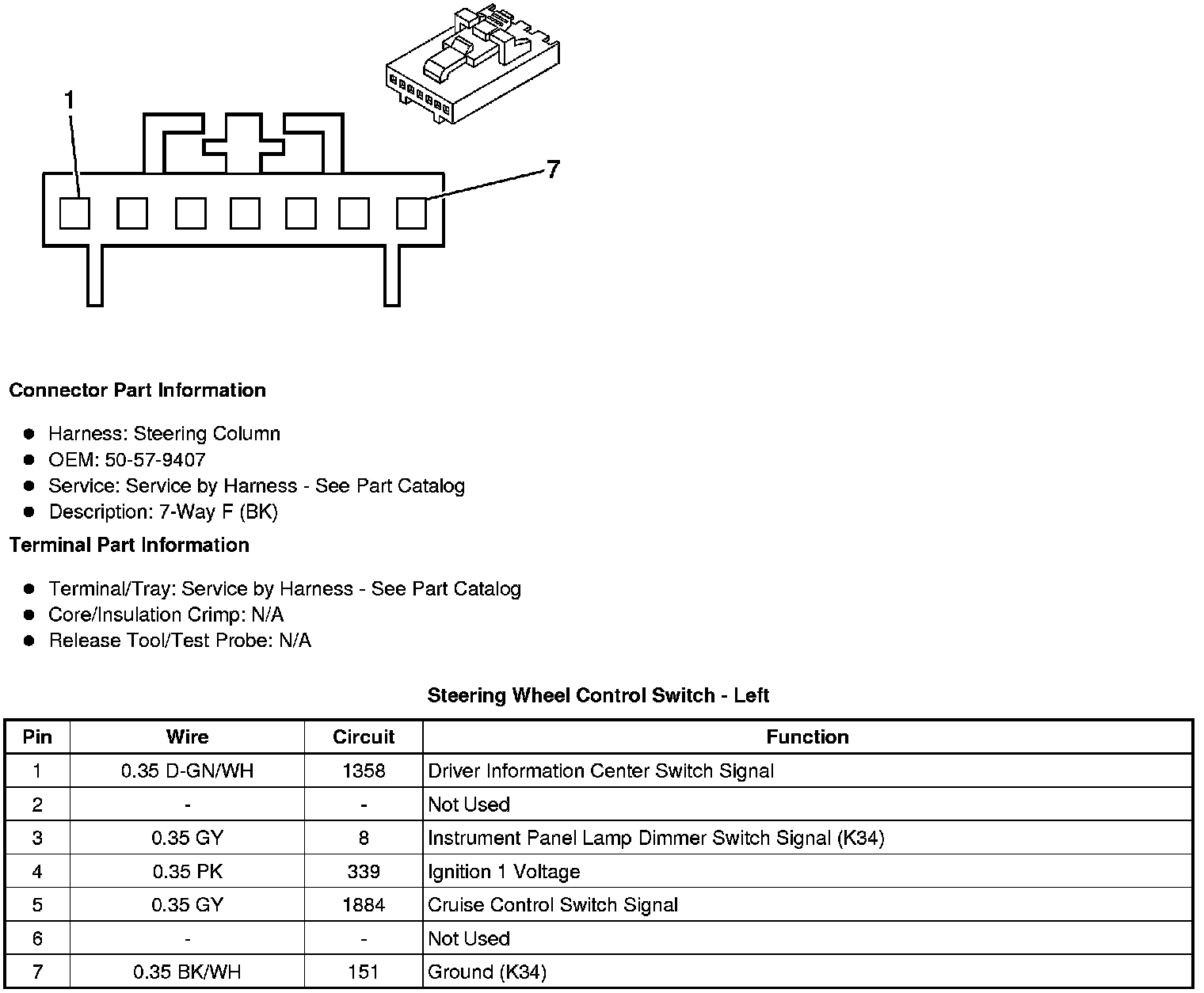

Steering Wheel
Control Switch - Left

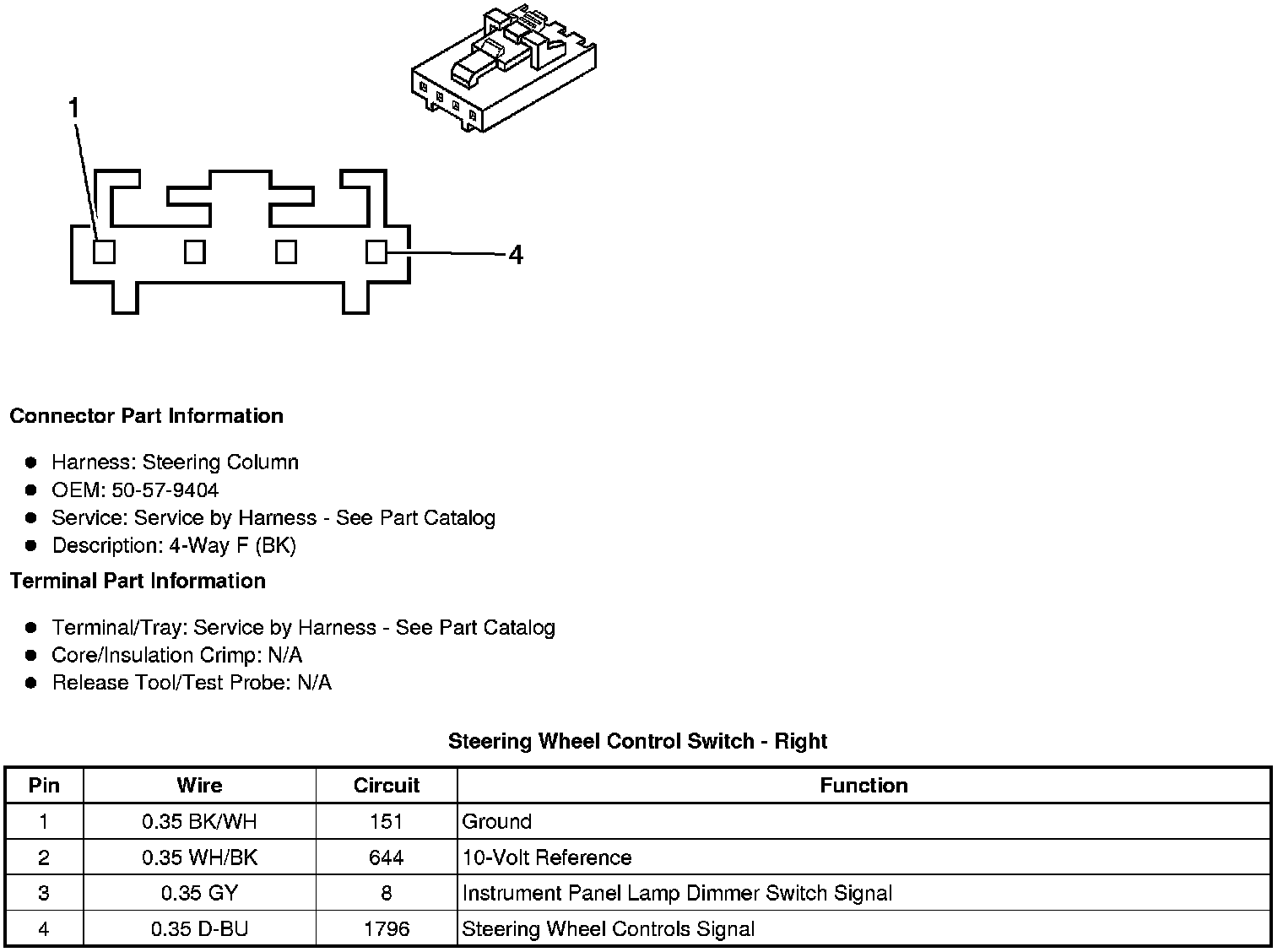

Steering Wheel
Control Switch - Right
