Steering Control Module




Component Connector End Views

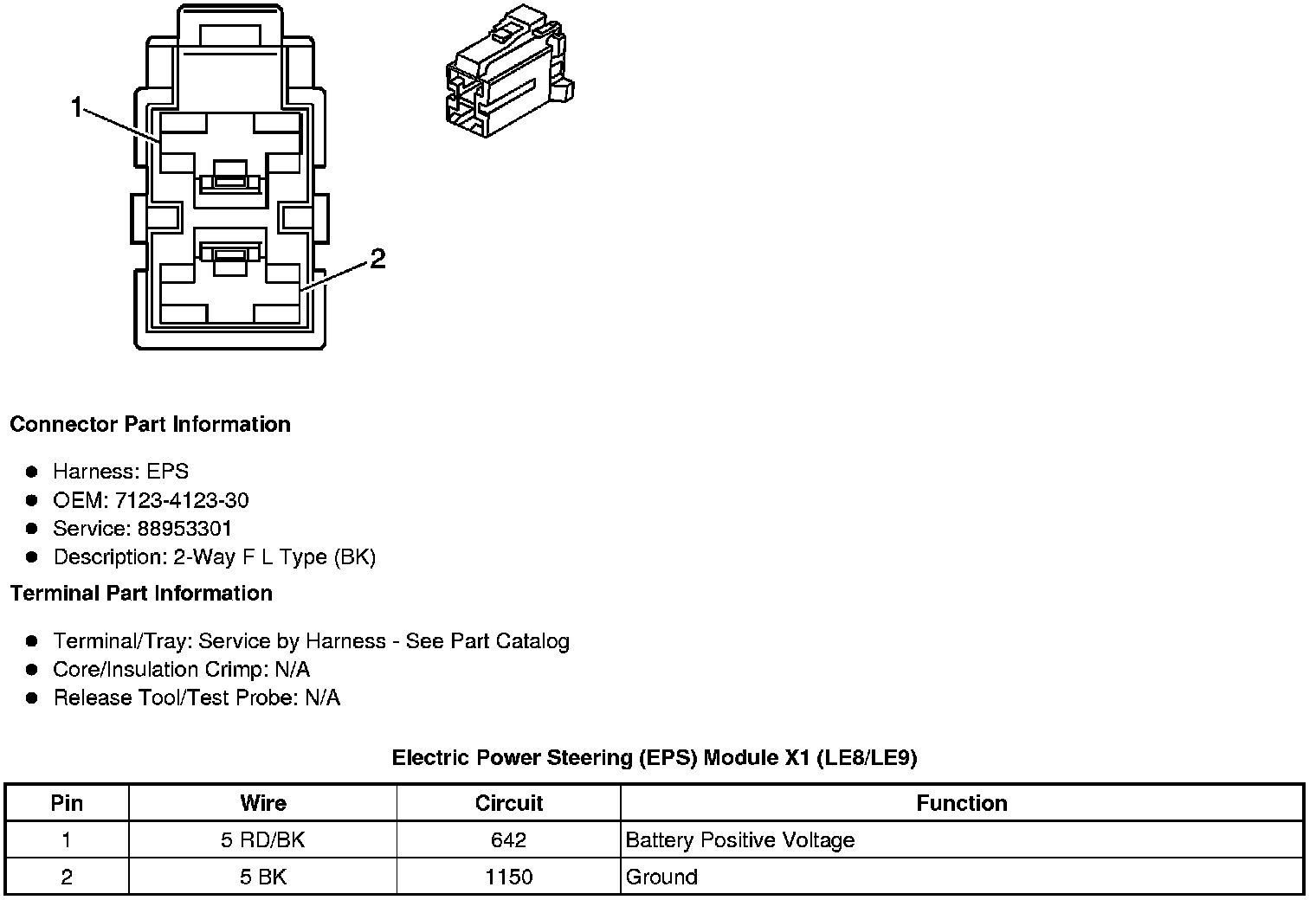

Electric Power Steering (EPS) Module X1 (LE8/LE9)

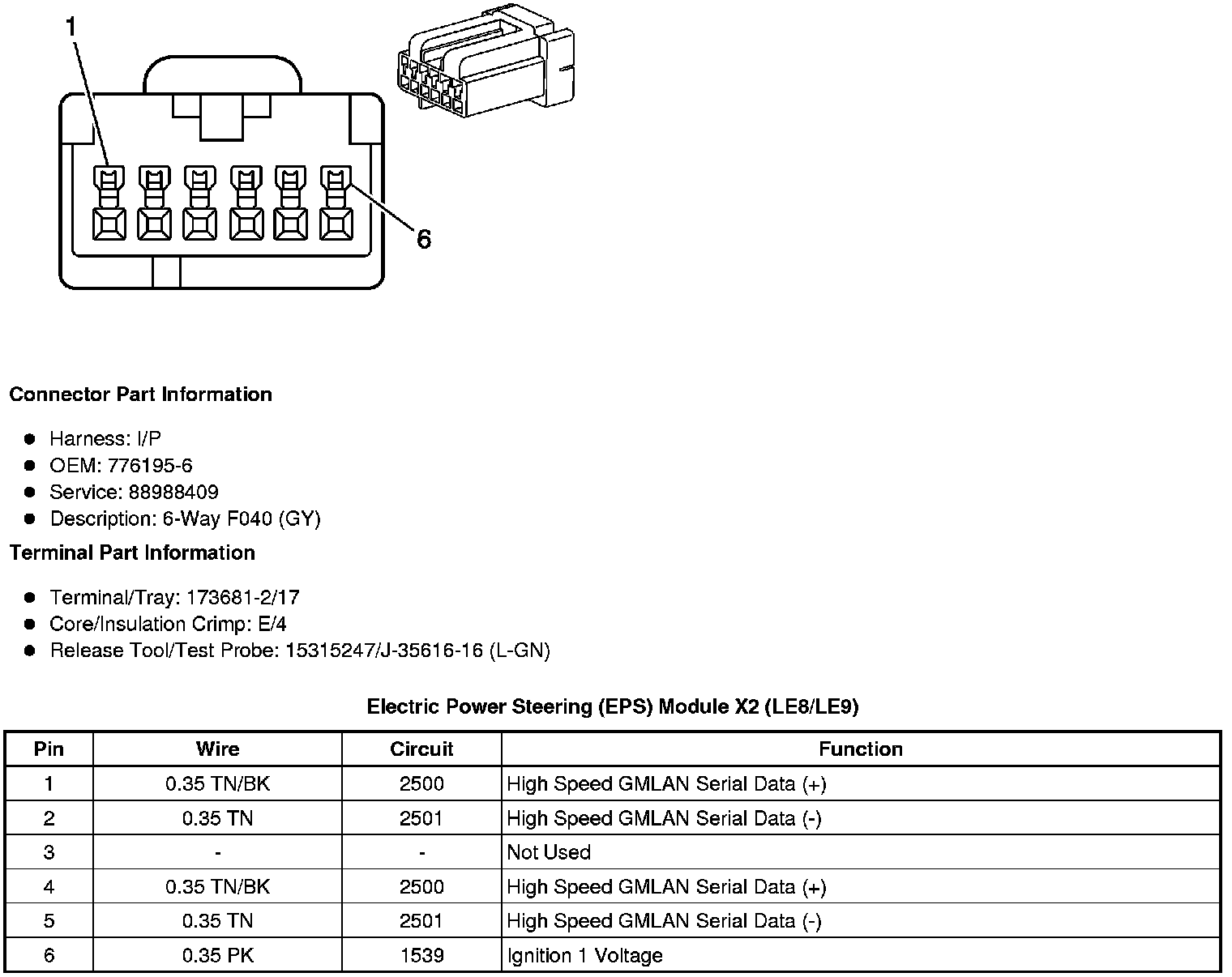

Electric Power Steering (EPS) Module X2 (LE8/LE9)

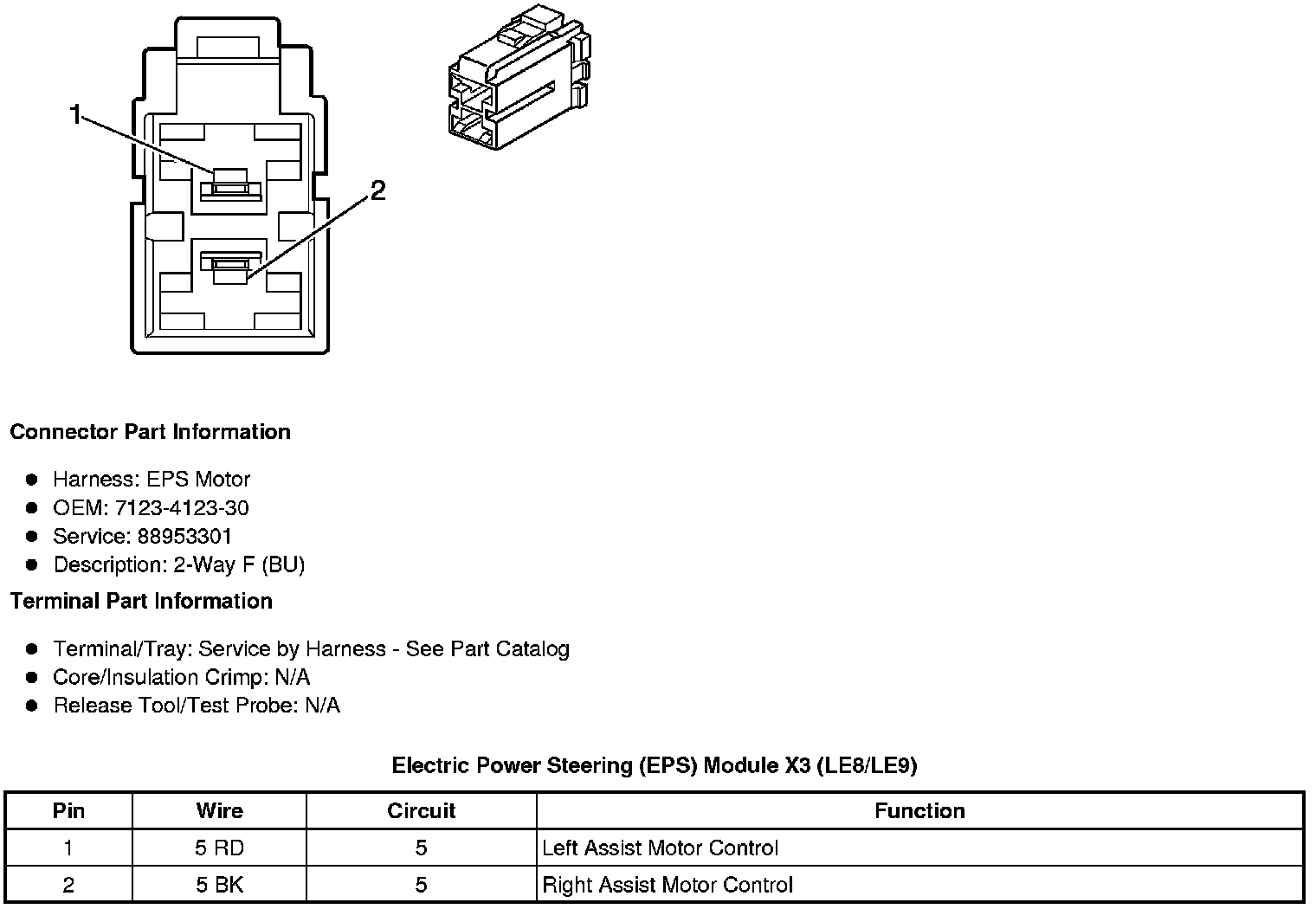

Electric Power Steering (EPS) Module X3 (LE8/LE9)
