Home >> Chevrolet >> 2011 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram




Component Connector End Views

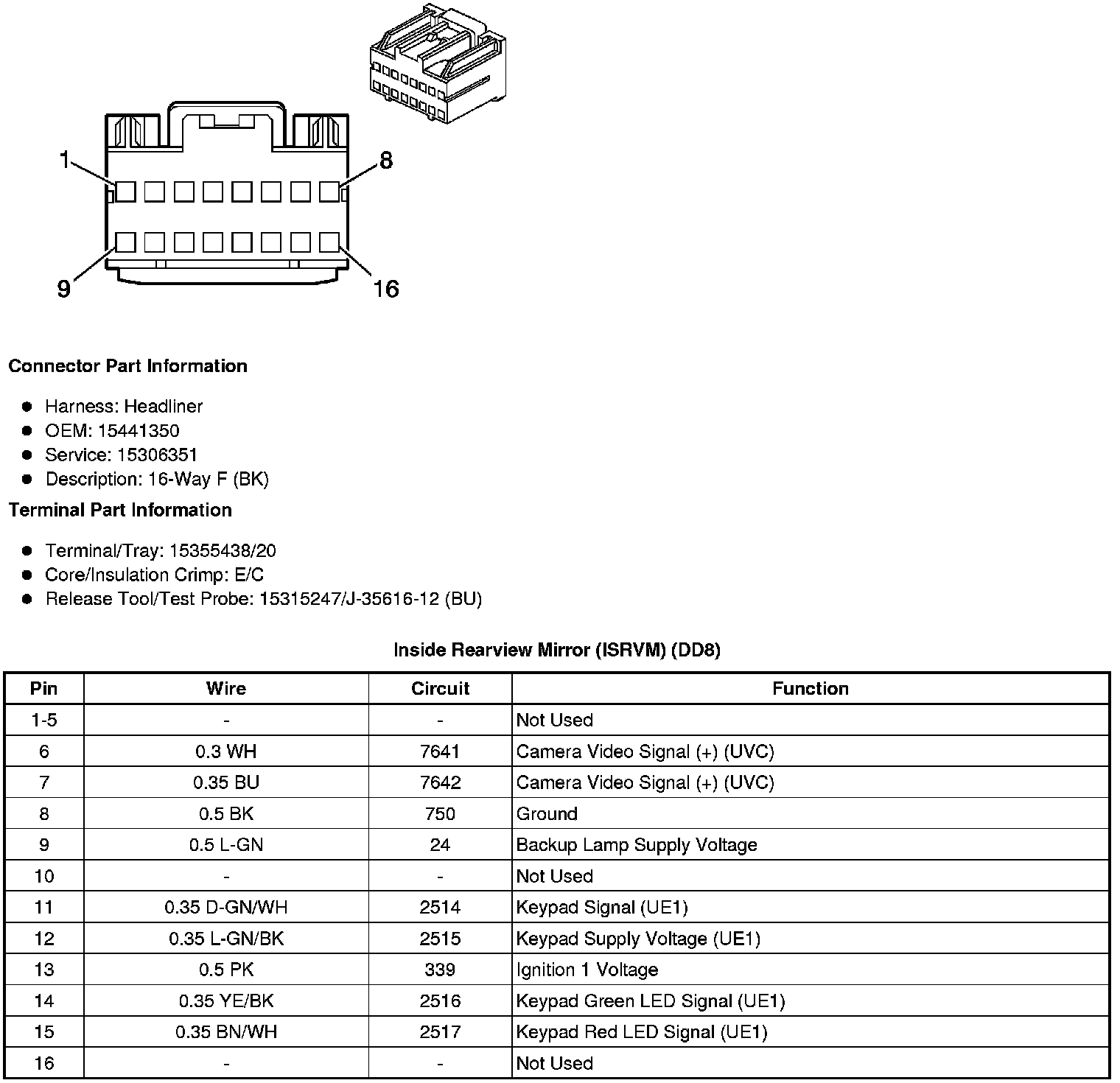

Inside Rearview Mirror (ISRVM) (DD8)

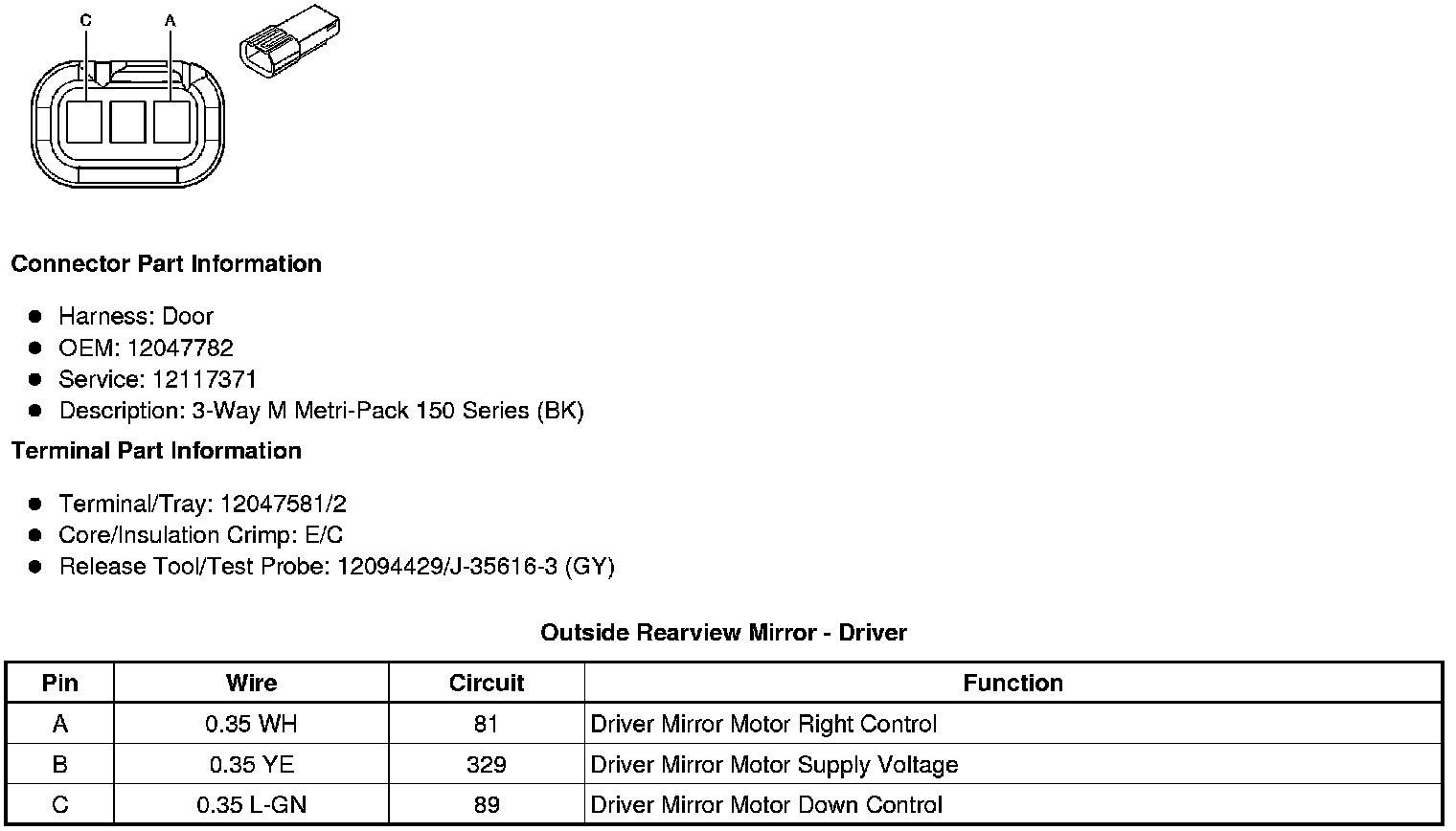

Outside Rearview Mirror - Driver

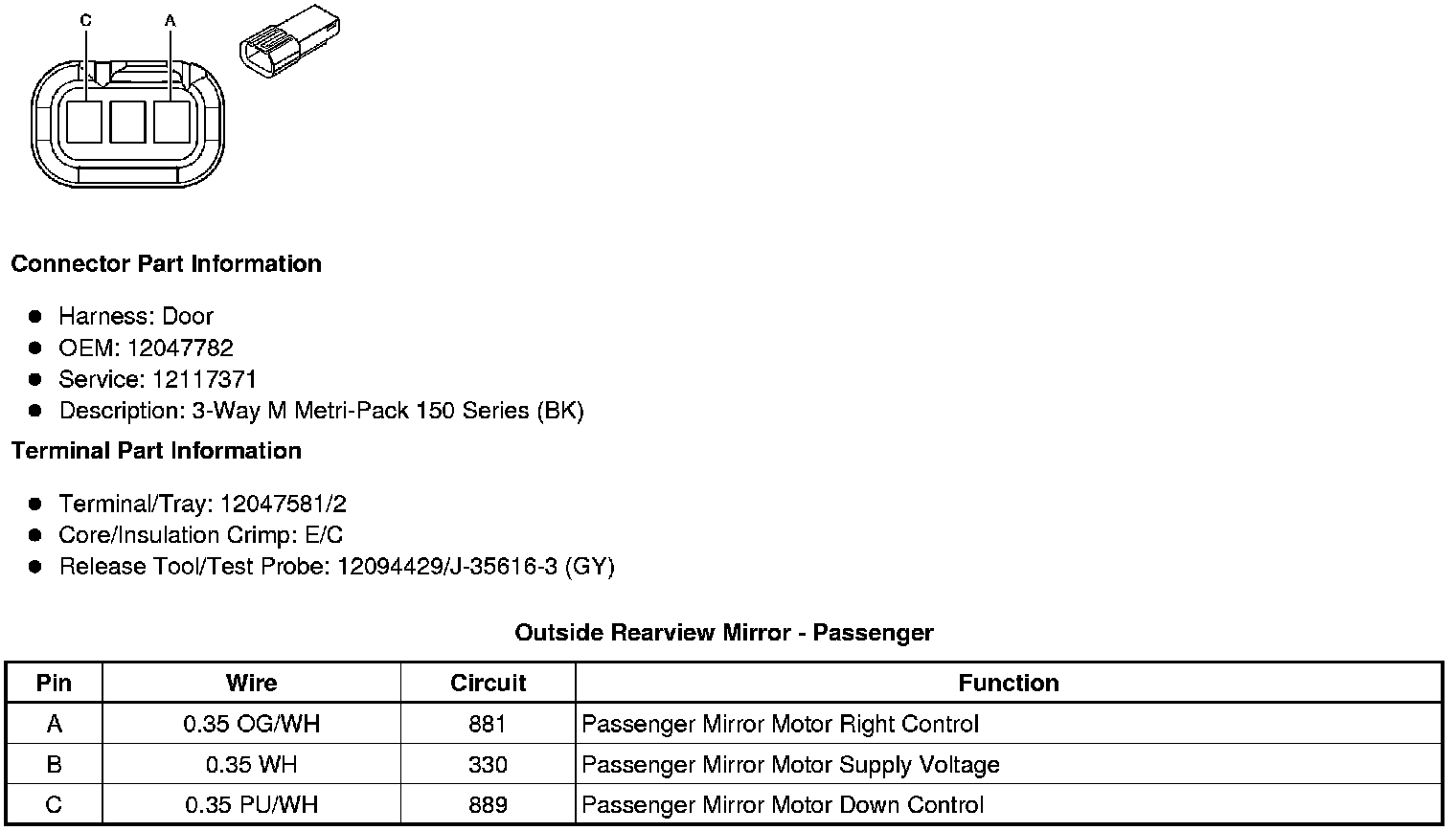

Outside Rearview Mirror - Passenger
