System Diagram

Component Connector End Views

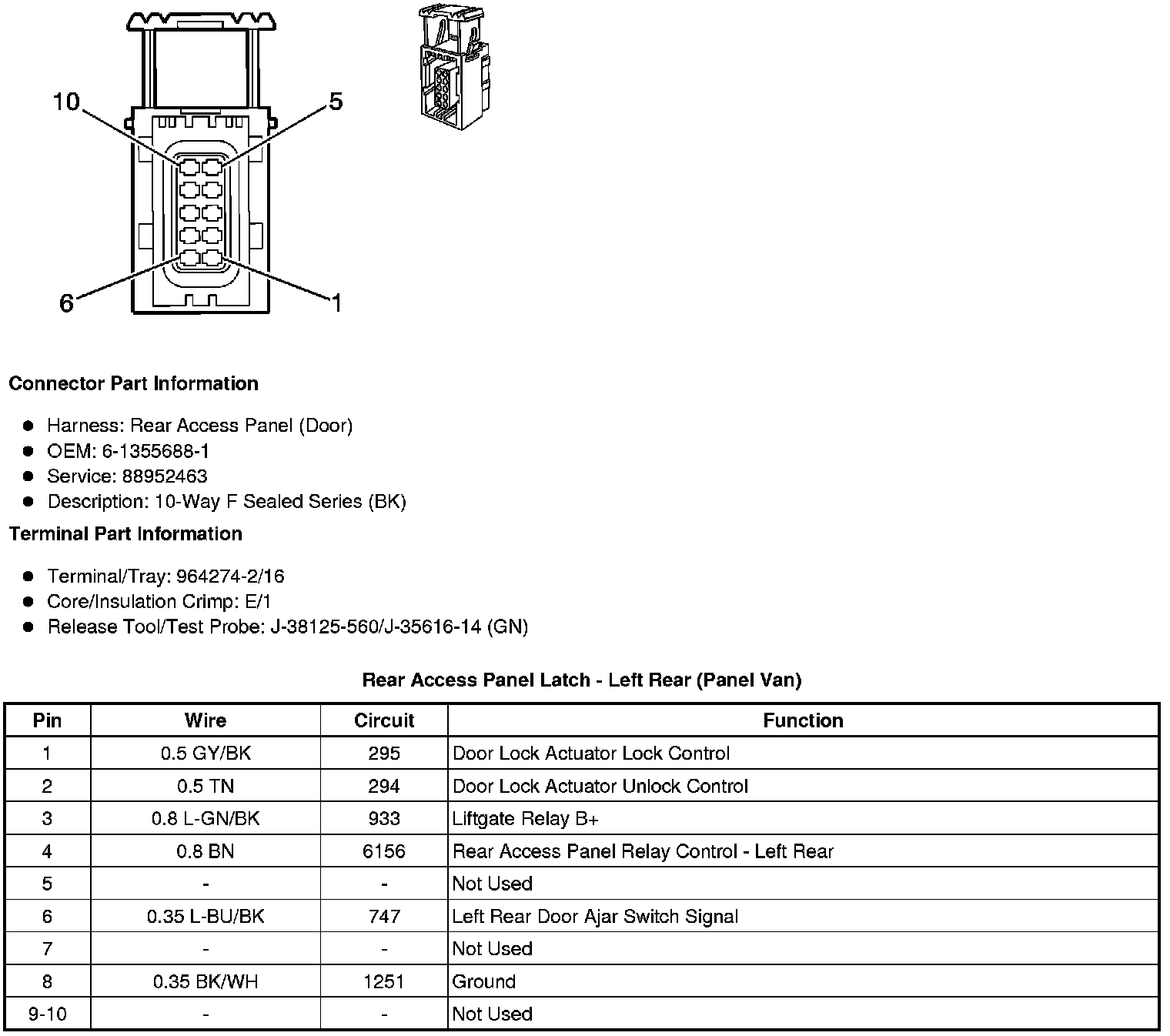

Rear Access Panel Latch - Left Rear (Panel Van)

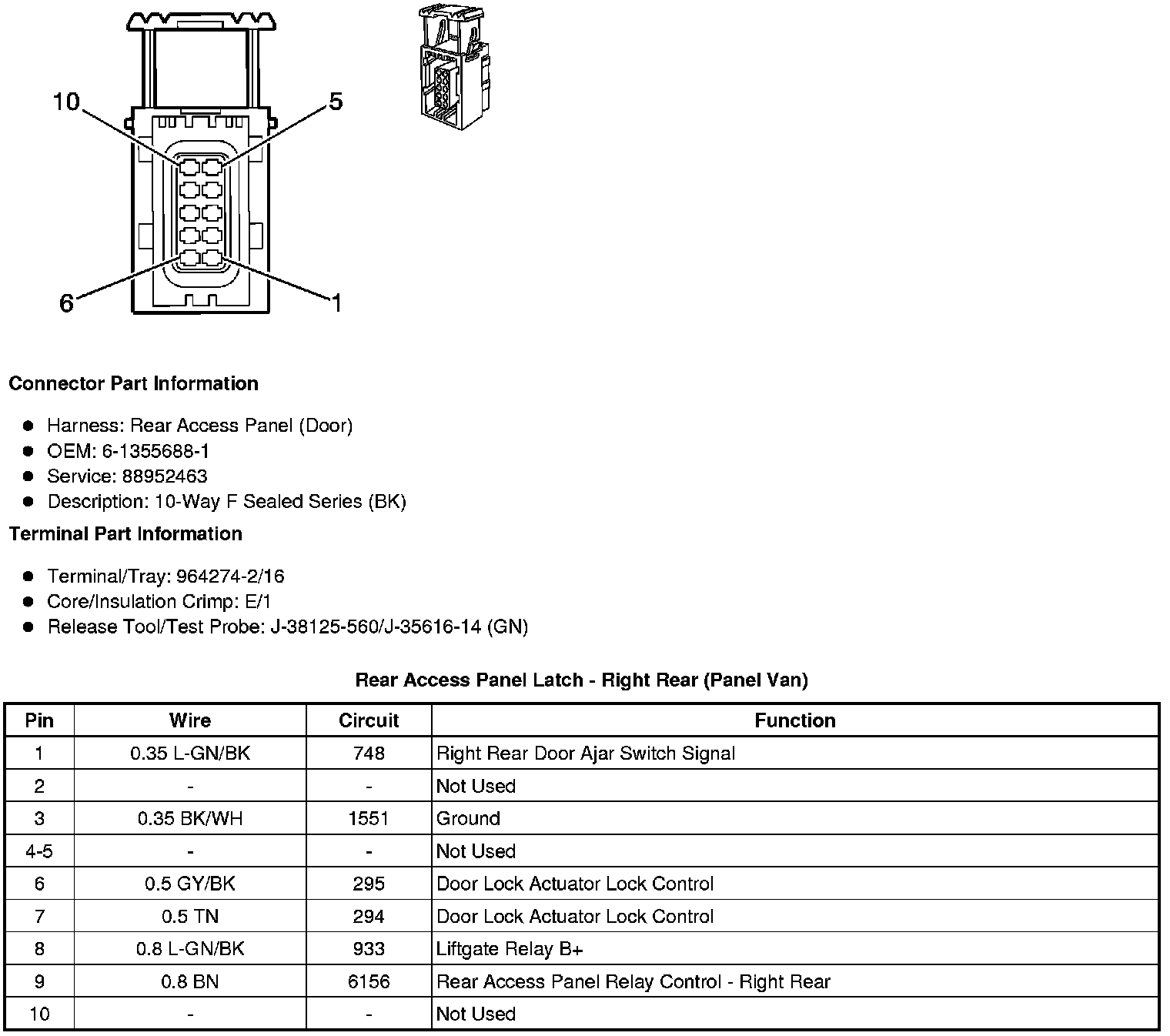

Rear Access Panel Latch - Right Rear (Panel Van)
