Home >> Chevrolet >> 2011 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Locks >> Power Door Lock Switch

Power Door Lock Switch




Component Connector End Views

Door Lock Switch - Driver

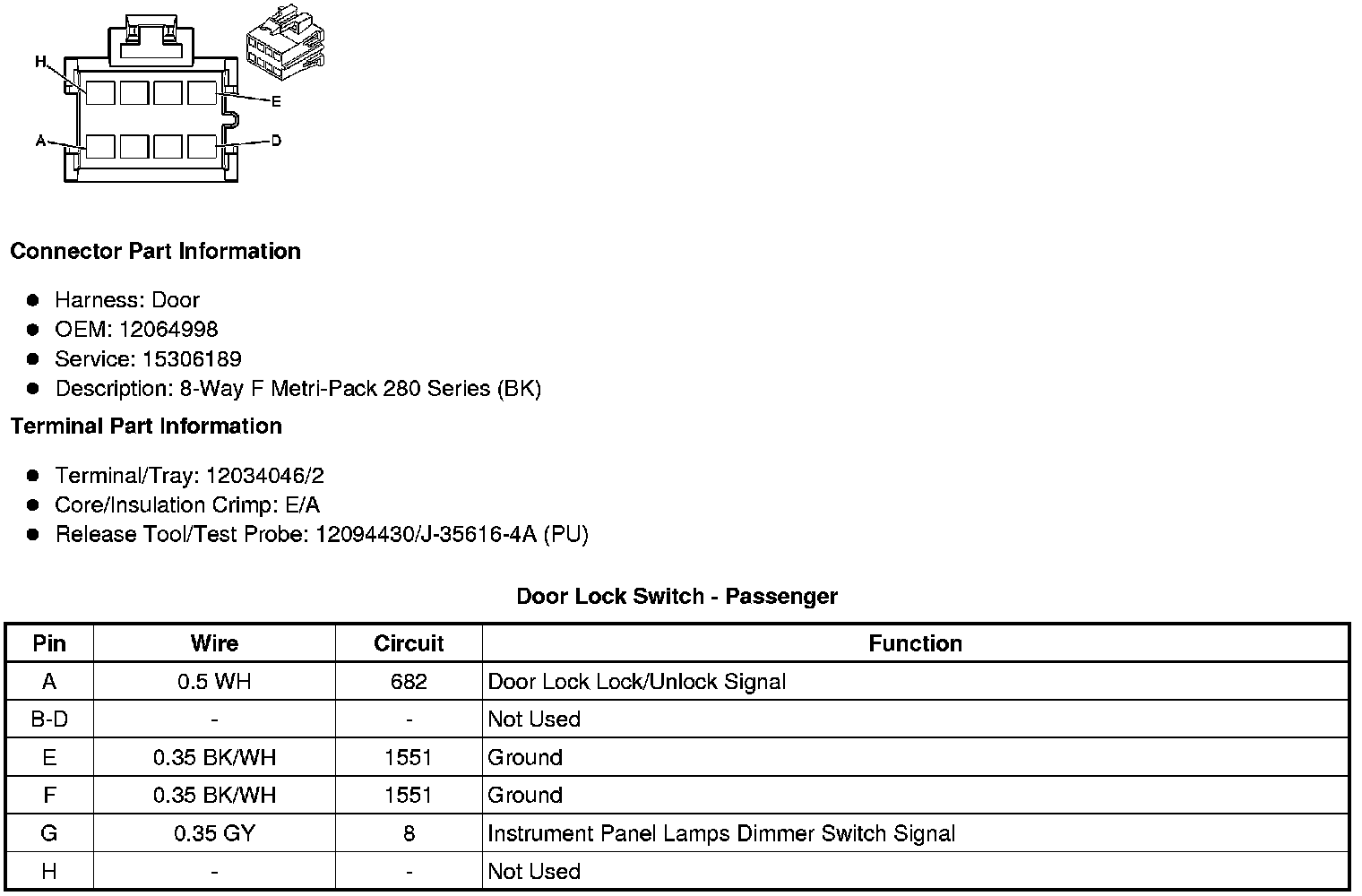

Door Lock Switch - Passenger

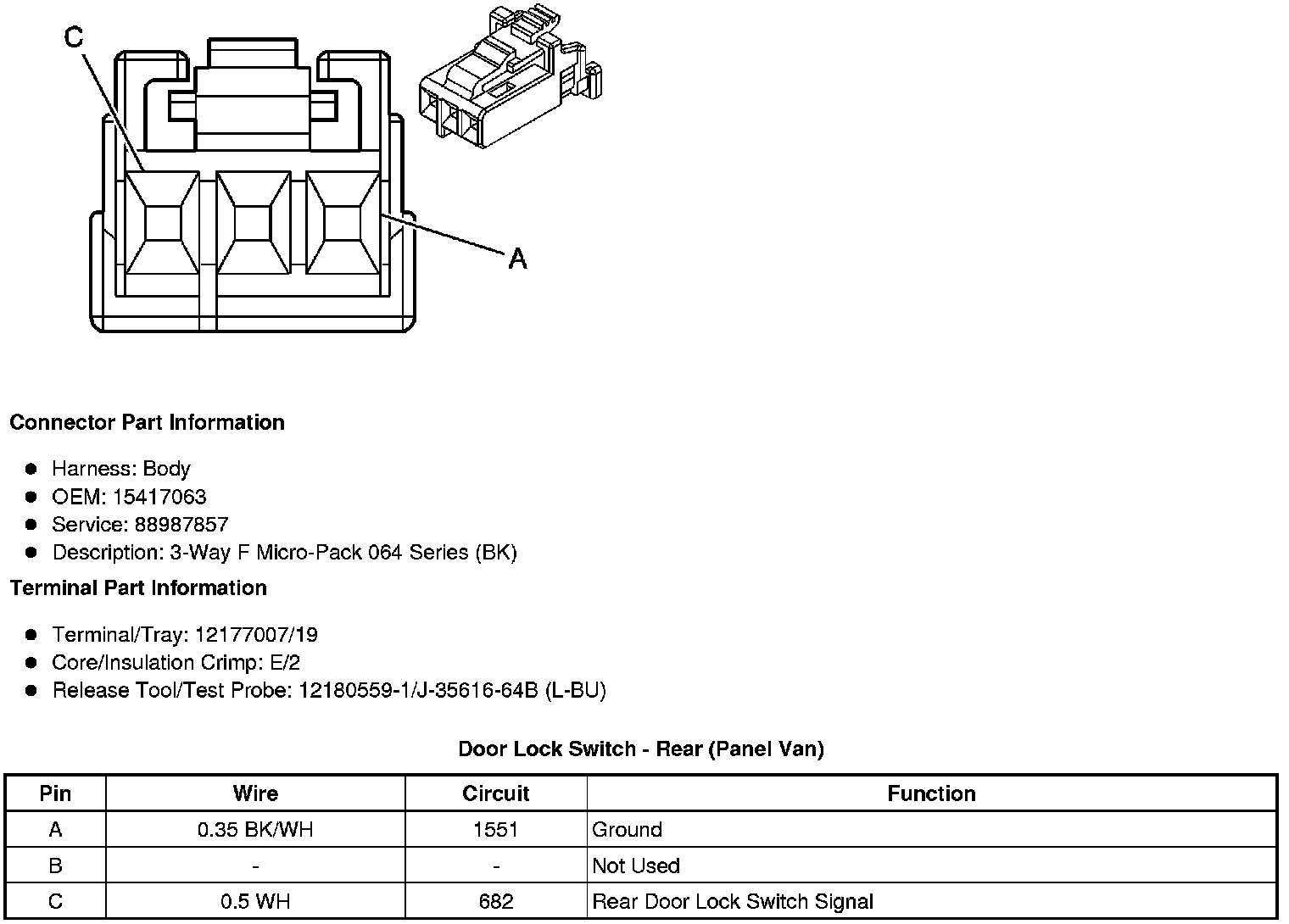

Door Lock Switch - Rear (Panel Van)
