lemon-mirror
:
Home
>>
Chevrolet
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Driver/Vehicle Information Display
Driver/Vehicle Information Display
Component Connector End Views

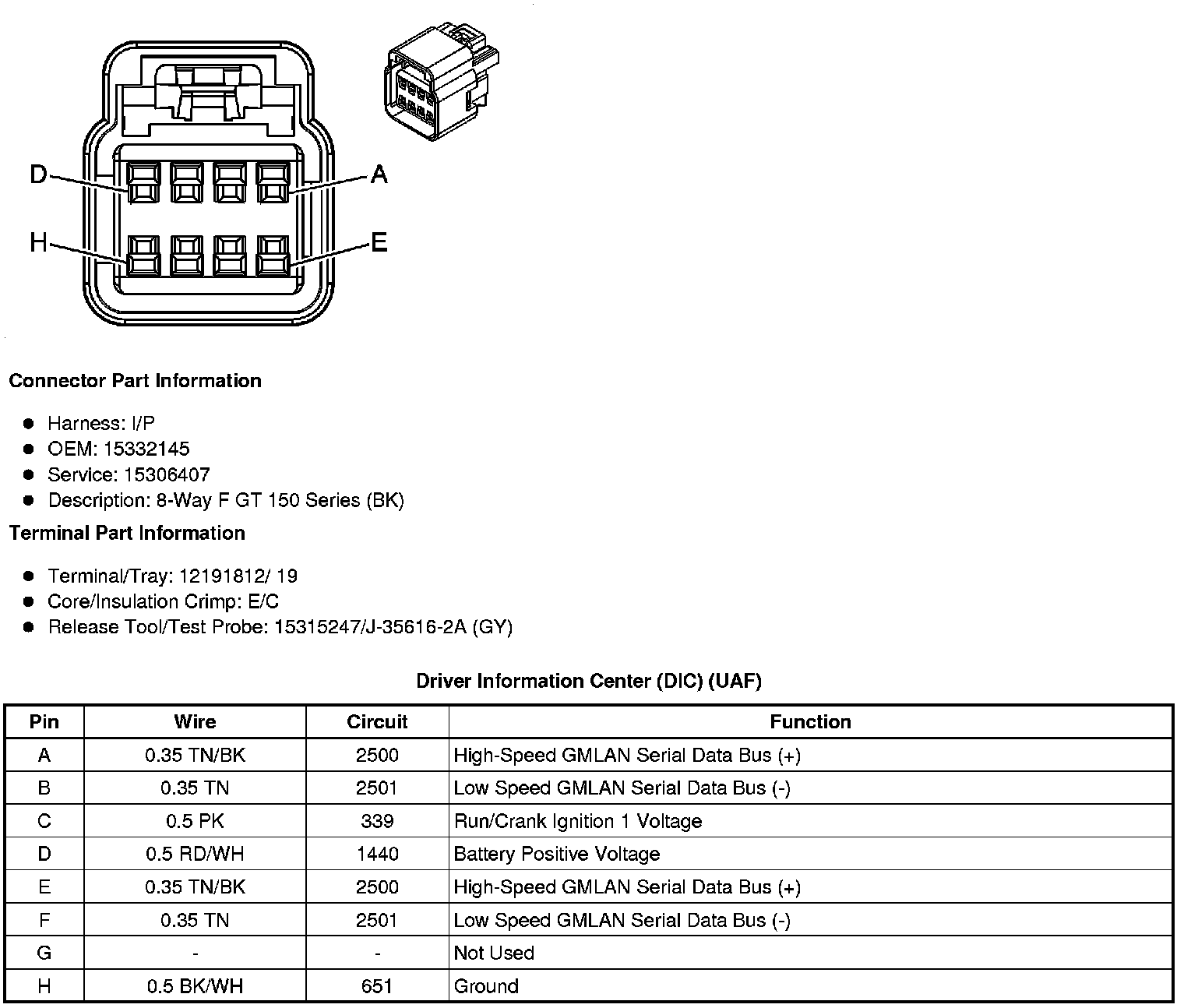

Driver Information Center (DIC) (UAF)
