Inflatable Restraint I/P Module X2
Inflatable Restraint I/P Module X2
Component Connector End Views

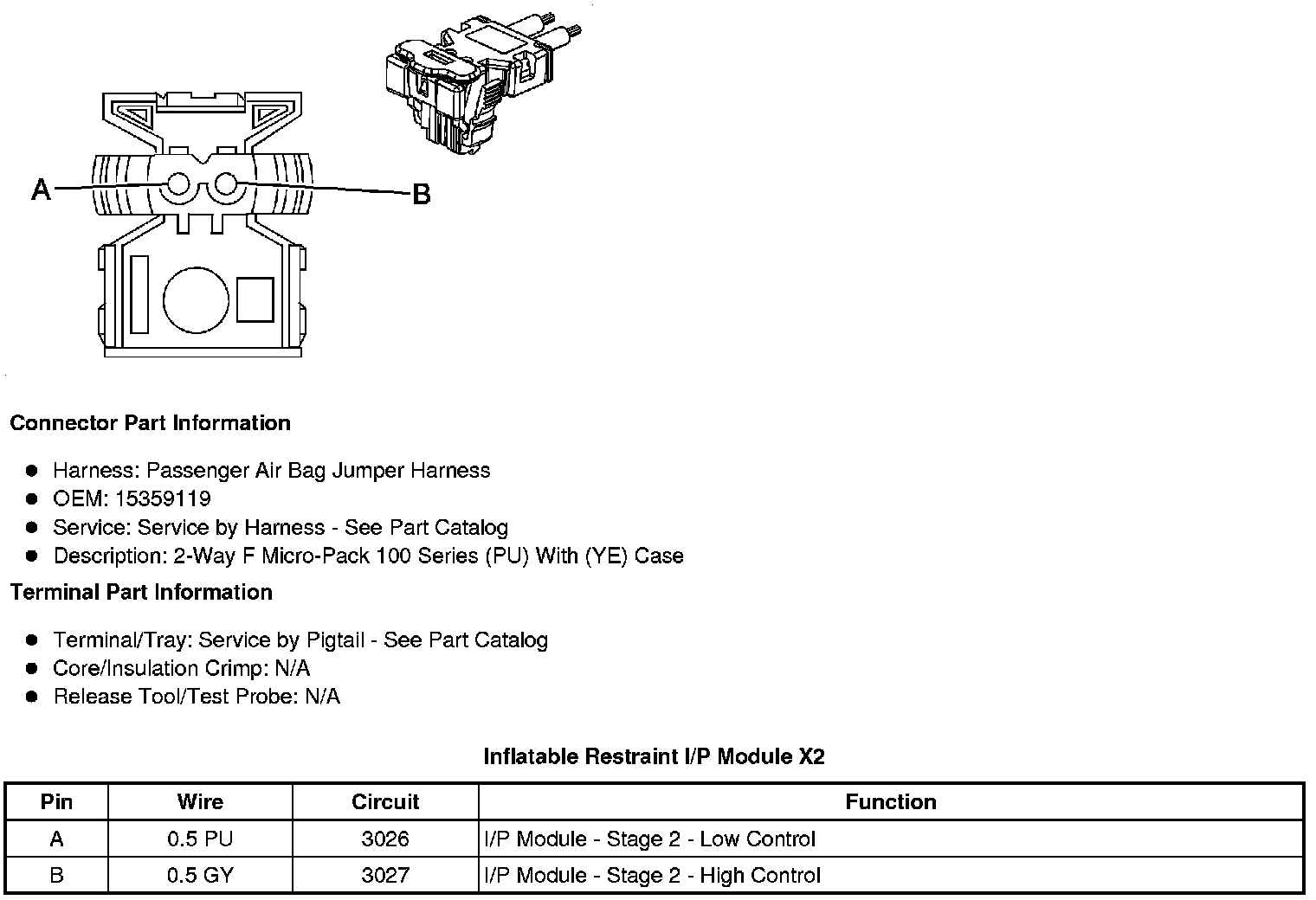

Inflatable Restraint I/P Module X2
