Connector Views
>>
Acceleration/Deceleration Sensor

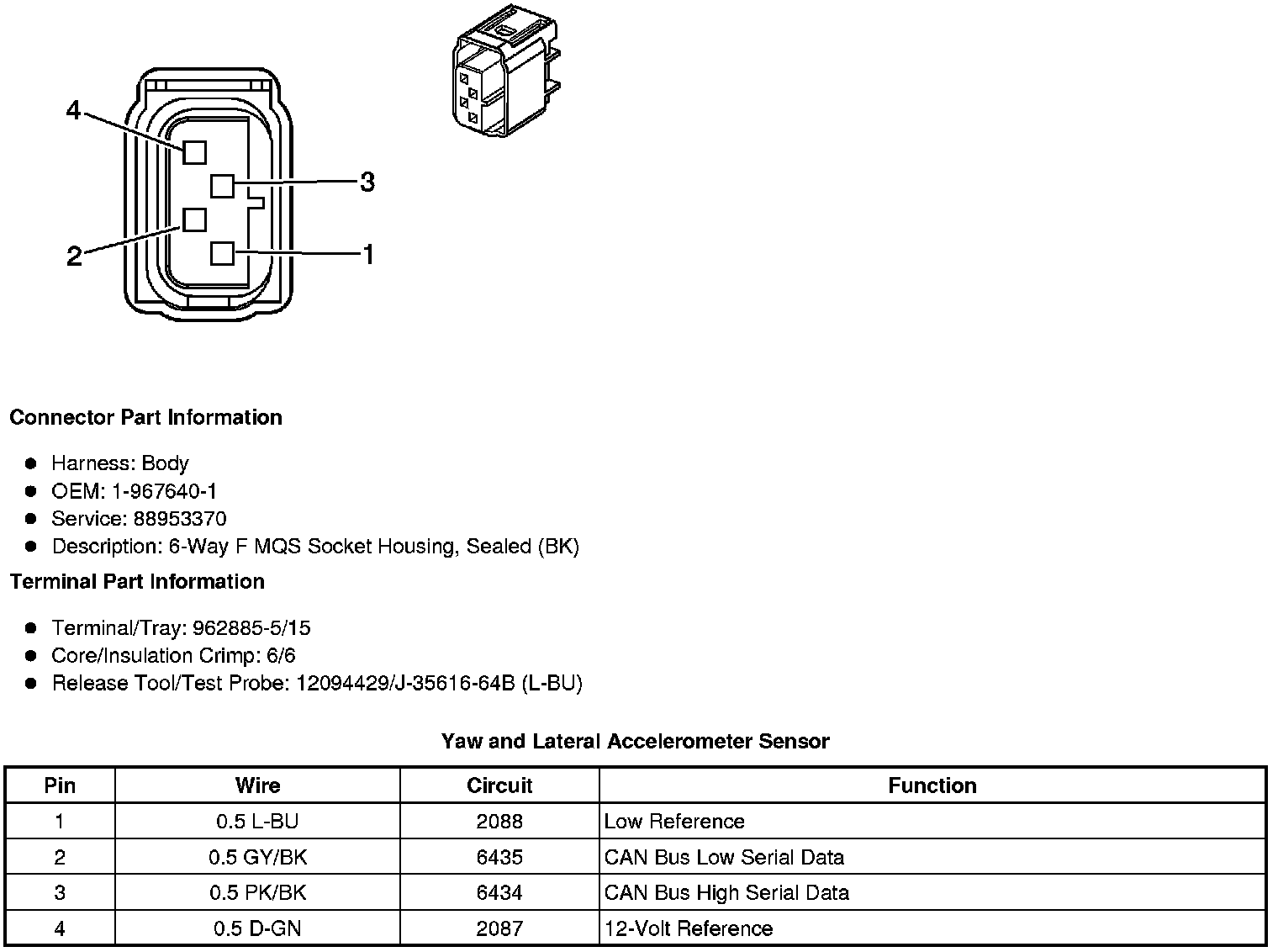

Acceleration/Deceleration Sensor
Component Connector End Views
Yaw and
Lateral Accelerometer
Sensor
