Traction Control Switch

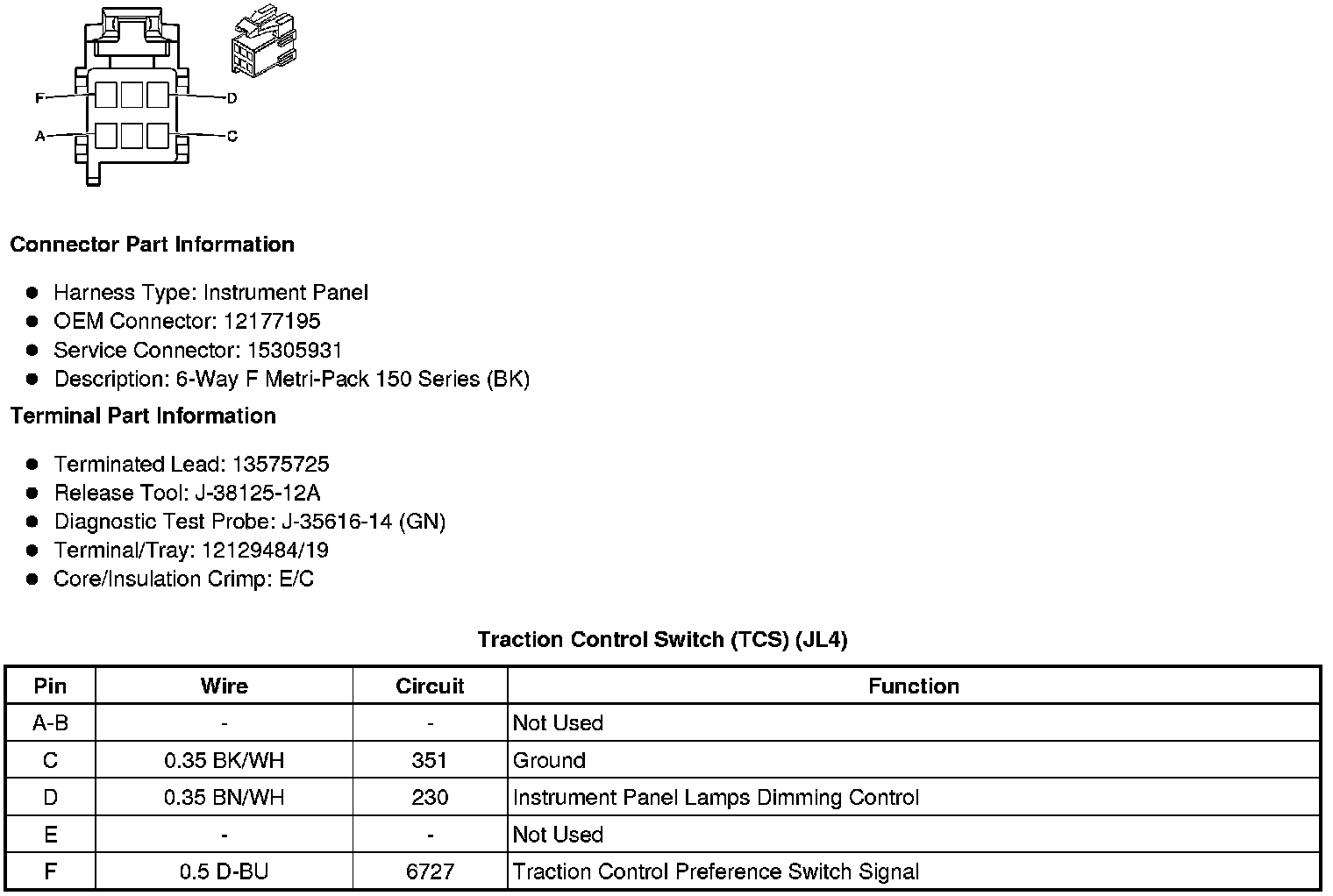

Traction Control Switch
Component Connector End Views
Traction Control Switch
(TCS) (JL4)
