Steering Angle Sensor
Steering Angle Sensor

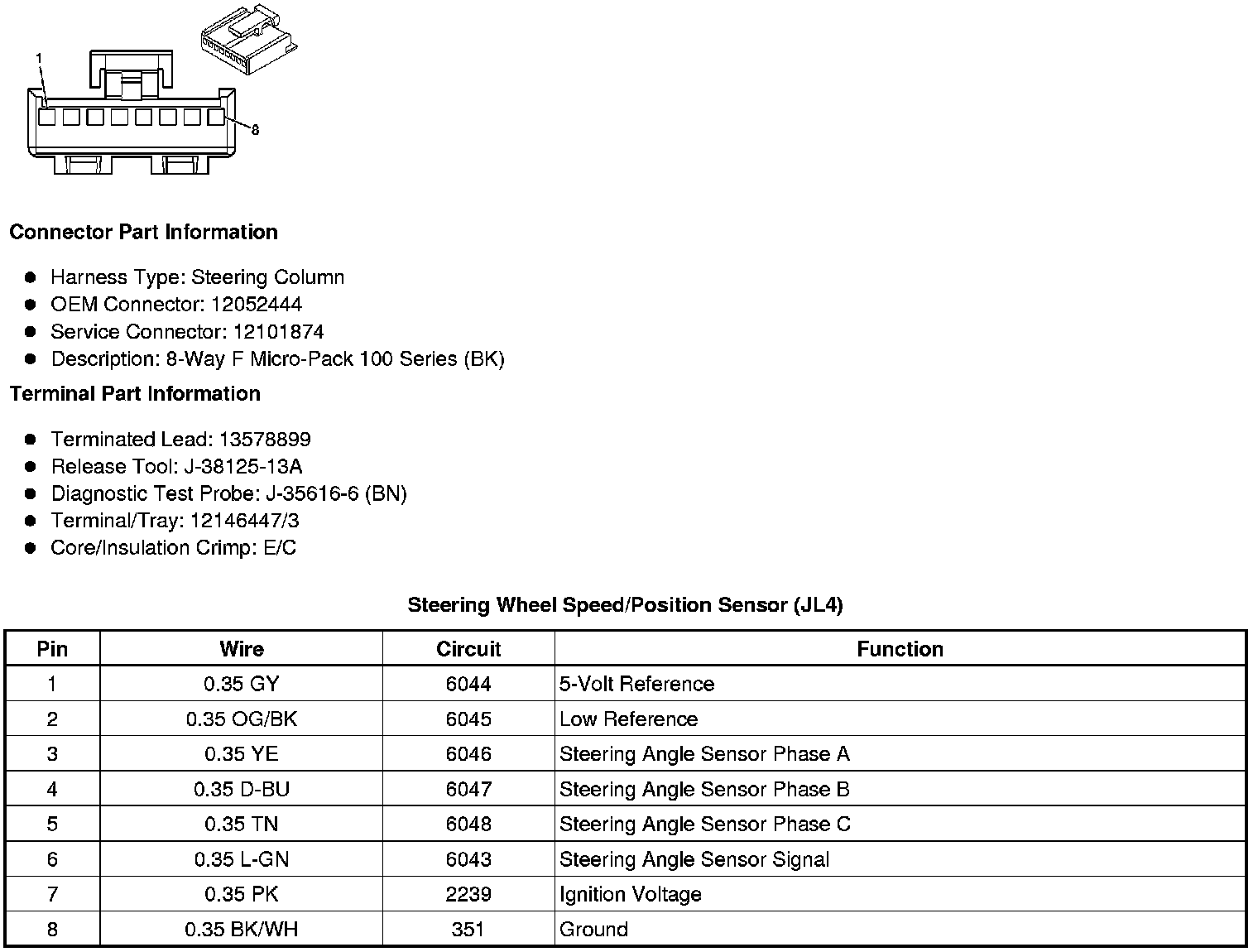

Component Connector End Views
Steering Wheel Speed/Position Sensor (JL4)
