Power Window Switch
Power Window Switch
Component Connector End Views

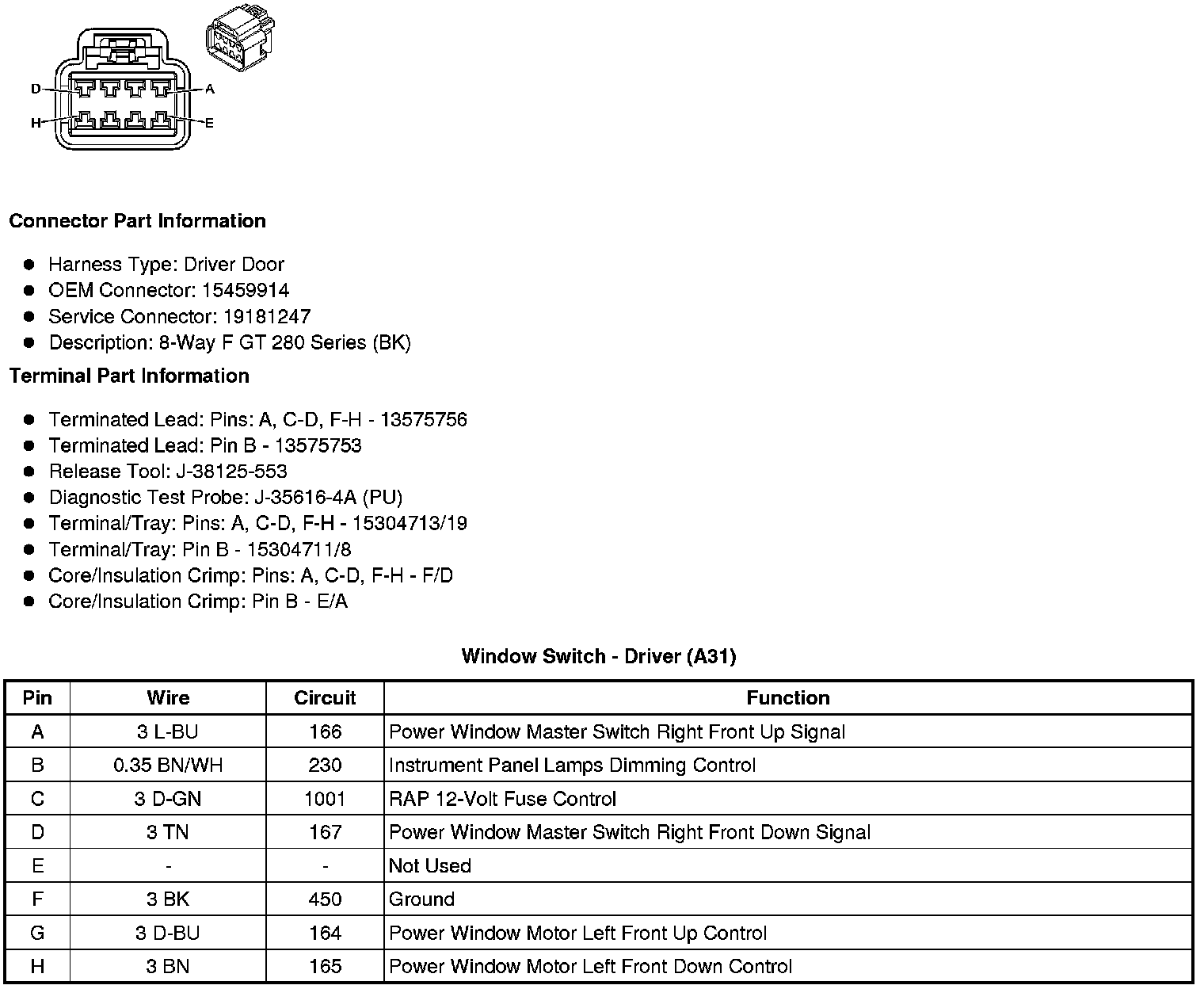

Window Switch - Driver (A31)

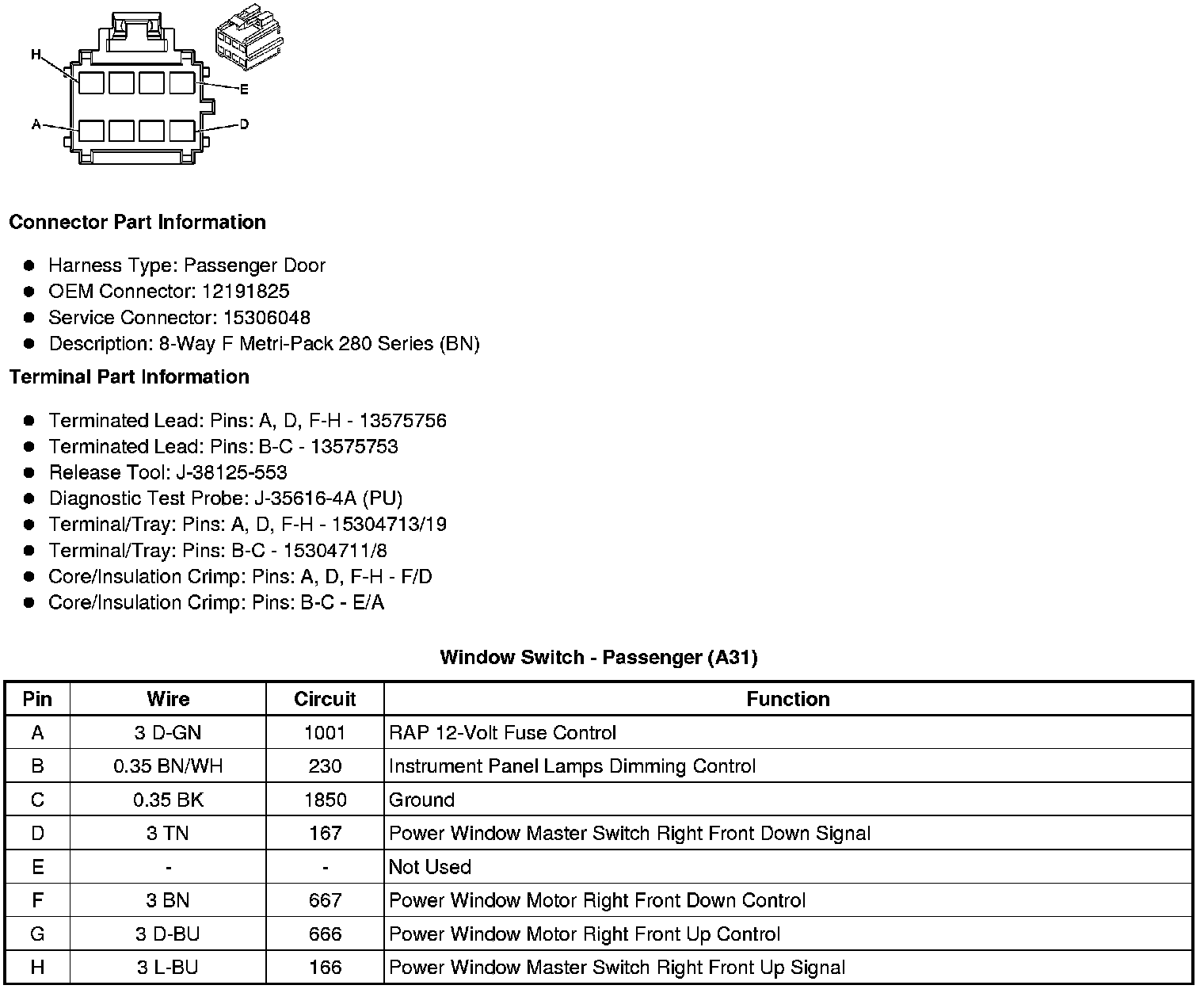

Window Switch - Passenger (A31)
