Power Window Motor
Power Window Motor
Component Connector End Views
Window Motor - Driver (A31)

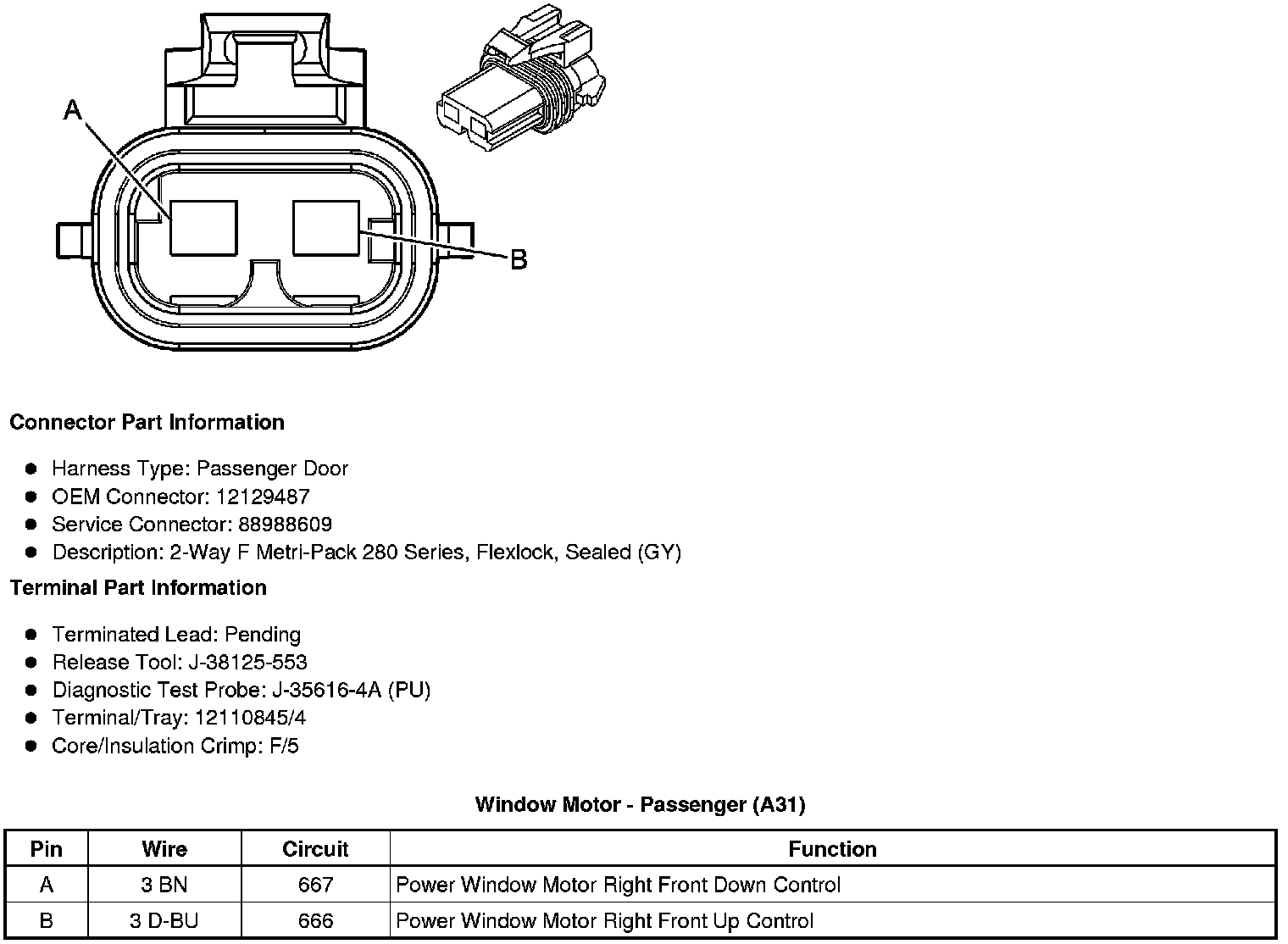

Window Motor - Passenger (A31)
