Ignition Control Module
Ignition Control Module

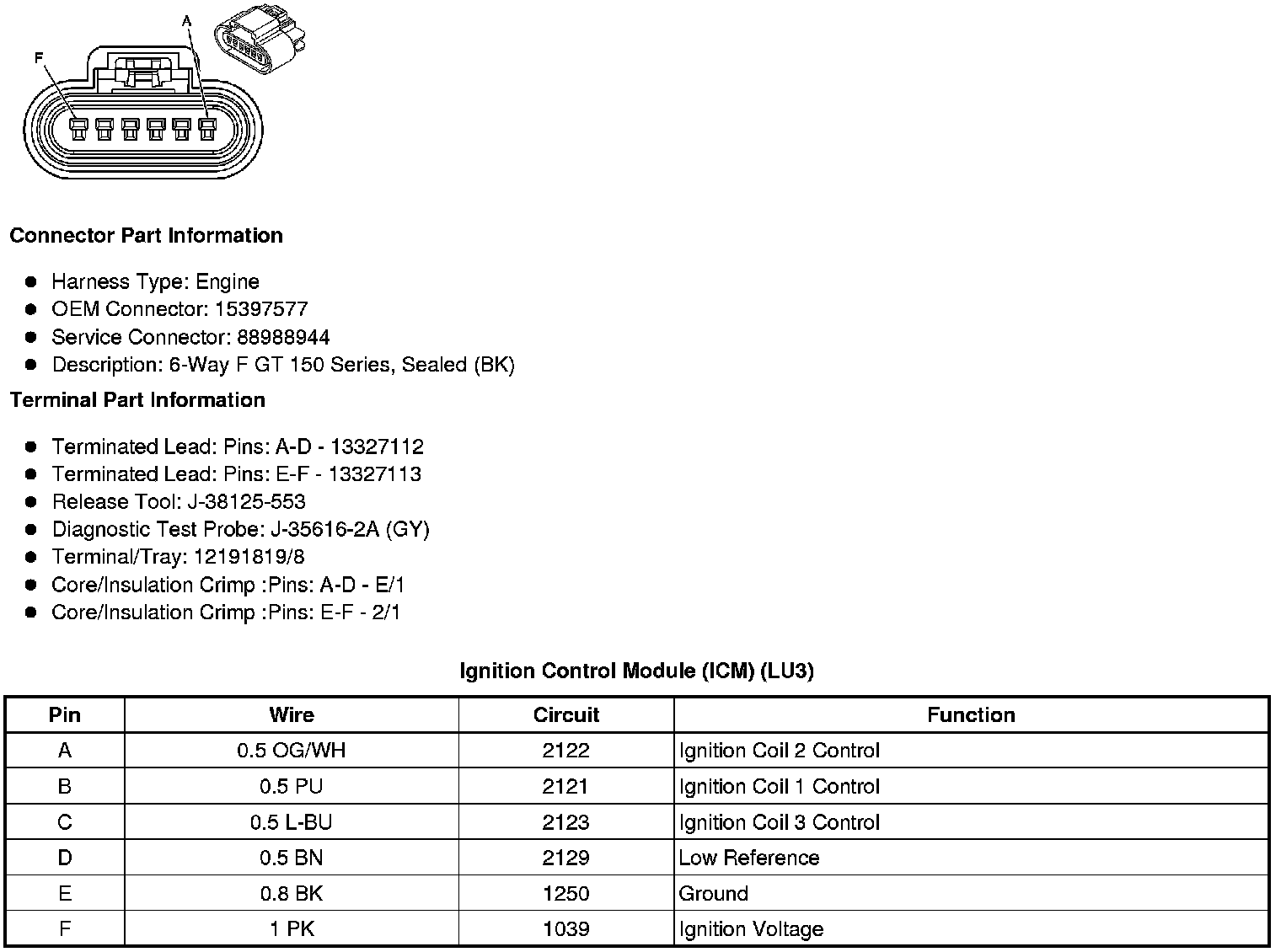

Component Connector End Views
Ignition Control Module (ICM) (LU3)
