Fuel Temperature Sensor
Component Connector End Views
Fuel Temperature Sensor
1 (LGH)

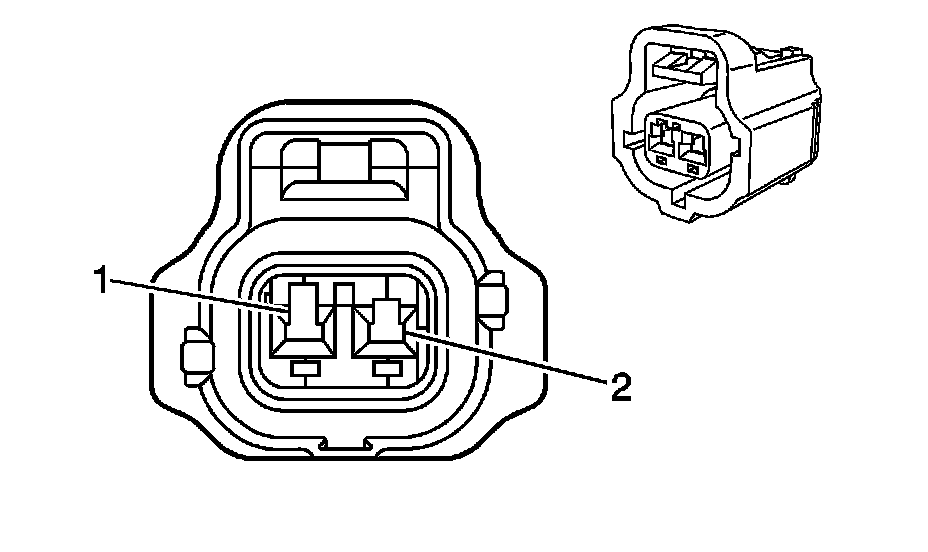

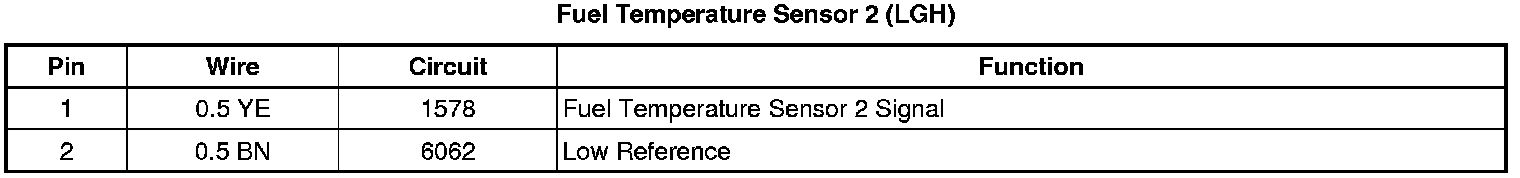

Fuel Temperature Sensor
2 (LGH)
