EGR Temperature Sensor




Component Connector End Views

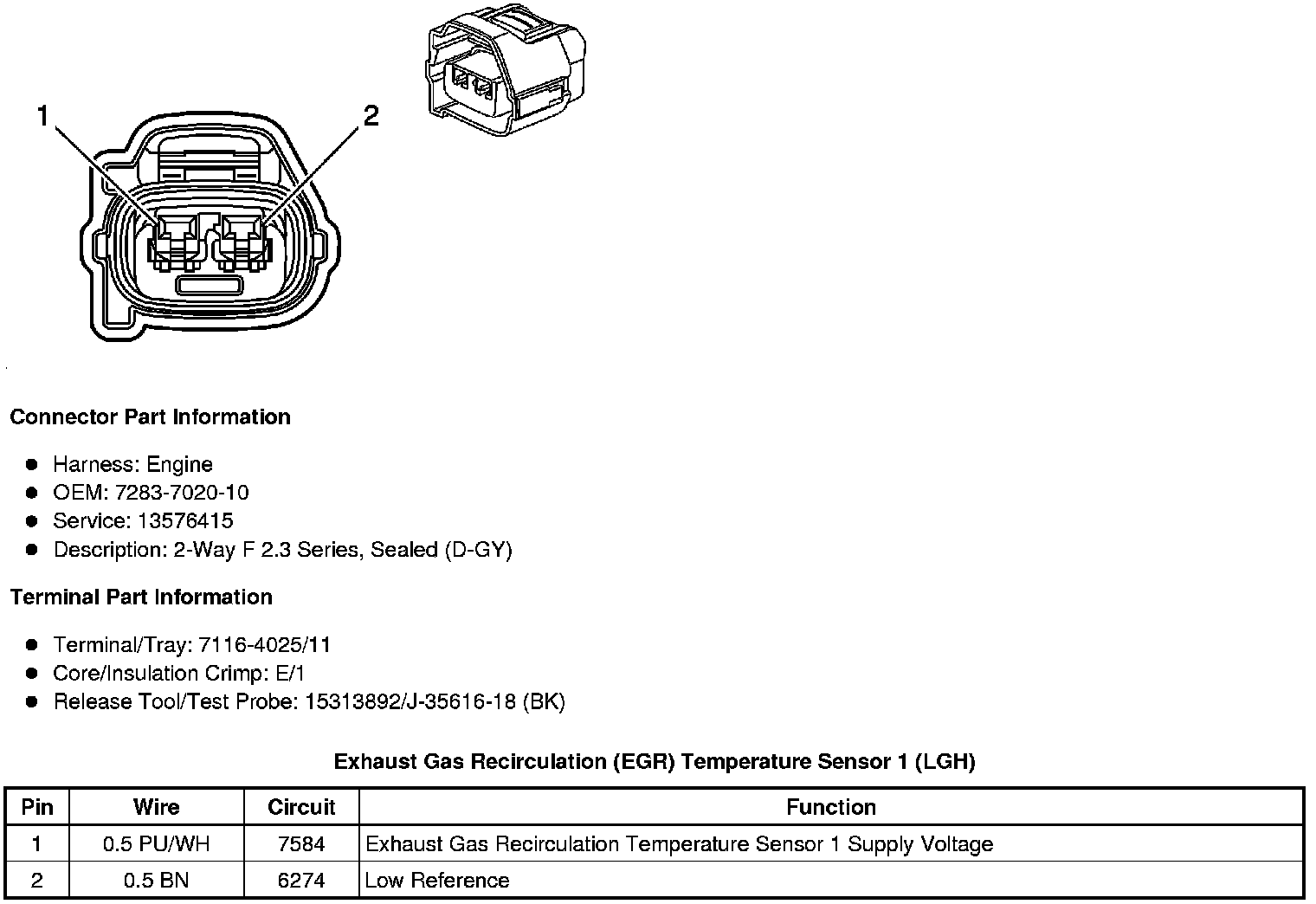

Exhaust Gas Recirculation (EGR) Temperature Sensor 1 (LGH)





Exhaust Gas Recirculation (EGR) Temperature Sensor 2 (LGH)
