Chevrolet
>>
2011
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compass
Compass

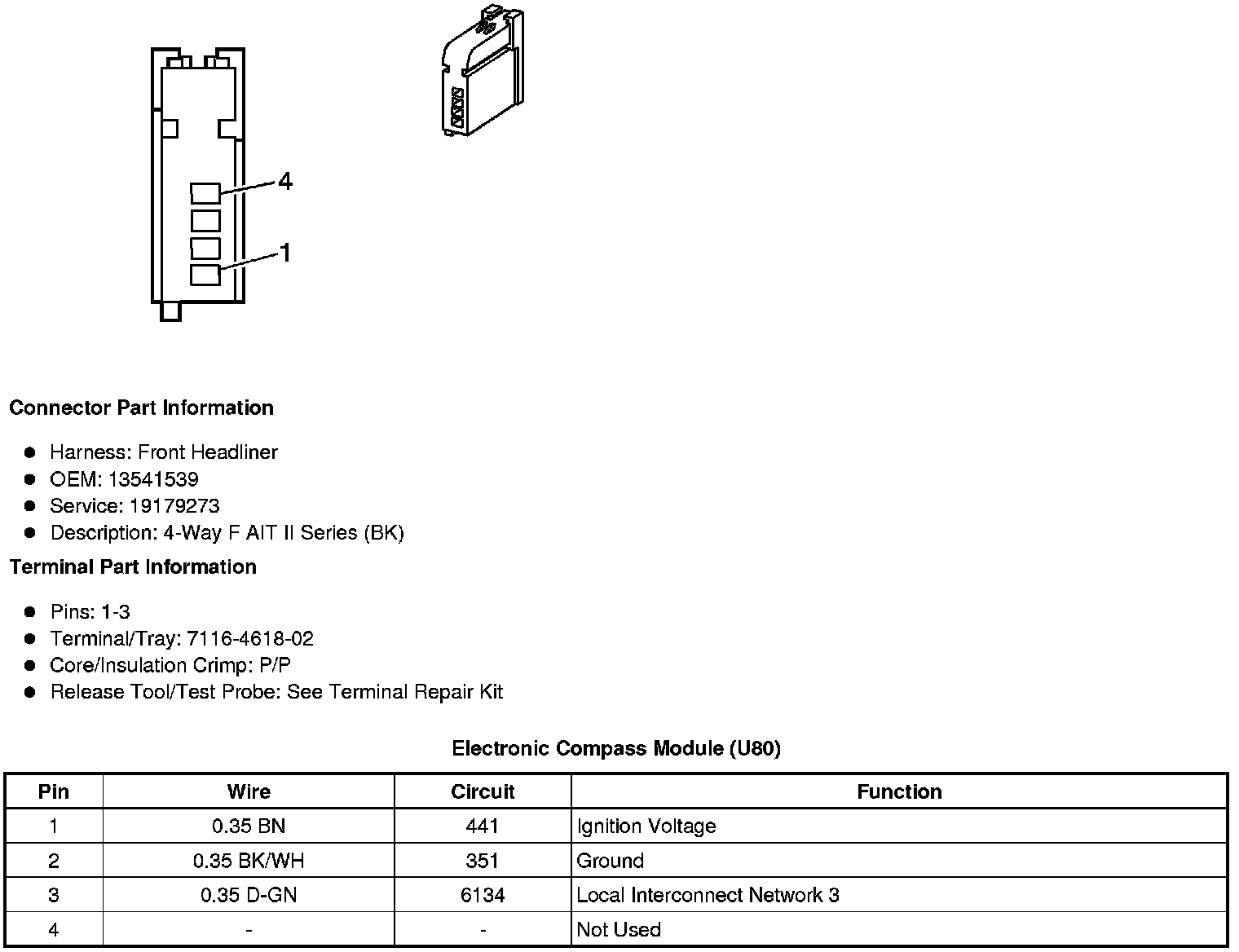

Component Connector End Views
Electronic Compass Module (U80)
