Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

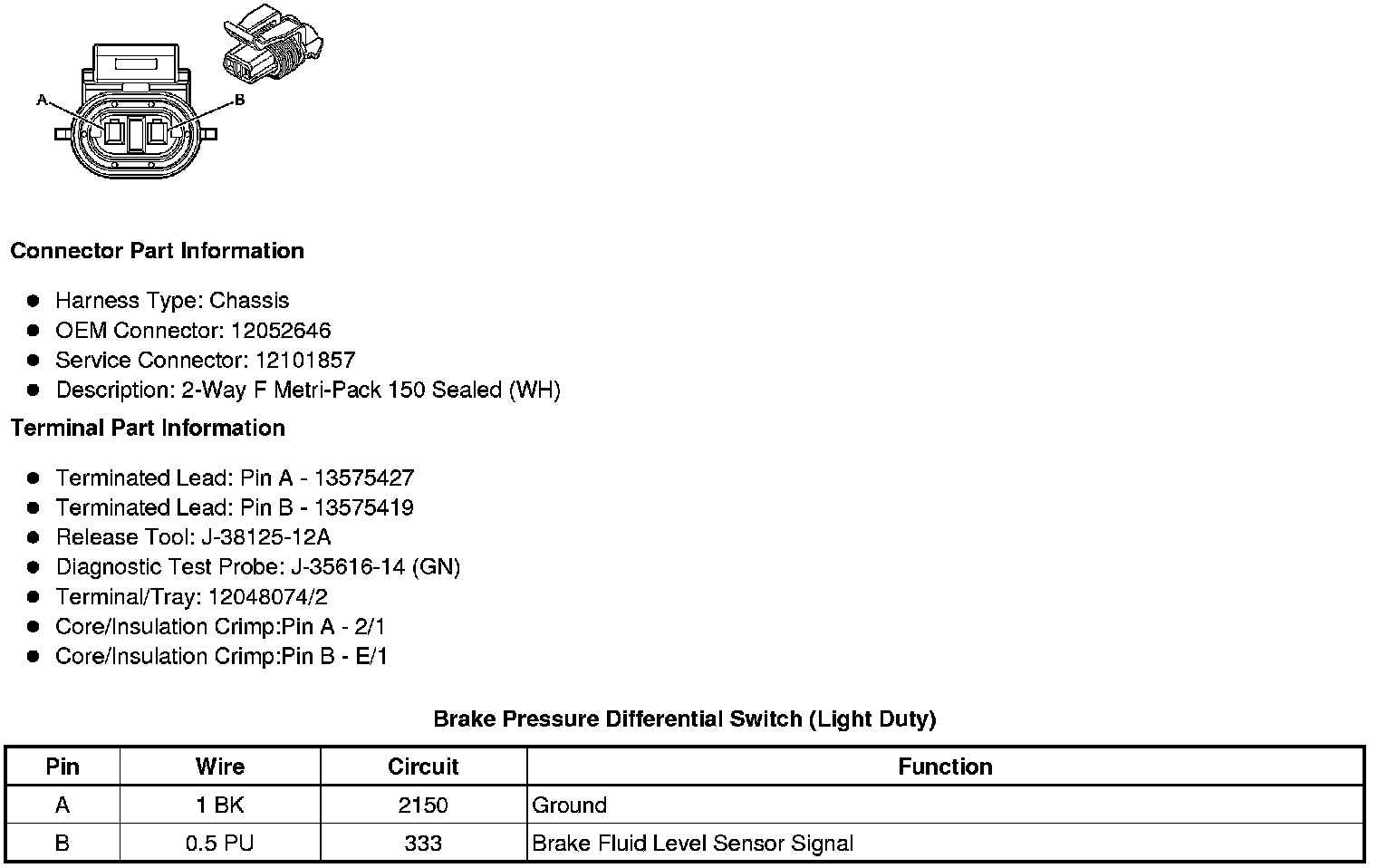

Component Connector End Views
Brake Pressure Differential Switch (Light Duty)
