Alternator

Component Connector End Views

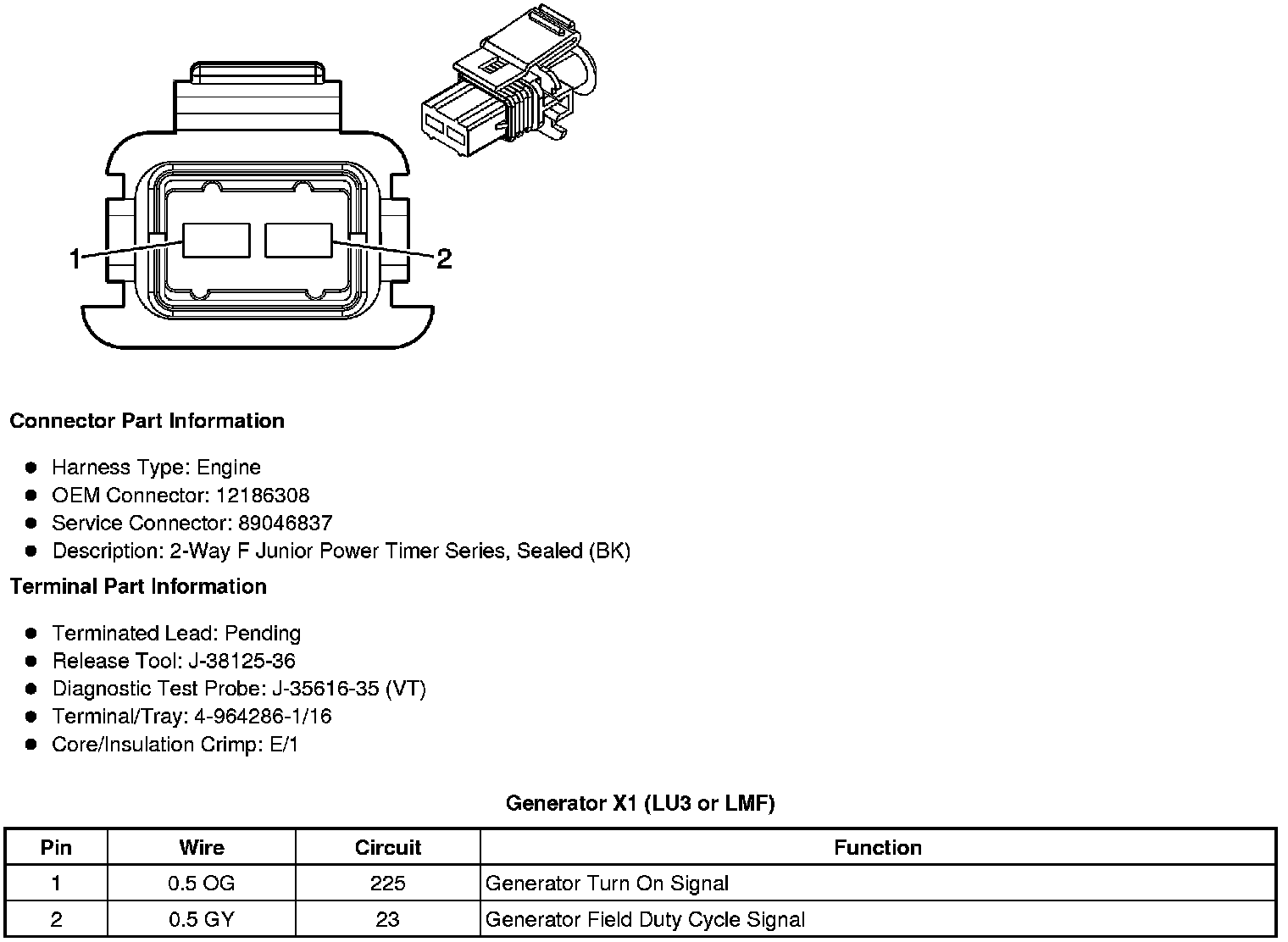

Generator X1 (LU3 or LMF)

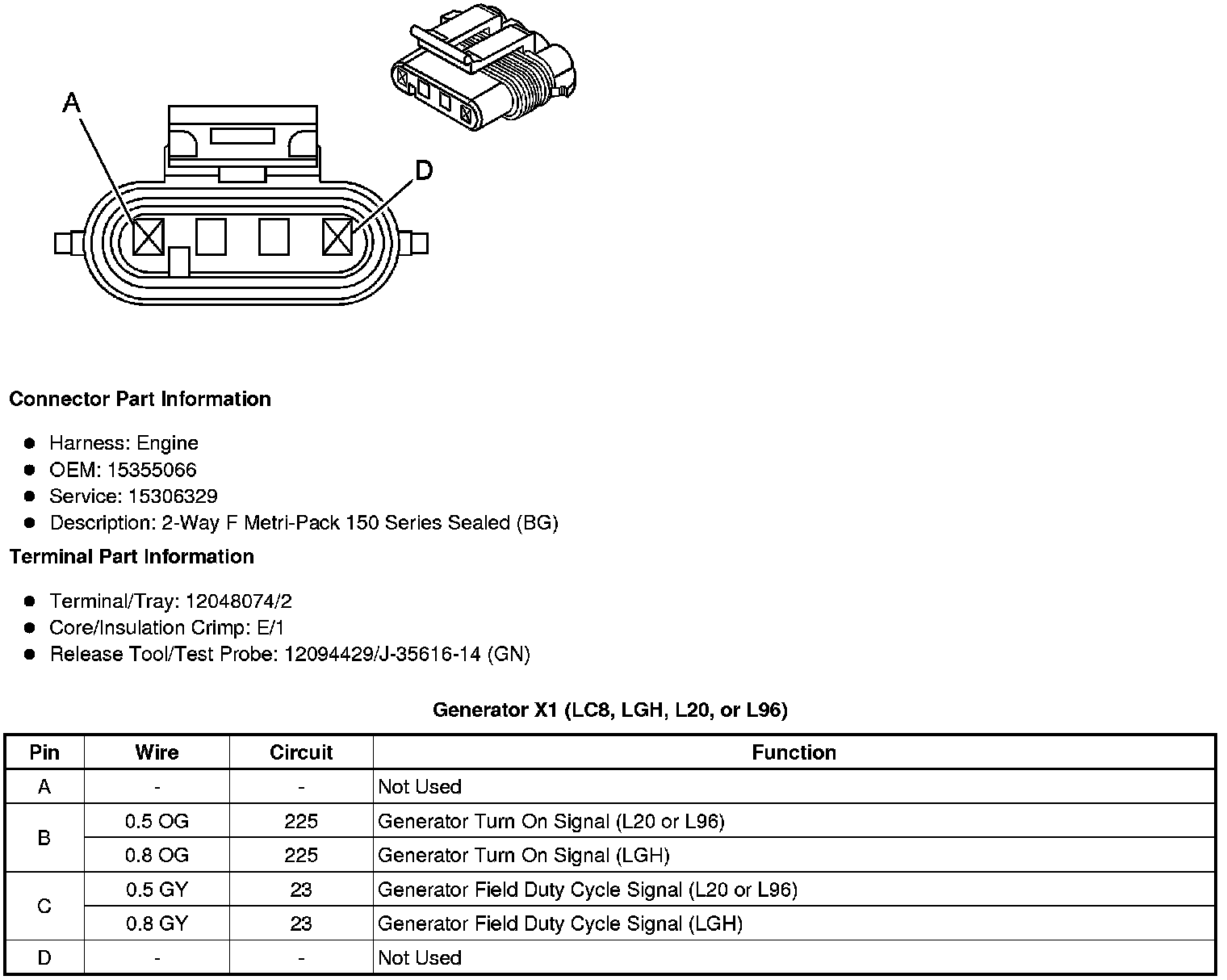

Generator X1 (LC8, LGH, L20, or L96)

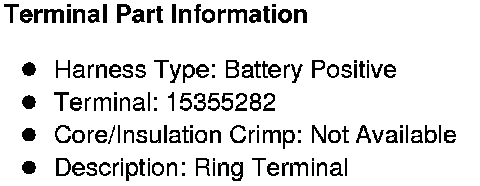

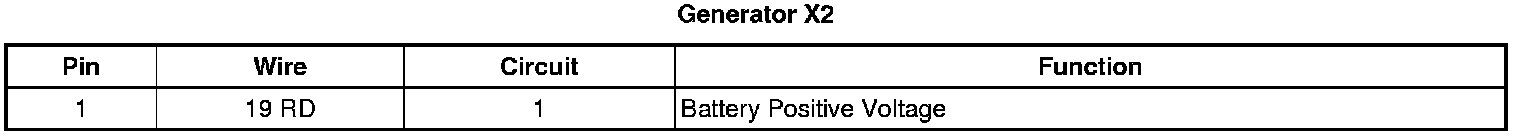

Generator X2

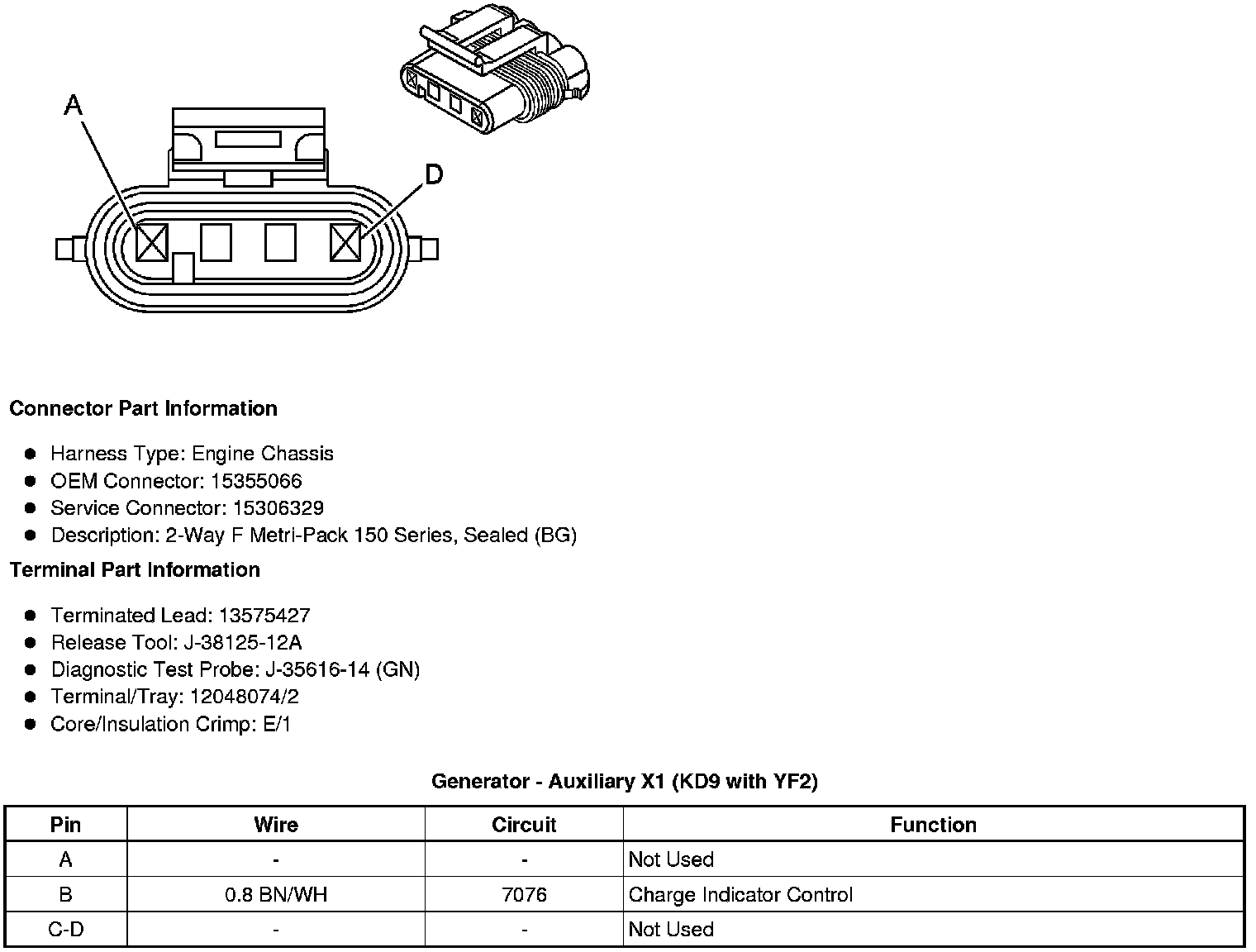

Generator - Auxiliary X1 (KD9 with YF2)

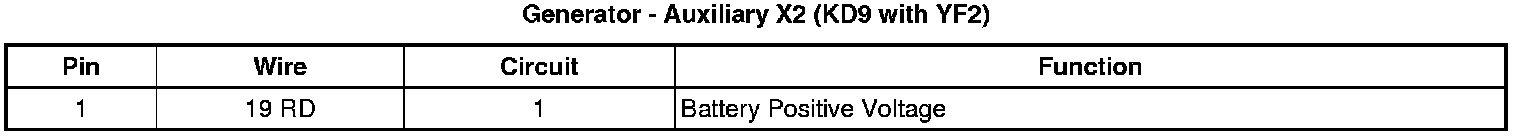

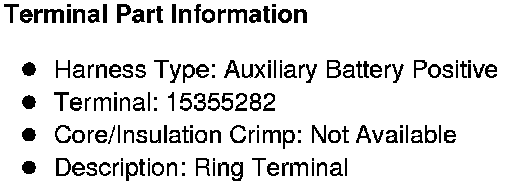

Generator - Auxiliary X2 (KD9 with YF2)
