Engine Control Module




Component Connector End Views

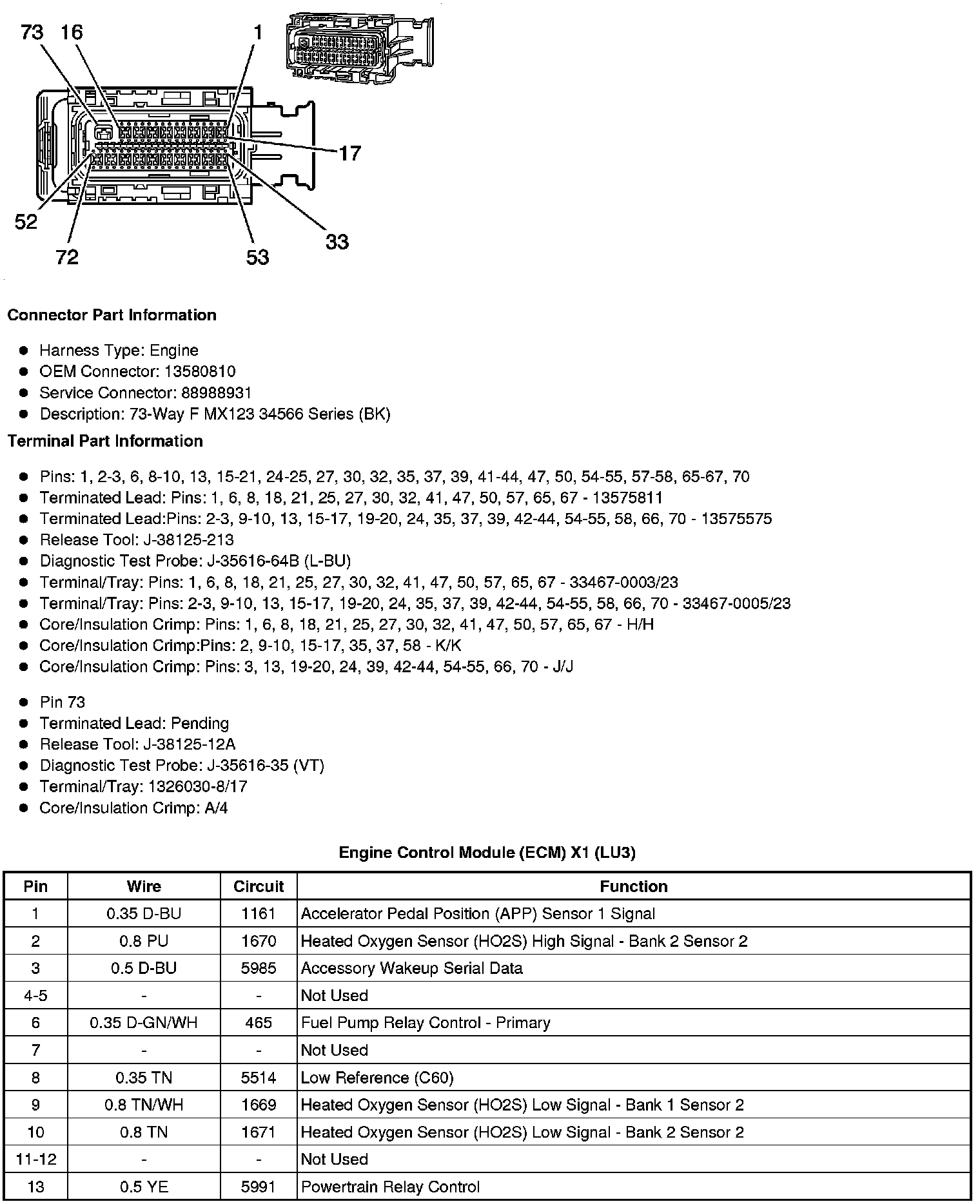

Engine Control Module (ECM) X1 (LU3)

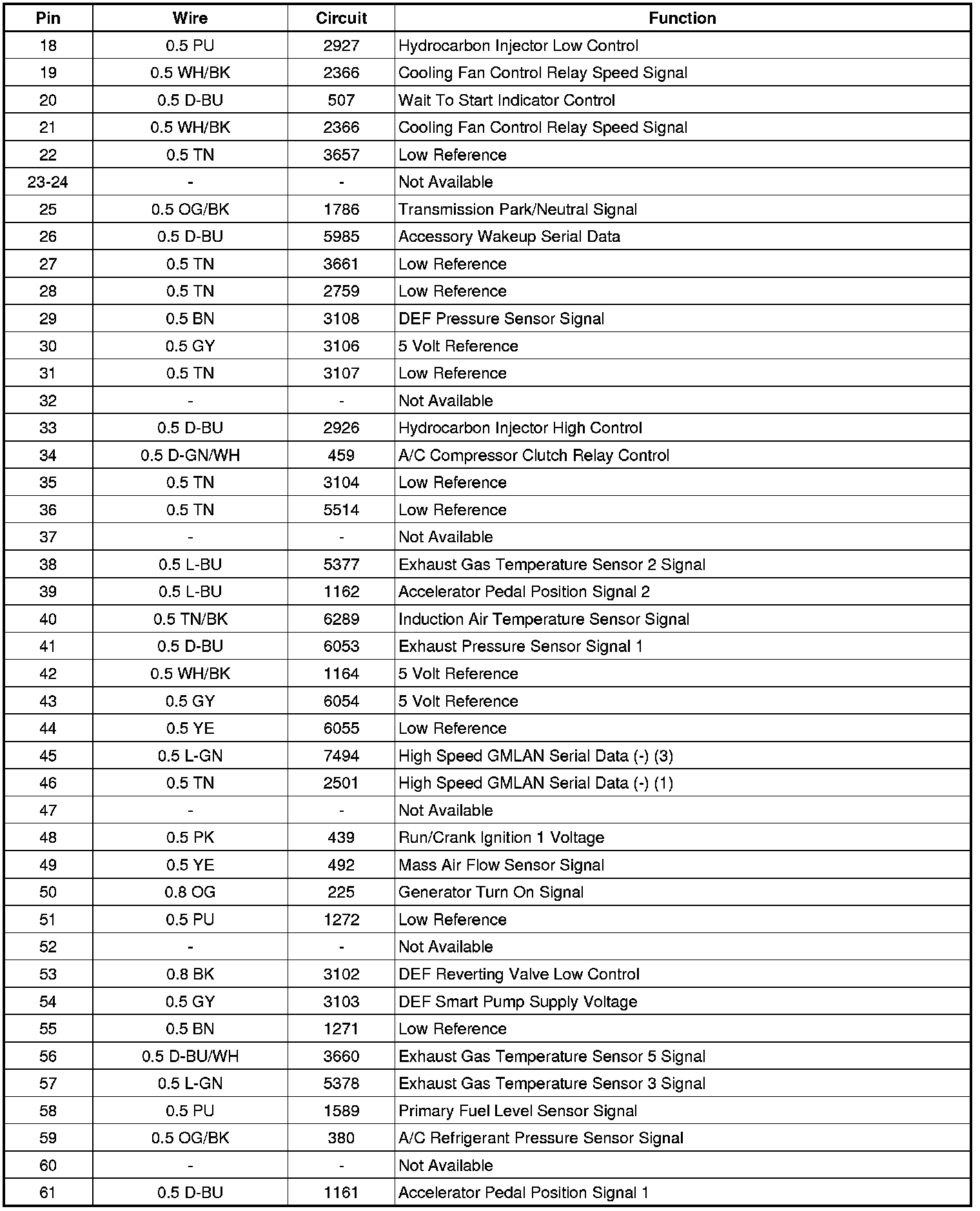

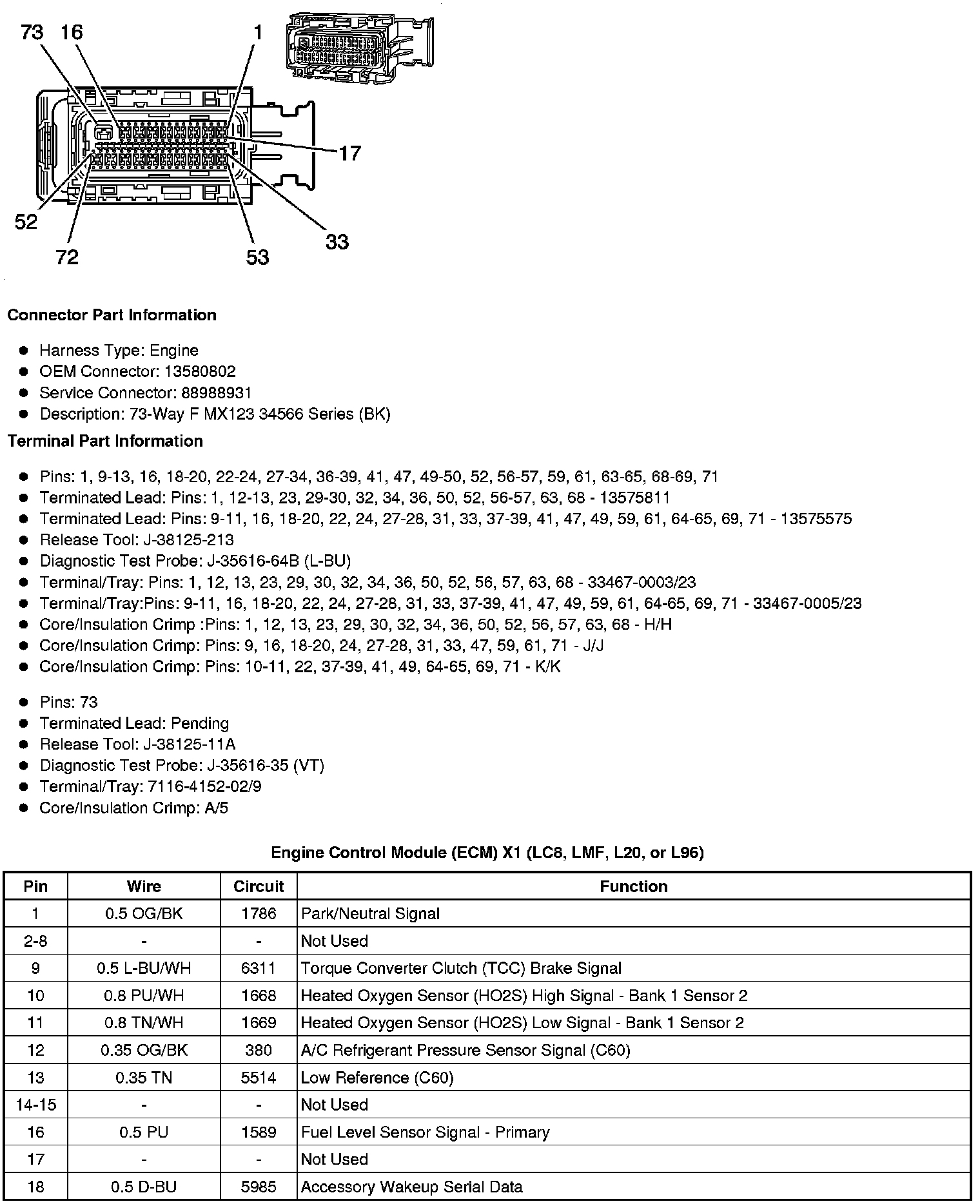

Engine Control Module (ECM) X1 (LC8, LMF, L20, or L96)

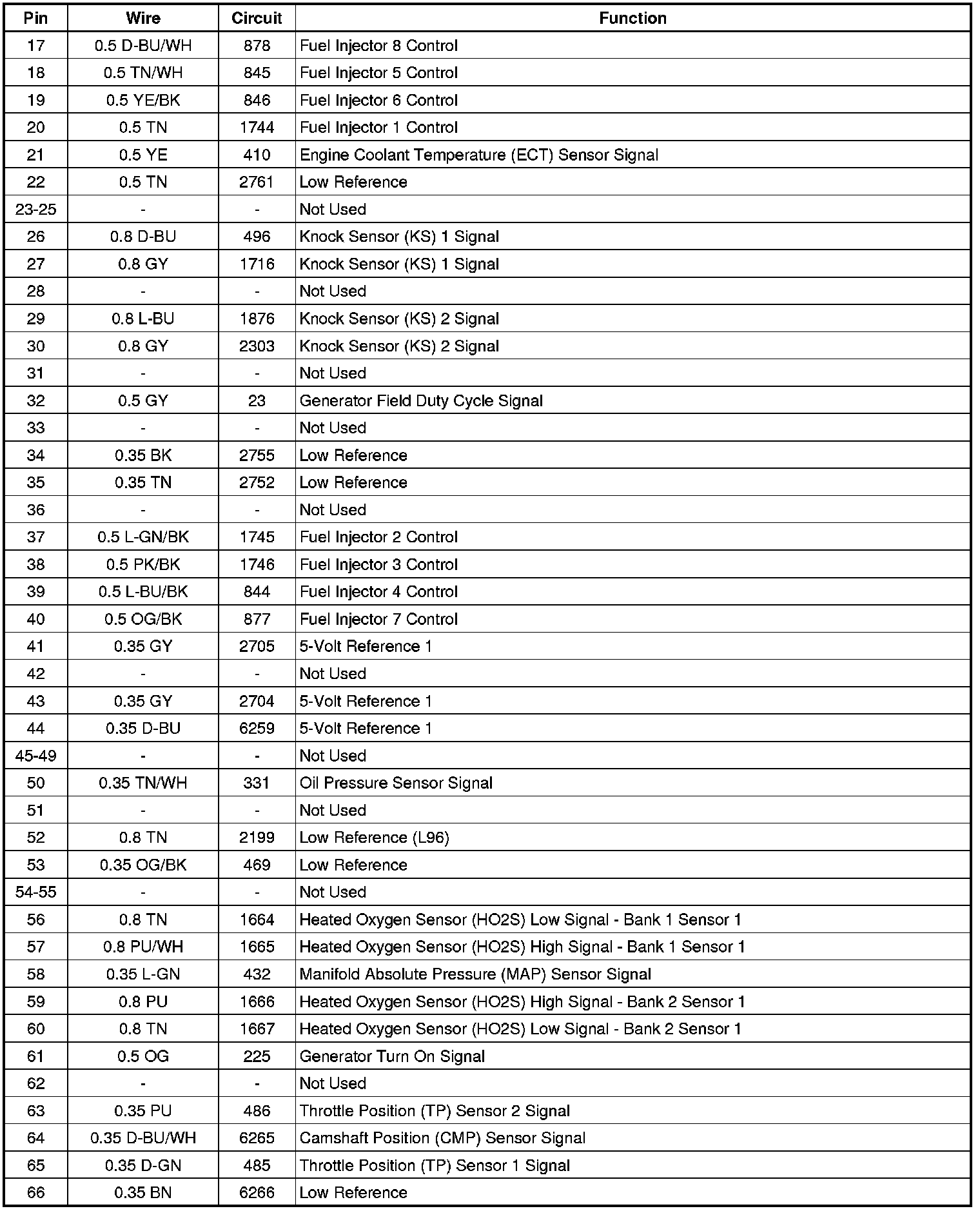

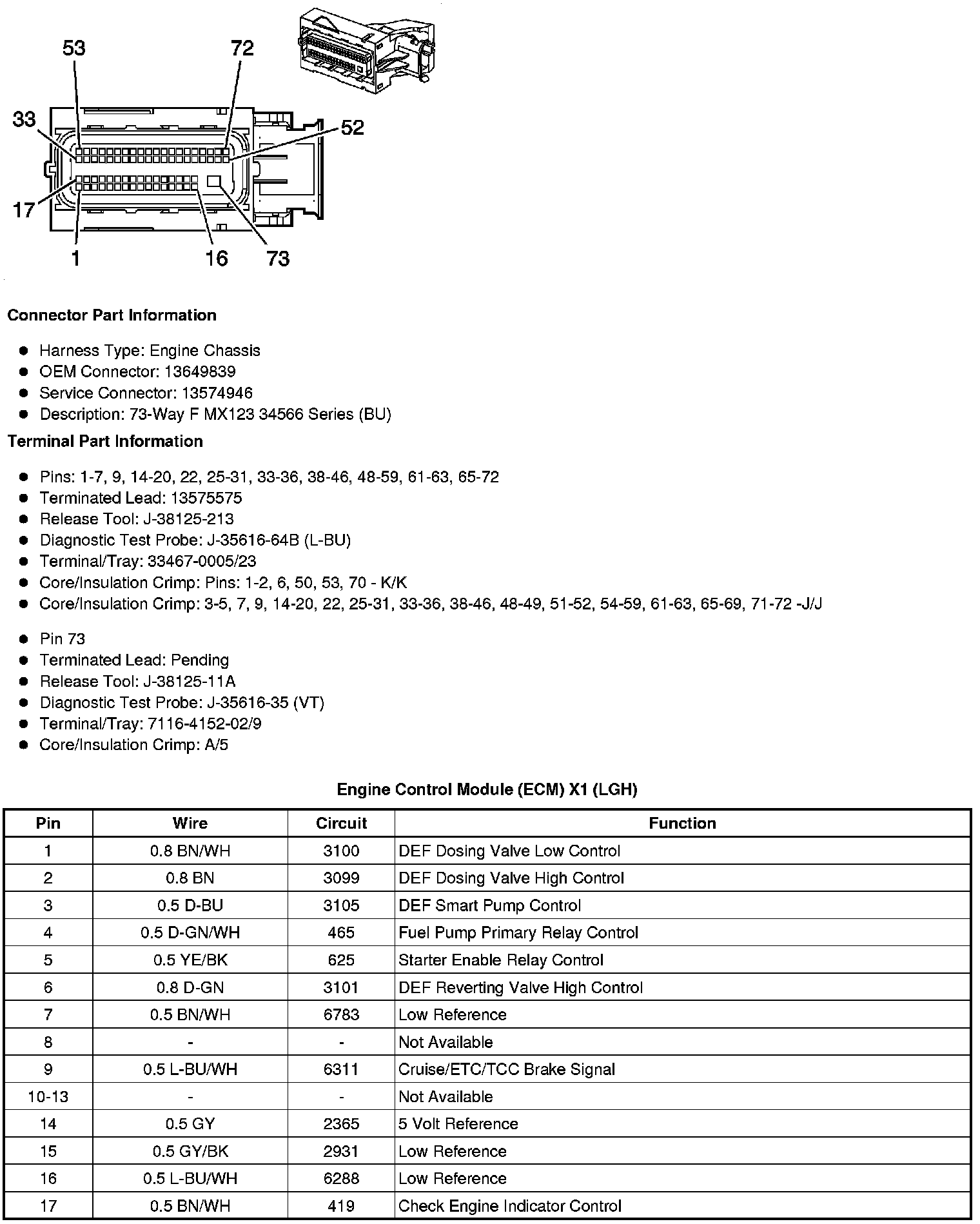

Engine Control Module (ECM) X1 (LGH)

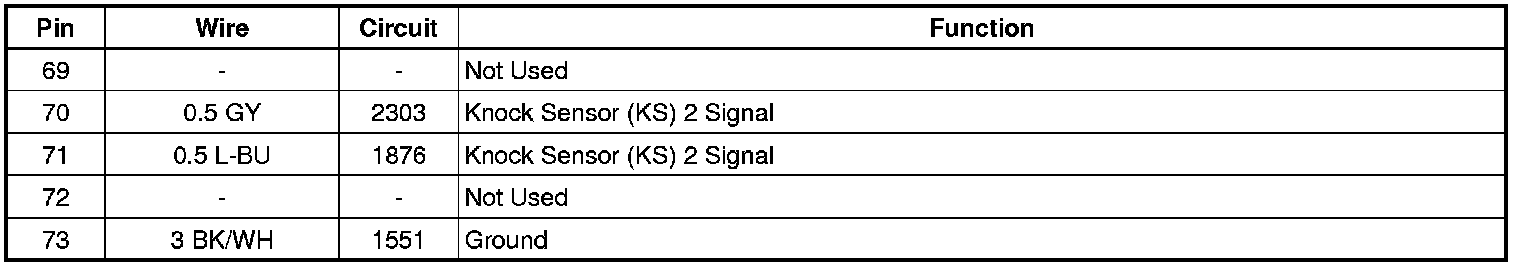

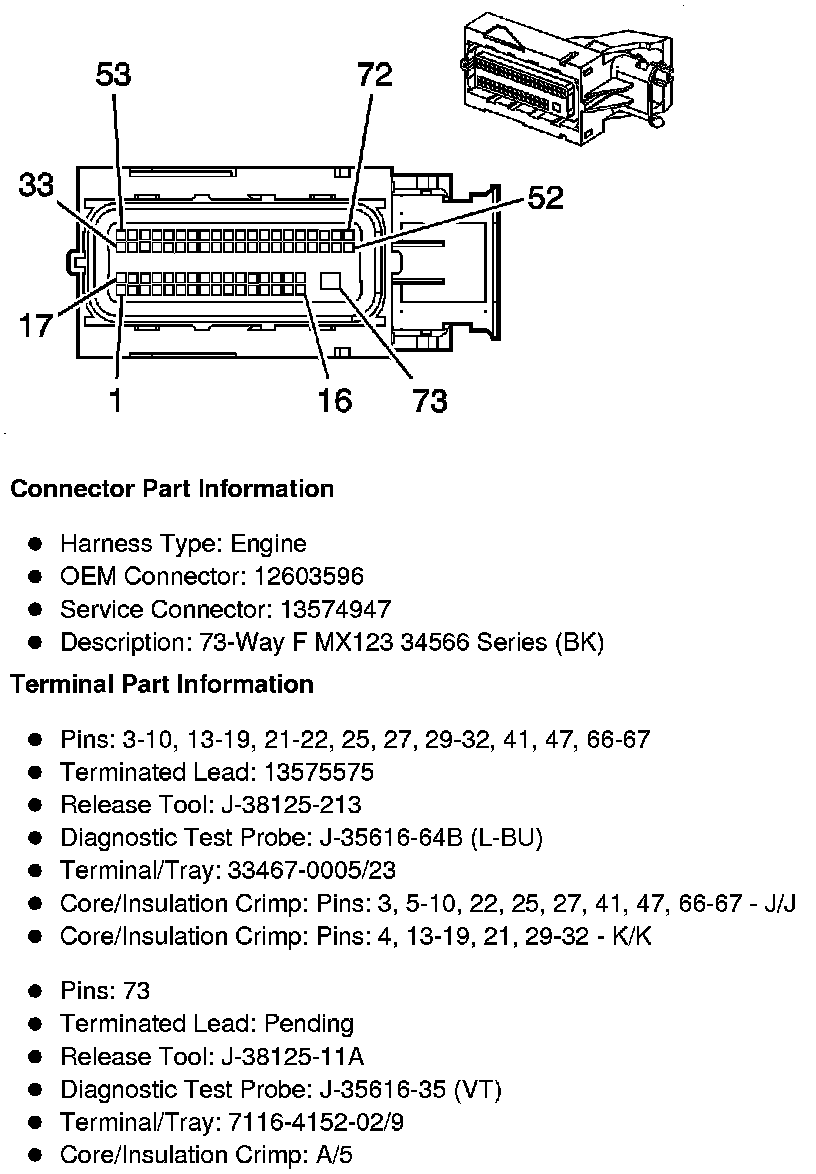

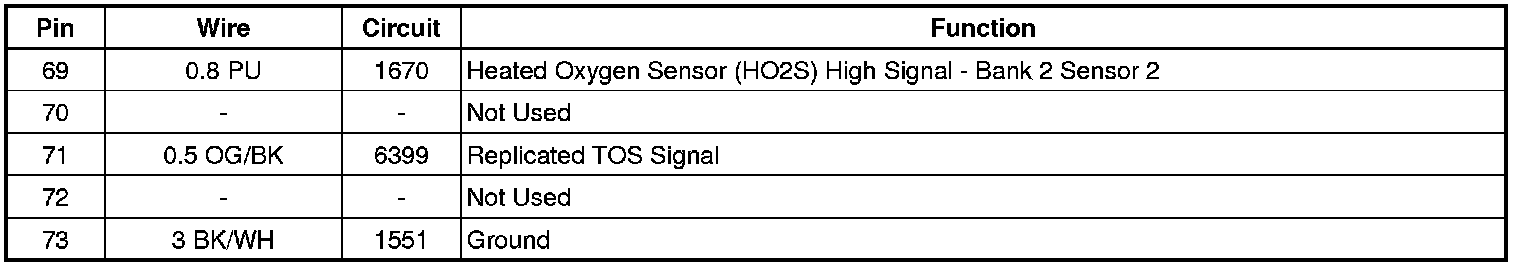

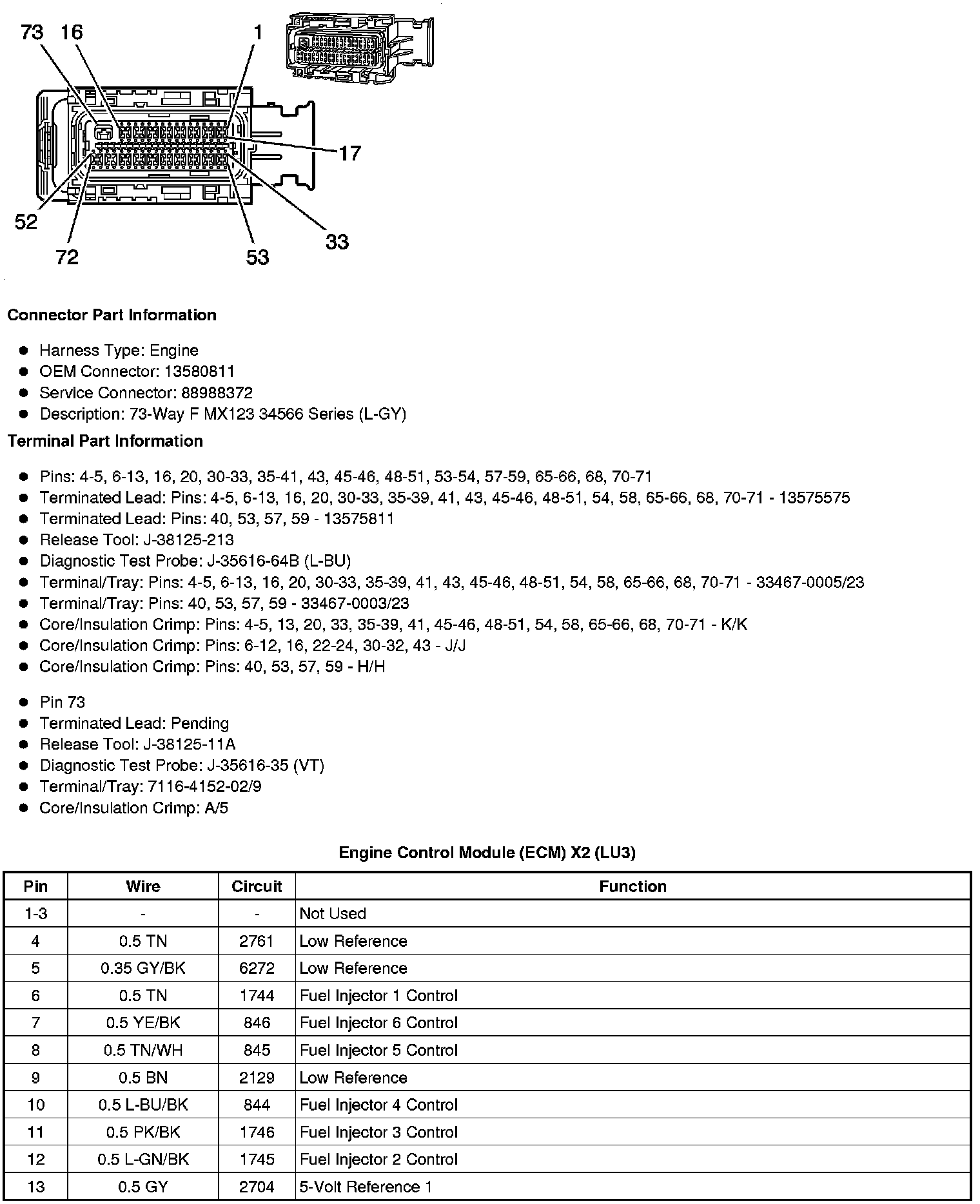

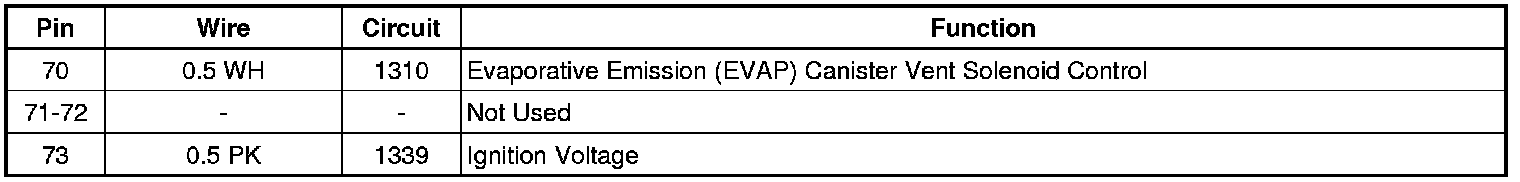

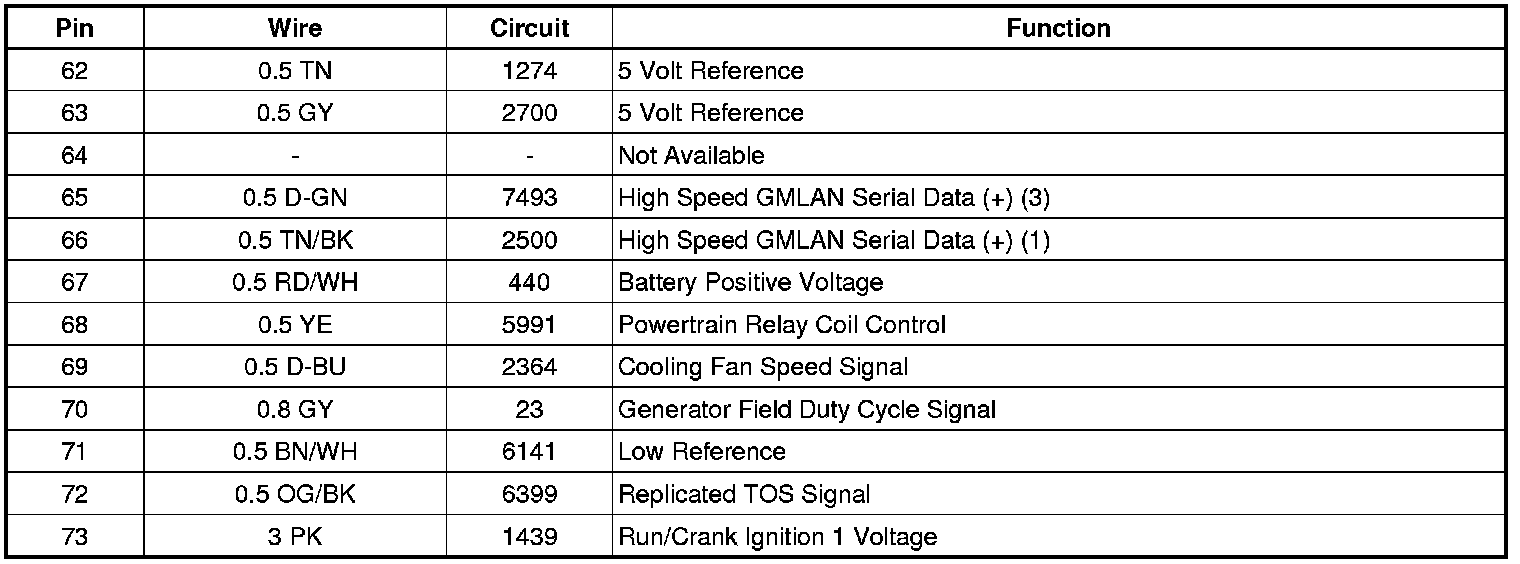

Engine Control Module (ECM) X2 (LU3)

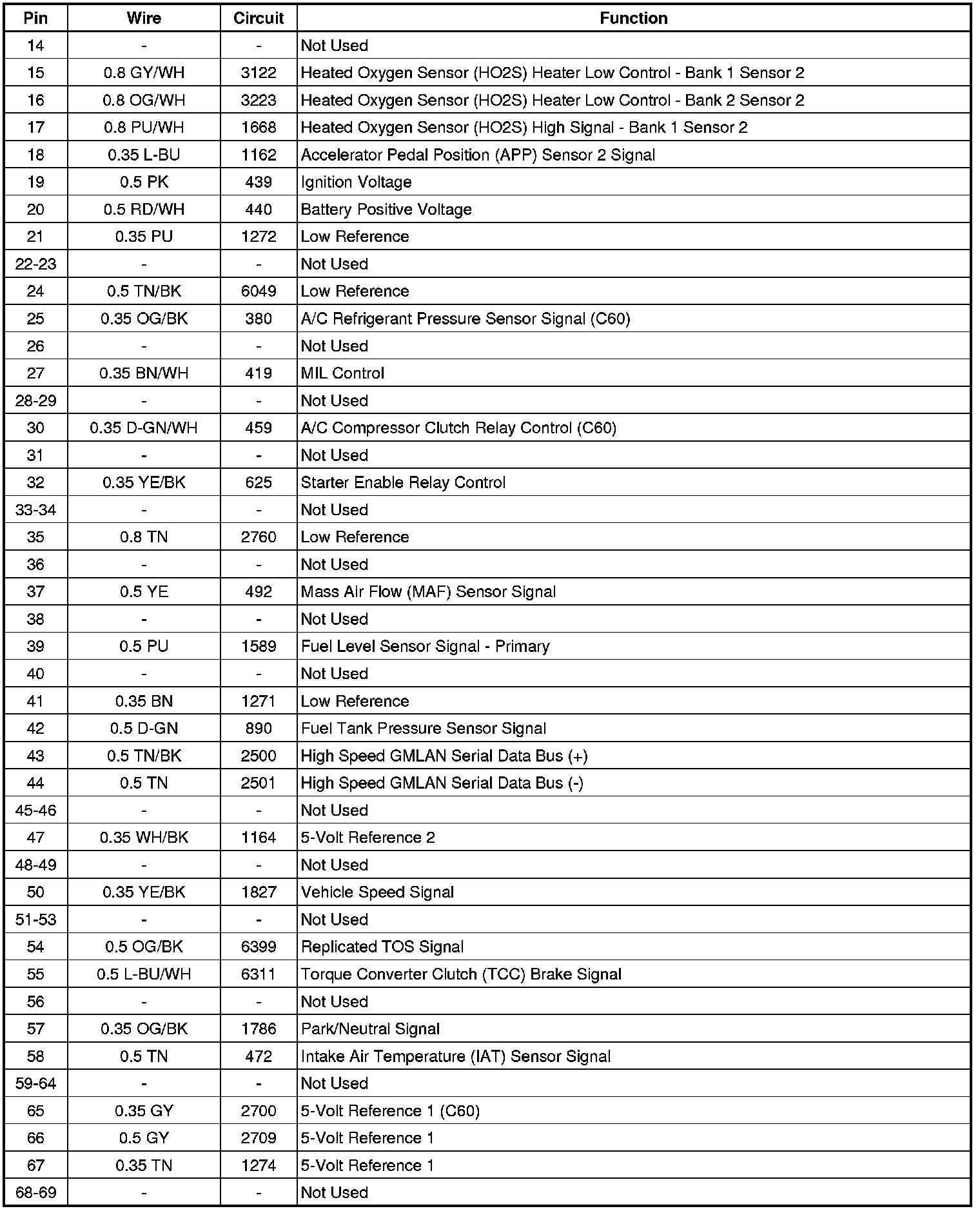

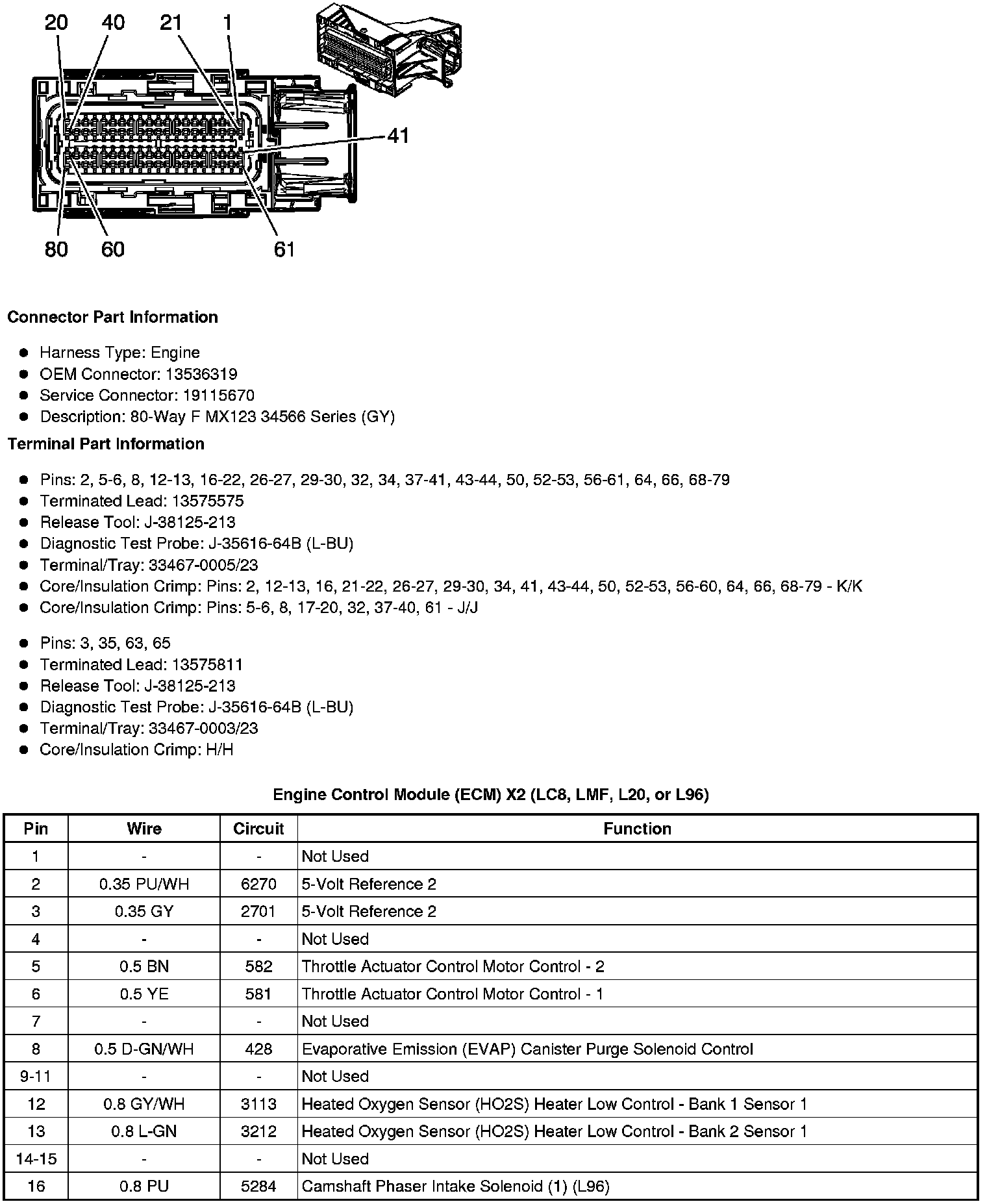

Engine Control Module (ECM) X2 (LC8, LMF, L20, or L96)

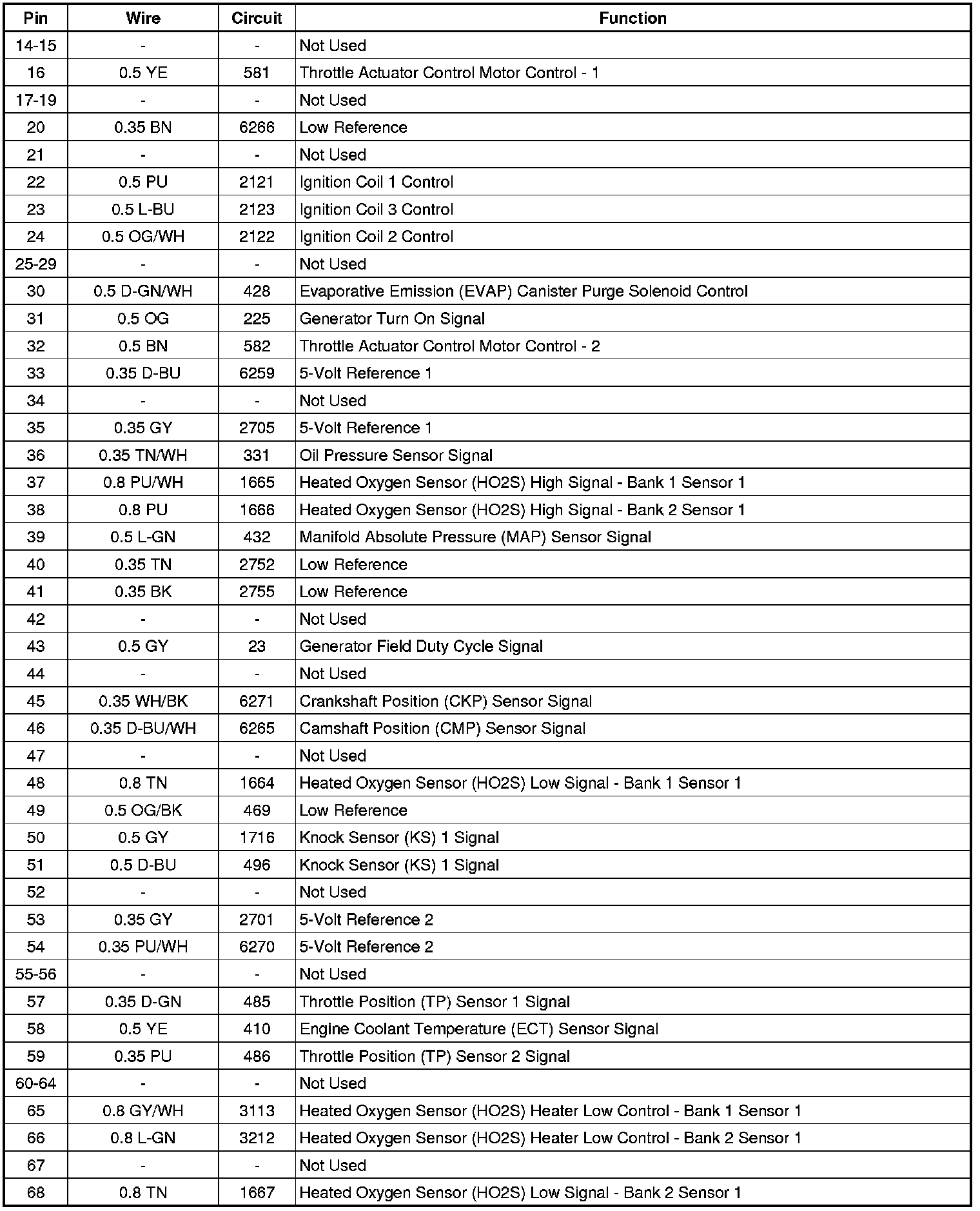

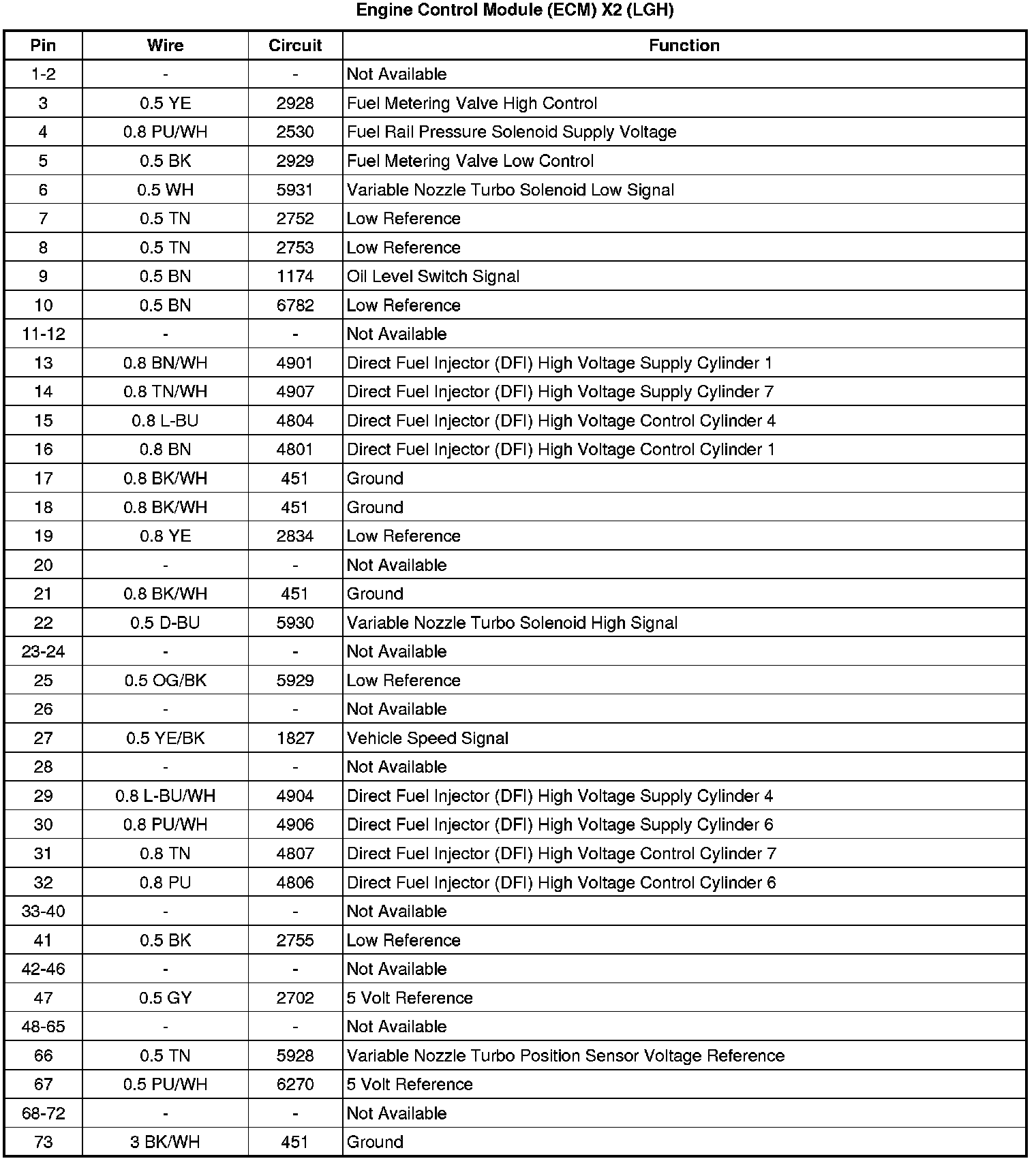

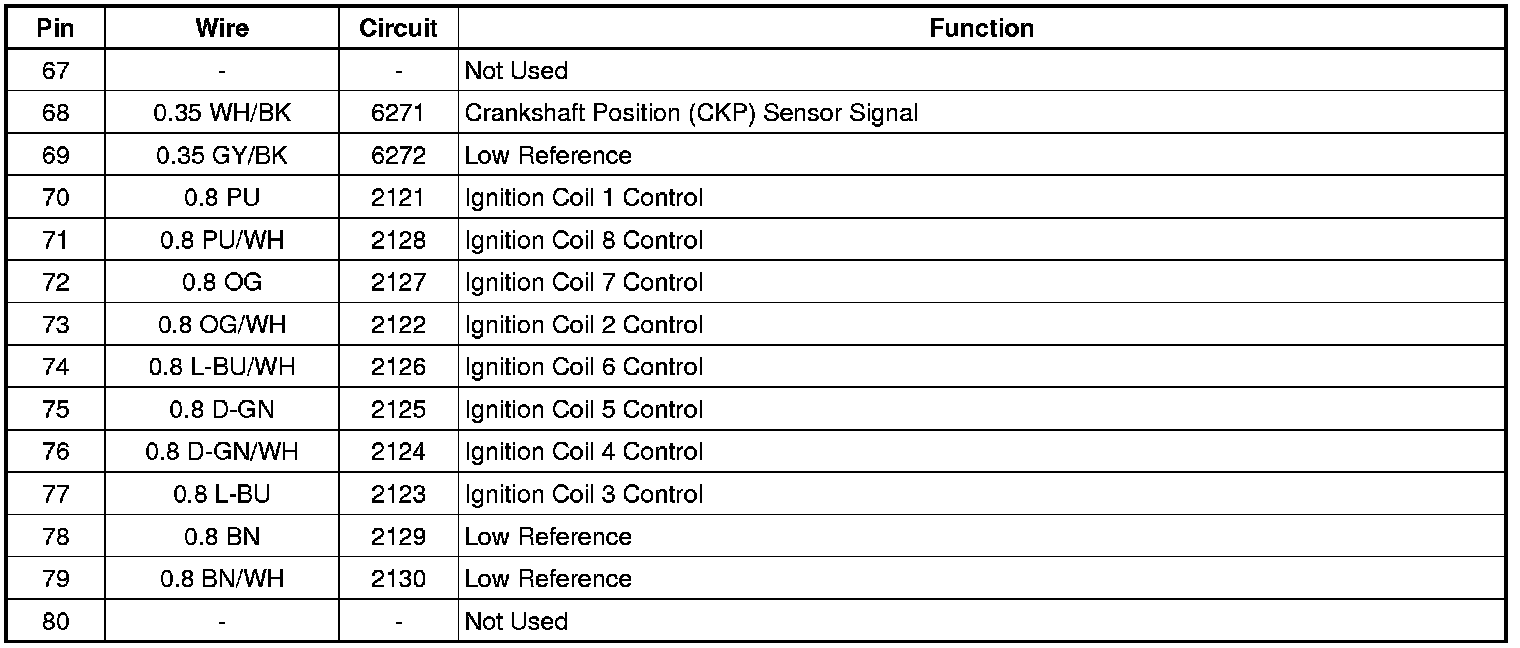

Engine Control Module (ECM) X2 (LGH)

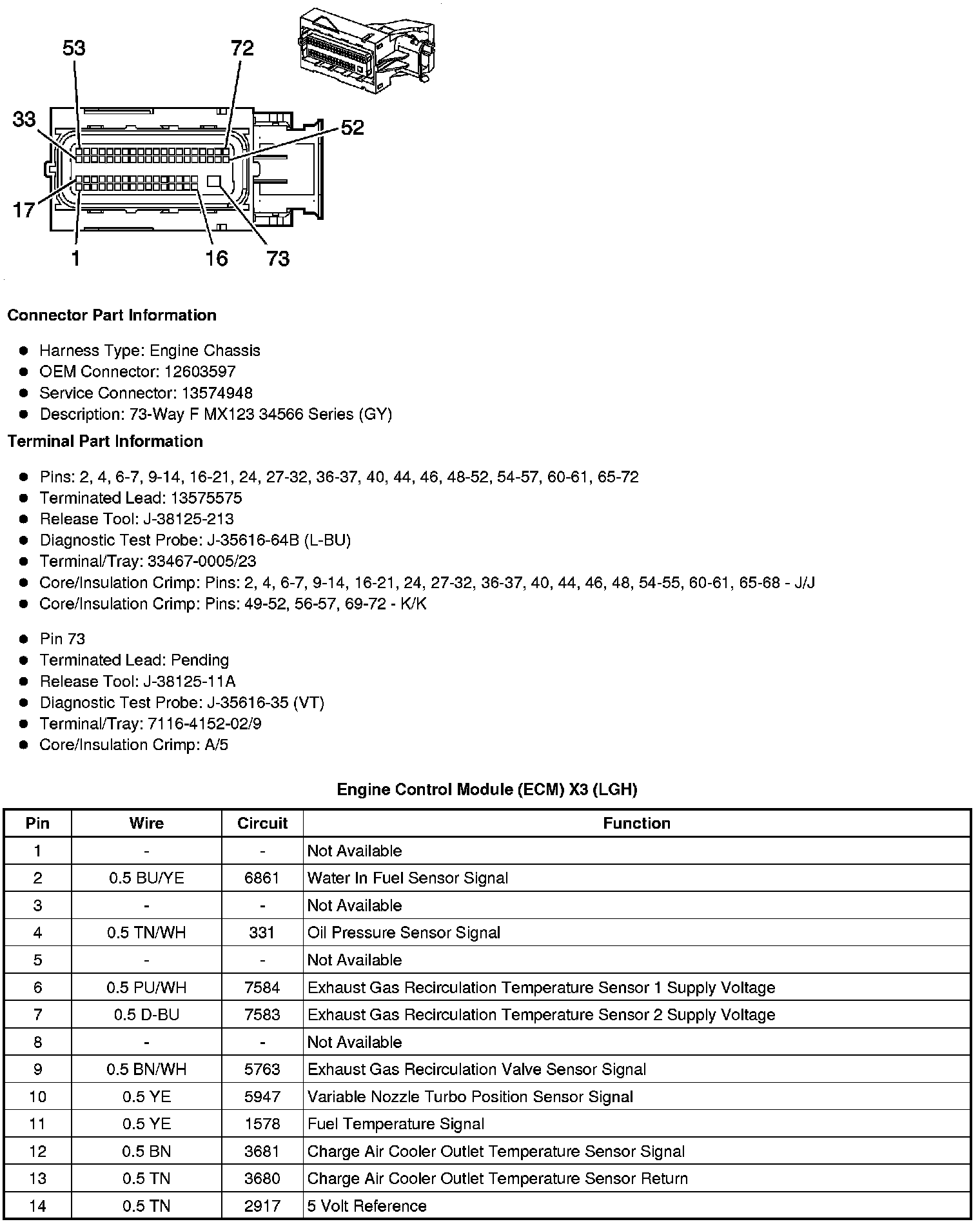

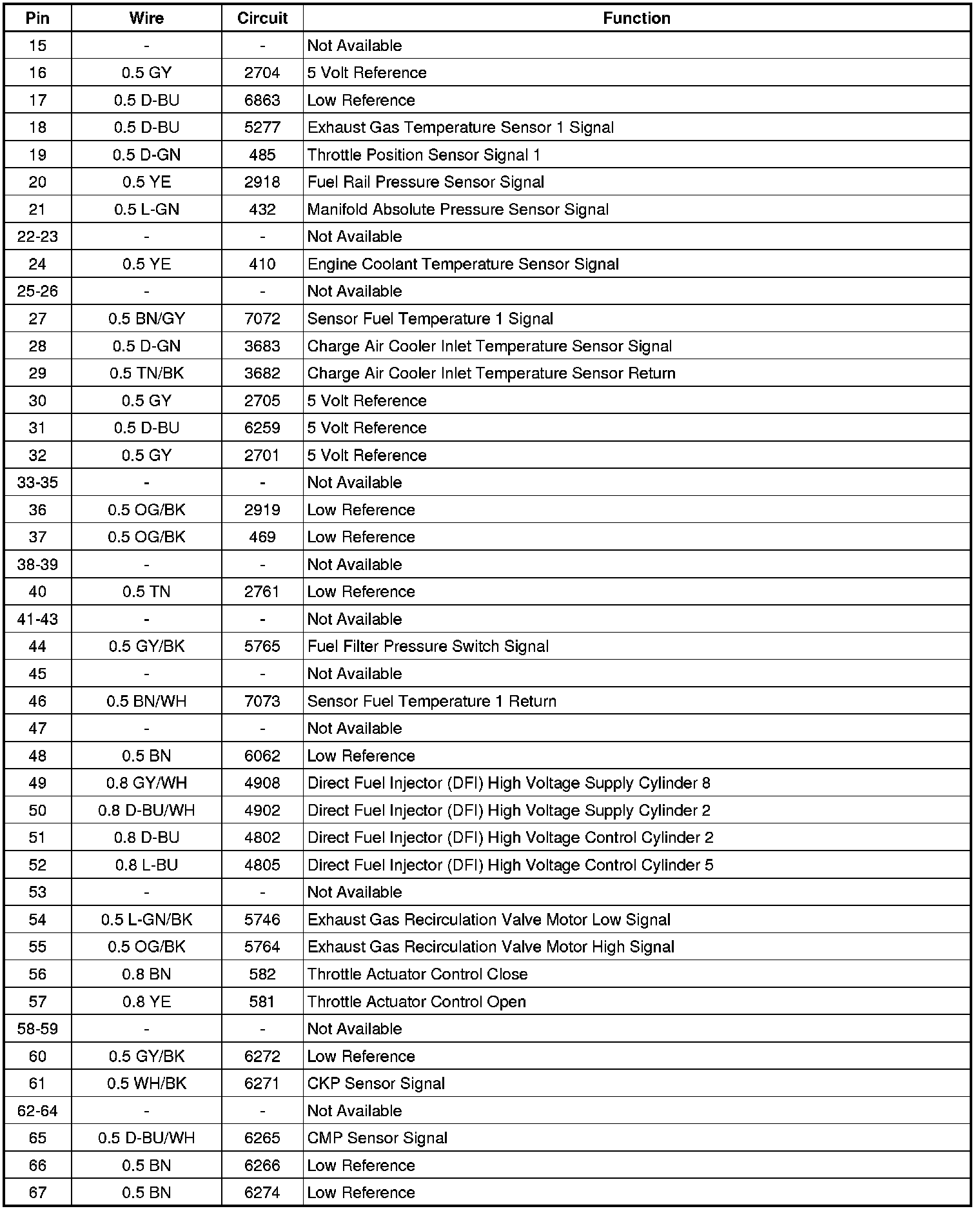

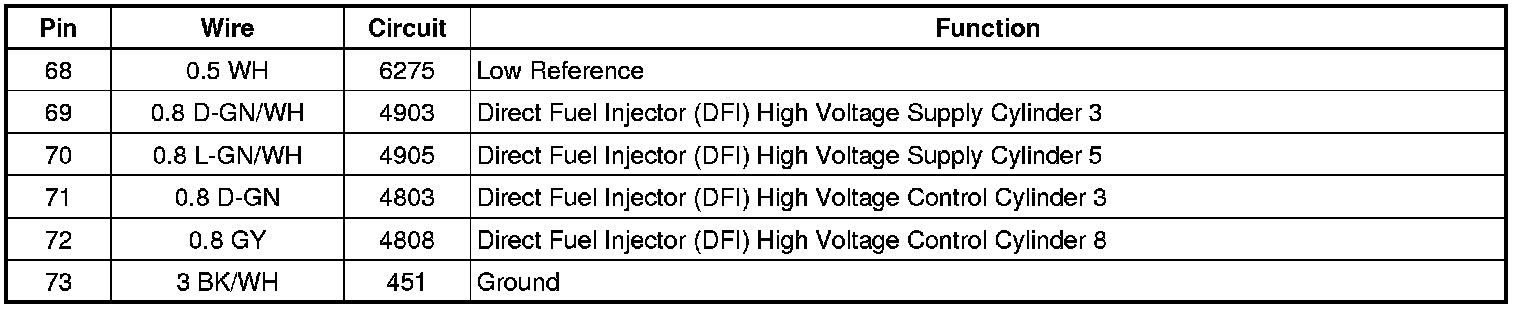

Engine Control Module (ECM) X3 (LGH)
