Home >> Chevrolet >> 2010 >> Colorado 2WD L5-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams

Engine Control Module: Diagrams




Component Connector End Views

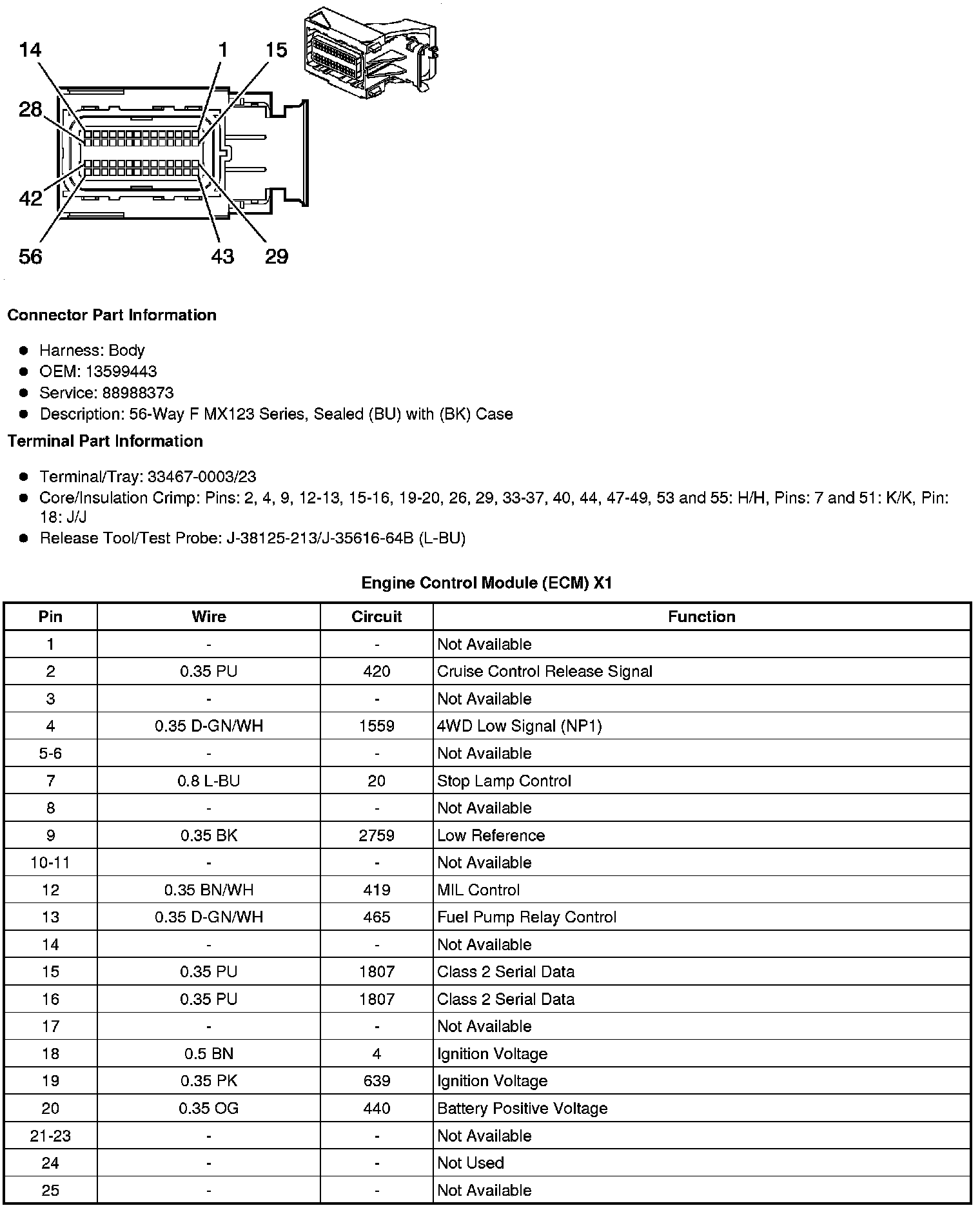

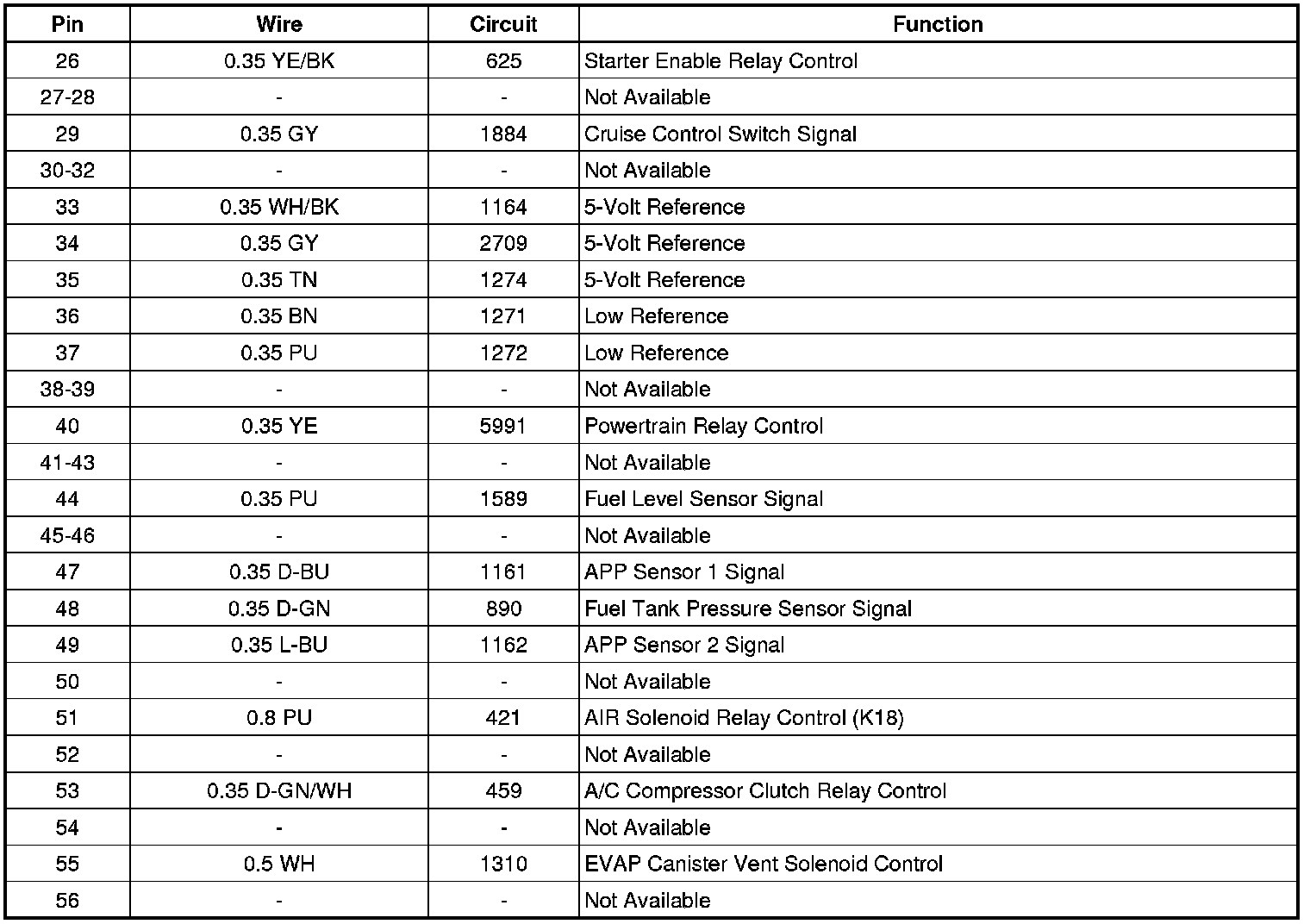

Engine Control Module (ECM) X1

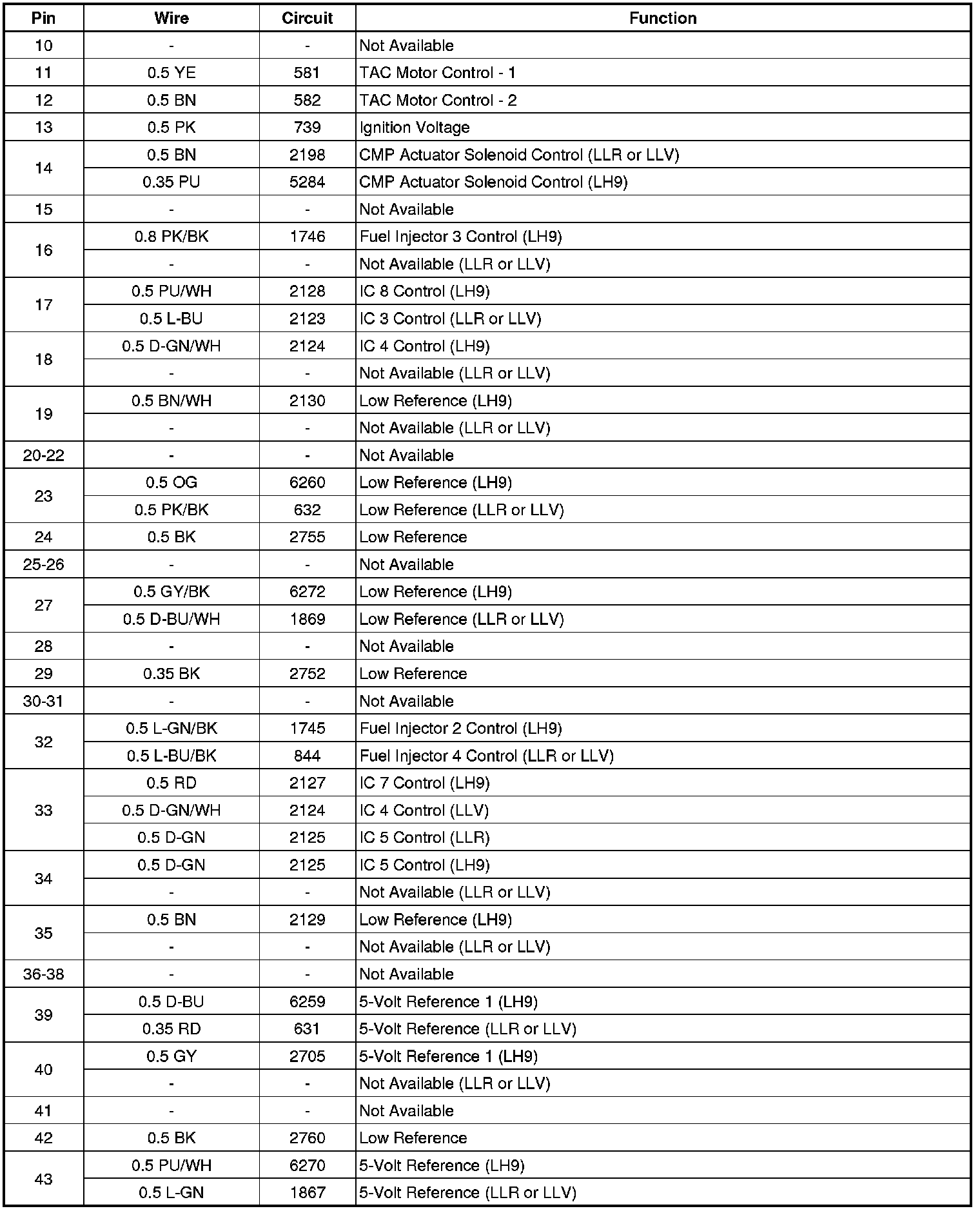

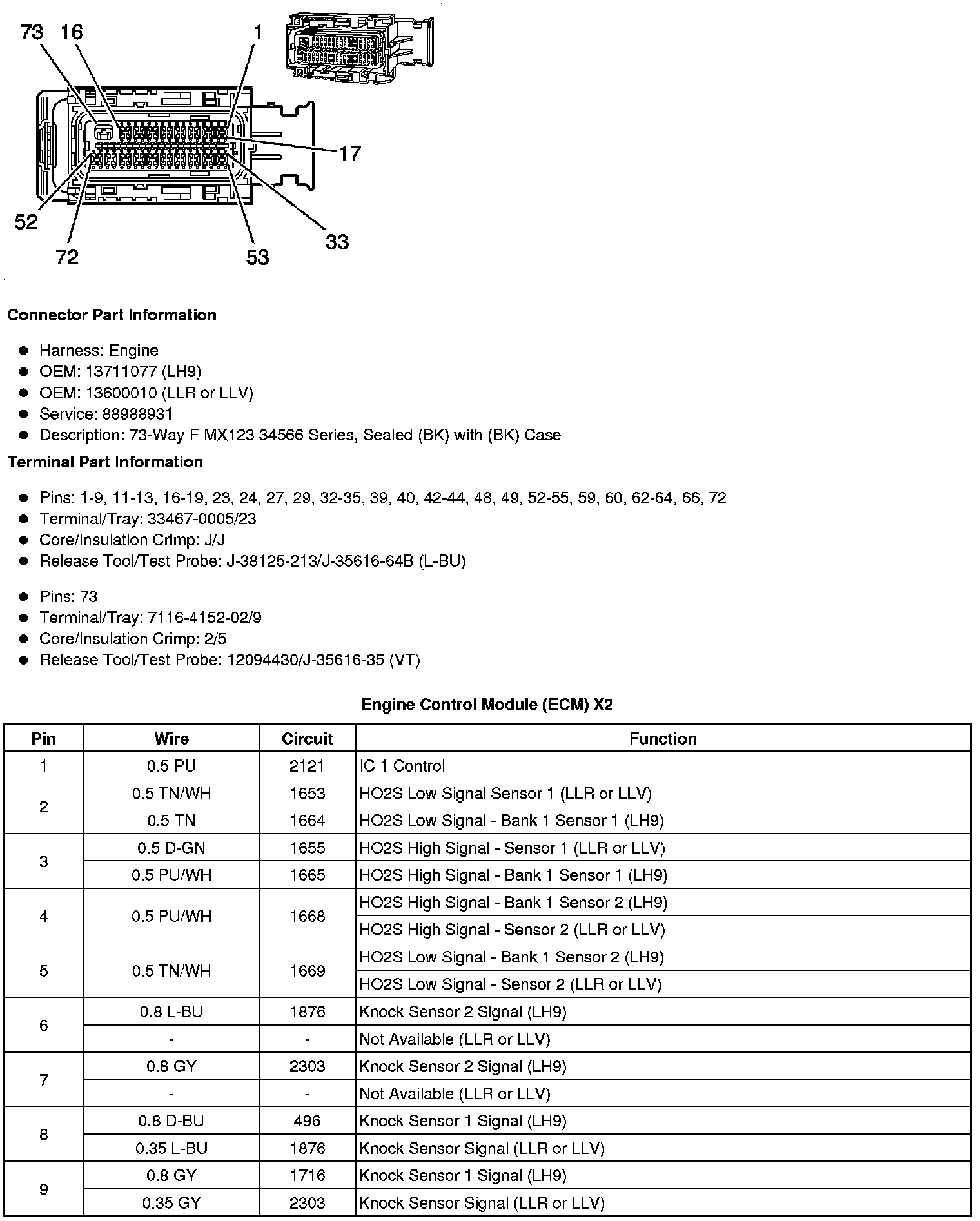

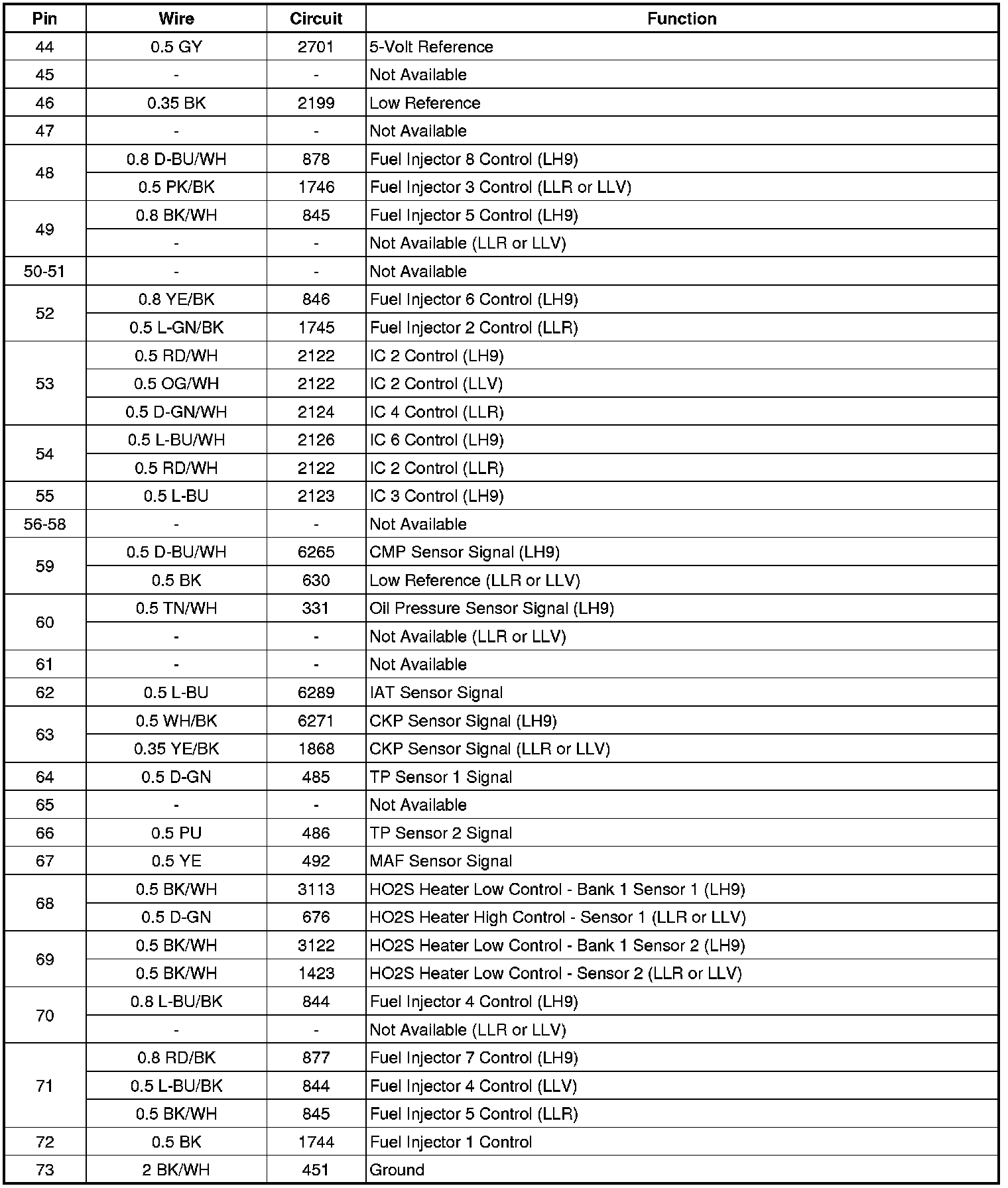

Engine Control Module (ECM) X2

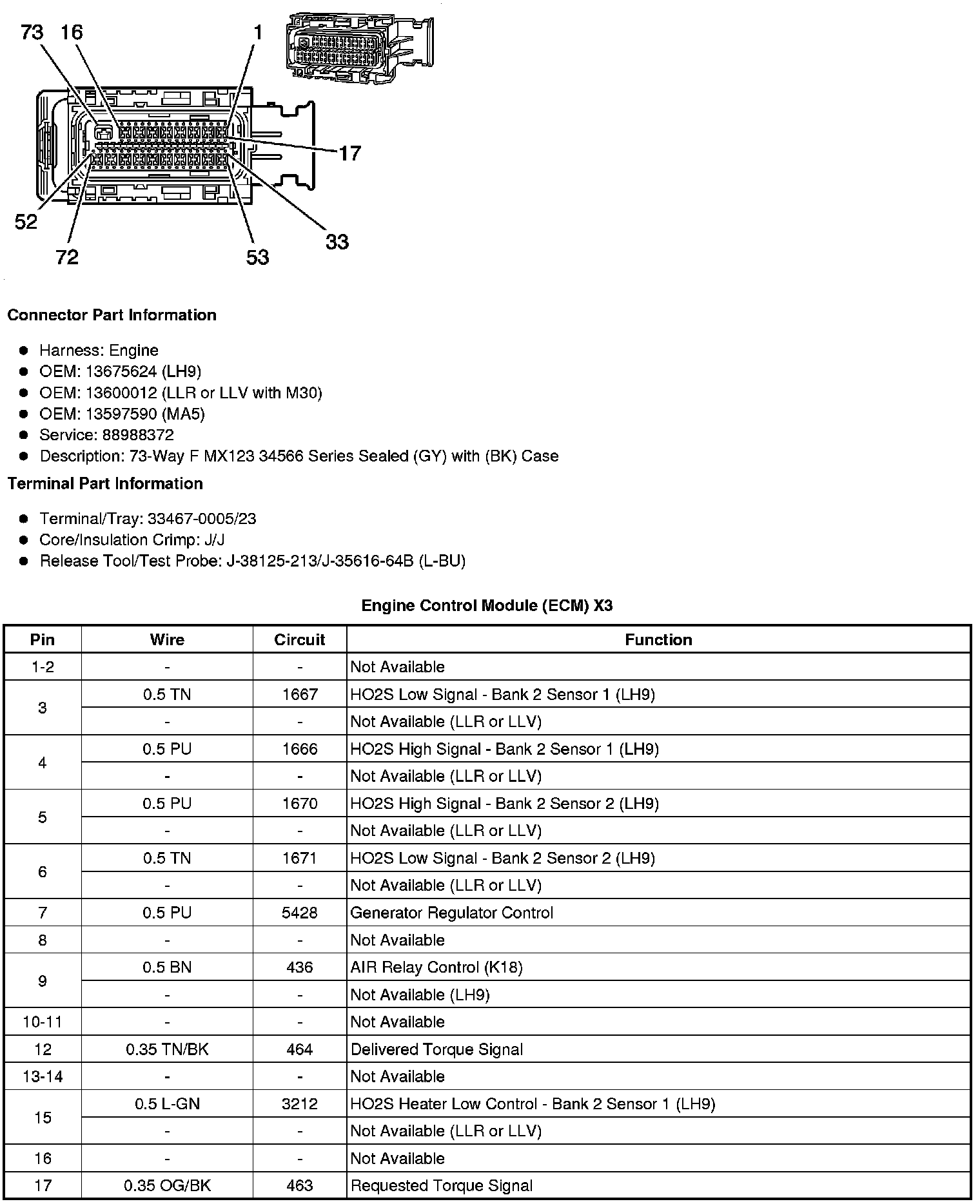

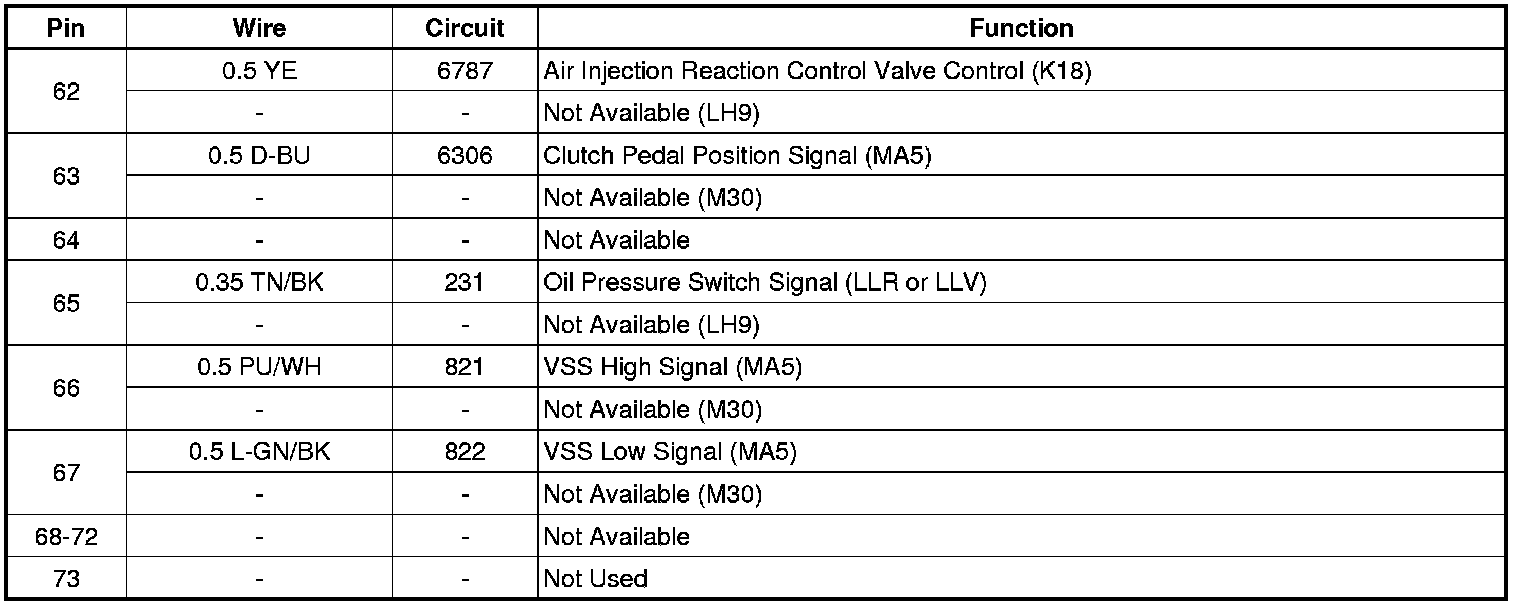

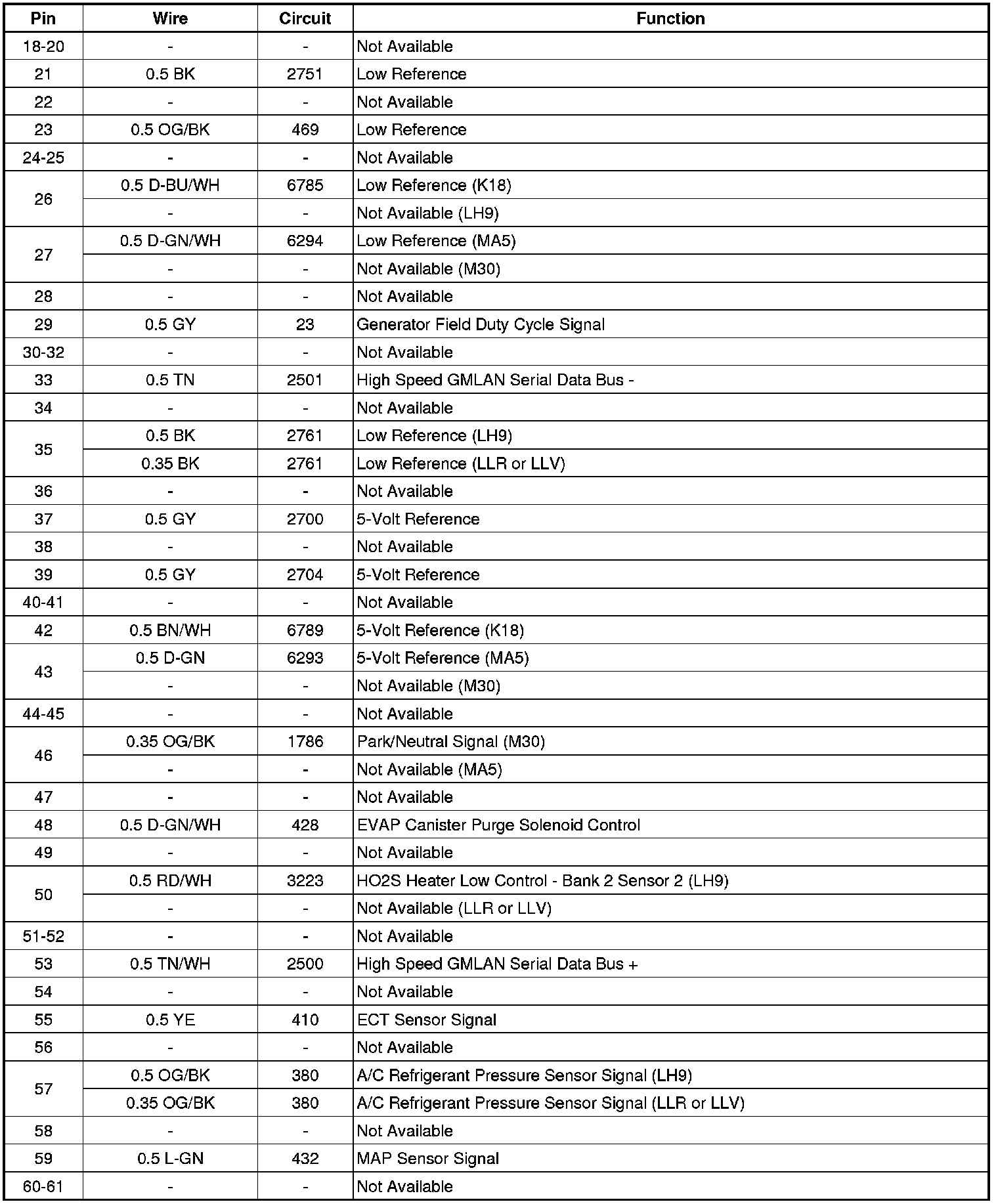

Engine Control Module (ECM) X3
