Engine Control Module




Component Connector End Views

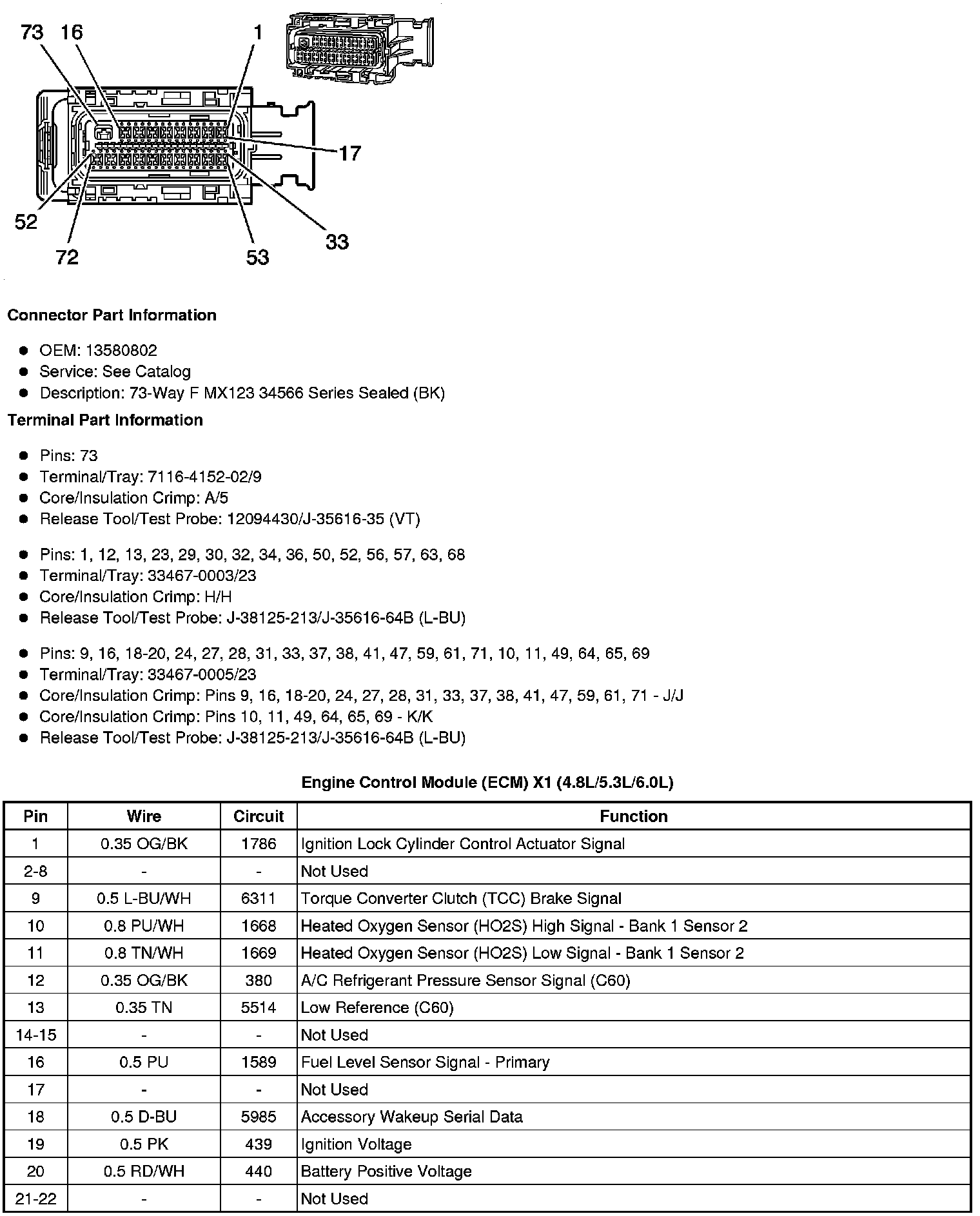

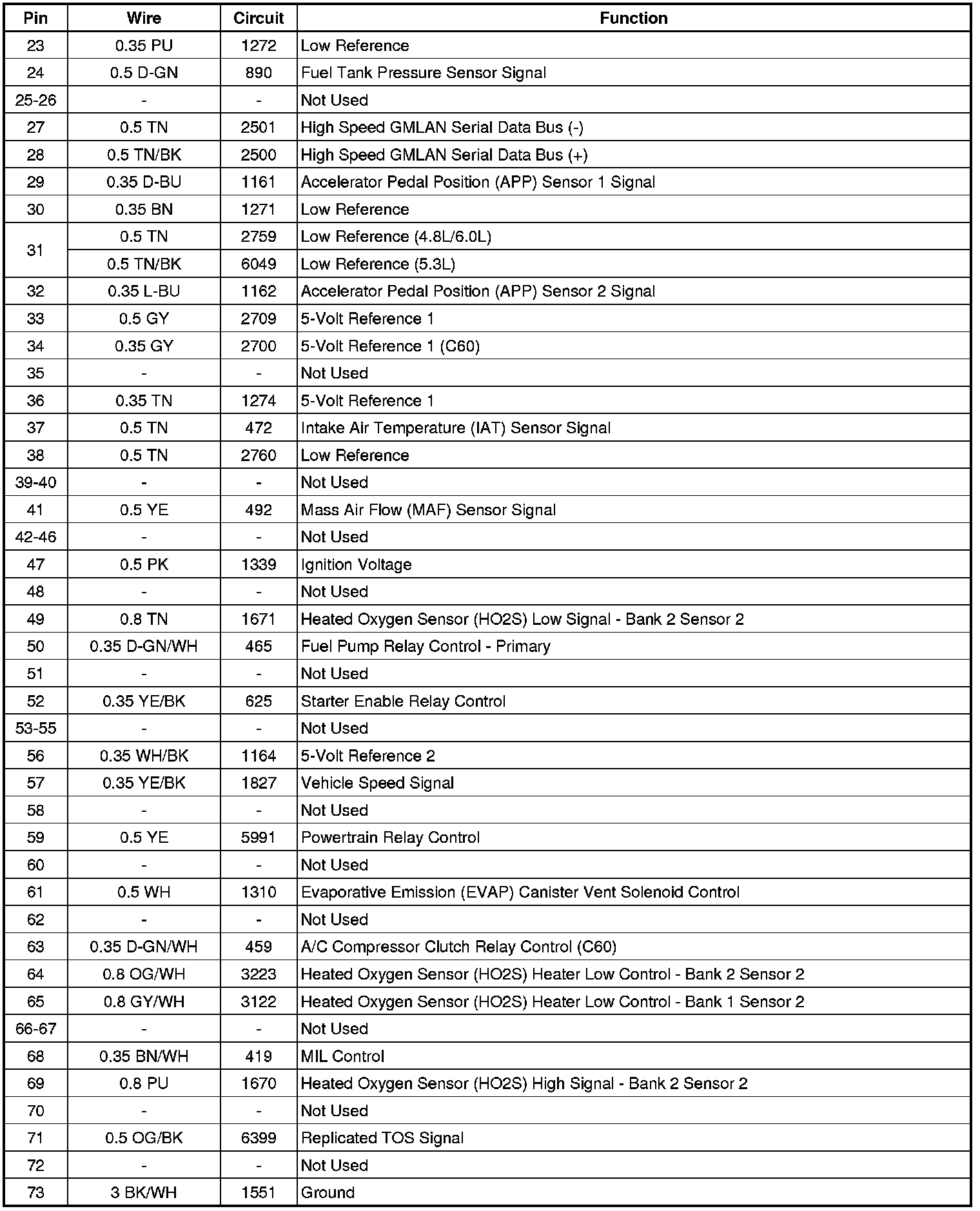

Engine Control Module (ECM) X1 (4.8L/5.3L/6.0L)

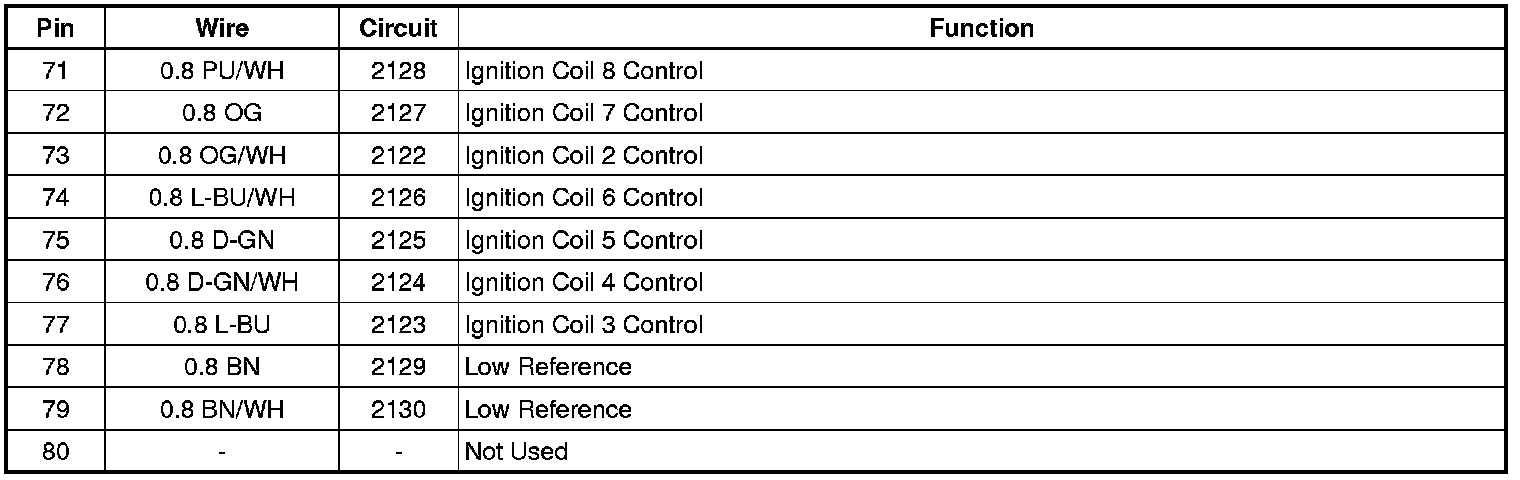

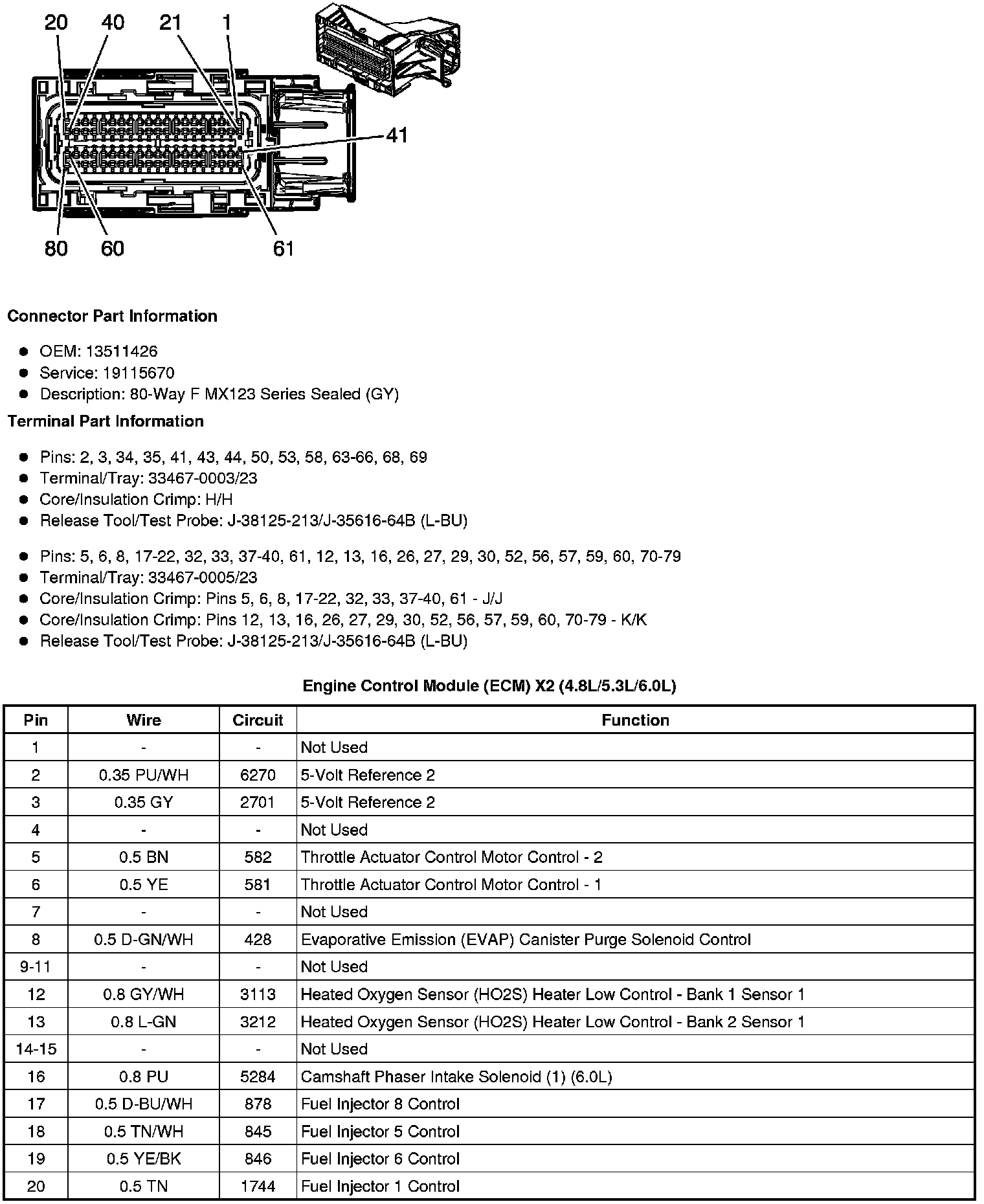

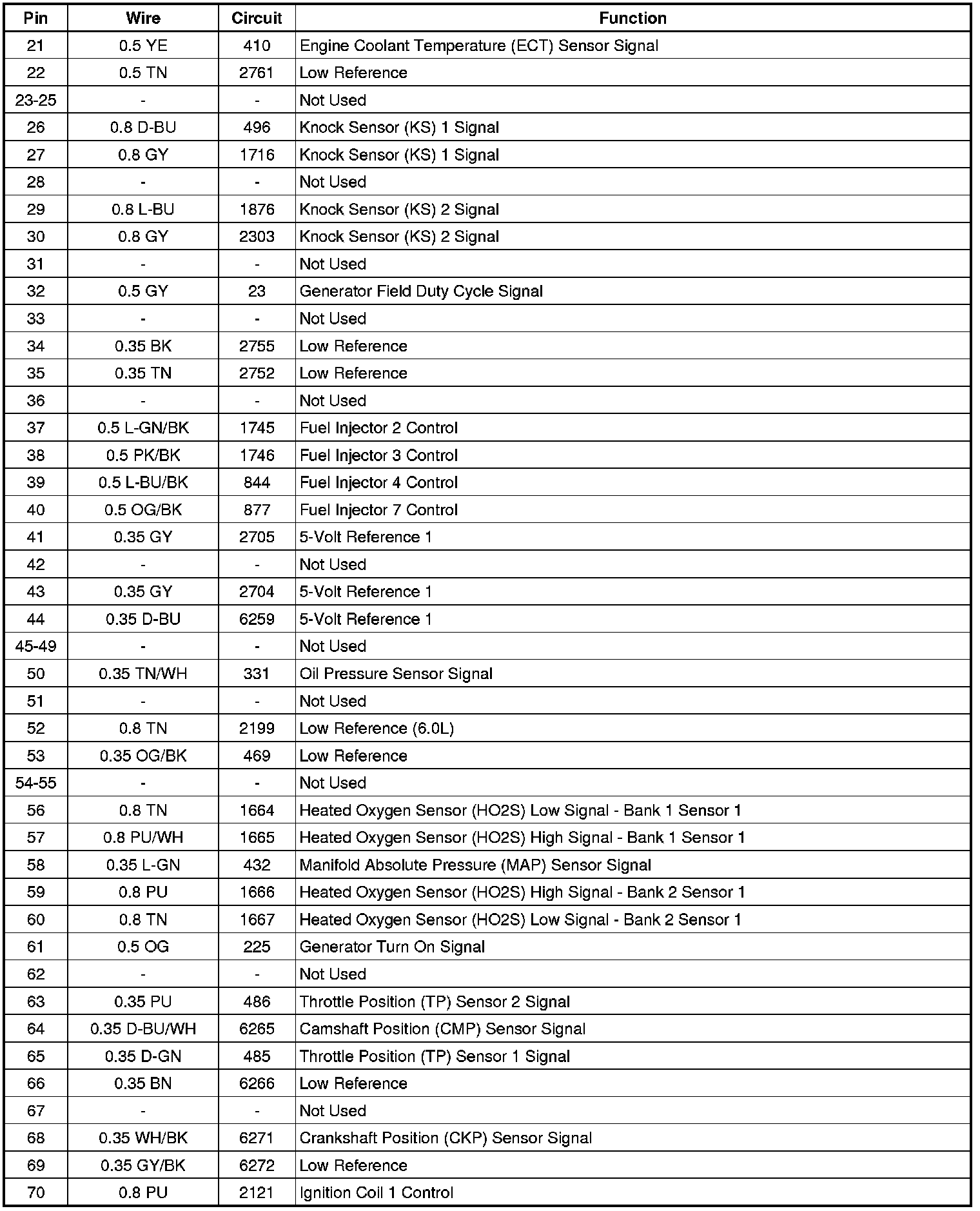

Engine Control Module (ECM) X2 (4.8L/5.3L/6.0L)
