Home >> Chevrolet >> 2009 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Flywheel

Flywheel

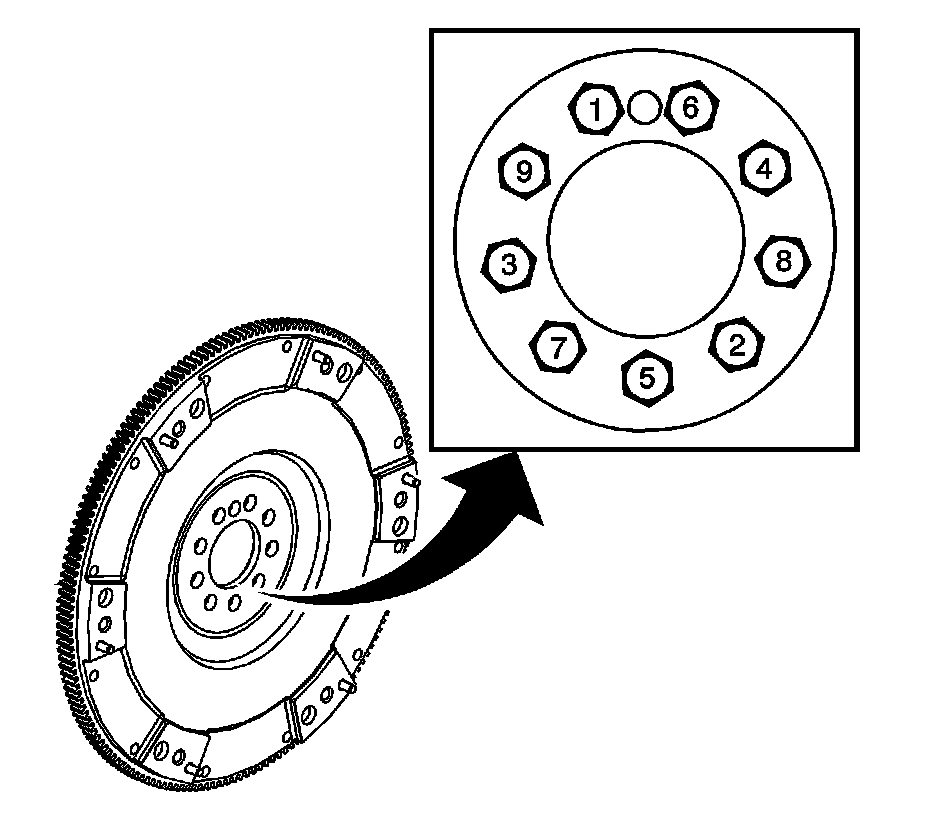

1. Tighten the engine flywheel bolts (1-9) a first pass in sequence to 20 Nm (15 lb ft).
2. Tighten the engine flywheel bolts (1-9) a second pass in sequence to 30 Nm (20 lb ft).
3. Tighten the engine flywheel bolts (1-9) a final pass in sequence to 40 degrees using the J 45059 .
