Thread Repair Specifications
Thread Repair Specifications (6.2L LS9)

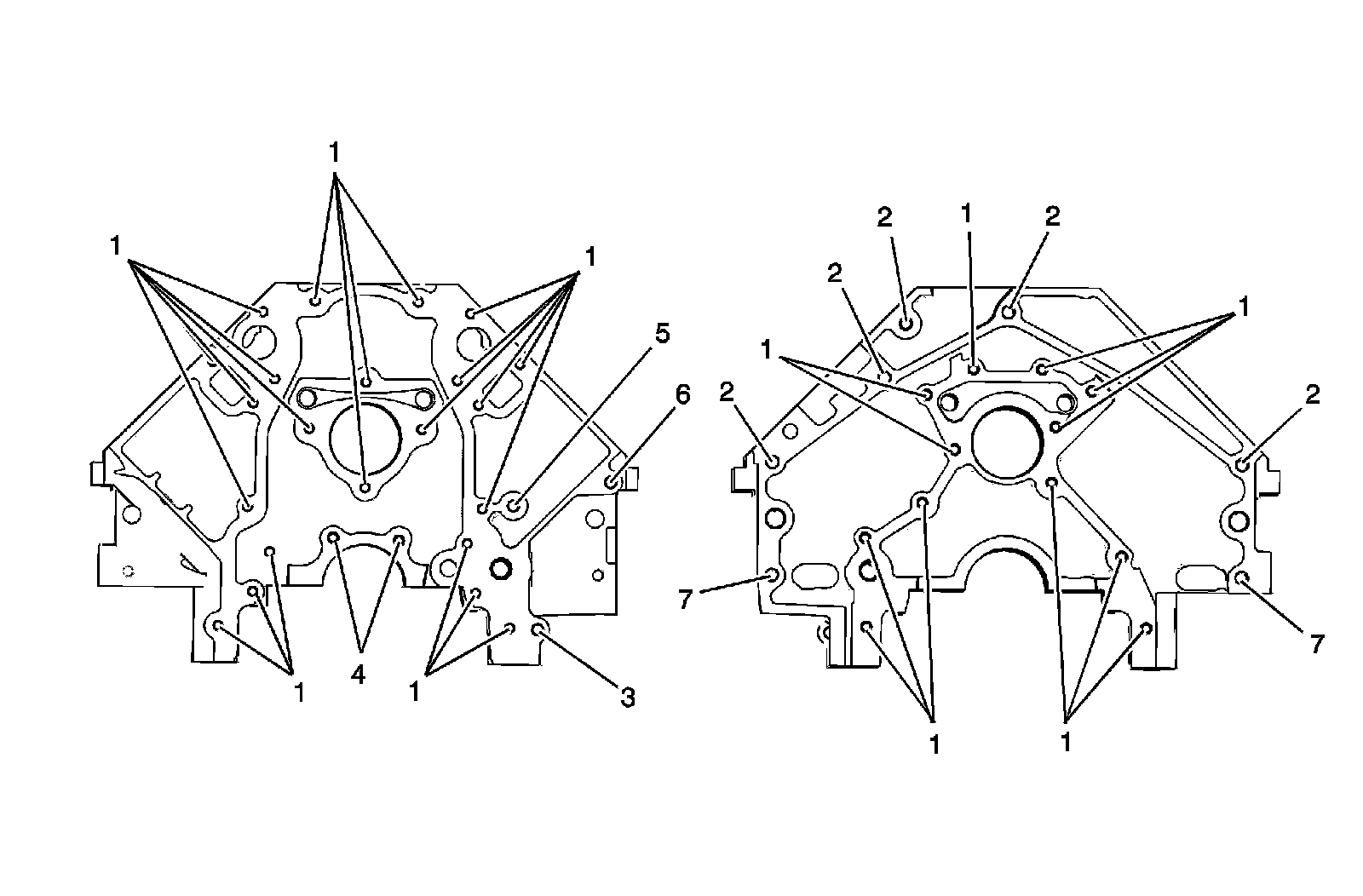

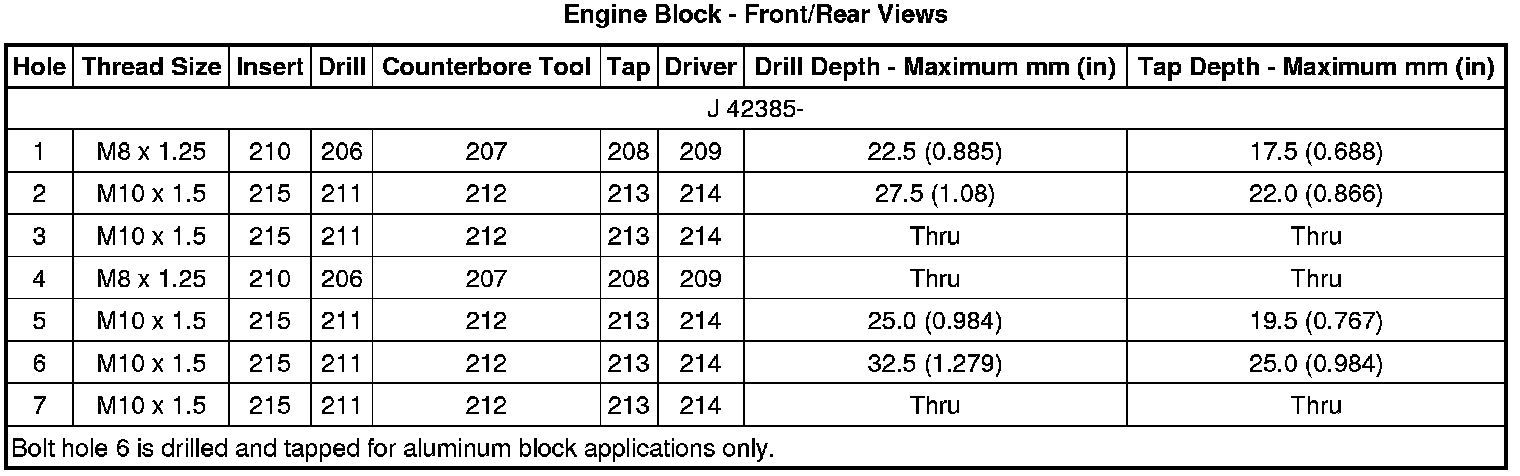

Engine Block - Front/Rear Views

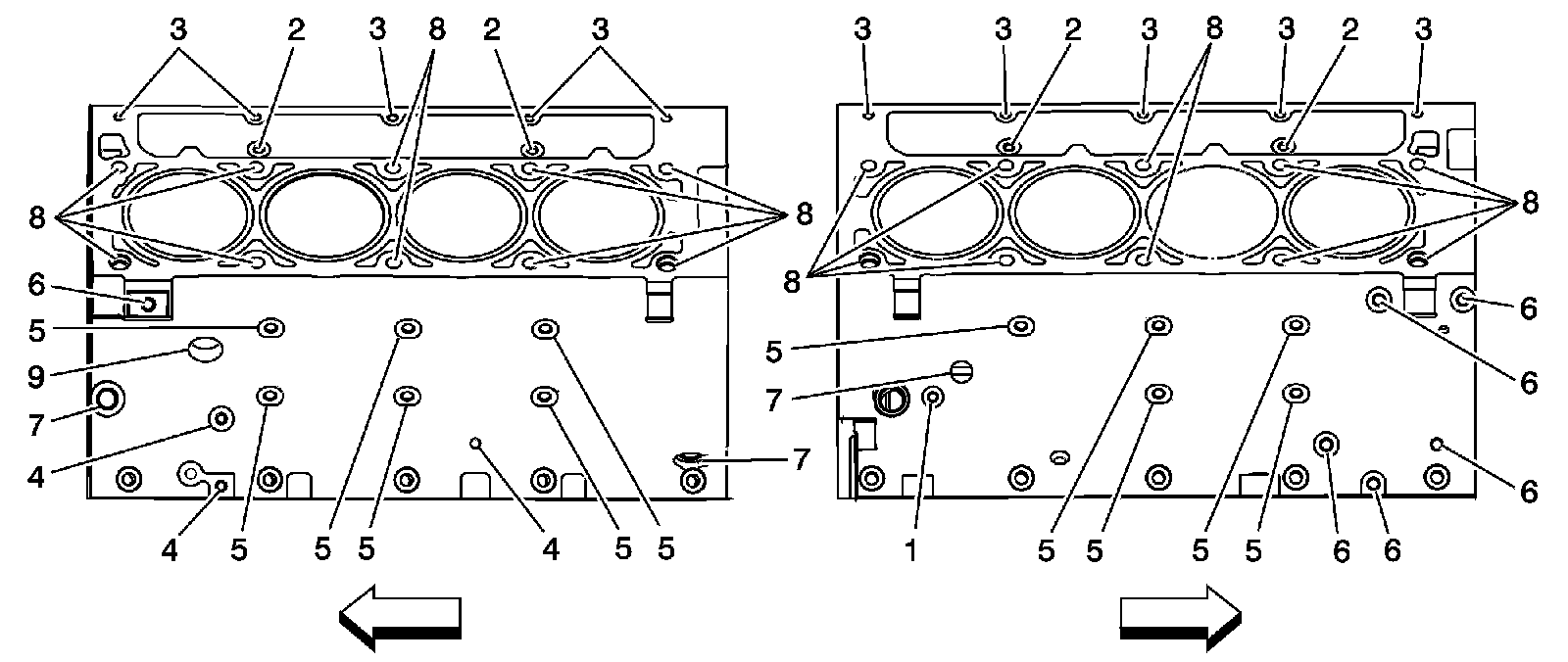

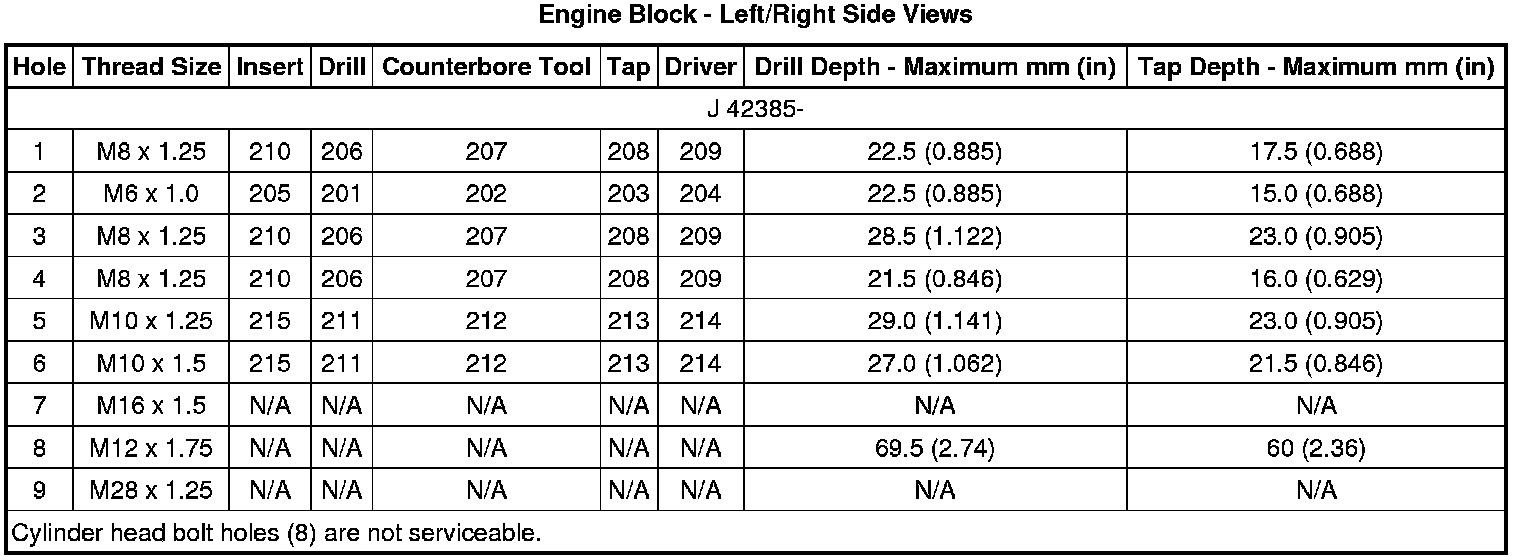

Engine Block - Left/Right Side Views

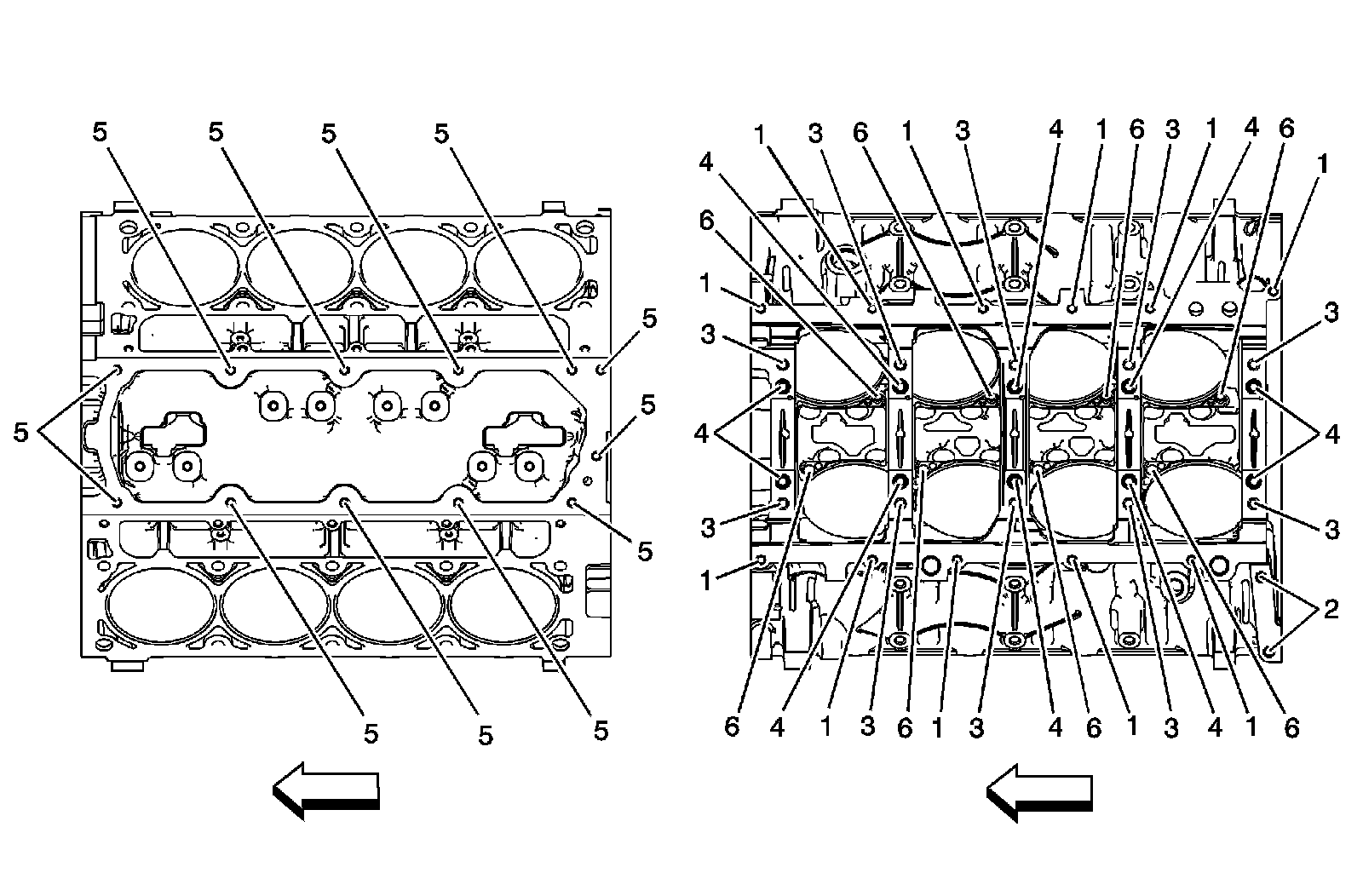

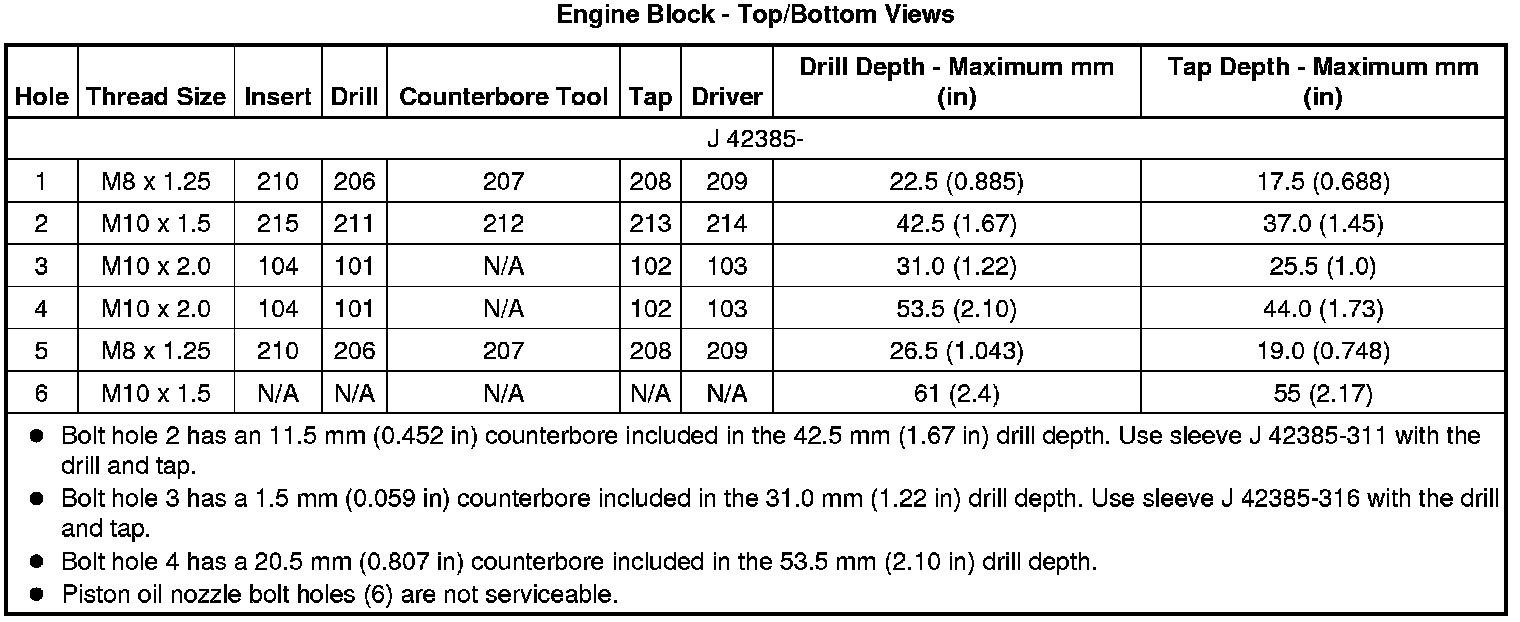

Engine Block - Top/Bottom Views

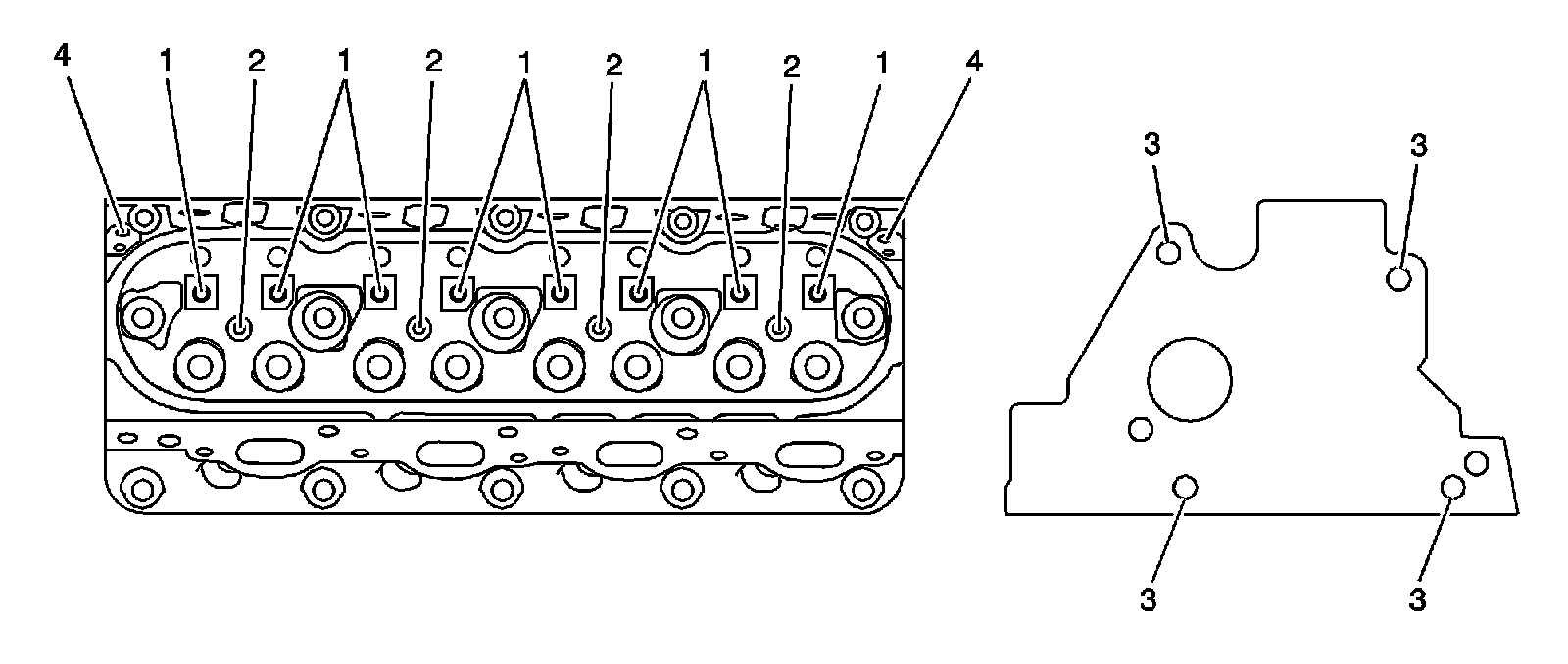

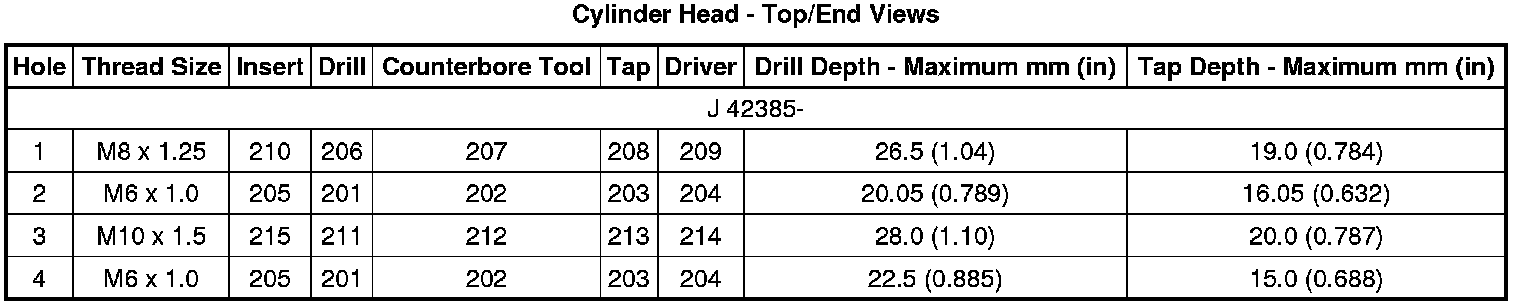

Cylinder Head - Top/End Views

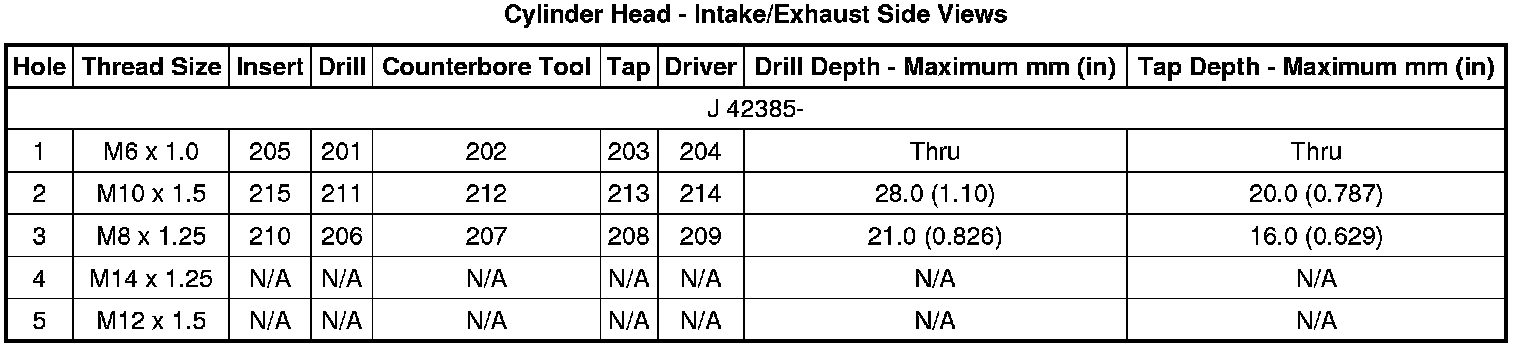

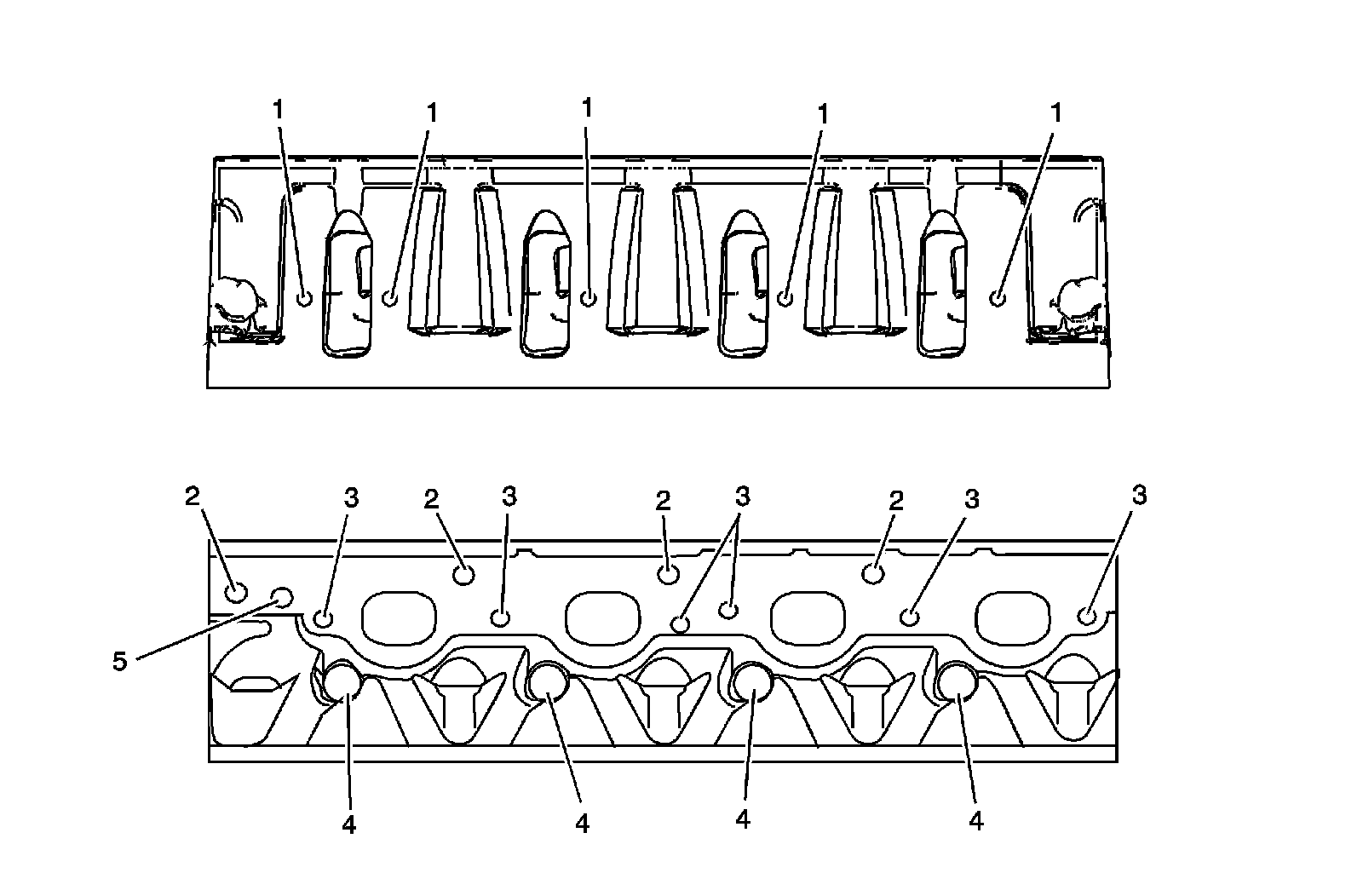

Cylinder Head - Intake/Exhaust Side Views
Thread Repair Specifications (6.2L LS9)
Engine Block - Front/Rear Views
Engine Block - Left/Right Side Views
Engine Block - Top/Bottom Views
Cylinder Head - Top/End Views
Cylinder Head - Intake/Exhaust Side Views
