Oil Temperature Sensor/Switch, Engine

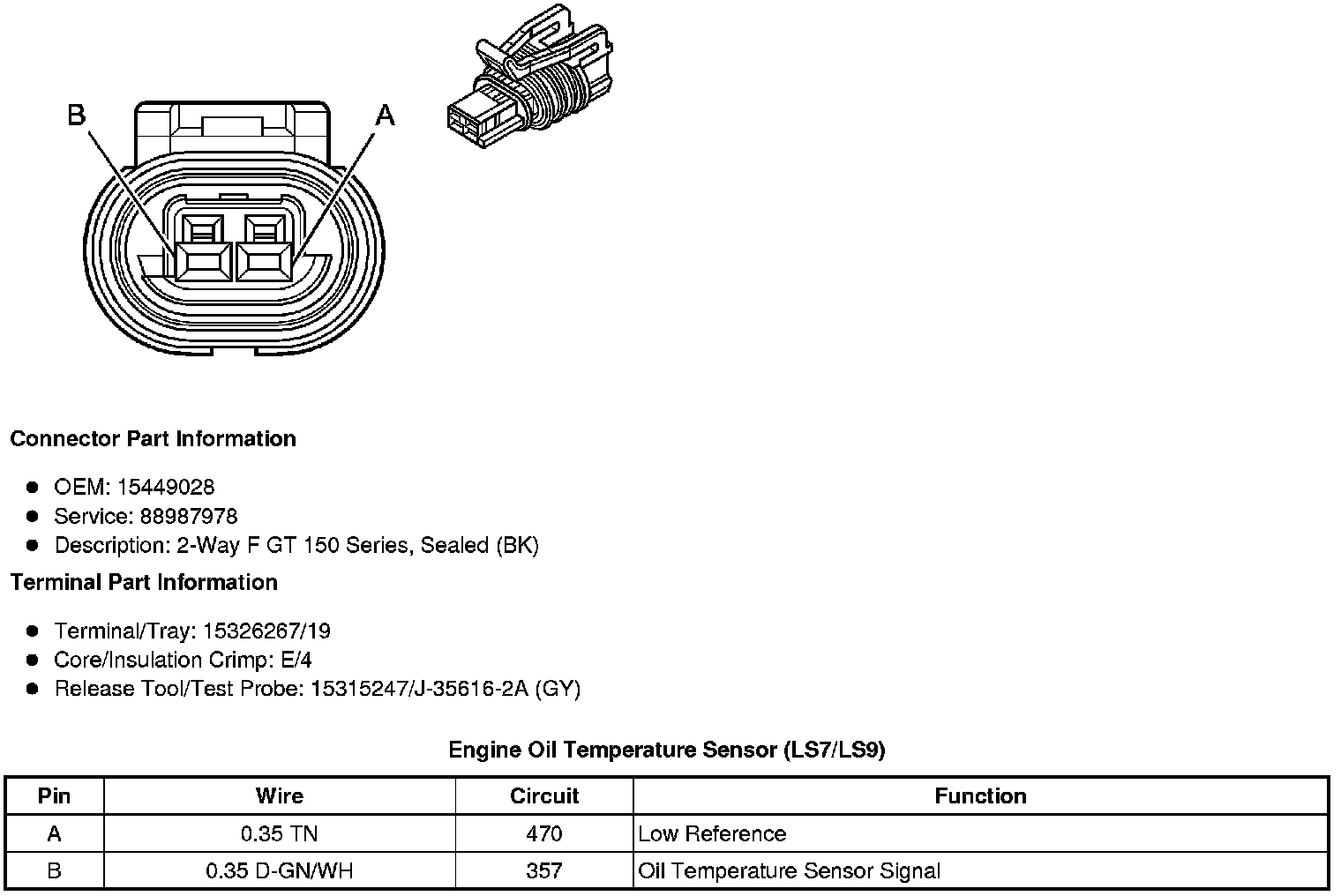

Component Connector End Views
Engine Oil Temperature Sensor (LS7/LS9)
