Memory Positioning Module




Component Connector End Views

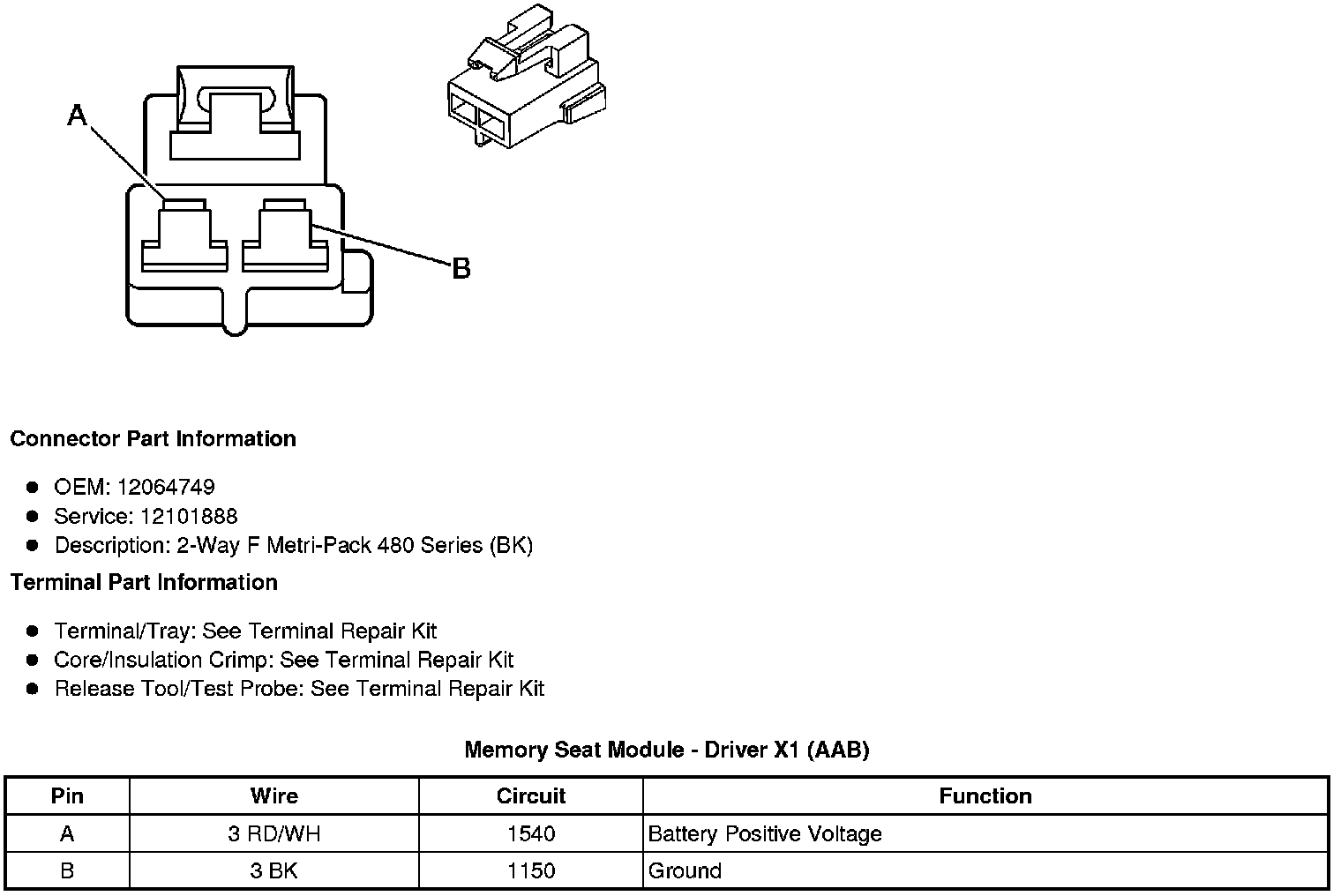

Memory Seat Module - Driver X1 (AAB)

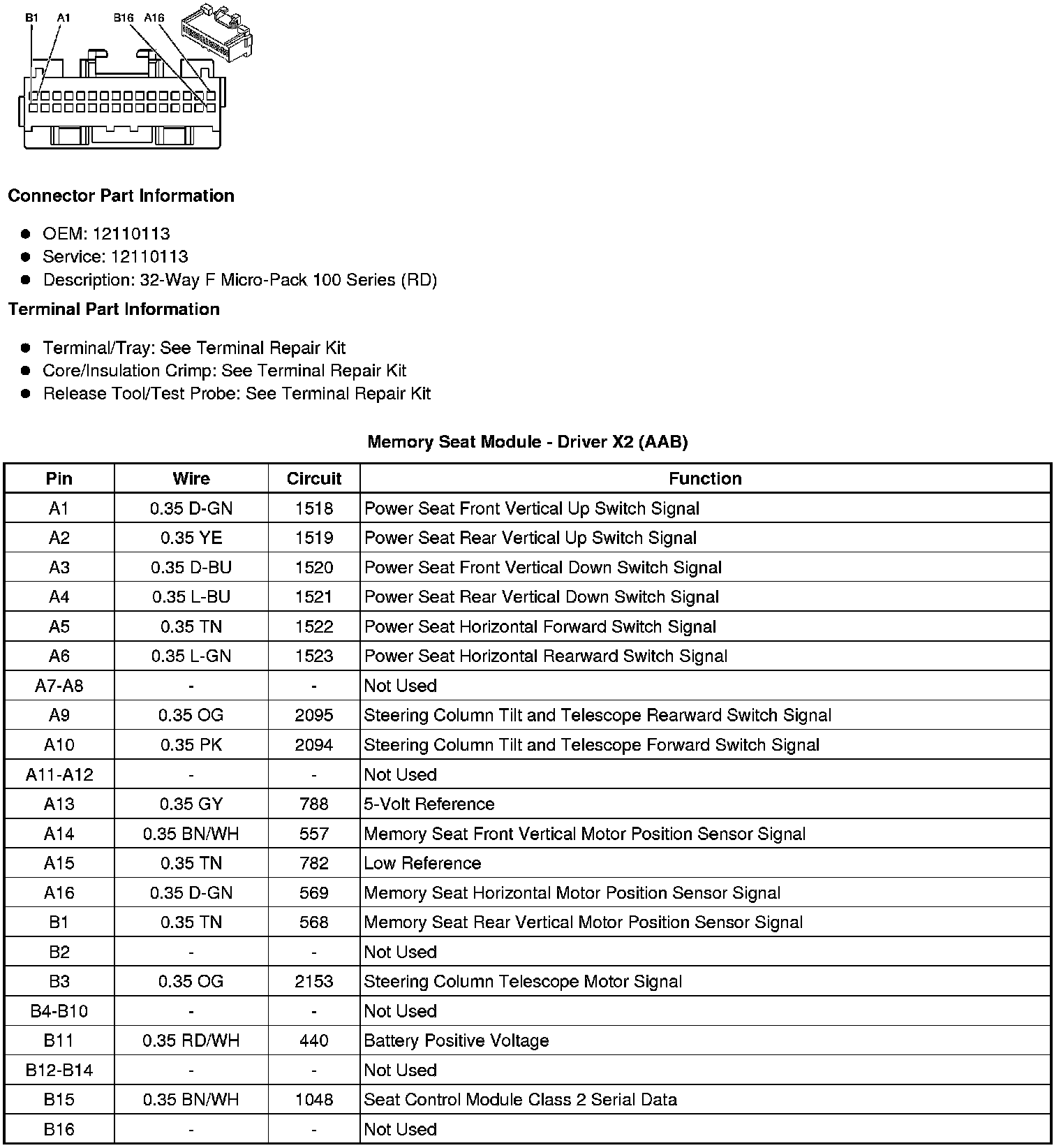

Memory Seat Module - Driver X2 (AAB)

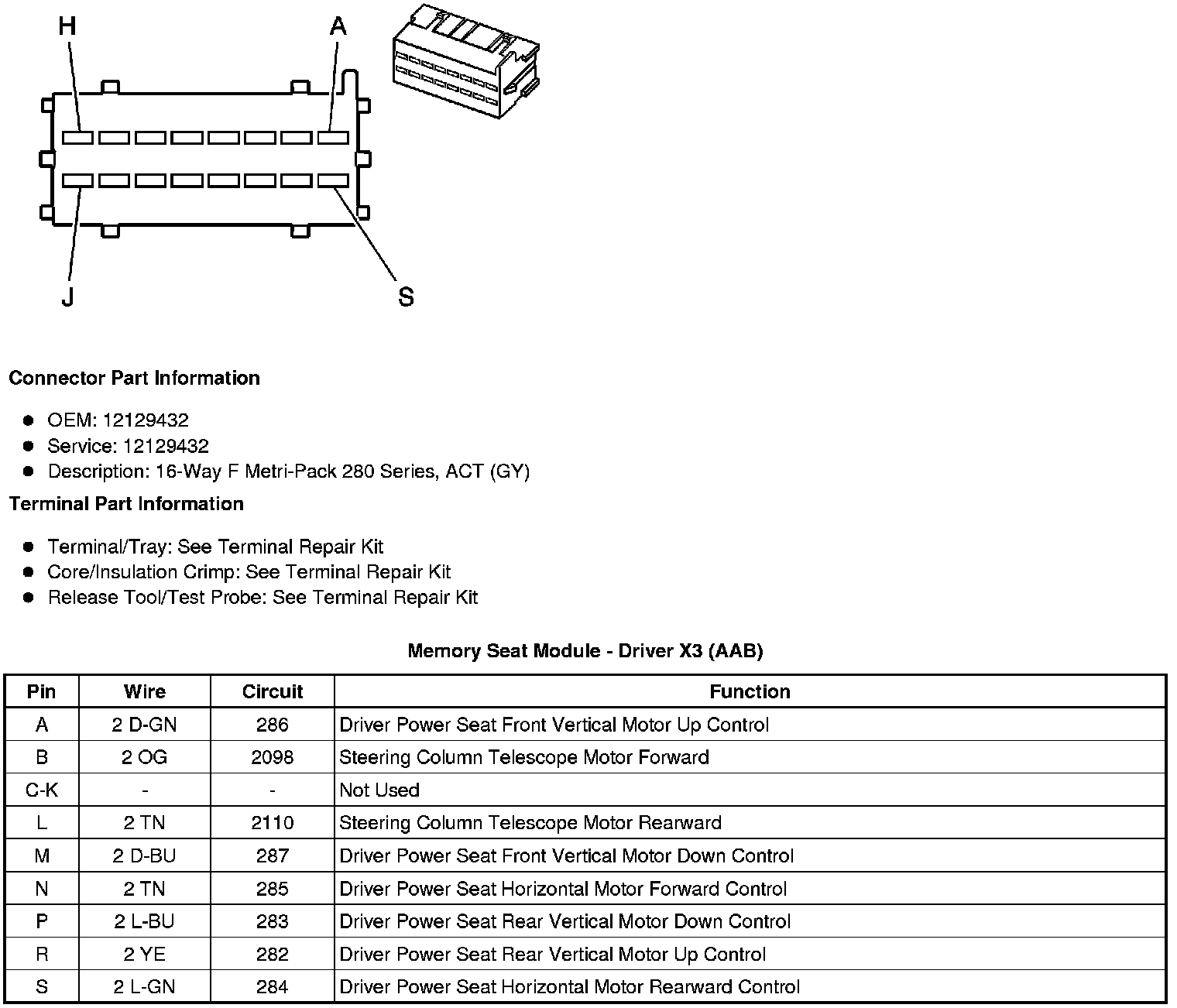

Memory Seat Module - Driver X3 (AAB)
