Home >> Chevrolet >> 2009 >> Corvette V8-6.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor

Impact Sensor




Component Connector End Views

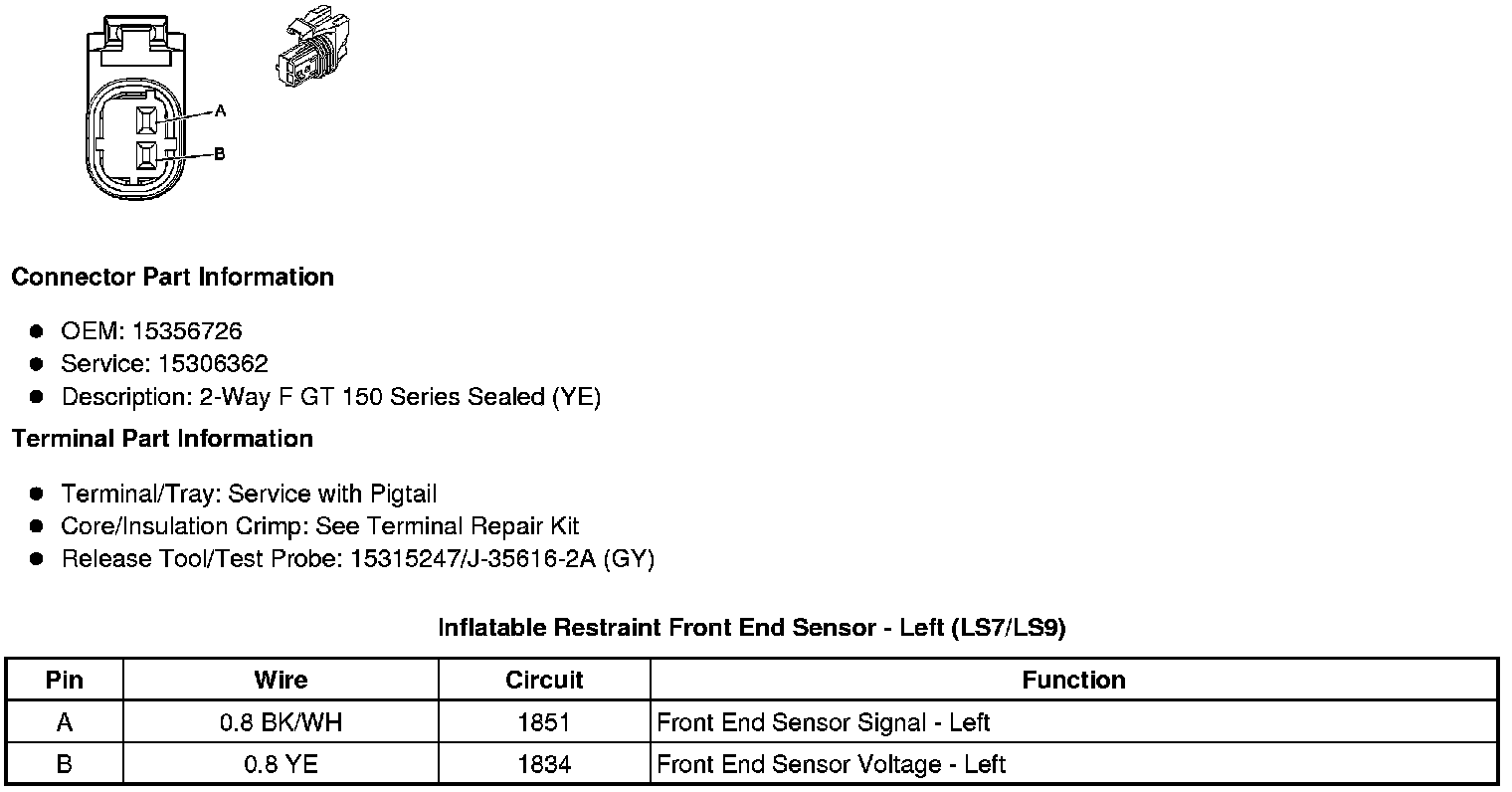

Inflatable Restraint Front End Sensor - Left (LS7/LS9)

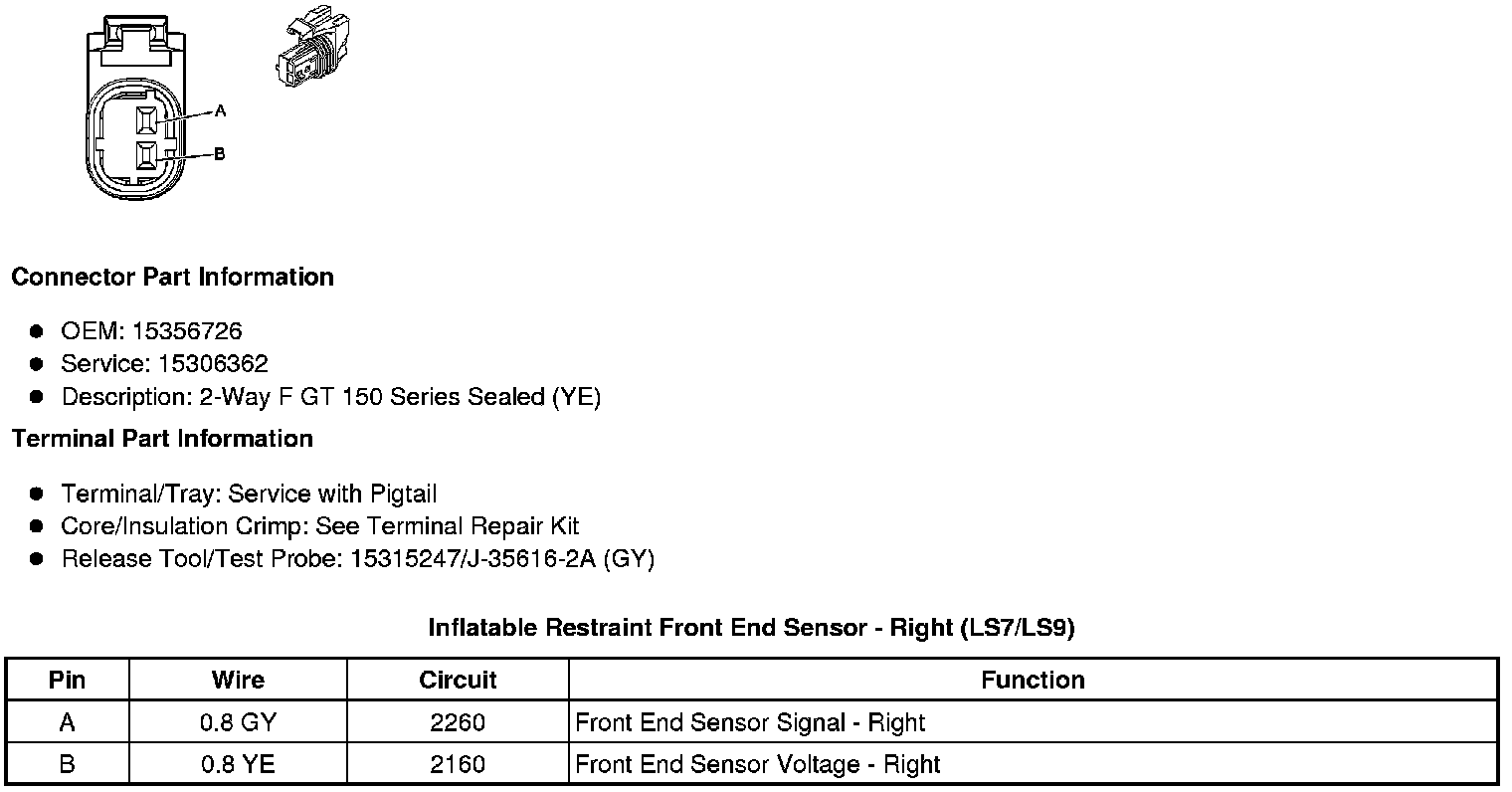

Inflatable Restraint Front End Sensor - Right (LS7/LS9)
