Convertible Top Control Module




Component Connector End Views

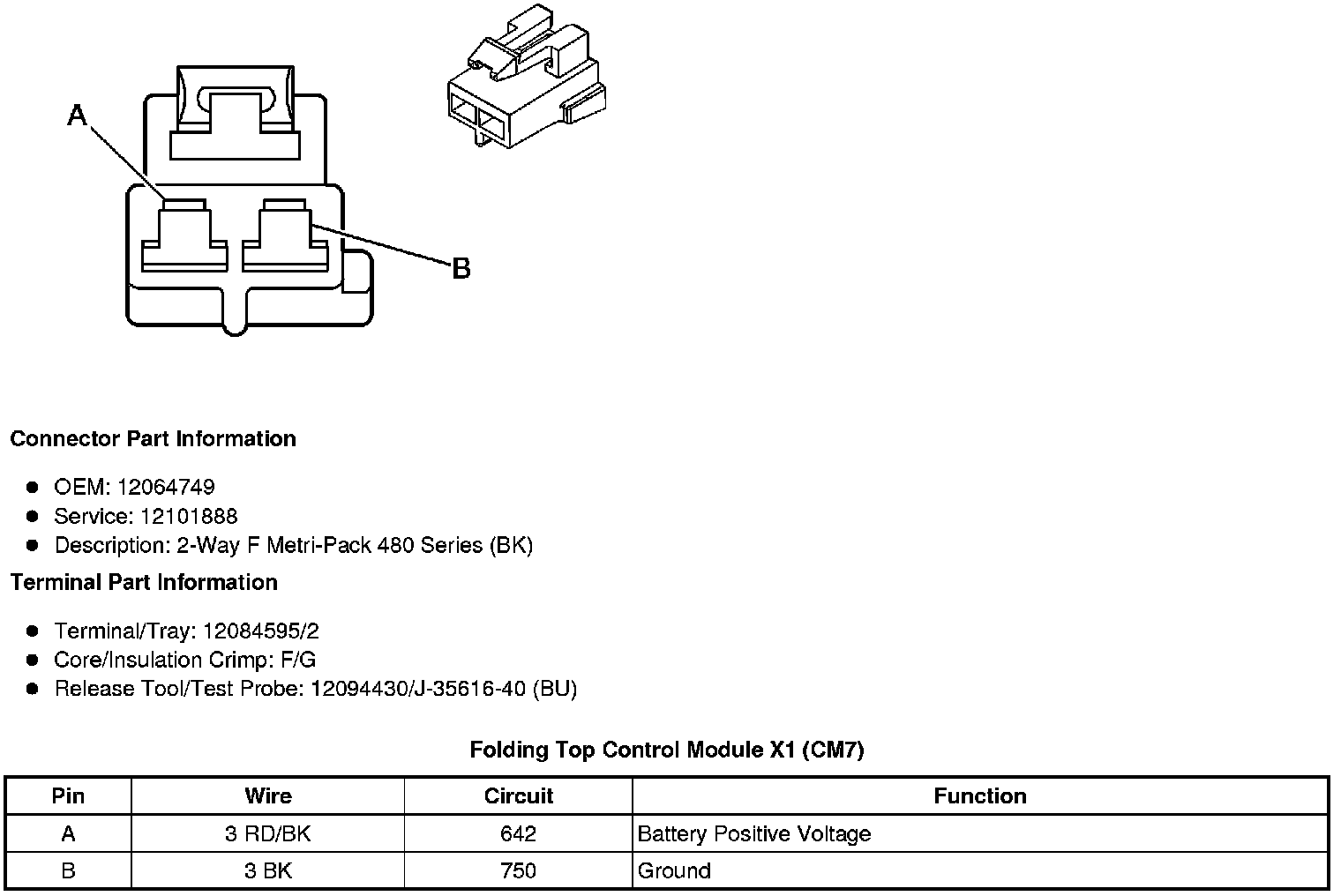

Folding Top Control Module X1 (CM7)

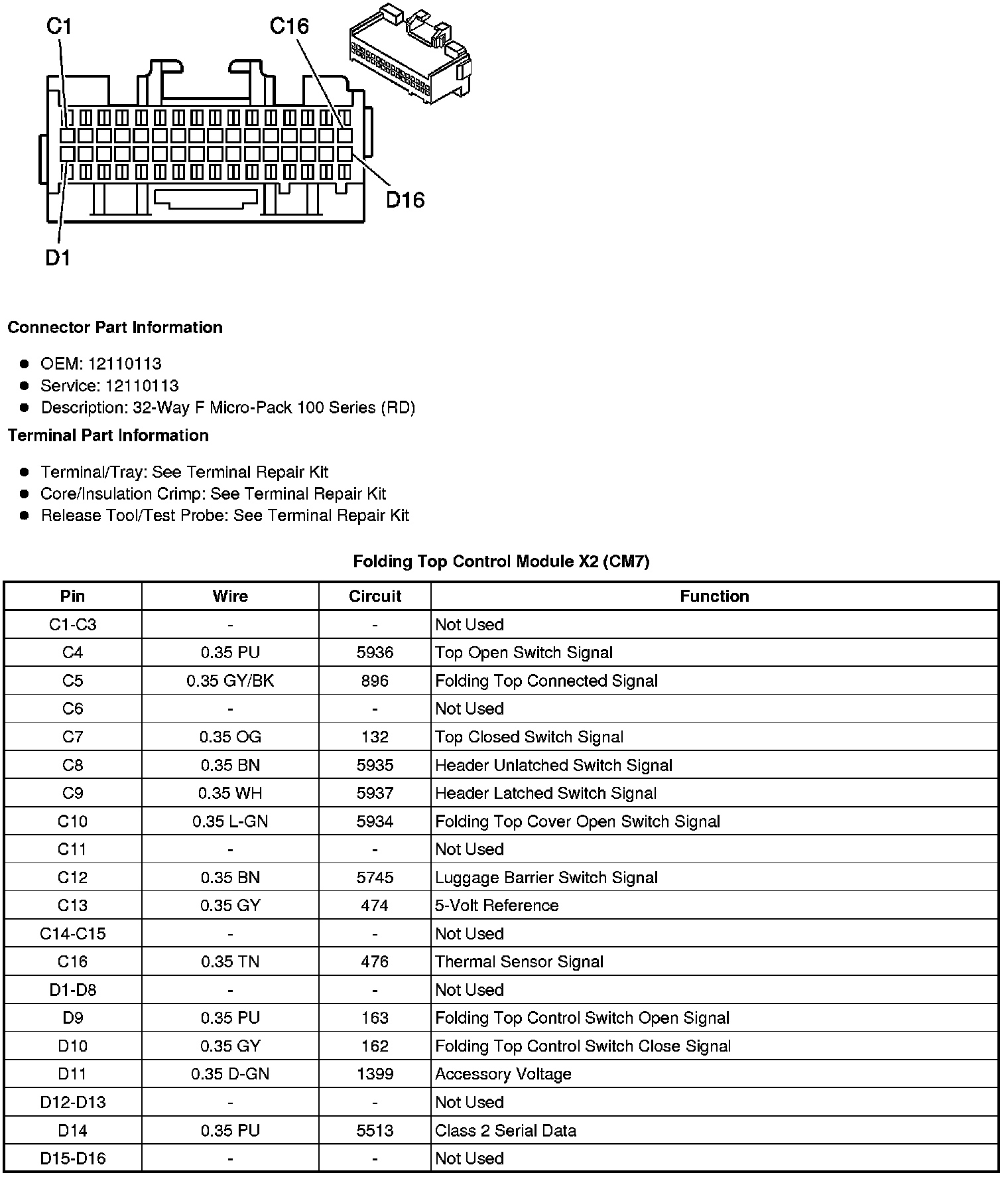

Folding Top Control Module X2 (CM7)

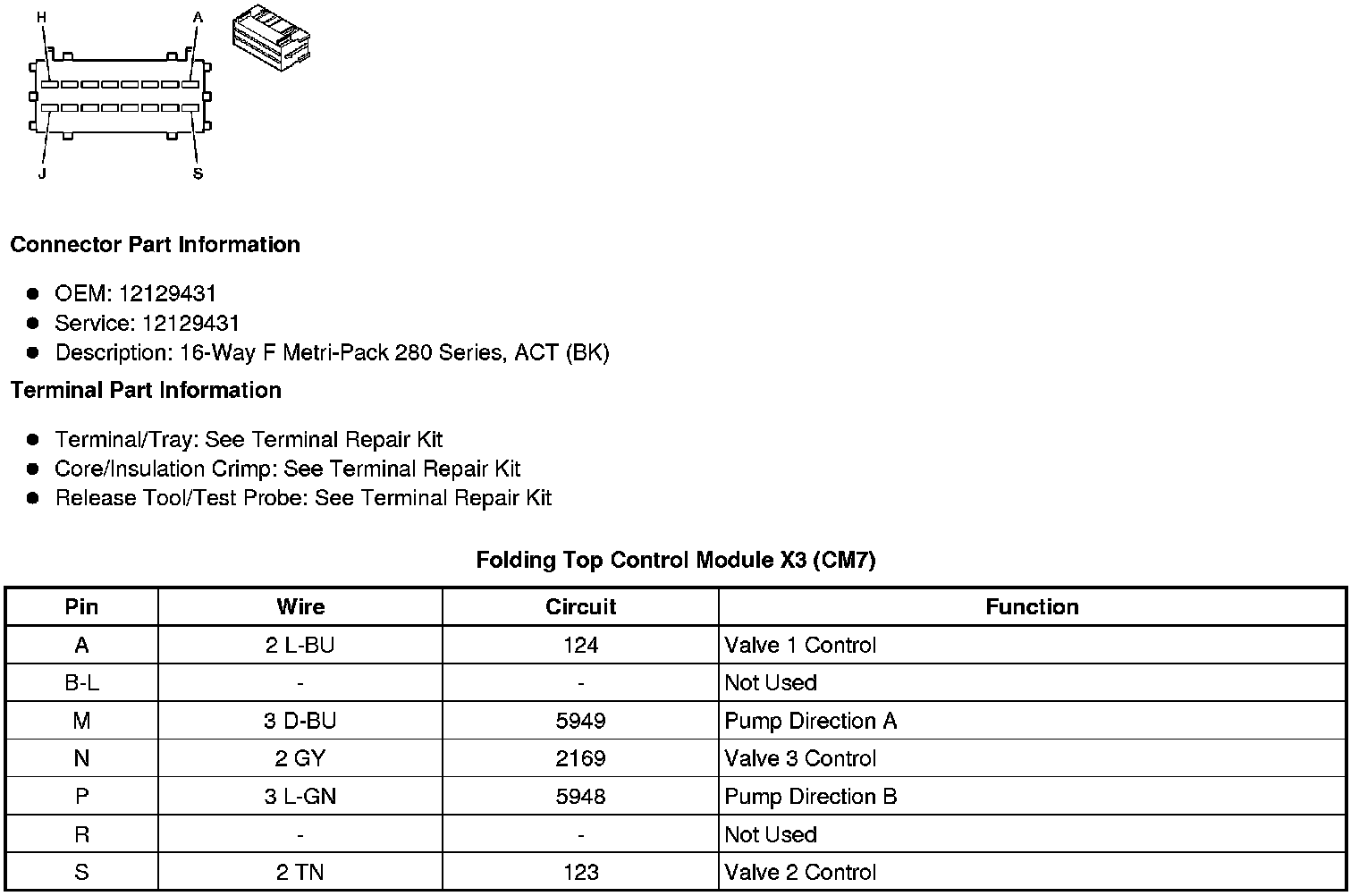

Folding Top Control Module X3 (CM7)
