Control Module HVAC




Component Connector End Views

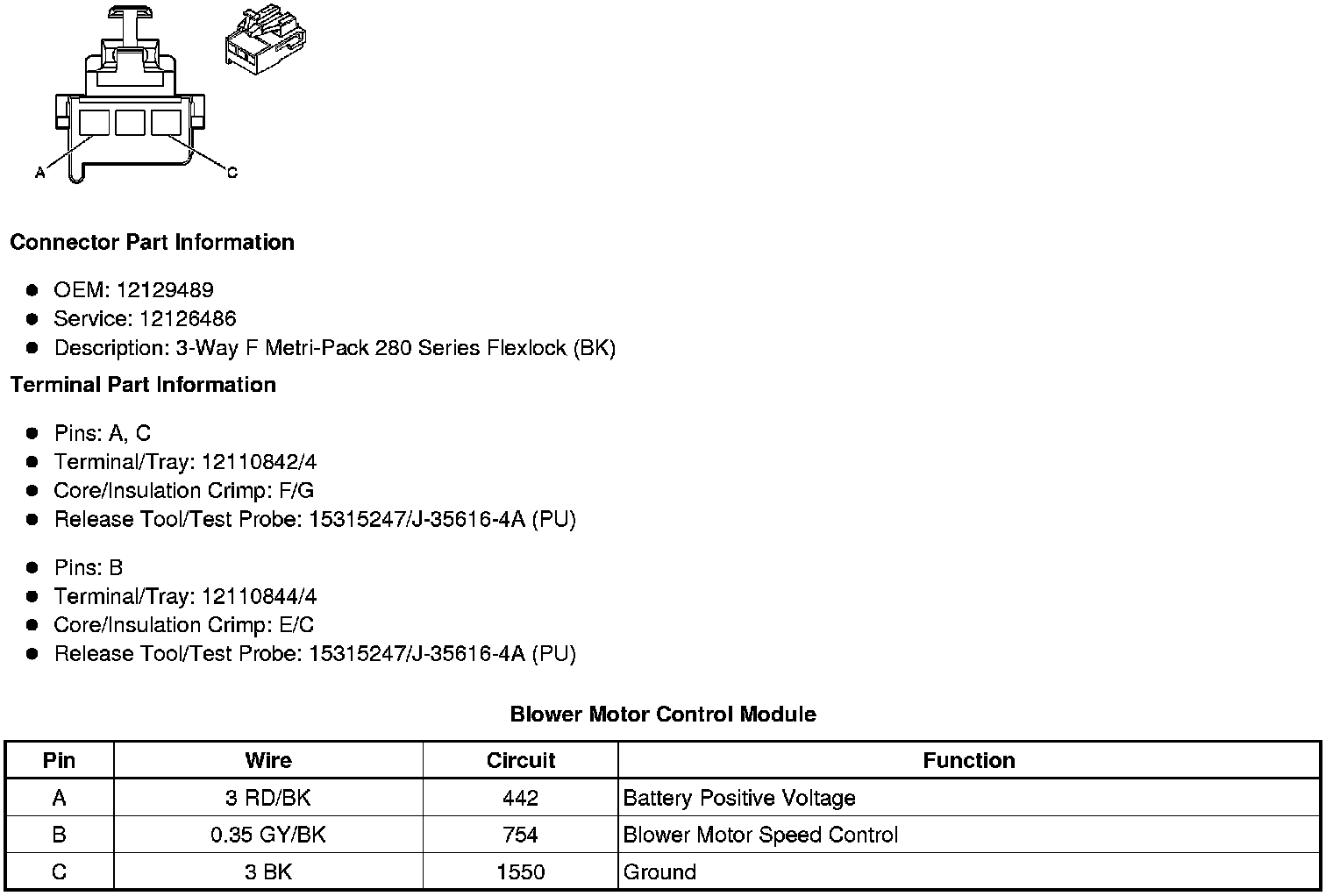

Blower Motor Control Module

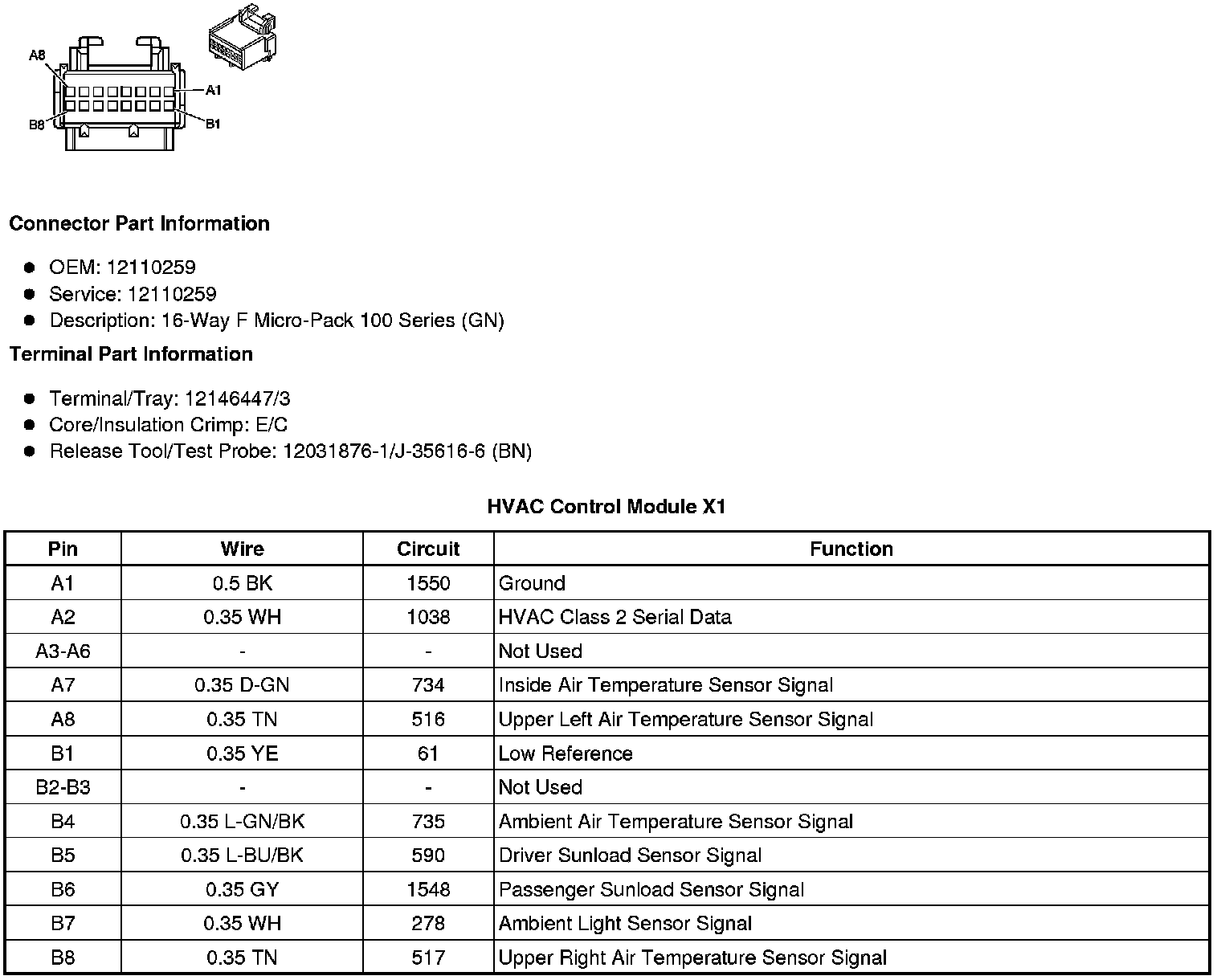

HVAC Control Module X1

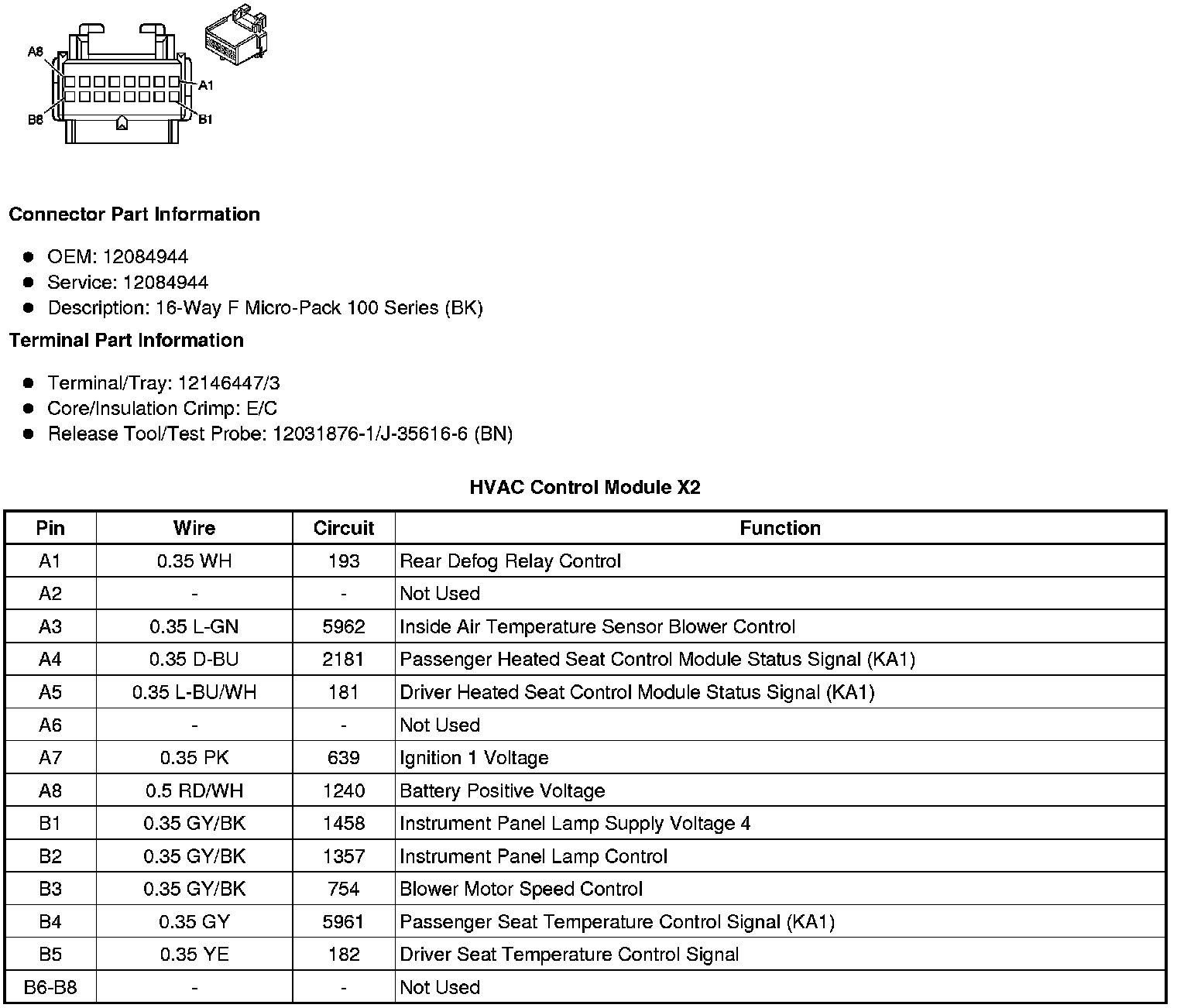

HVAC Control Module X2

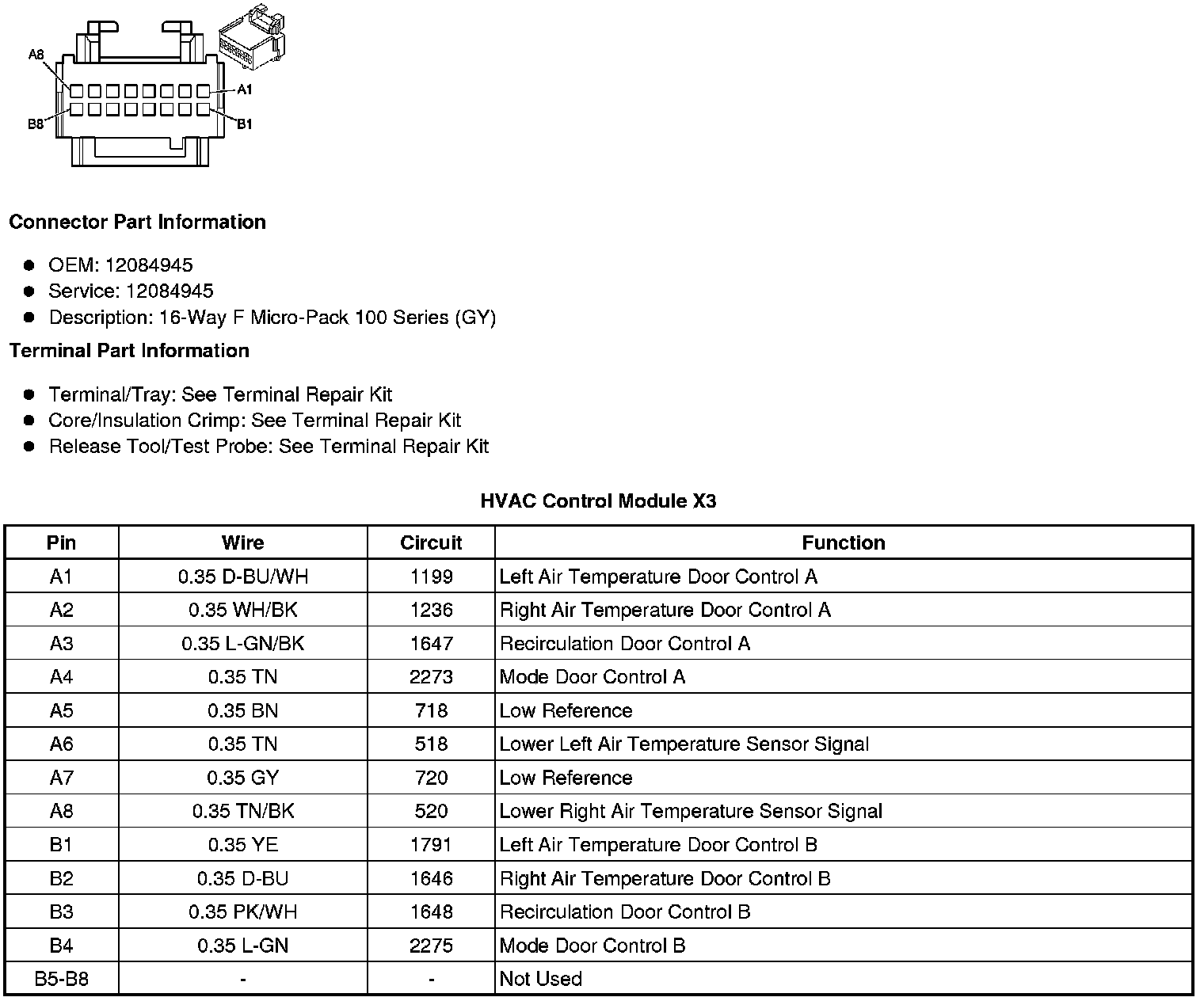

HVAC Control Module X3
