Body Control Module




Component Connector End Views

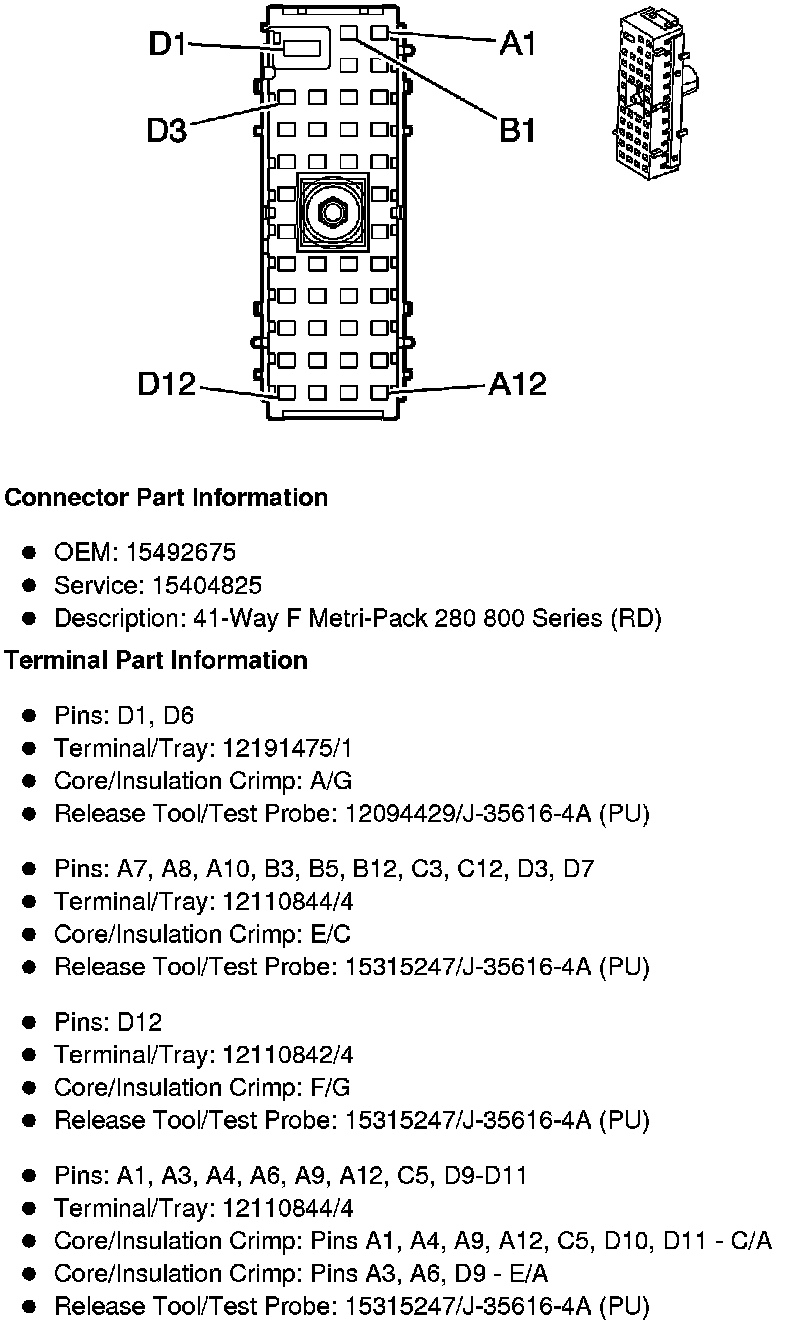

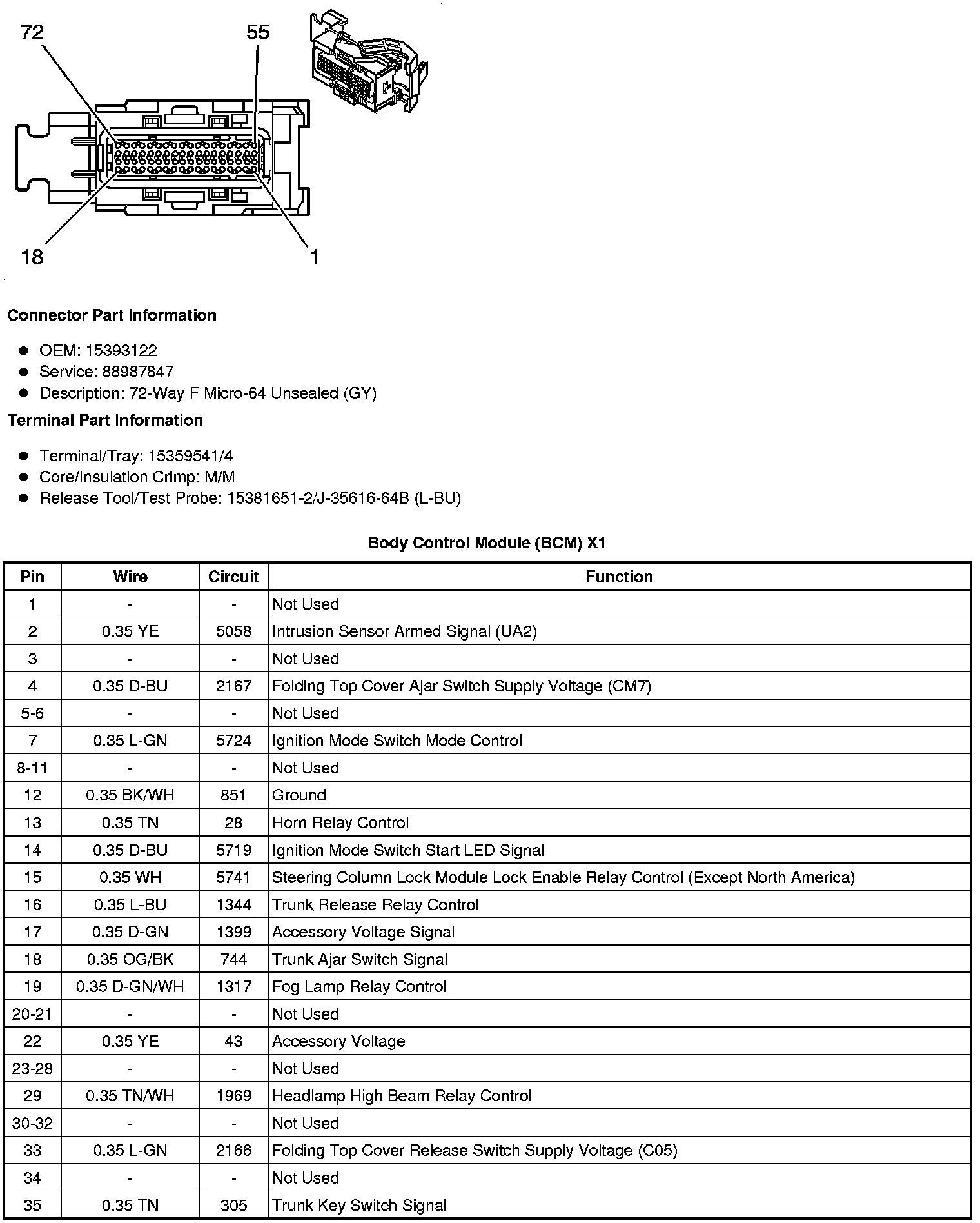

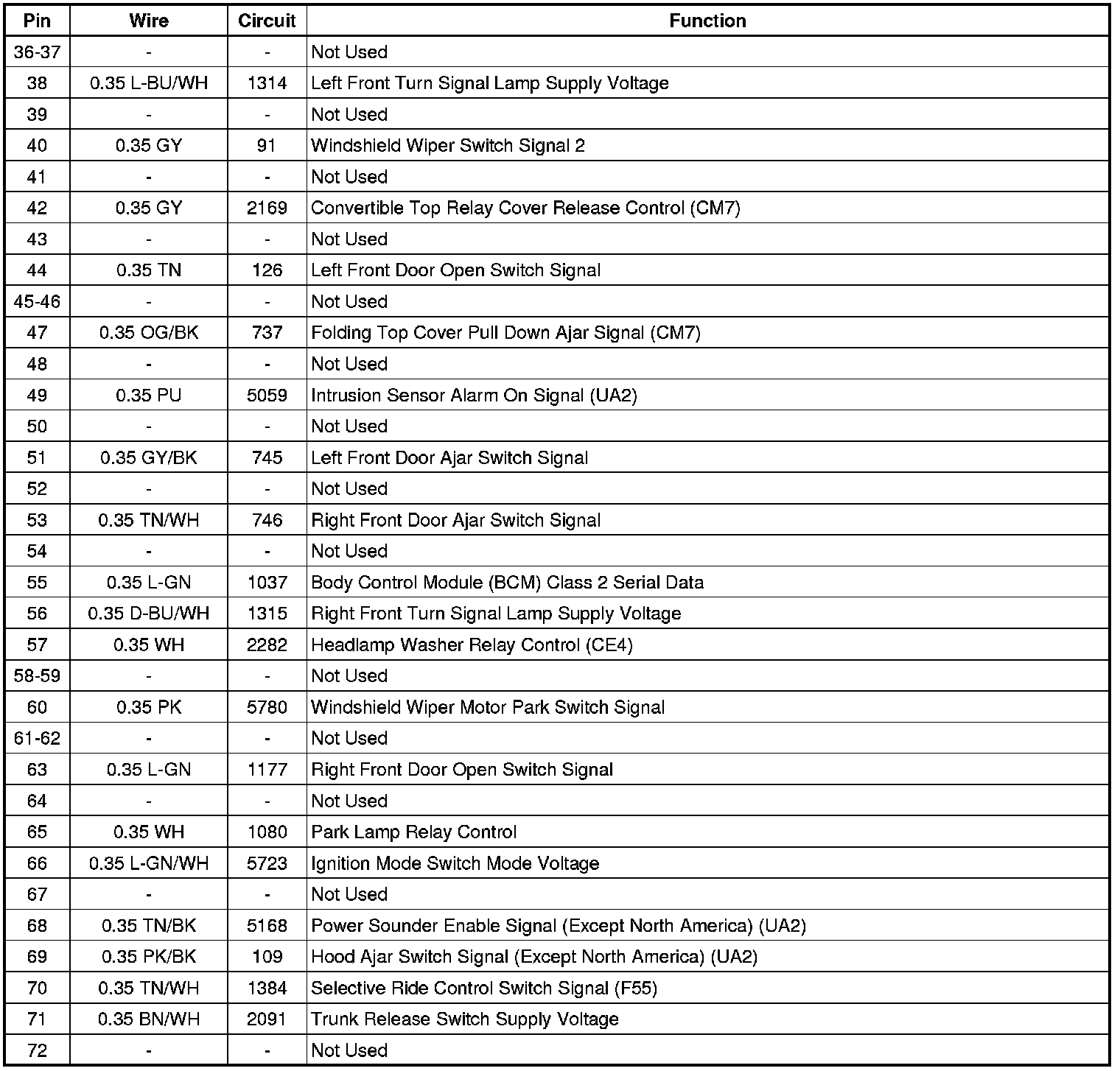

Body Control Module (BCM) X1










Body Control Module (BCM) X2

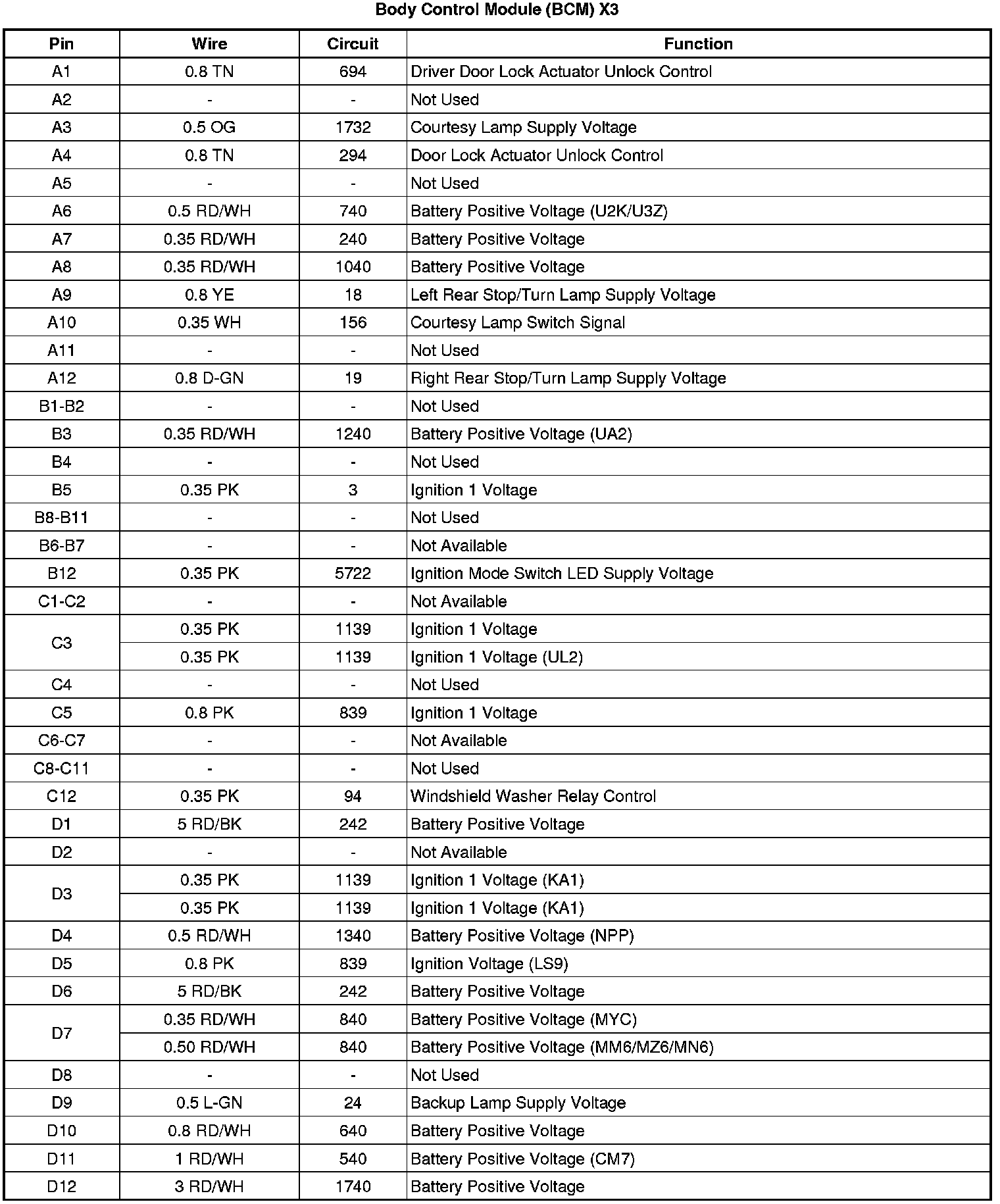

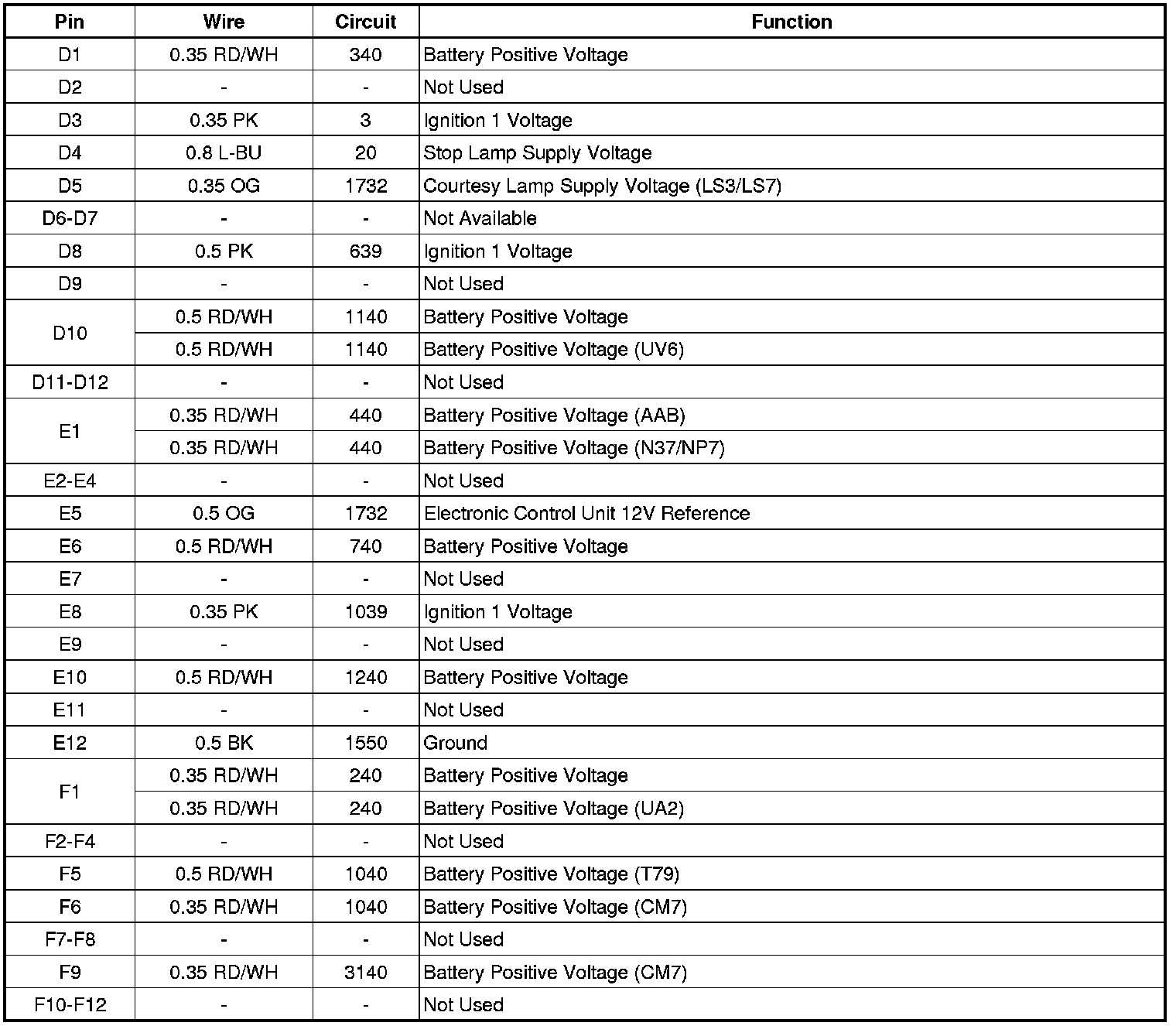

Body Control Module (BCM) X3

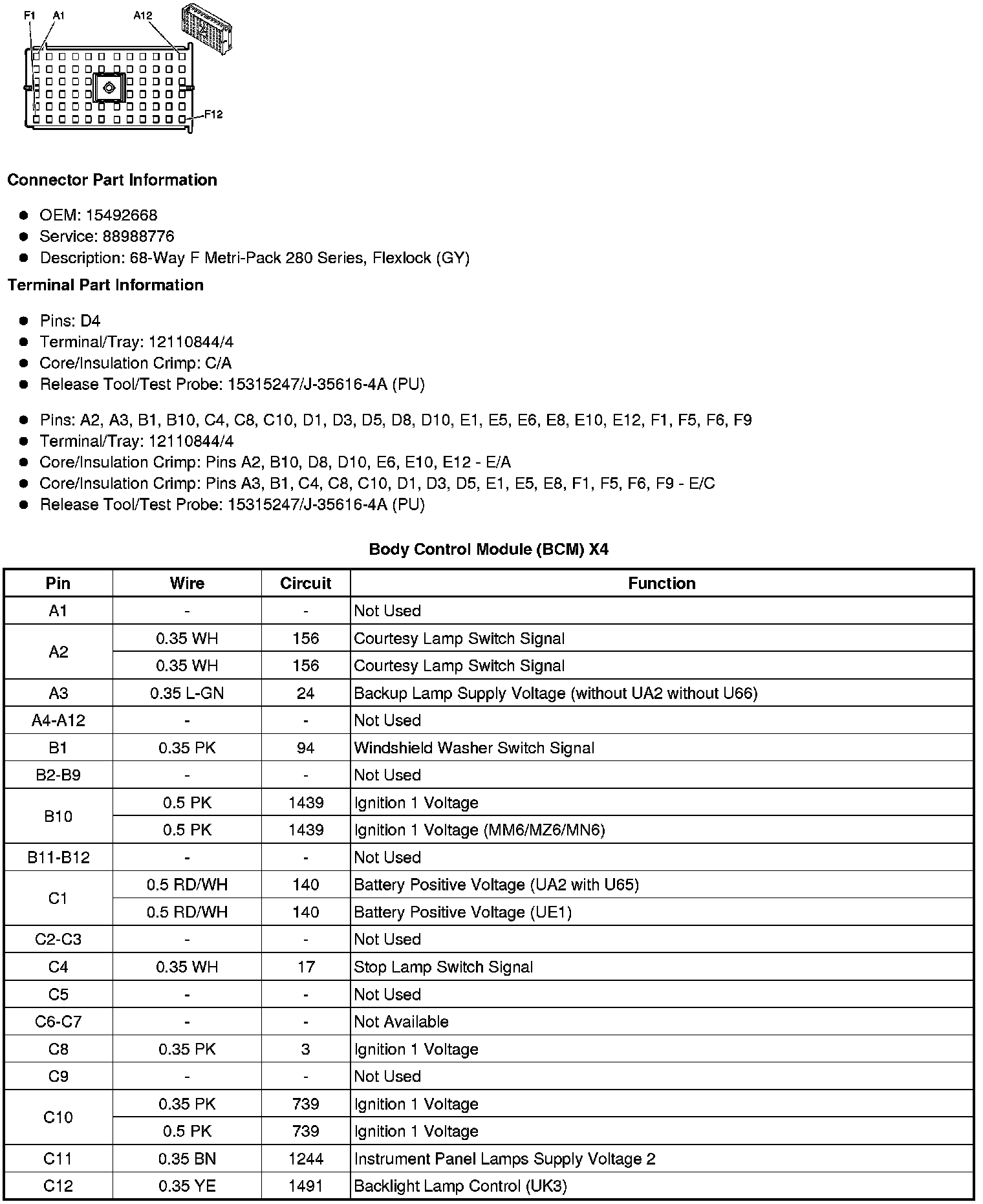

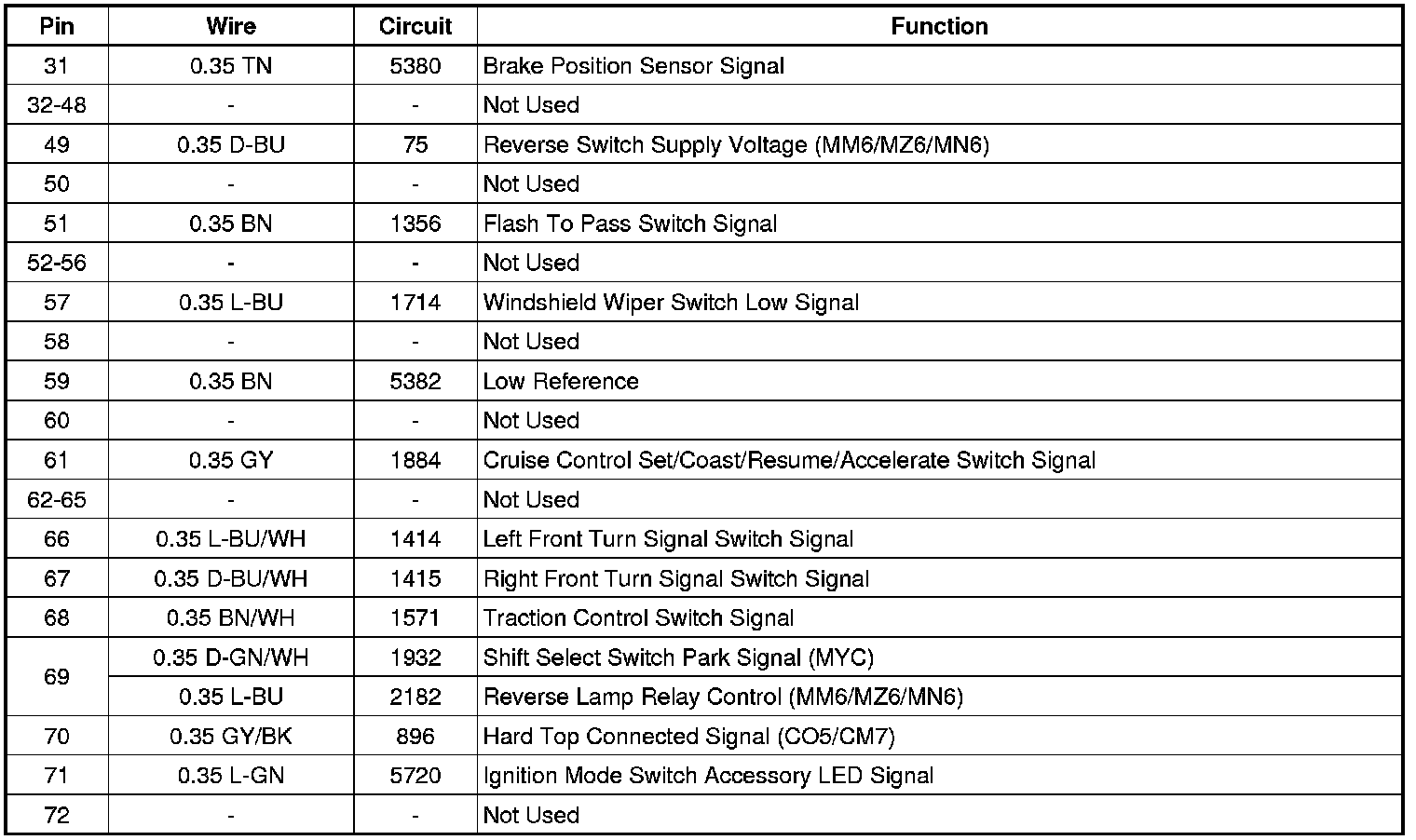

Body Control Module (BCM) X4
