Active Exhaust System Control Module
Component Connector End Views

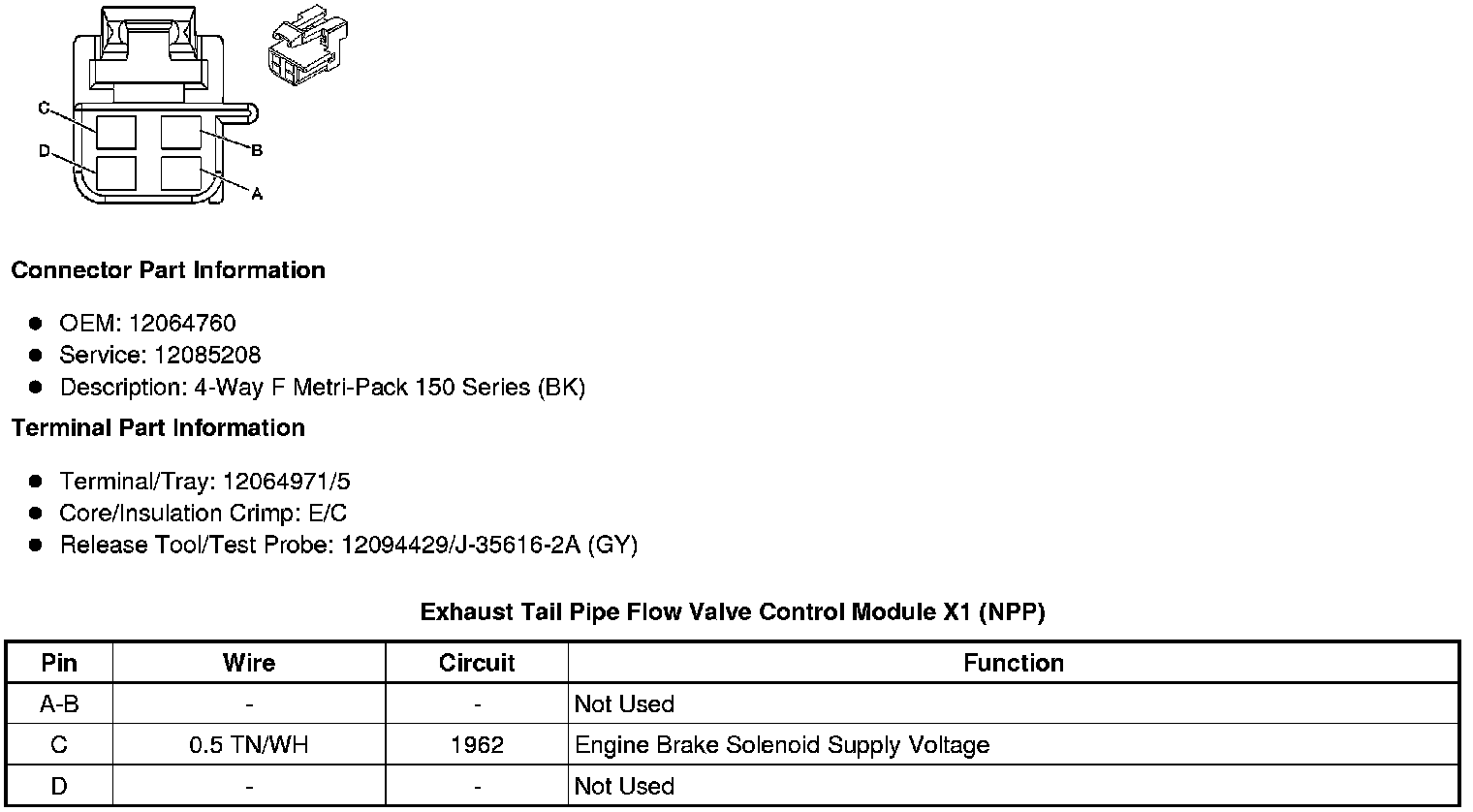

Exhaust Tail Pipe Flow Valve Control Module X1 (NPP)

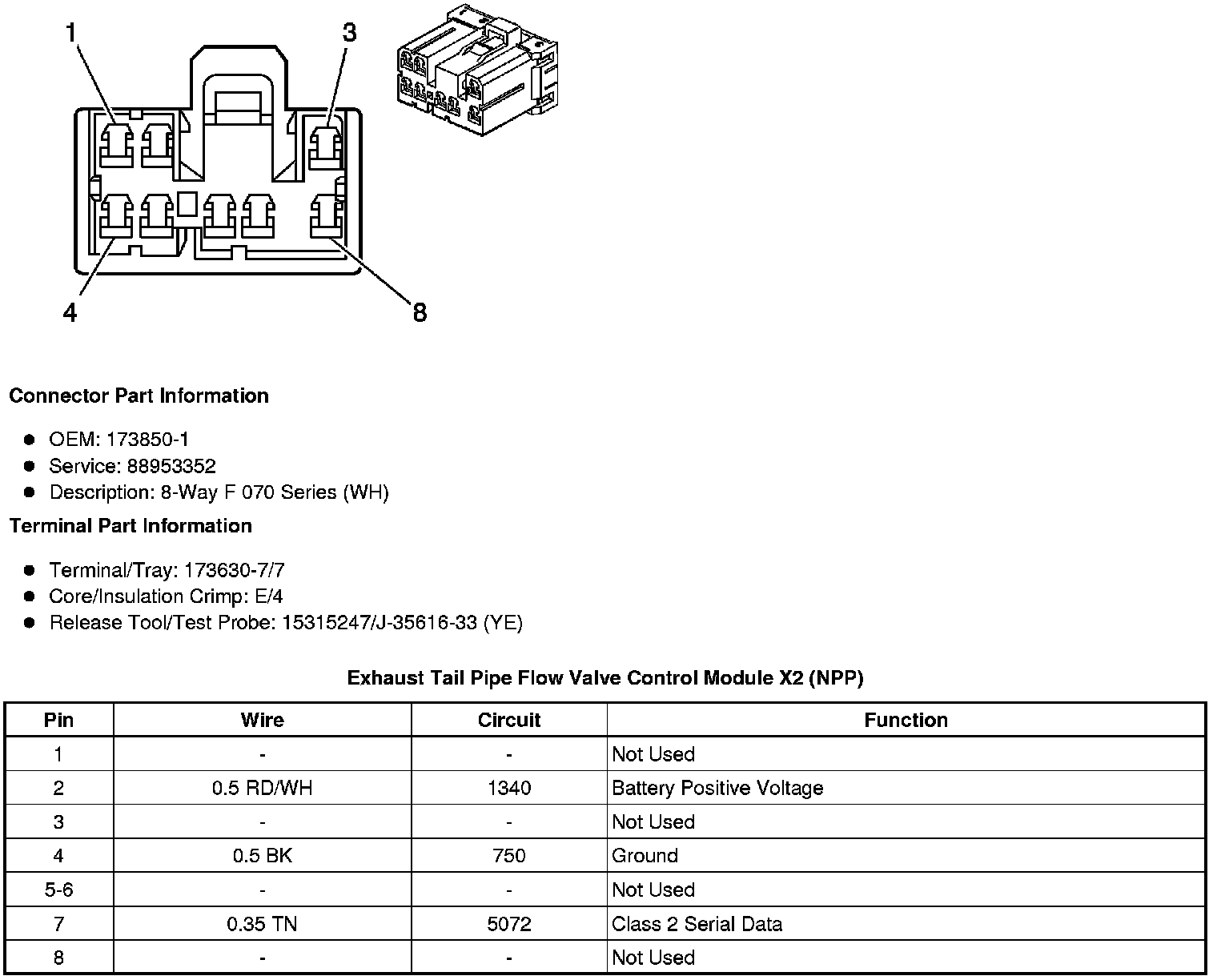

Exhaust Tail Pipe Flow Valve Control Module X2 (NPP)
Component Connector End Views
Exhaust Tail Pipe Flow Valve Control Module X1 (NPP)
Exhaust Tail Pipe Flow Valve Control Module X2 (NPP)
