Variable Induction Control Valve

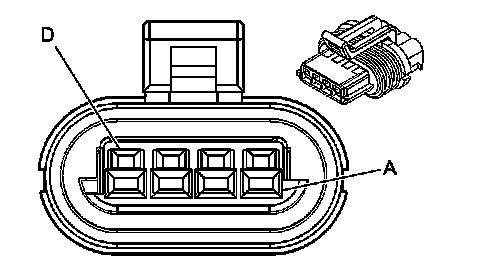

Engine Controls Connector End Views

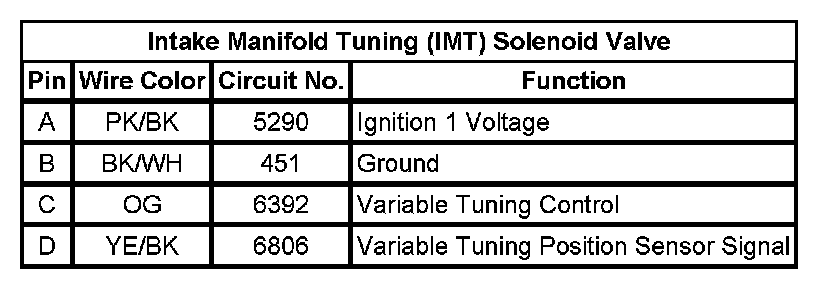

Intake Manifold Tuning (IMT) Solenoid Valve
