Transmission Control Systems

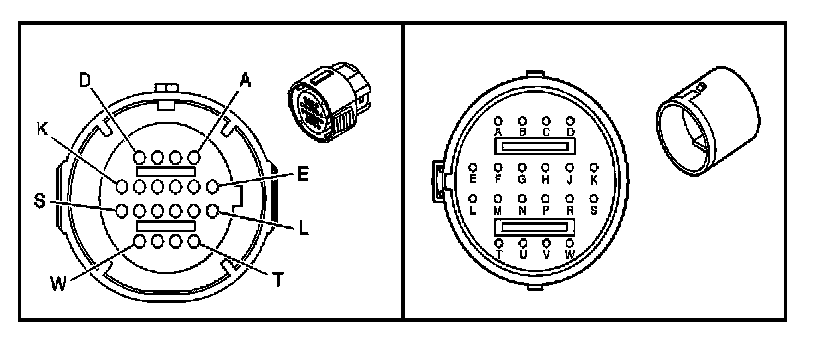

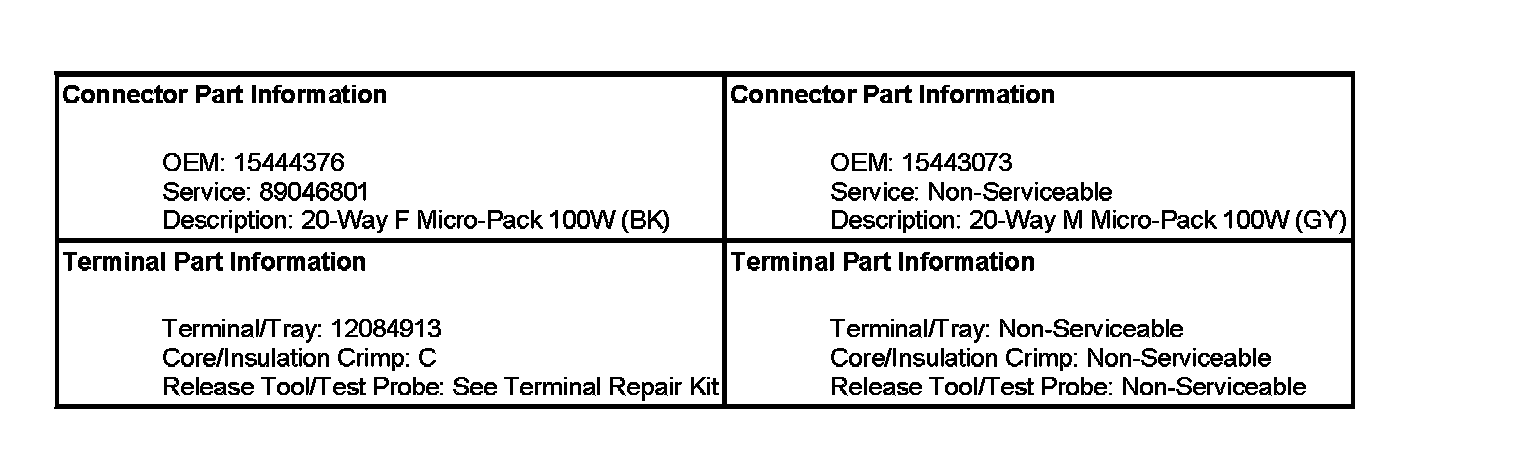

Automatic Transmission Inline 20-Way Connector End View

Engine Side to Transmission Side

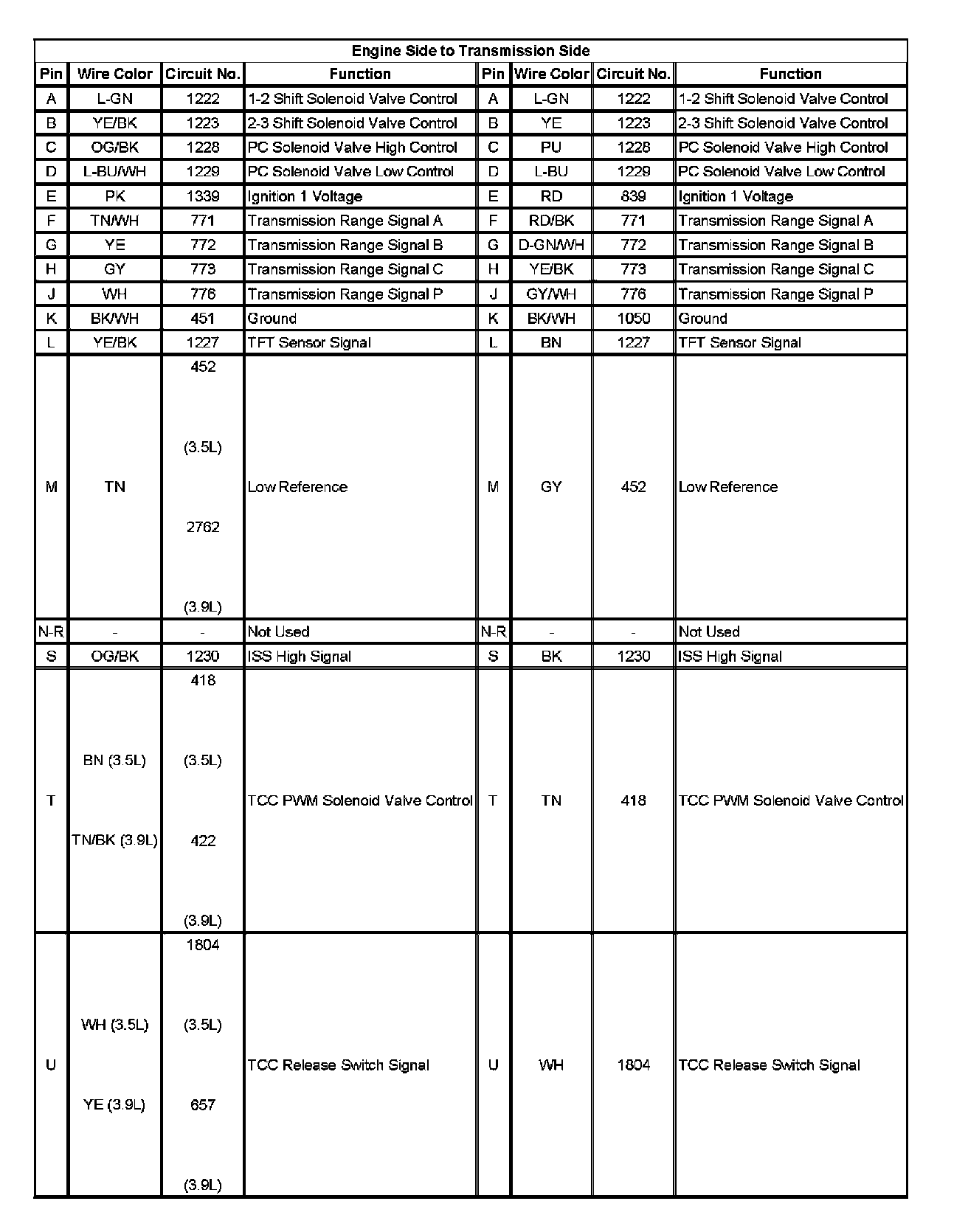

Engine Side to Transmission Side (Part 1):

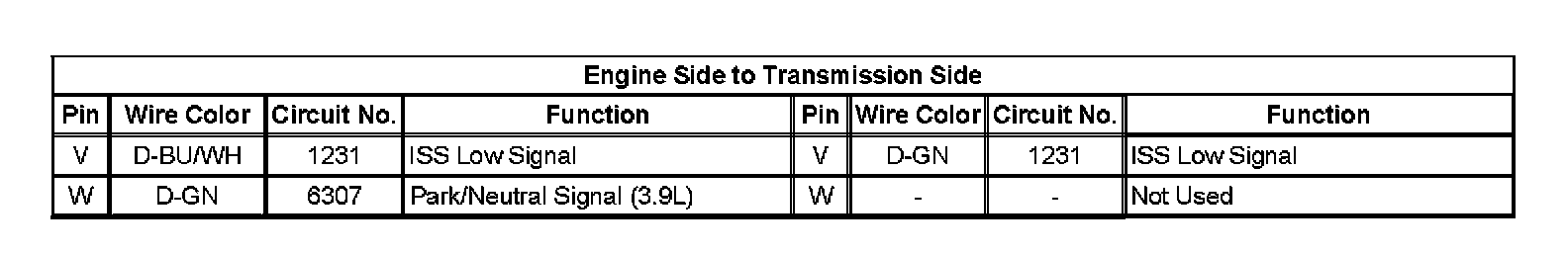

Engine Side to Transmission Side (Part 2):
