Steering Angle Sensor, Traction Control
Steering Angle Sensor, Traction Control

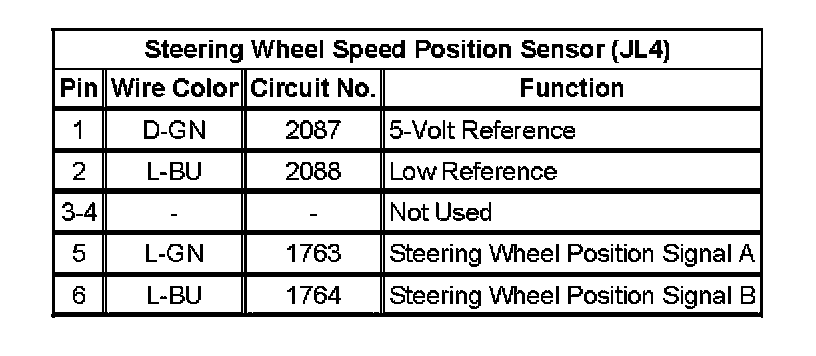

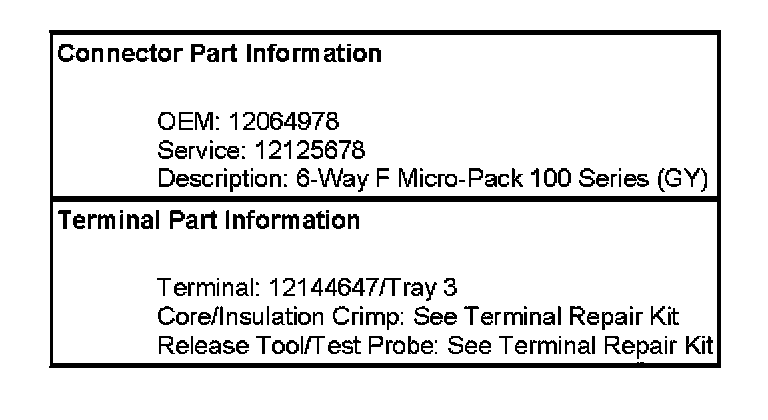

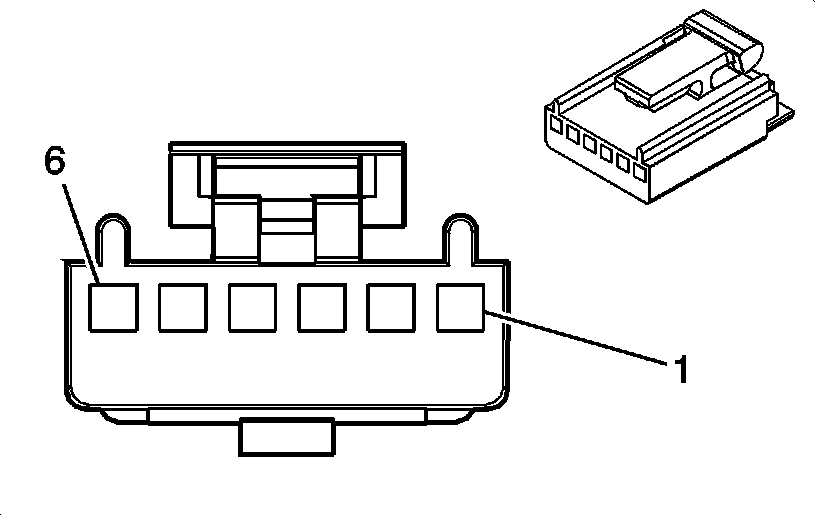

Steering Wheel Speed Position Sensor (JL4)
Steering Wheel Speed Position Sensor (JL4):
